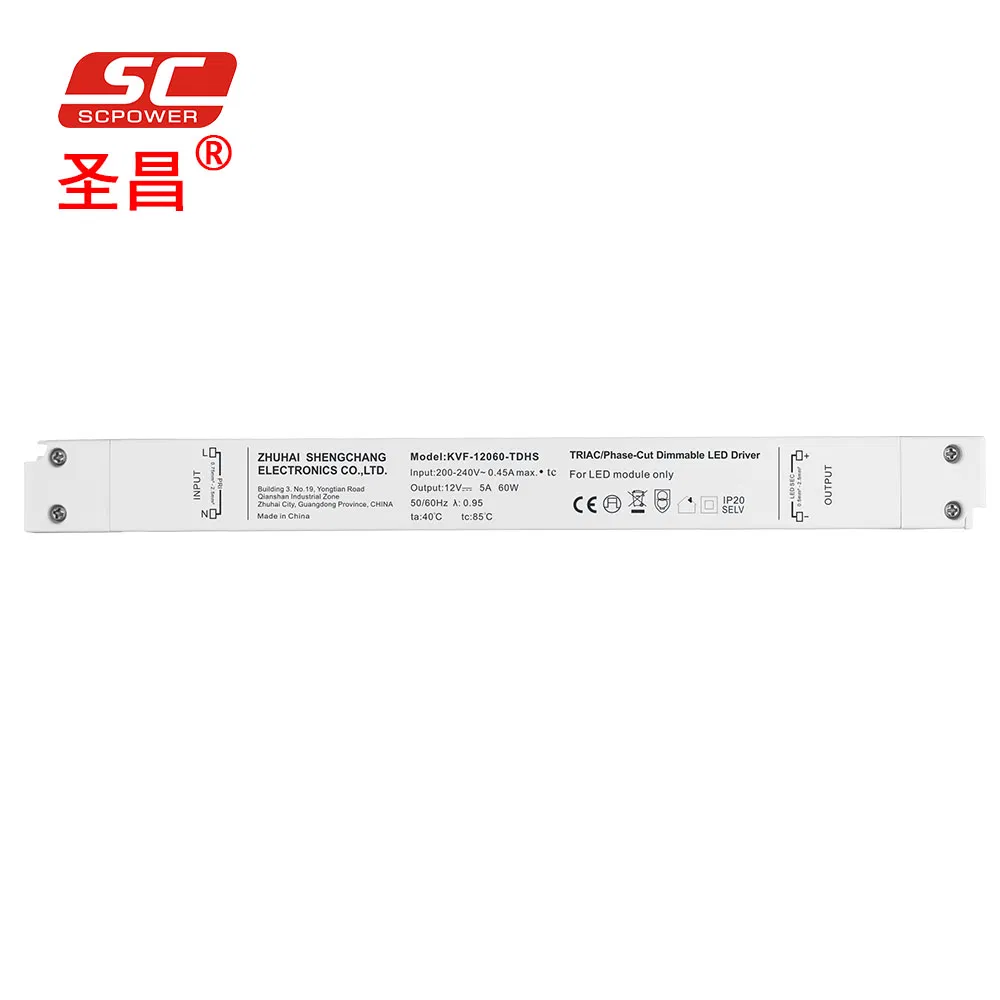

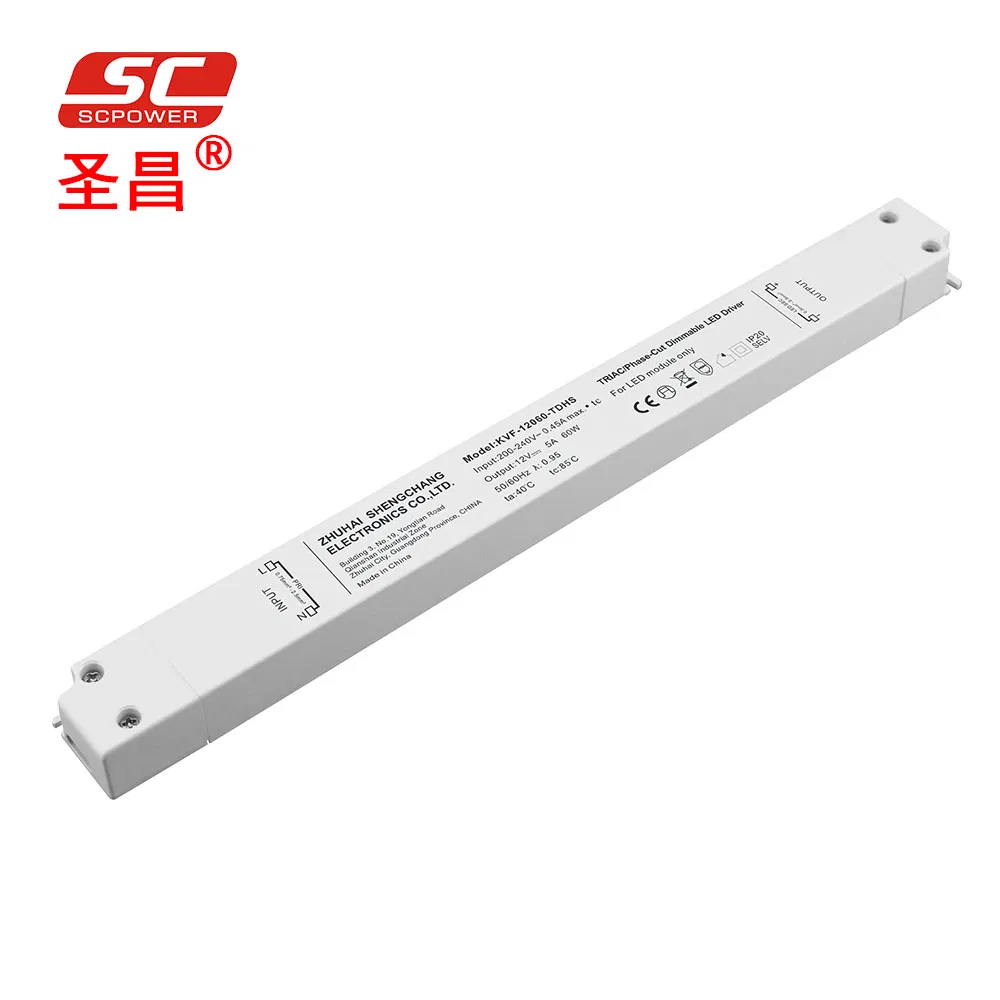

Ultra Slim Plastic 230V 110V AC Triac Phase Cut Dimmable 30W 36W 60W 96W 100W 150W LED Driver
Product DescriptionUltra slim plastic 230v 110v ac triac phase cut dimmable 30w 36w 60w 96w 100w 150w LED DriverFeature·Output constant voltage·Range: 200-240VAC ·Built-in active PFC function Power Factor: up to 0.96·Efficiency up to 88% ·Dimm......
Send Inquiry
Product Description
Ultra slim plastic 230v 110v ac triac phase cut dimmable 30w 36w 60w 96w 100w 150w LED Driver

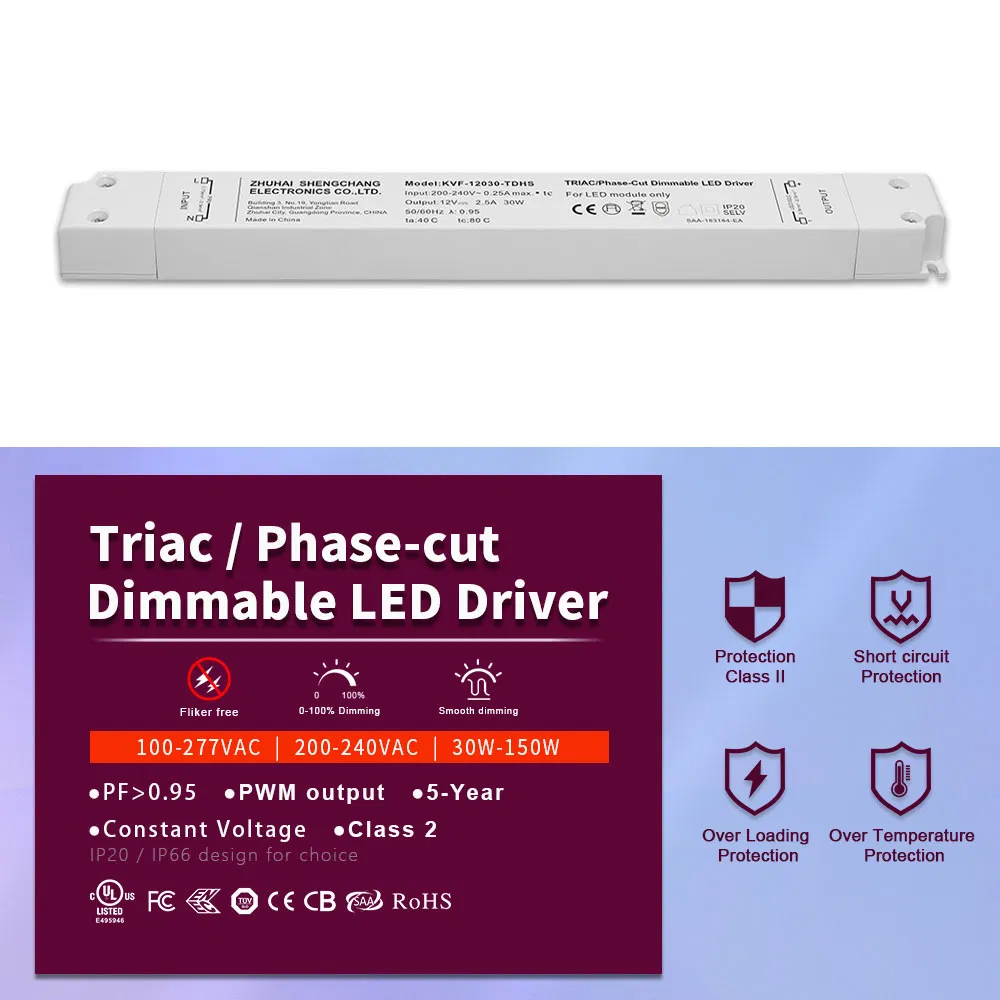

Feature
·Output constant voltage
·Range: 200-240VAC
·Built-in active PFC function Power Factor: up to 0.96
·Efficiency up to 88%
·Dimming range: 0-100%
·Load: 10-100%
·Protection:short circuit/over loading/ Over temperature
·PWM output, does not change the color index
·Full protection plastic case, IP20 for indoor installation
·Flicker-free
·Compatible with leading edge and trailing edge TRIAC dimmers
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications

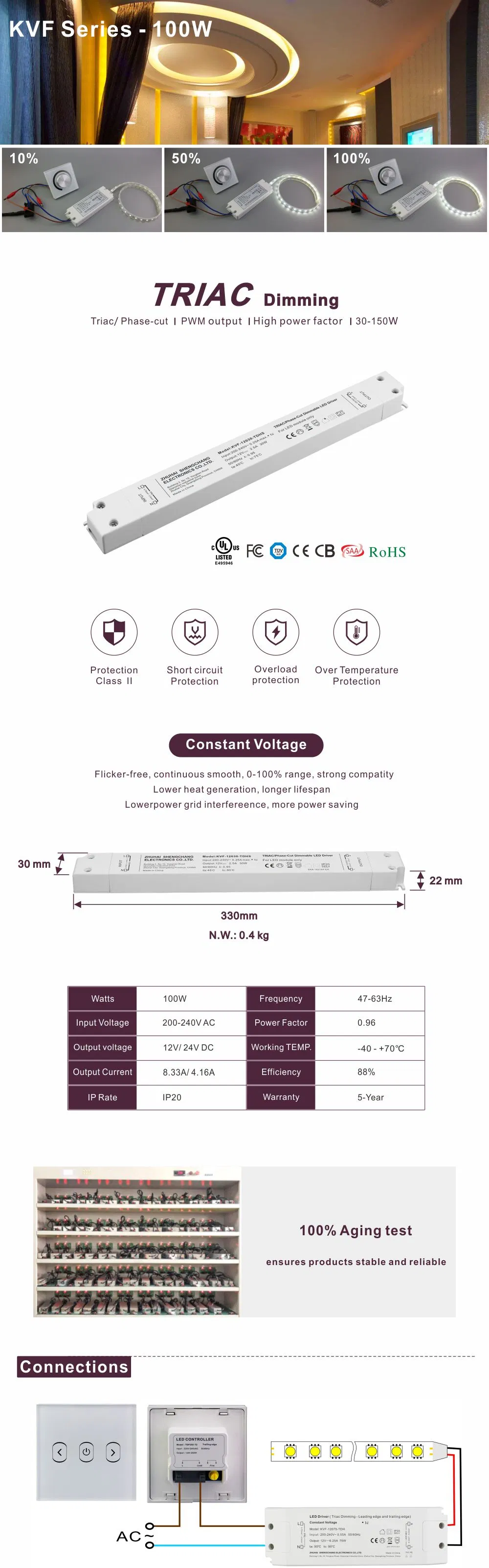

Specification

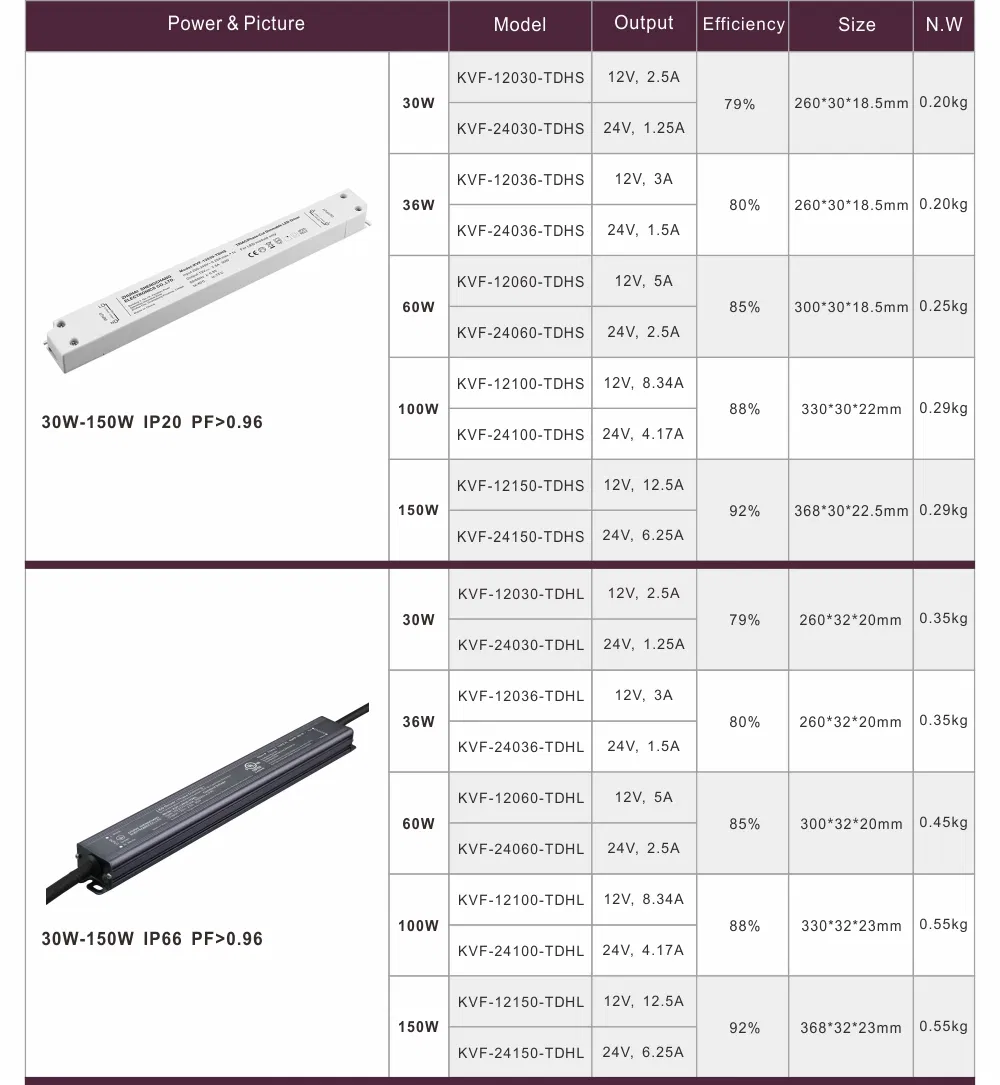

Model | KVF-12100-TDHS | KVF-24100-TDHS | |
Output | DC Voltage | 12V | 24V |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ± 0.5% | ||
Rated current | 8.33A | 4.17A | |
Rated power | 100W | ||
Load Regulation | ±2% | ||
Input | Voltage Range | 200-240VAC | |
Frequency Range | 47 - 63Hz | ||
Power Factor(Typ.)@ full load | PF≥0.96/230VAC | ||
THD(Typ. ) @ full load | <10% | ||
Efficiency(Typ.)@ full load | 86% | 88% | |
AC Current(Max.) | 0.61A/200VAC | 0.59A/200VAC | |
Inrush Current (Typ.) | 52A, 50% 210us@230VAC | ||
Leakage current | <0.5mA | ||
Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
Over Load | ≤120% constant current limiting, auto-recovery | ||
Over temperature | 100ºC±10ºC | ||
Protection Class | II | ||
Environment | Working TEMP. | -40~+60ºC (see below derating curve) | |
Working Humidity | 20 - 95%RH,non-condensing | ||
Storage TEM.,Humidity | -40 - +80ºC,10 - 95%RH | ||
TEMP.coefficient | ±0.03%/ºC(0 - 50ºC) | ||
Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 EN62493 | |
Withstand voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||
Isolation resistance | I/P-O/P I/P-FG O/P-FG: 100MΩ/500VDC/25ºC/70%RH | ||
EMC Emission | EN55015 EN61000-3-2 EN61000-3-3 | ||
EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 | ||
Others | Net Weight | 0.4Kg | |
Dimension | 330*30*22mm(L*W*H) | ||
packing | 50pcs /CTN SIZE: 350X330X145mm | ||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
