200W LED Waterproof Power Supply with Ce UL Certificated

 Electrical Characteristics:
   1) I/P:  AC100-240V, 50/60Hz
   2) O/P:  DC38-48V,  4.16A
   3) Ripple:  < 1% ( P-P )
   4) Efficiency:  > 86%
   5) No Load Standby Power:  <=0.50W at 230V
   6) Load Regulation:  ±5% maximum
   7) UL /CE /RoHS Compliance

 Features:
    a)  IP64 Waterproof Rate ;
    b)  With over voltage, over current & short circuit protection;
    c)  Cooling by free air convection;
    d)  Operating Temperature:  -10 to +45 degree Celsius
    e)  Storage Temperature:  -20 to +85 degree Celsius
    f)  Size:  215*75*48mm

 Application:  Specially used in LED waterproof projects, LED module etc.

 Trade Terms:
    1) Low Min. Order:  100PCS,
    2) Delivery lead time: 15-20 days,
    3) Terms Of Payment:  T/T or Irrevocable L/C
    4) Quality Guarantee:  Min Two Year

The customized designs are viable.

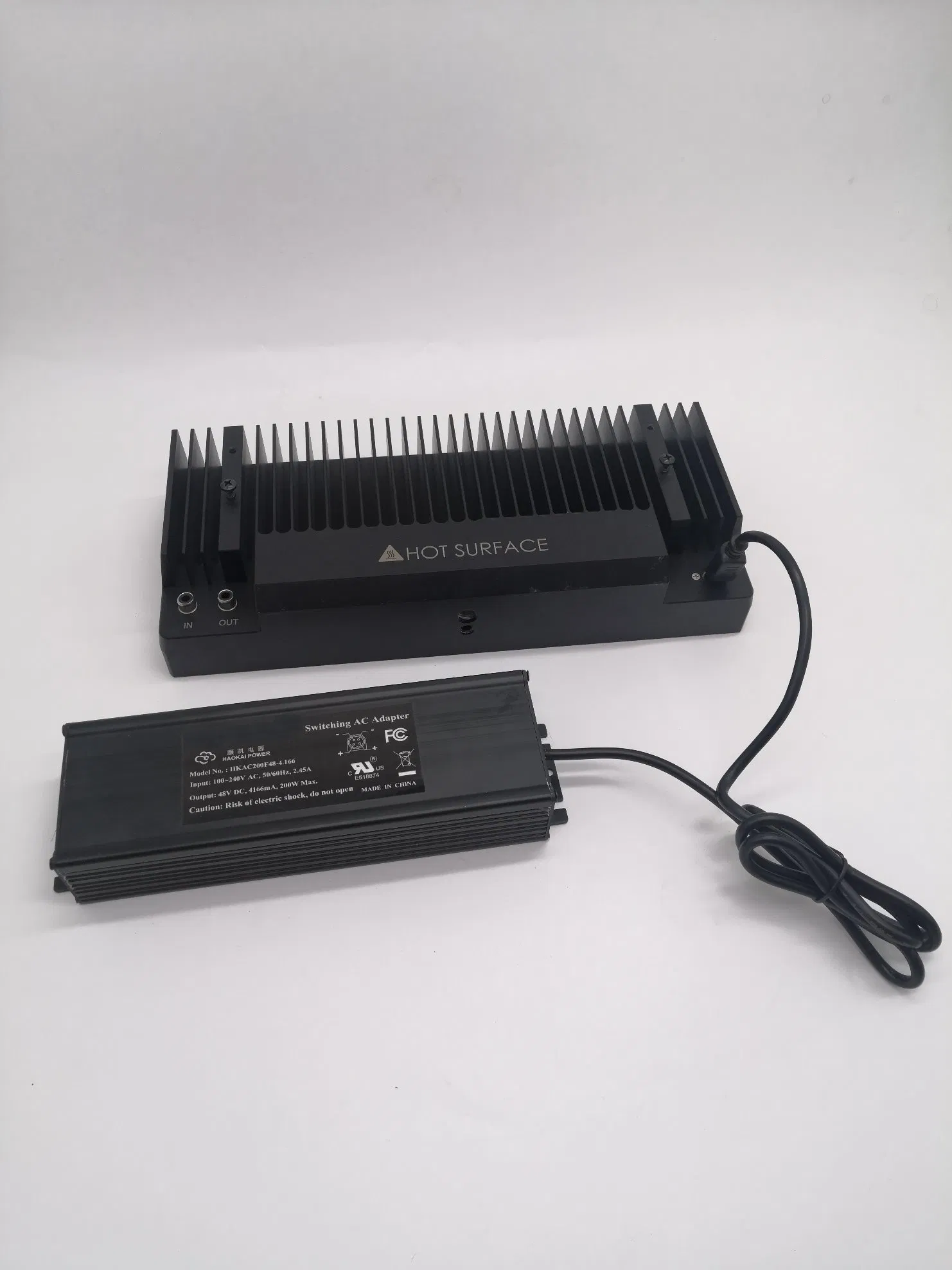

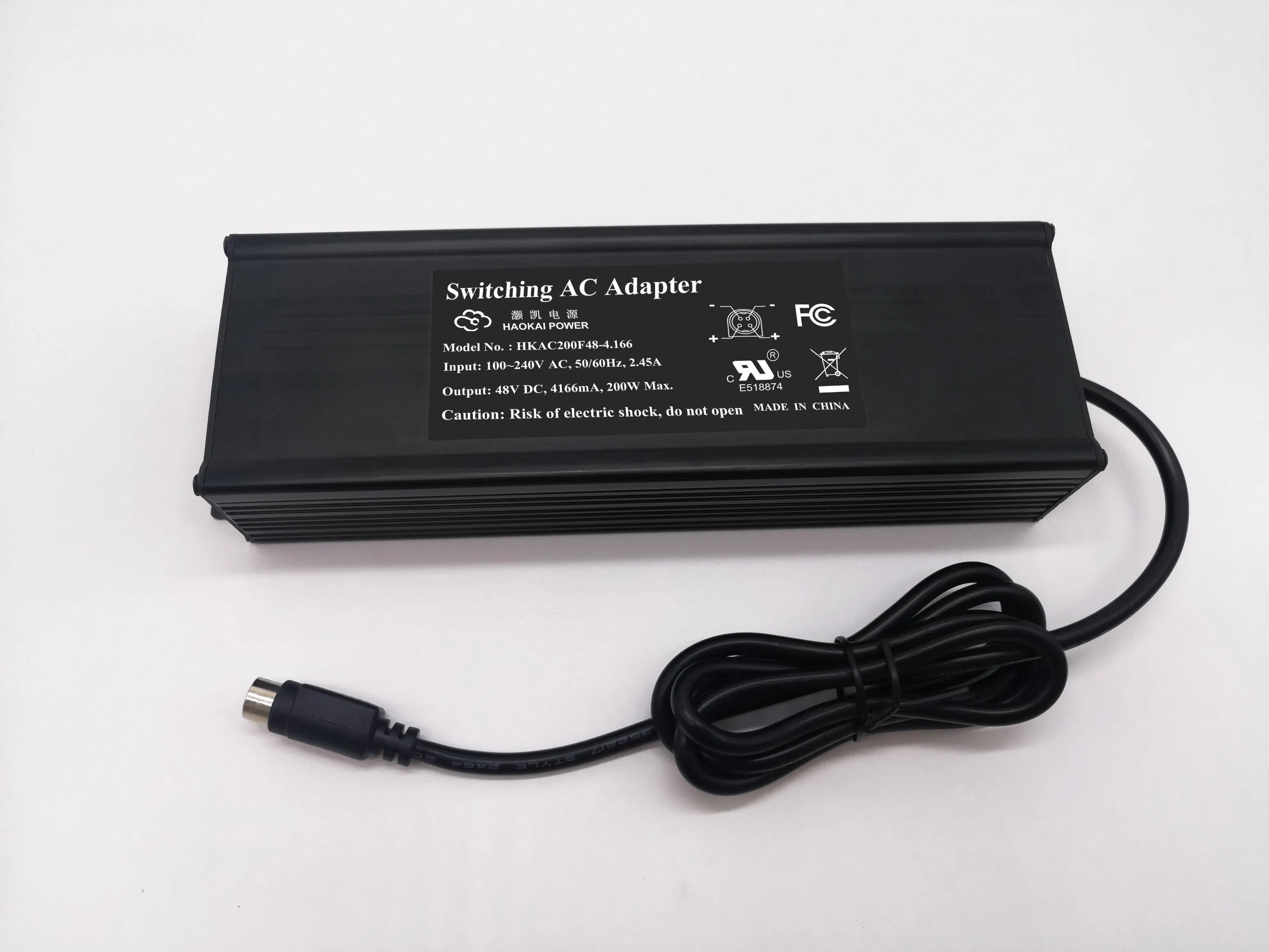

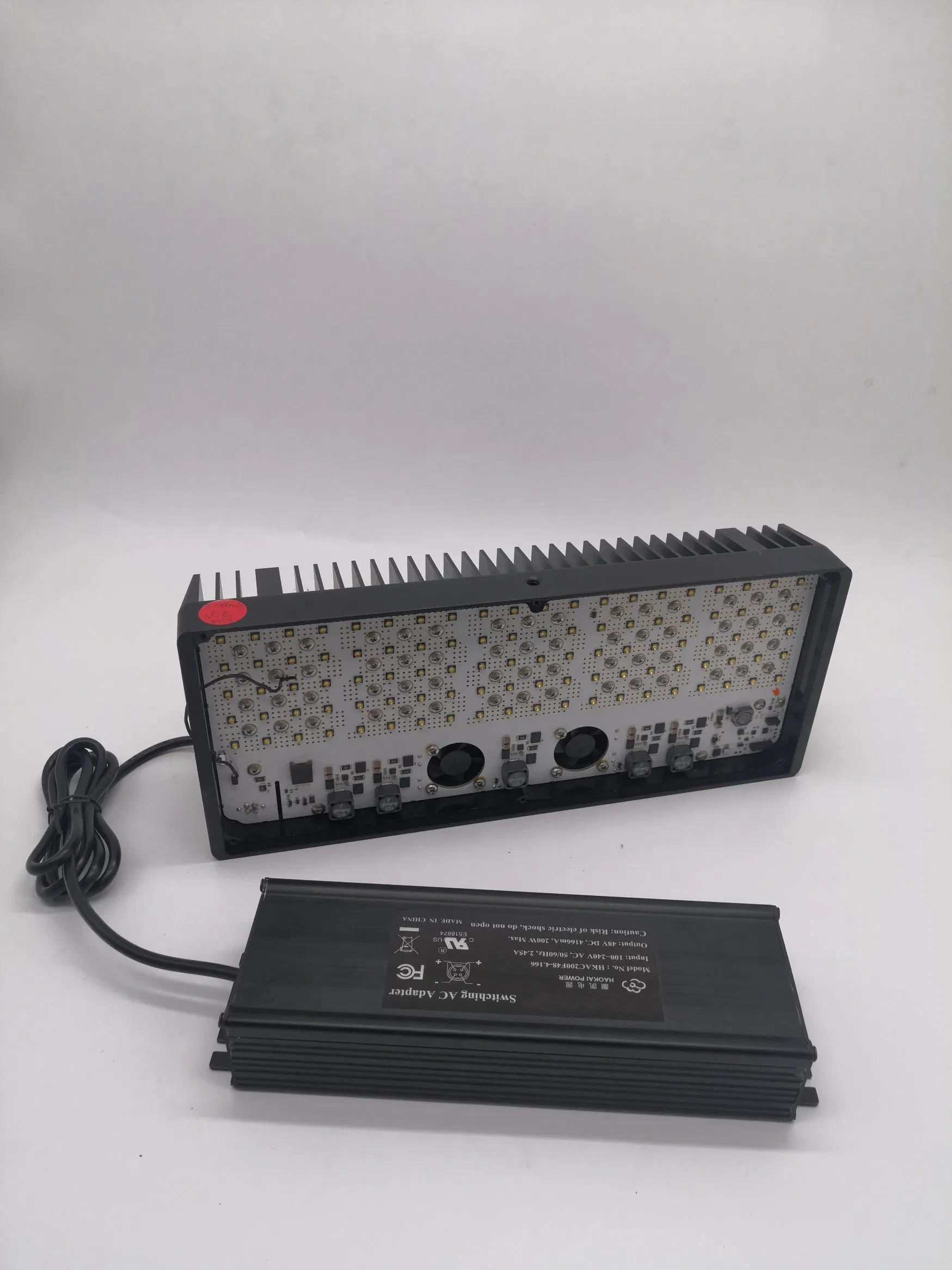

Please check attached photos from different sides.  The functions and ciucuit can be designed according to different technical requirement.
