Home > Products > LED Power Supply > Triac Leading Edge Dimmable IP66 Waterproof LED Driver 120W Power Supply CE 12V DC Transformer

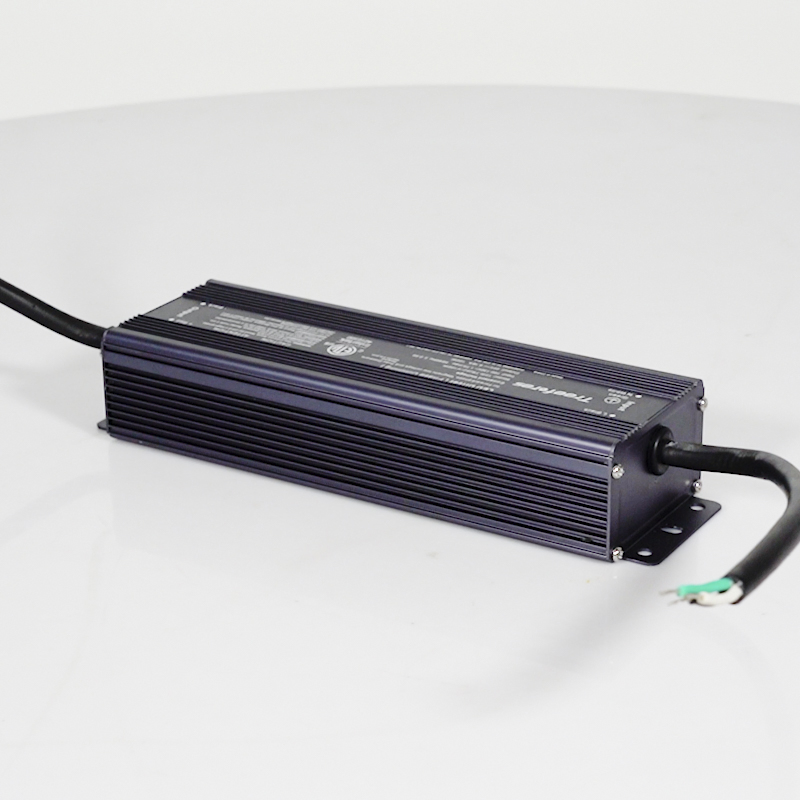

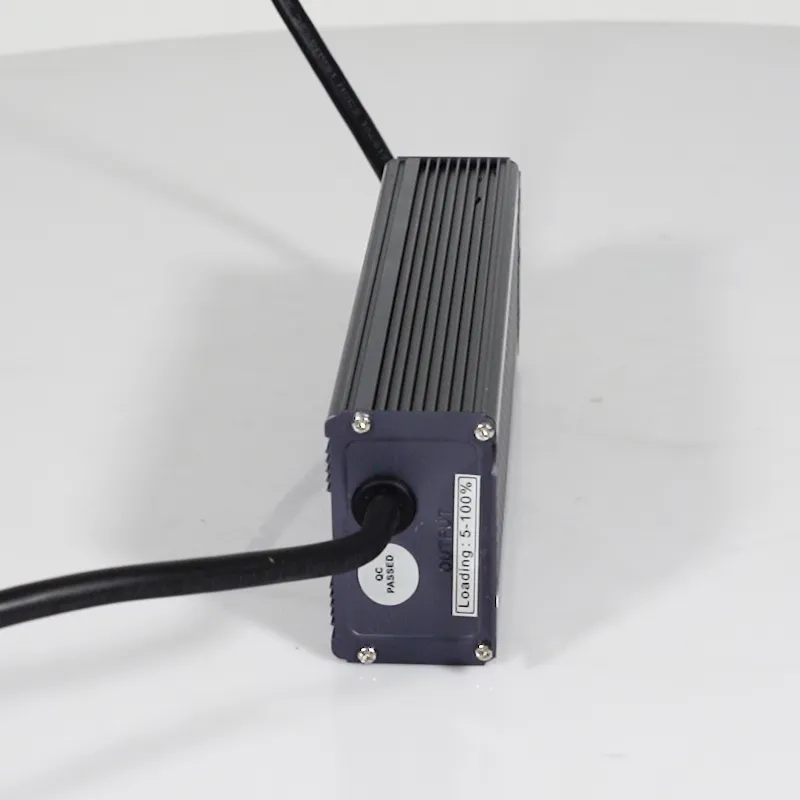

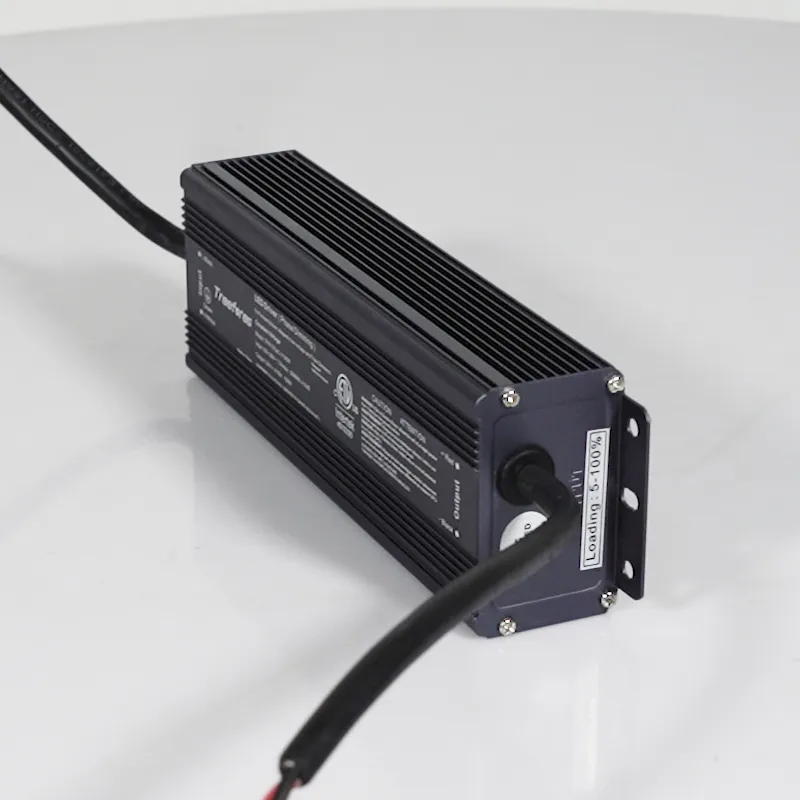

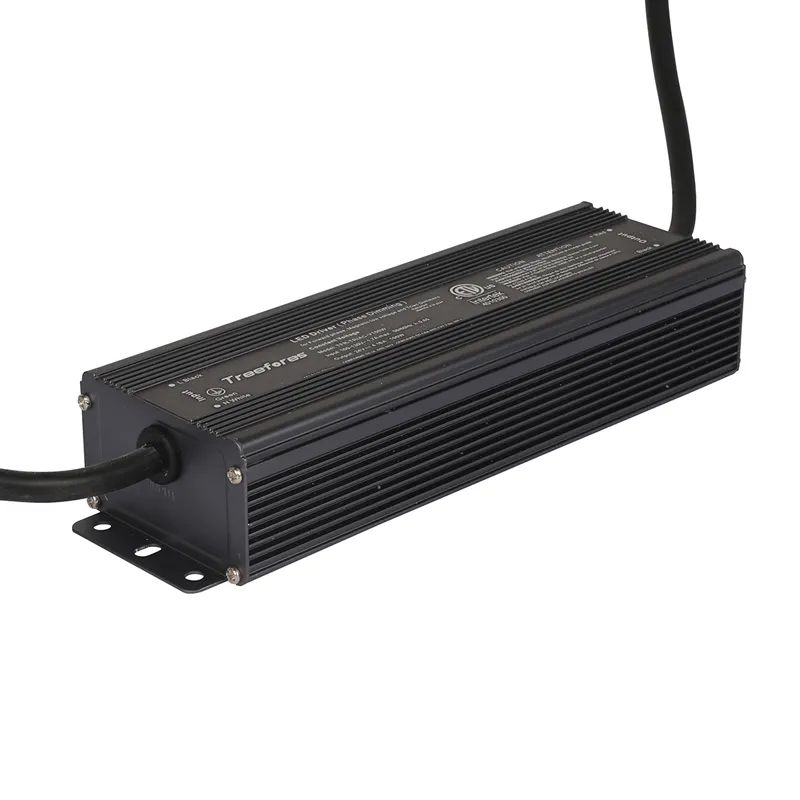

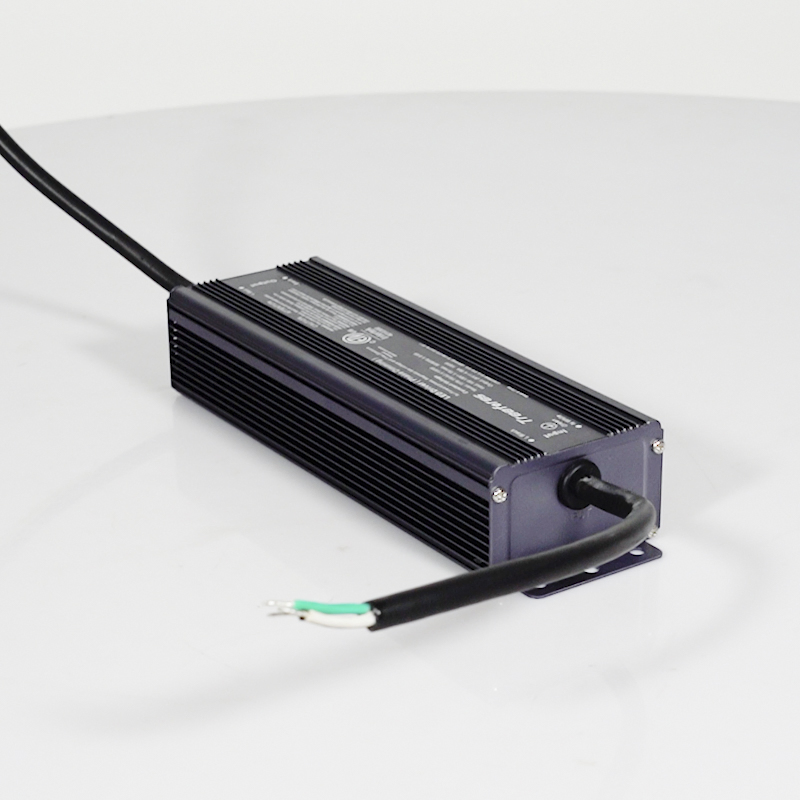

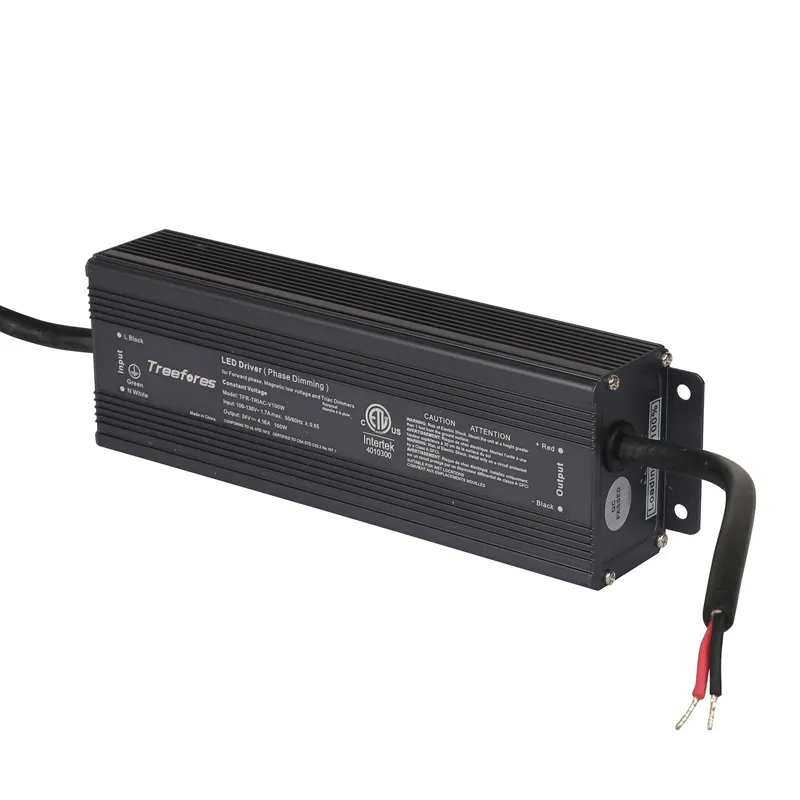

Triac Leading Edge Dimmable IP66 Waterproof LED Driver 120W Power Supply CE 12V DC Transformer
Triac Leading Edge Dimmable IP66 waterproof led driver 120W power supply CE 12V dc transformer Dimension: 120W: 230*70*45mm Power Factor: 95%Efficiency: 87%Leakage Current: <0.70mA/220VACShort Circuit: intermittent restart mode, recover after the exception is eliminatedOverload: <=120%Over-t......
Send Inquiry
Product Description
Triac Leading Edge Dimmable IP66 waterproof led driver 120W power supply CE 12V dc transformer
Power Factor: 95%
Efficiency: 87%
Leakage Current: <0.70mA/220VAC
Short Circuit: intermittent restart mode, recover after the exception is eliminated
Overload: <=120%
Over-temperature protection 100ºC±10ºC Over-temperature shuts off, automatically recover.
Working Temperature: -40~+60ºC
Working Humidity: 20~90%RH, non-condensing
Storage Temperature and Humidity: -40~+80ºC, 10~95%RH
Temperature Coefficient: ±0.03%/ºC (0~50ºC)
Vibration Resistance: 10~500Hz, 2G 10 minutes/cycle, X, Y, Z axis each for 60 minutes
Safety Regulations: EN61347-1 EN61347-2-13
Withstand Voltage: I/P-O/P: 3.75KVAC I/P-FG: 1.88KVAC O/P-FG: 0.5KVAC
Insulation resistance: I/P-O/P: 100MΩ/500VDC/25ºC/70%RH
Electromagnetic Compatibility Emission: EN55015, EN61000-3-2, 3 (>=50% load)
Electromagnetic Compatibility Cmmunity: EN61000-4-2,3,4,5,6,11 (surge 4KV)
Triac Dimmable Led Driver
Warranty policy:
1: Warranty: 3 years.
2: 100% of all products will be tested before shipping by our QC staff.
3: During the warranty period, we will immediately supply replacement for free.
4: Promot technciail supports and led solution will be offered!
5: Favorable price according to large qty.
6: Once partnership established, newest and hottest products information
Dimension:
120W: 230*70*45mm
Power Factor: 95%
Efficiency: 87%
Leakage Current: <0.70mA/220VAC
Short Circuit: intermittent restart mode, recover after the exception is eliminated
Overload: <=120%
Over-temperature protection 100ºC±10ºC Over-temperature shuts off, automatically recover.
Working Temperature: -40~+60ºC
Working Humidity: 20~90%RH, non-condensing
Storage Temperature and Humidity: -40~+80ºC, 10~95%RH
Temperature Coefficient: ±0.03%/ºC (0~50ºC)
Vibration Resistance: 10~500Hz, 2G 10 minutes/cycle, X, Y, Z axis each for 60 minutes
Safety Regulations: EN61347-1 EN61347-2-13
Withstand Voltage: I/P-O/P: 3.75KVAC I/P-FG: 1.88KVAC O/P-FG: 0.5KVAC
Insulation resistance: I/P-O/P: 100MΩ/500VDC/25ºC/70%RH
Electromagnetic Compatibility Emission: EN55015, EN61000-3-2, 3 (>=50% load)
Electromagnetic Compatibility Cmmunity: EN61000-4-2,3,4,5,6,11 (surge 4KV)
Triac Dimmable Led Driver
Warranty policy:
1: Warranty: 3 years.
2: 100% of all products will be tested before shipping by our QC staff.
3: During the warranty period, we will immediately supply replacement for free.
4: Promot technciail supports and led solution will be offered!
5: Favorable price according to large qty.
6: Once partnership established, newest and hottest products information
