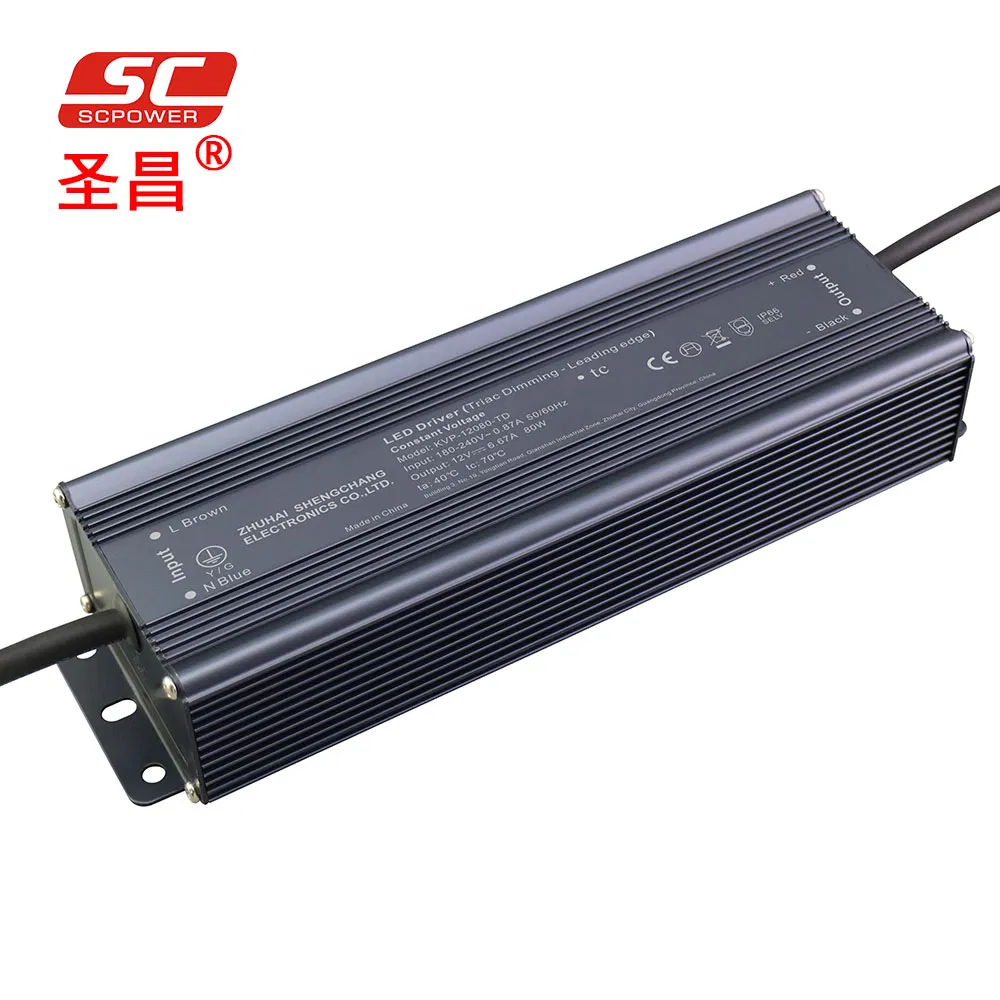

Triac Dimmable Metal Shell 80W 12V 24V LED Driver for LEDs Lighting
Product DescriptionTriac dimmable metal shell 80w 12v 24v led driver for leds lightingFeature ·Output constant voltage ·Range AC input :180-240VAC·High efficiency :up to 83%·Protections:short circuit/over loading/over current /Over temperature·F......
Send Inquiry
Product Description
Triac dimmable metal shell 80w 12v 24v led driver for leds lighting
Feature
·Output constant voltage
·Range AC input :180-240VAC
·High efficiency :up to 83%
·Protections:short circuit/over loading/over current /Over temperature
·Full protection plastic housing easy installation
·IP66 design for outdoor installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
· Suitable for LED lighting and moving sign applications
Specification
Model | KVP-12080-TD | KVP-24080-TD | |
Output | DC Voltage | 12V | 24V |
Voltage Tolerance | ±0.5V | ||
Rated current | 6.67A | 3.33A | |
Rated power | 80W | ||
Input | Voltage Range | 180-240V AC | |
Frequency Range | 47~63HZ | ||
Power Factor | PF≥0.65/180VAC PF≥0.65/230VAC PF≥0.65/240VAC(Full loading) | ||
Full Load Efficiency(Typ.) | 80% | 83% | |
AC Current (Max.) | 0.87A | 0.84A | |
Leakage current | <0.50mA | ||
Protection | Short Circuit | Hiccup mode,recovers automatically after fault condition is removed | |
Over load | ≤120% | ||
Over Current | ≤1.2*I out | ||
Over Temperature | 100ºC±10ºC shut down o/p voltage, re-power on to recover | ||
Others | Weight | 1.1Kg | |
Size | 230*70*43mm(L*W*H) | ||
packing | 245*75*65mm inner box340*275*170mm outside carton10 PCS /CTN | ||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
