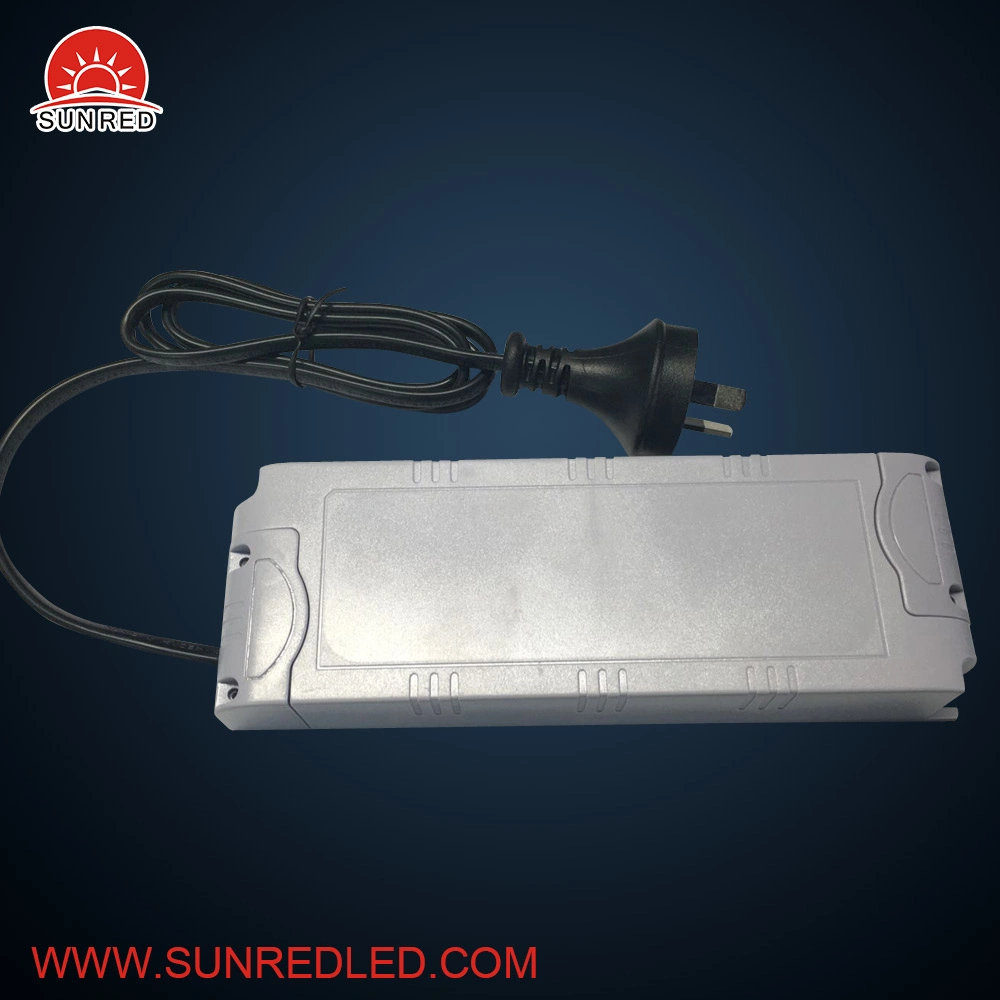

Triac Dimmable 80W LED Driver with EU Plug

Dali dimmable 80w led driver with EU PLUG
Max output 80Watt, Constant current output
Compatible with IEC62386
Drivers are with EMC LVD ROHS SAA TUV ETL certificate
Suit for led downlight, led panel light and so on

Input voltage:110/240VAC
Output voltage:(30/40/60)*0.5VDC
Output current: 2300/2000/1350ma (can be made according to your light)
Size:190*65*29mm
PFC>0.95
Efficiency> 85%

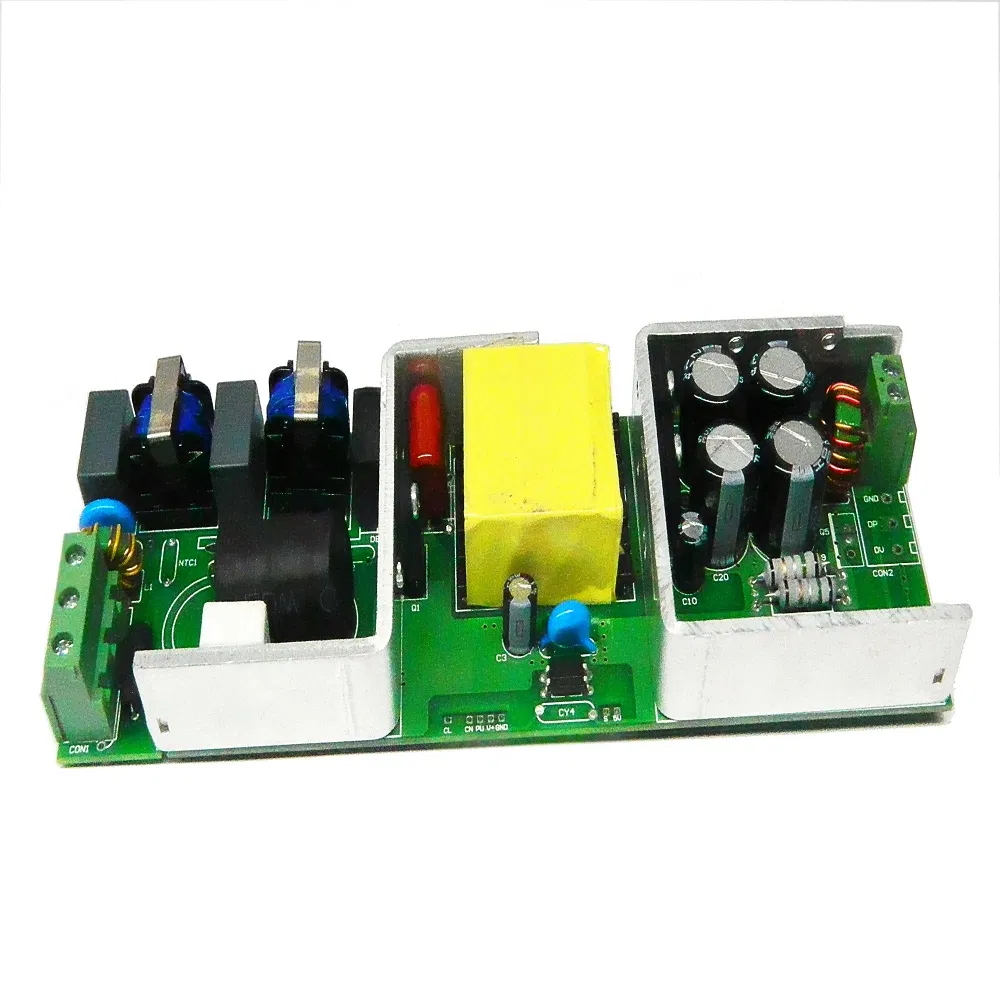

More pictures for your reference:

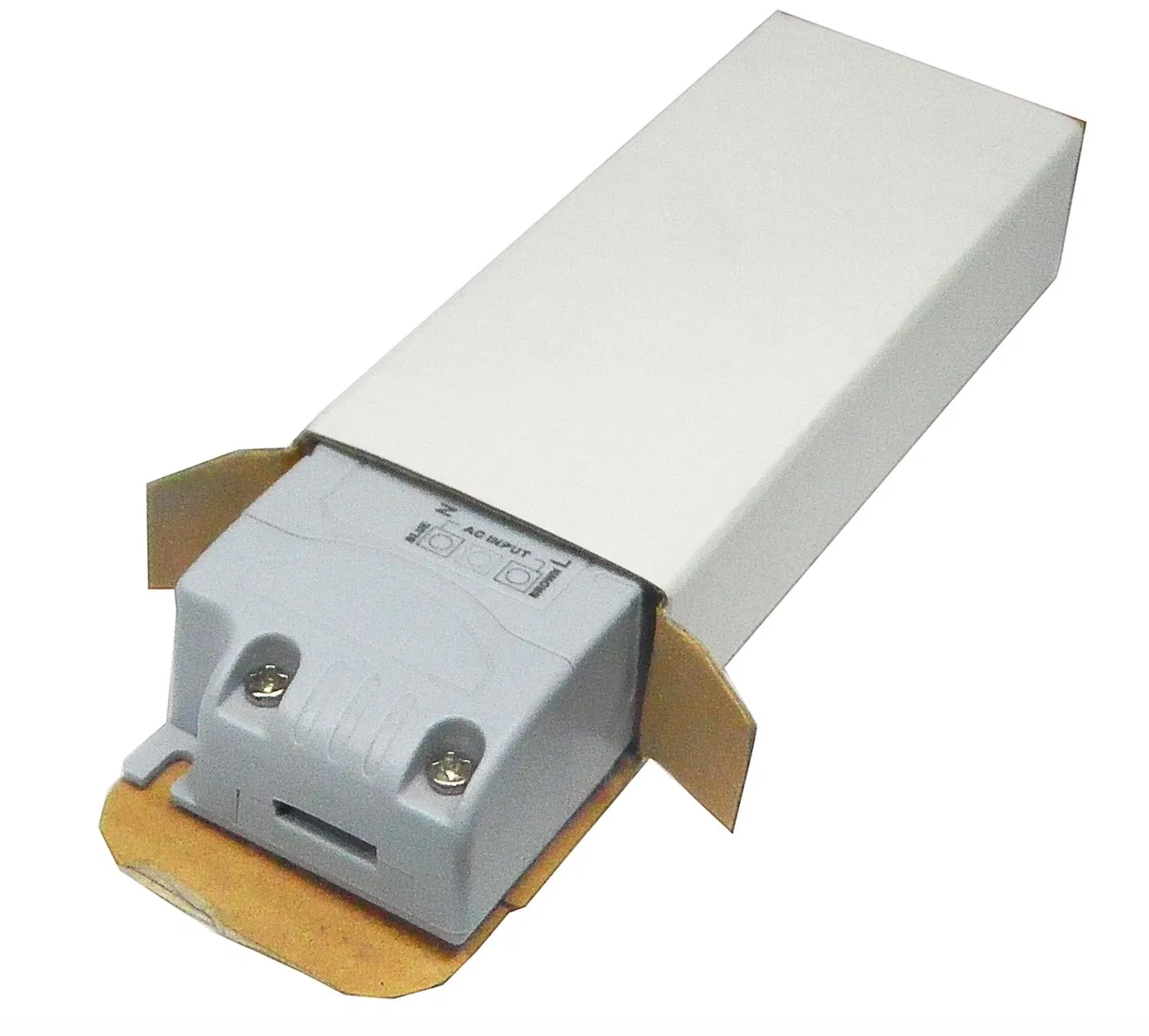

White box packing:
28pcs/carton, gross weight:13kg, size: 38*27*27cm


Application: The triac dimming led driver widely used on spot light, downlight, panel light, led street light, led highbay light etc.

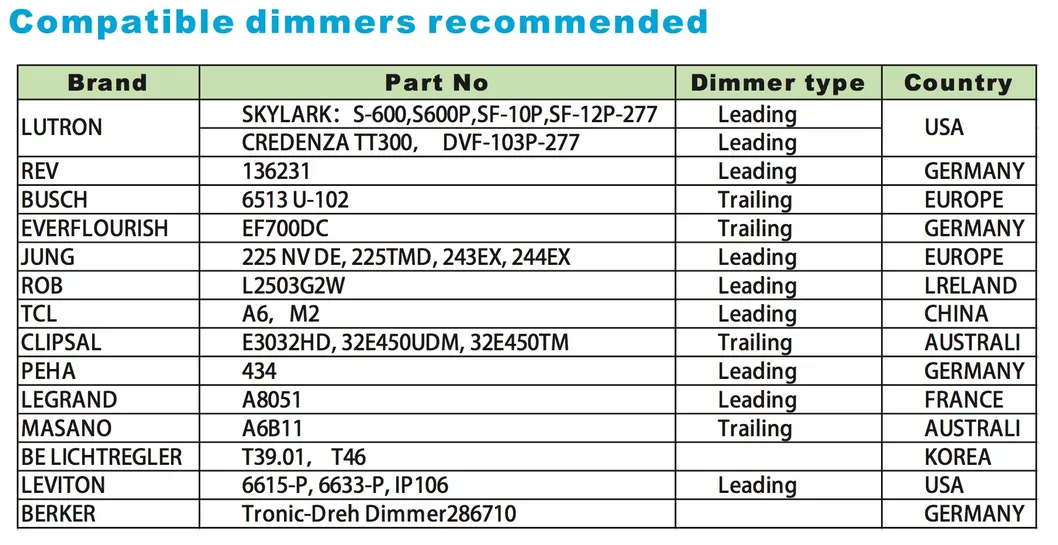

Good Compatiable with triac led dimmers:


Products we can offer:
DALI DIMMABLE LED DRIVER 5W TO 300W
TRIAC DIMMABLE LED DRIVER 5W TO 200W
0-10V DIMMABLE LED DRIVER 5W TO 400w
Waterproof led driver up to 600w
