Product Description

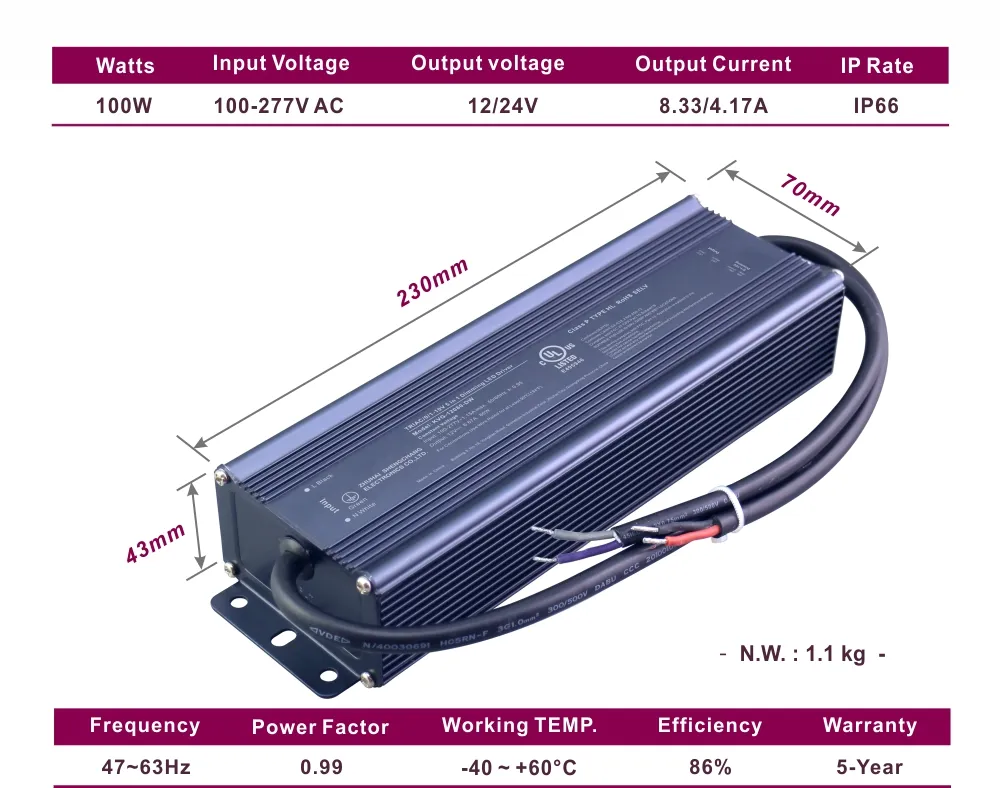

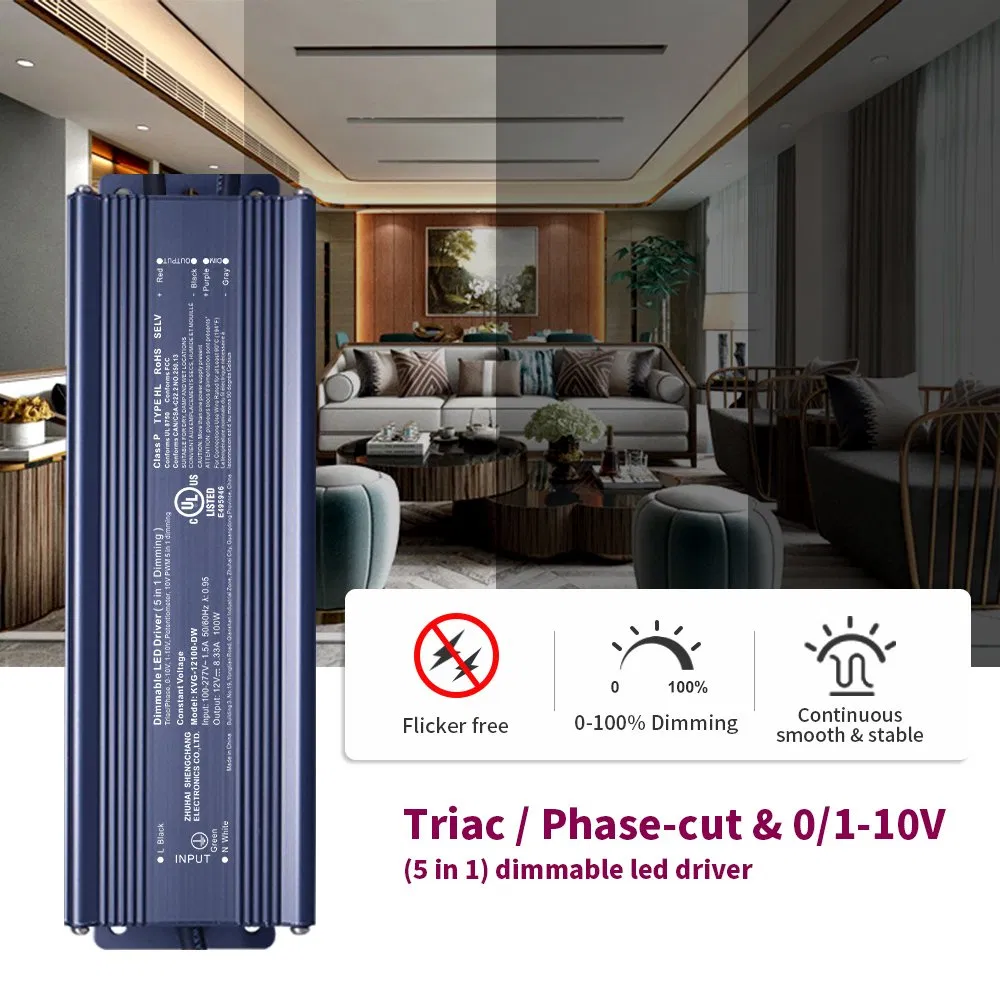

Triac 0-10V 1-10V Switch Power 30W 60W 100W 200W 300W 360W 400W LED Power Supply
Feature
·Output constant Voltage
·Range: 100-277VAC
·Built-in active PFC function
·Efficiency up to 86%
·Protections: short circuit/over load/ over temperature
·Cooling by free air convection

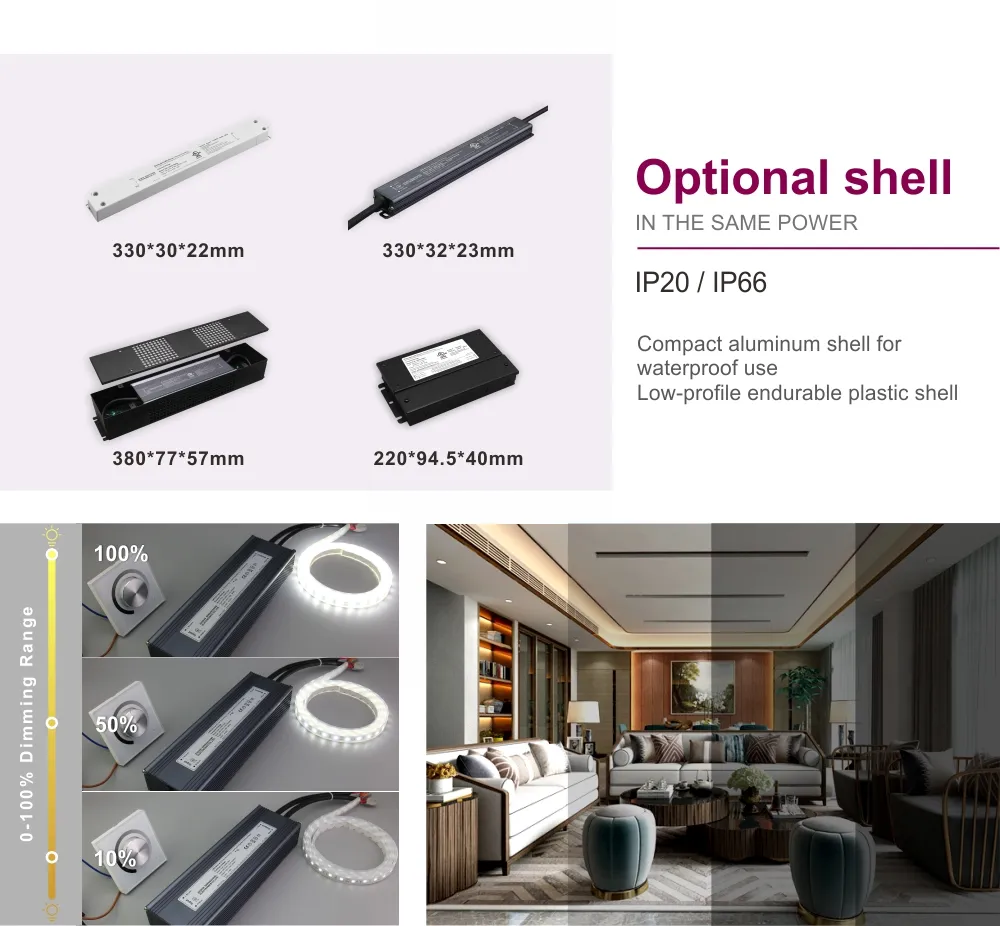

·Full protection aluminum housing, for dry, damp, wet location

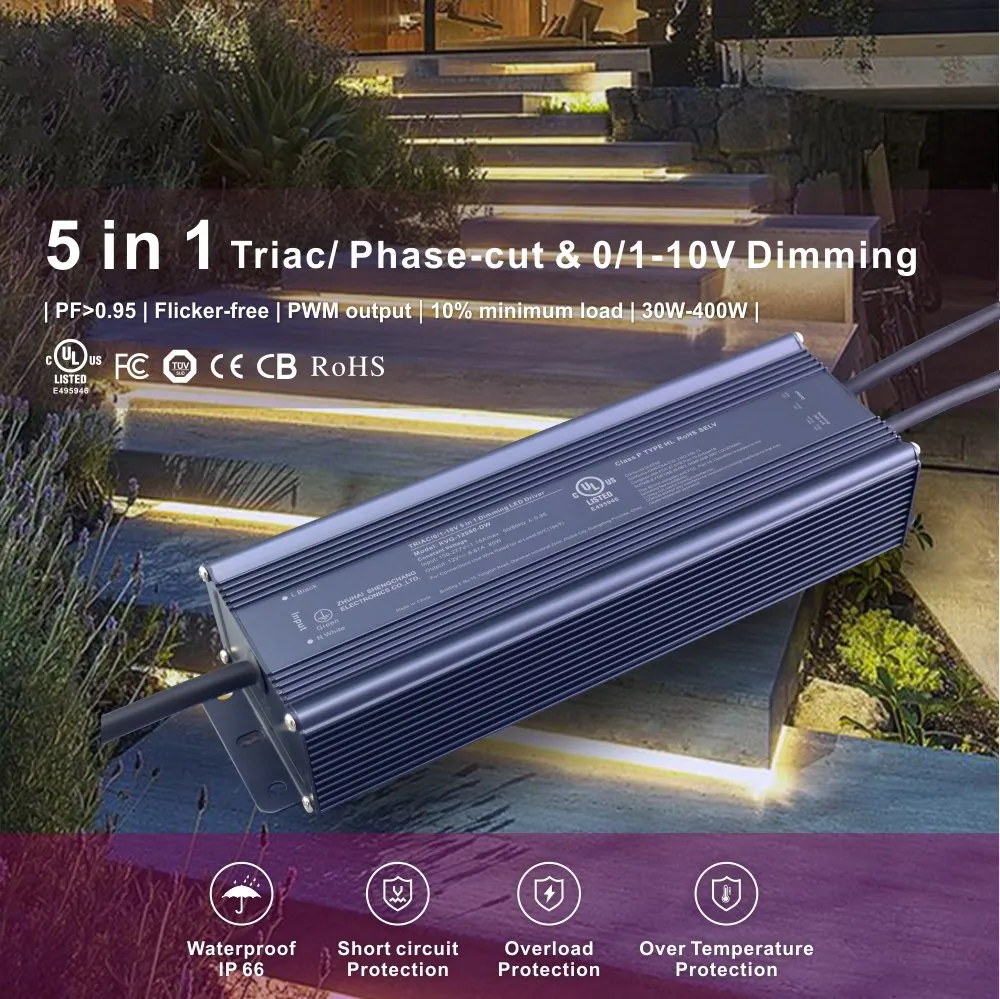

·Dimming function:

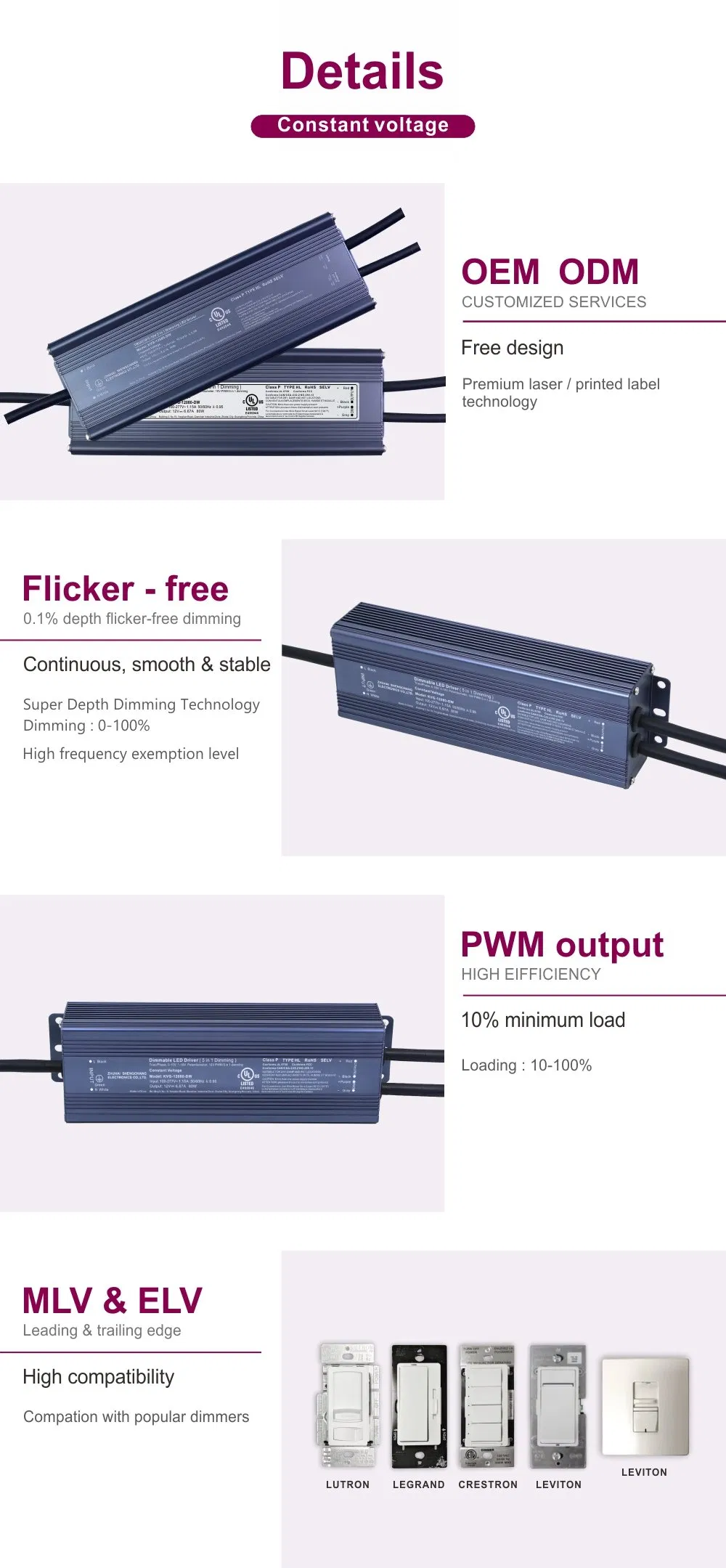

·Phase dimming: work with forward phase /leading edge, MLV and Reverse, phase /trailing edge, ELV, TRIAC dimmers
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
· Dimming range: 0-100%

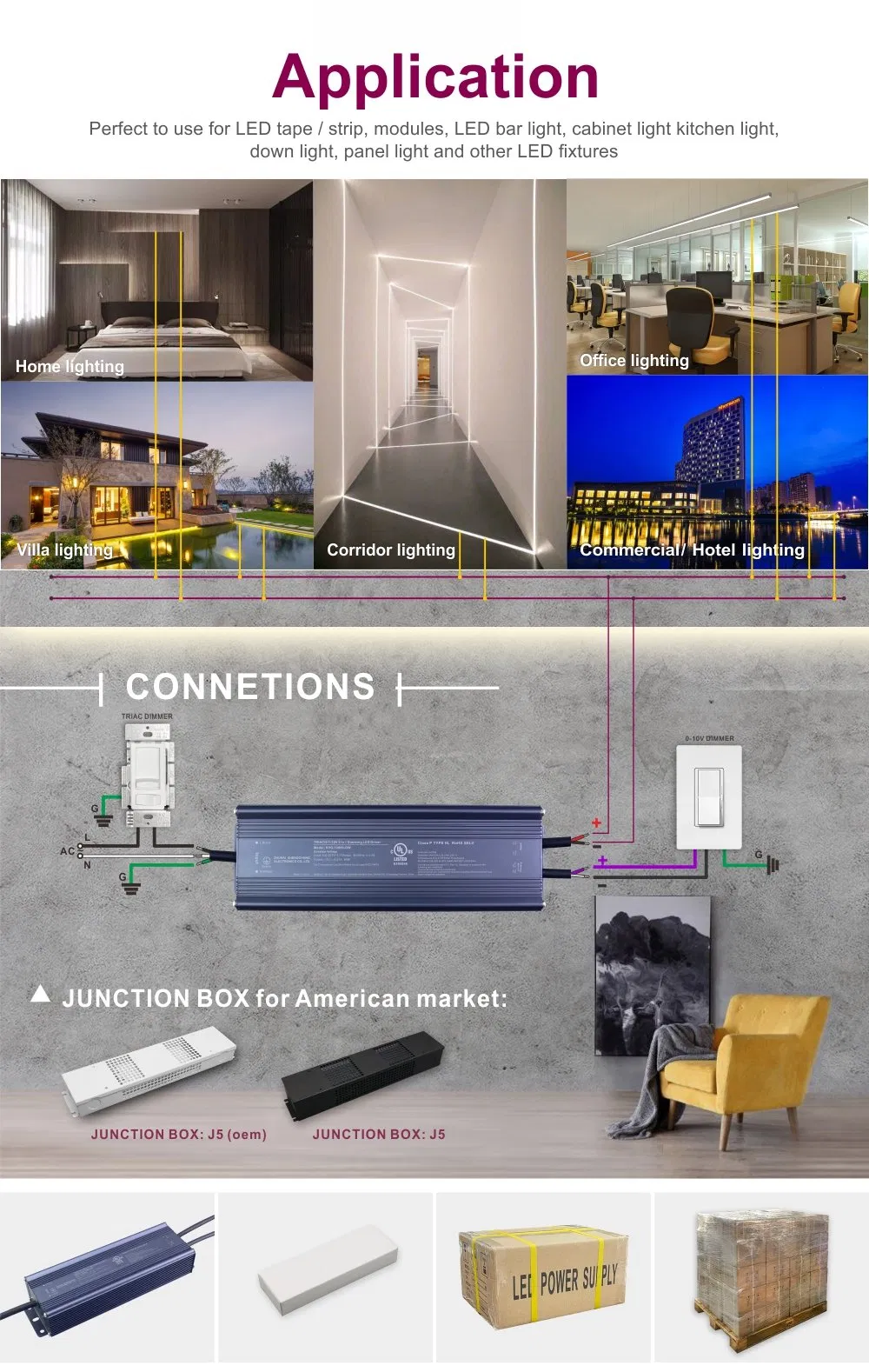

· Suitable for LED lighting and moving sign applications

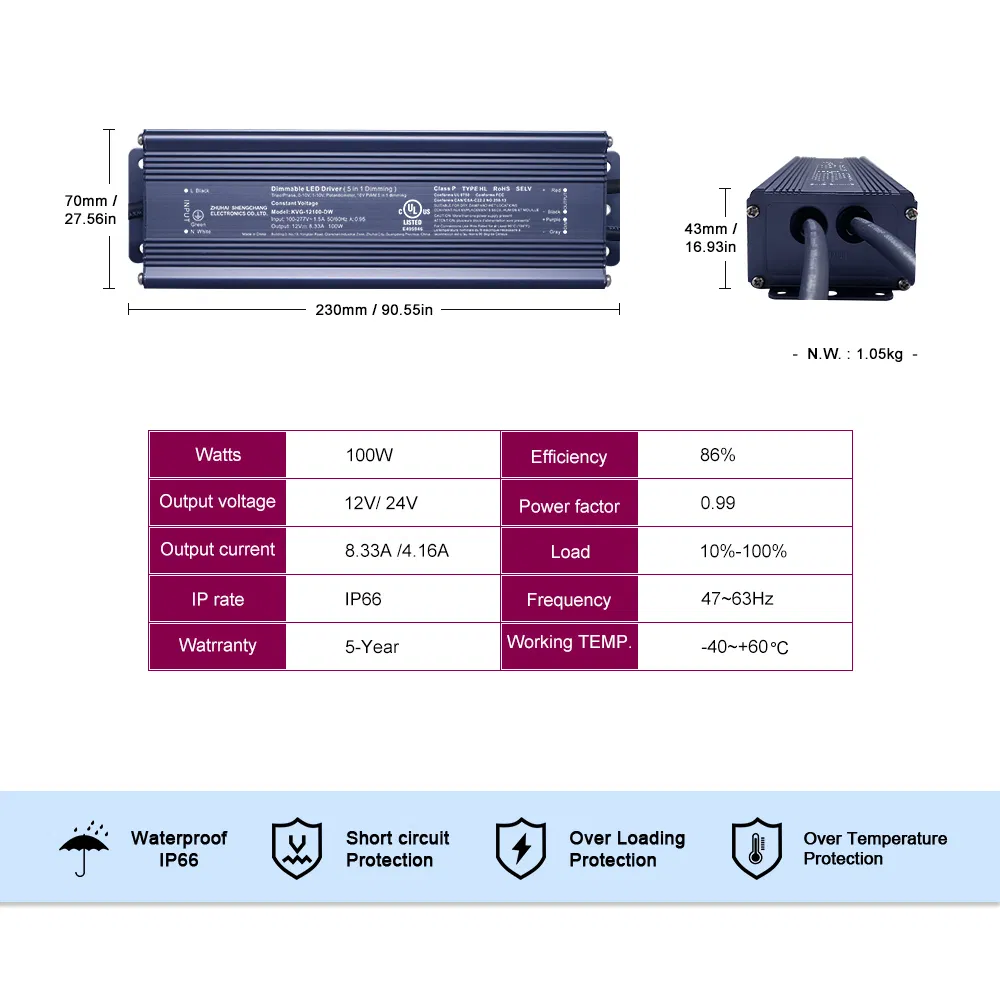

Specification
| Model | KVG-12100-DW | KVG-24100-DW | |
| Certificates | FCC UL cUL | ||
| Output | DC Voltage | 12V | 24V |
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Rated current | 8.33A | 4.17A | |
| Rated power | 100W | ||
| Load Regulation | ±1 % | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47 - 63Hz | ||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.96@277VAC | 0.98@120VAC 0.95@277VAC | |
| THD(Typ. ) @ full load | <20%@120VAC &277VAC | ||
| Efficiency(Typ.)@ full load | 80%@120VAC 83%@277VAC | 83%@120VAC 86%@277VAC | |
| AC Current(Max.) | 1.4A | ||
| Inrush Current (Typ.) | 20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC | ||
| Leakage current | <0.5mA | ||
| Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition removed | |
| Over Load | ≤120% constant current limiting, auto-recovery | ||
| Over temperature | 100ºC±10ºC shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60ºC (see below derating curve) | |
| Working Humidity | 20 - 95%RH,non-condensing | ||
| Storage TEM.,Humidity | -40 - +80ºC,10 - 95%RH | ||
| TEMP.coefficient | ±0.03%/ºC(0 - 50ºC) | ||
| Vibration | 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
