Product Description

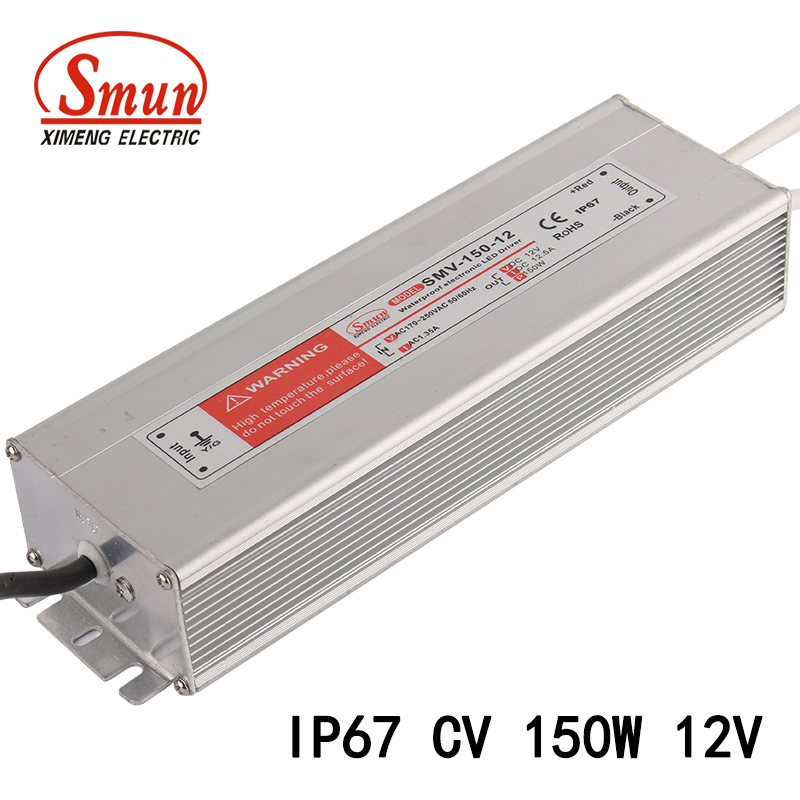

Smv-150-12 150W 12VDC 12.5A Waterproof IP67 Constant Voltage LED Driver

LED water-proof power supply characteristics:

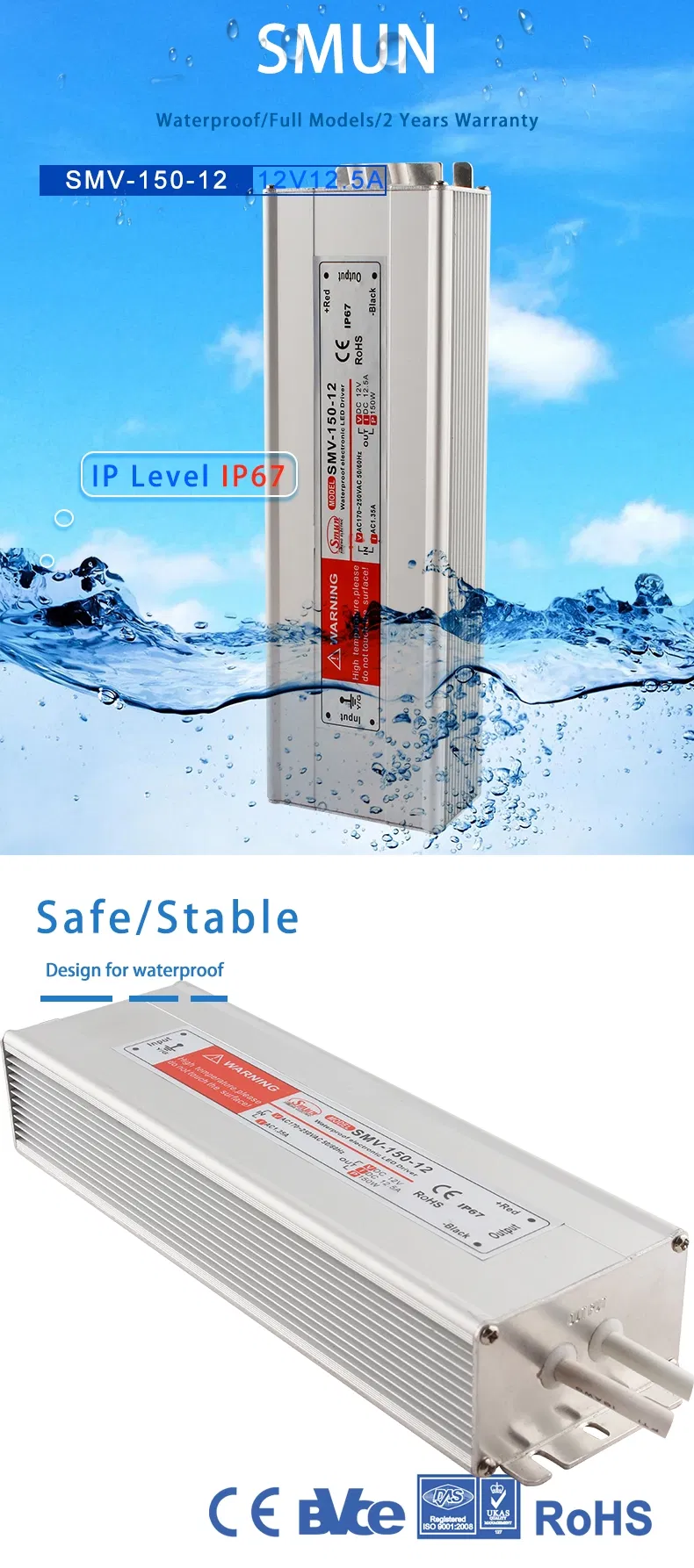

Aluminum plastic shell with internal irrigation design in line with the requirements of IP67 waterproof

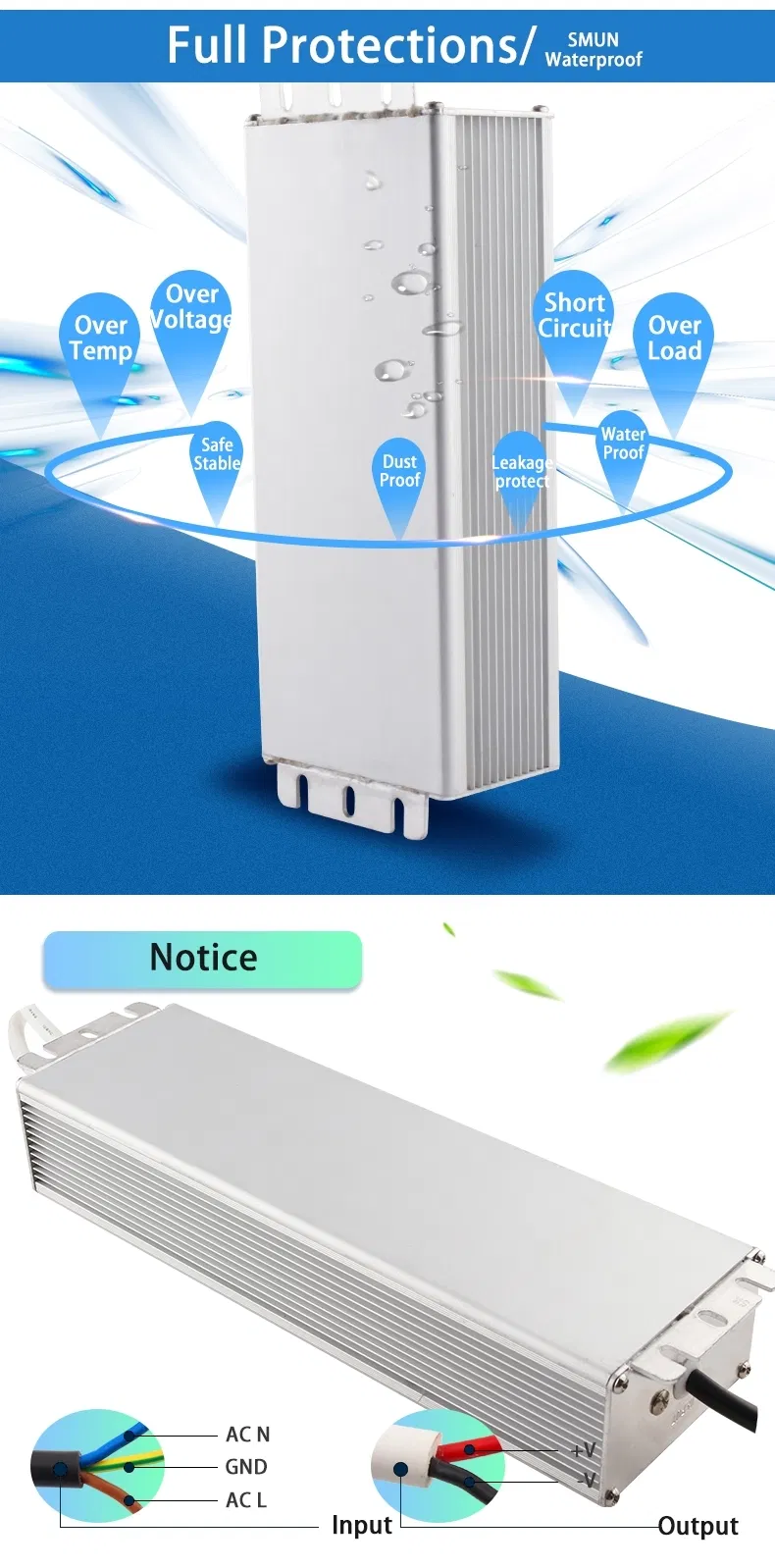

Protection: Short circuit, overl oad, over voltage, over temperature protection
Apply to indoor and outdoor LED lighting, electronic billboards, decorative lighting applications garden landscaping
Natural air-cooled heat
100% full load burn-in test
Comply with CE certification
Low price and high reliability
Features:
1) High efficiency, low operation temperature
2) Aluminum plastic shell
3) 100% full load burn-in test
4)CE, RoHS

Model		SMV-150-12	SMV-150-15	SMV-150-24	SMV-150-48
Output	DC output Voltage	12V	15V	24V	48V
	Voltage tolerance	±1.0%	±1.0%	±1.0%	±1.0%
	Rated Current	12.5A	10A	6.25A	3.1A
	Related Power	150w	150w	150w	150w
	Wave&Noise	50mVp-p	50mVp-p	50mVp-p	100mVp-p
	Set up,rise,hold up time	200ms 100ms 30ms
Input	Voltage Range	170-264VAC 47-63HZ
	Input Current	1.2A/230VAC
	Efficiency	80%	82%	84%	86%
	AC inrush current	Cold start current 36A /230VAC
	Leakage current	<1mA/240VAC
Protection	Overload	Related output power 105-135% start overload protection
		Protection type: hiccup mode, recovery after restart power
	Over voltage	Reted output power 135-150% start over voltage protection
		Protection type: hiccup mode, recovery after restart power
	Over temperature	When temp of transistor inner is over 150, start over temp protection
		pretect mode:cutoff output,auto-recover after temperature become normal
Environment	Working temp humidity	-10~+60°C 20%~90%RH
	Stor temp, humidity	-20~+85°C 20%~90%RH Non-condensing
	Withstand vibration	10-500Hz,2G 10min/Ccle, period for 60min, each axes
Safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVA O/P-FG:0.5KVA
	Isolation resistance	I/P-O/P: I/P-FG,O/P-FG:100M Ohms/500VDC
Standard	Safety standard	Fit UL1012 IP67
	EMC standard	Fit EN55022 CLASSA

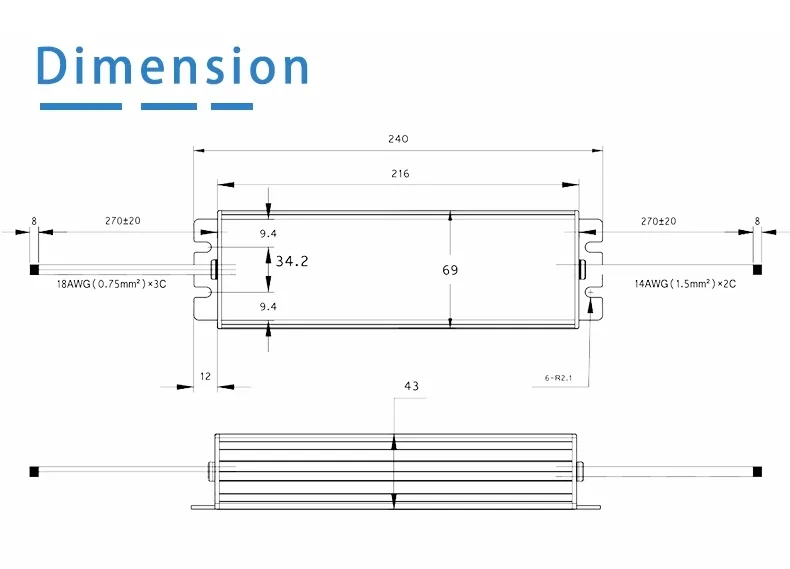

Size	size	L222W68H43mm
	Package	1.2kg, 20 pcs/24kg
Note:1.All parameters not specially mentioned are measured at 230VAC input, related load and 25 C of ambient temperature.2.Wave&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor.3.Tolerance: includes set up tolerance, line regulation and load regulation.
