Sc Power Small Housing Ki -80350-Da Indoor Constant Current Dali LED Drivers for 350mA 30W IP20

Product Description

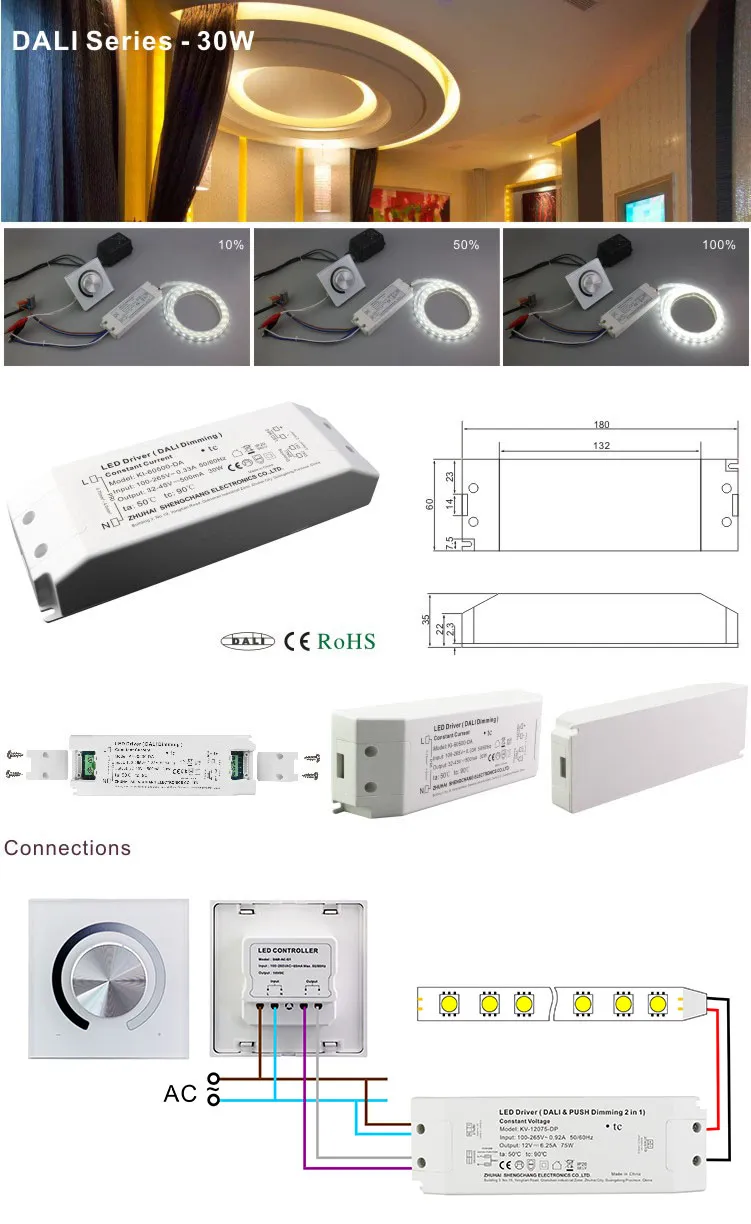

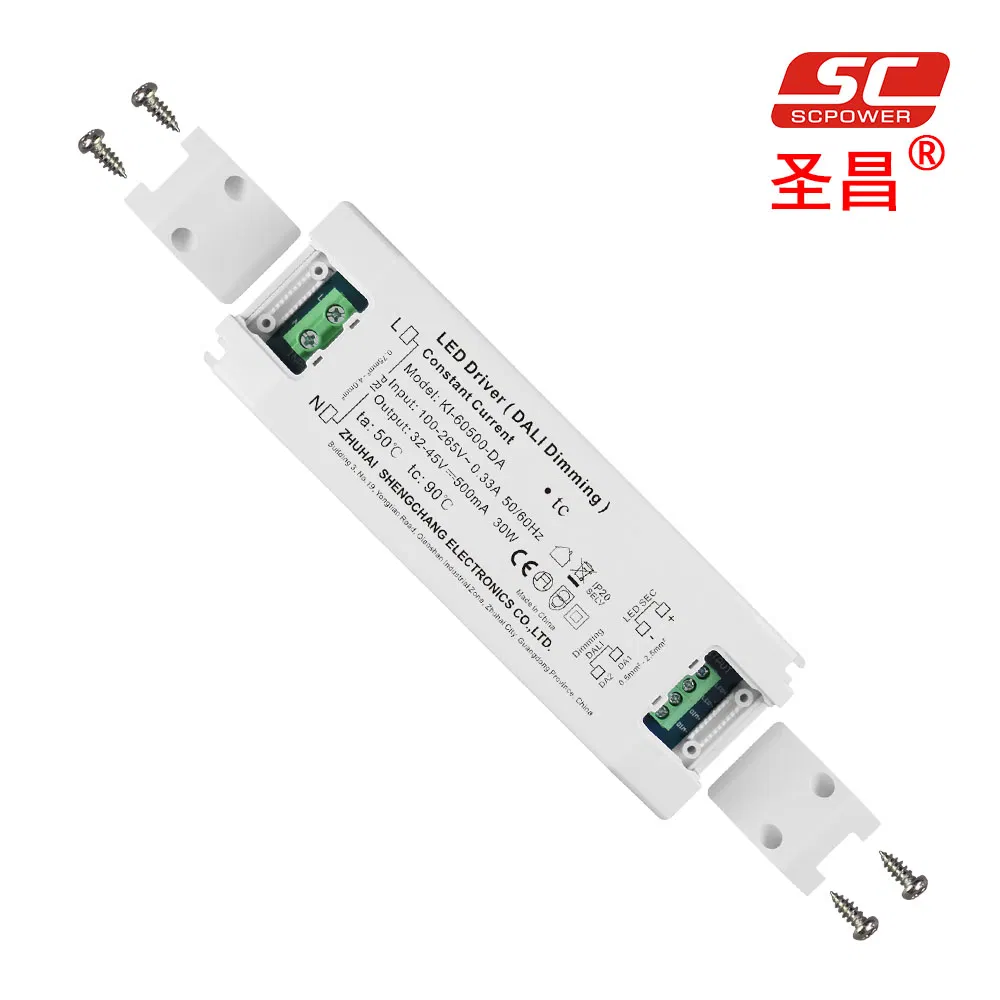

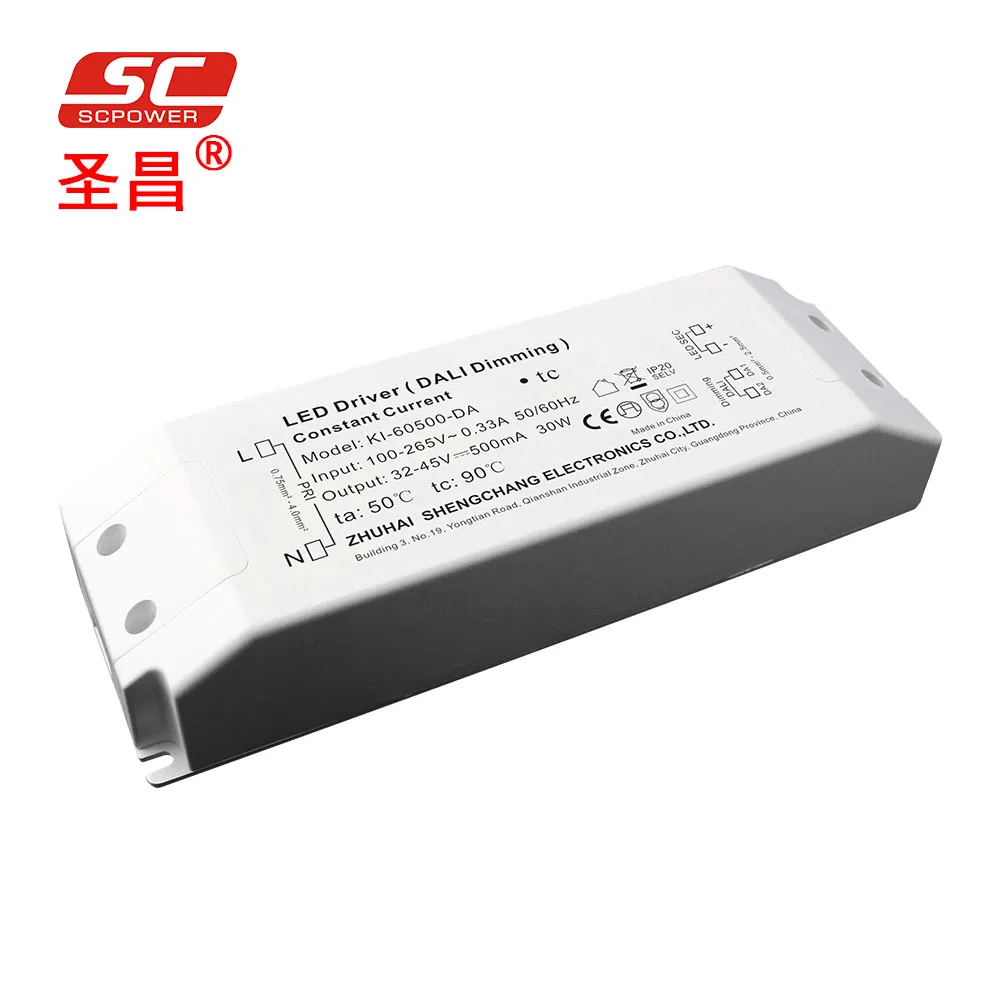

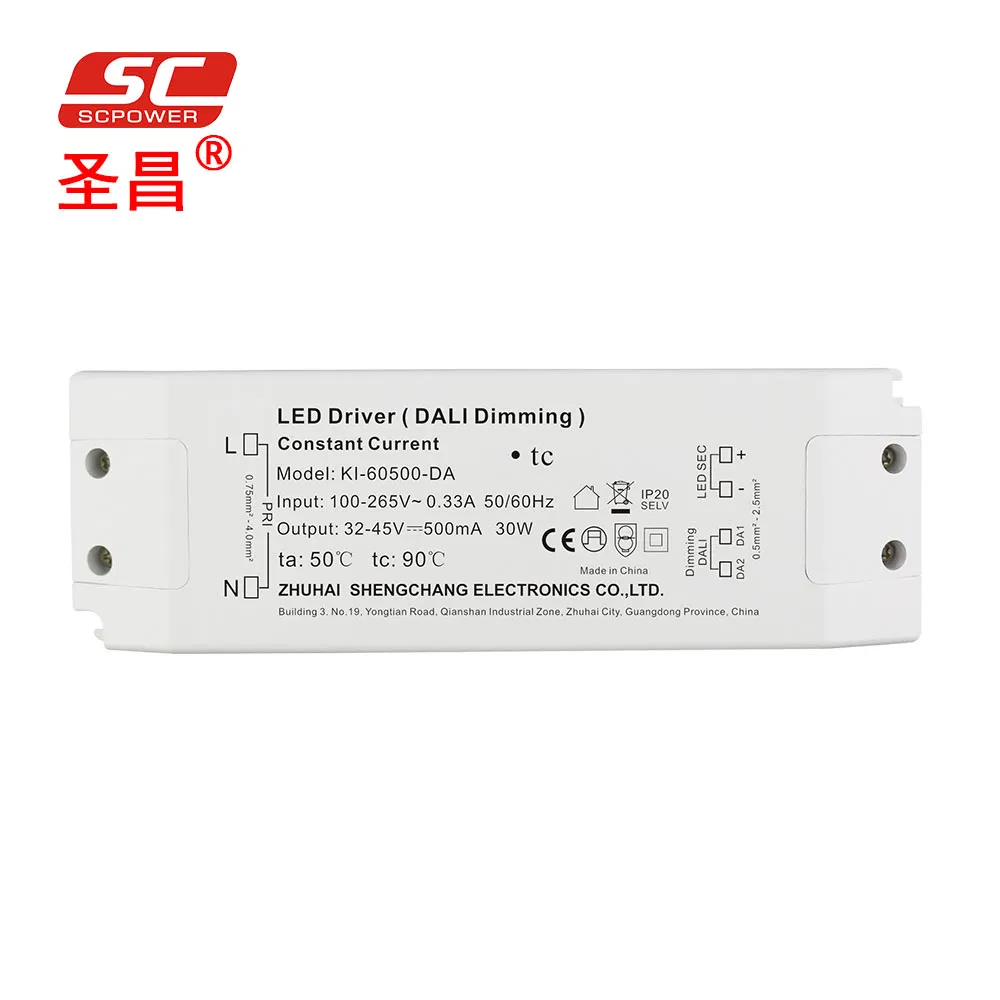

SC Power small housing KI-80350-DA Indoor constant current DALI led drivers for 350ma 30W IP20

Feature

·Output constant Current

·Range 100-265VAC

·Built-in active PFC function

·Efficiency up to 84%

·Protections:short circuit/over loading/ Over temperature

·Cooling by free air convection

·IP20 design for indoor installation.

·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386

·Dimming range from 1% to 100%

·Suitable for intelligent LED lighting

·Compliance to worldwide safety regulations for lighting

·Suitable for dry locations

Specification

Model		KI-80350-DA	KI-60500-DA	KI-45700-DA	KI-36900-DA	KI-301050-DA
Output	Rated Current	350mA	500mA	700mA	900mA	1050mA
	Current Tolerance	±5%
	DC Voltage	DC 56-80V	DC 42-60V	DC32-45V	DC 25-36V	DC 21-30V
	Open Circuit Voltage (Max.)	85V	65V	50V	40V	35V
	Rated Power	28W	30W	31.5W	32.4W	31.5W
Input	Voltage Range	100-265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.98/120VAC PF≥0.95/230VAC P≥0.92/265VAC(Full loading)
	Full Load Efficiency (Typ.)	84%
	AC Current(Max.)	0.30A	0.32A	0.33A	0.34A	0.33A
	Leakage Current	<0.5mA
Protection	Short Circuit	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Load	≤ 120%
	Protection Class:	II
	Over Temperature	100ºC±10ºC shut down o/p voltage, re-power on to recover
Others	Weight	0.45Kg
	Dimension	1806035mm(LWH)
	Packing	355215215mm/20pcs/CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºCof ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
