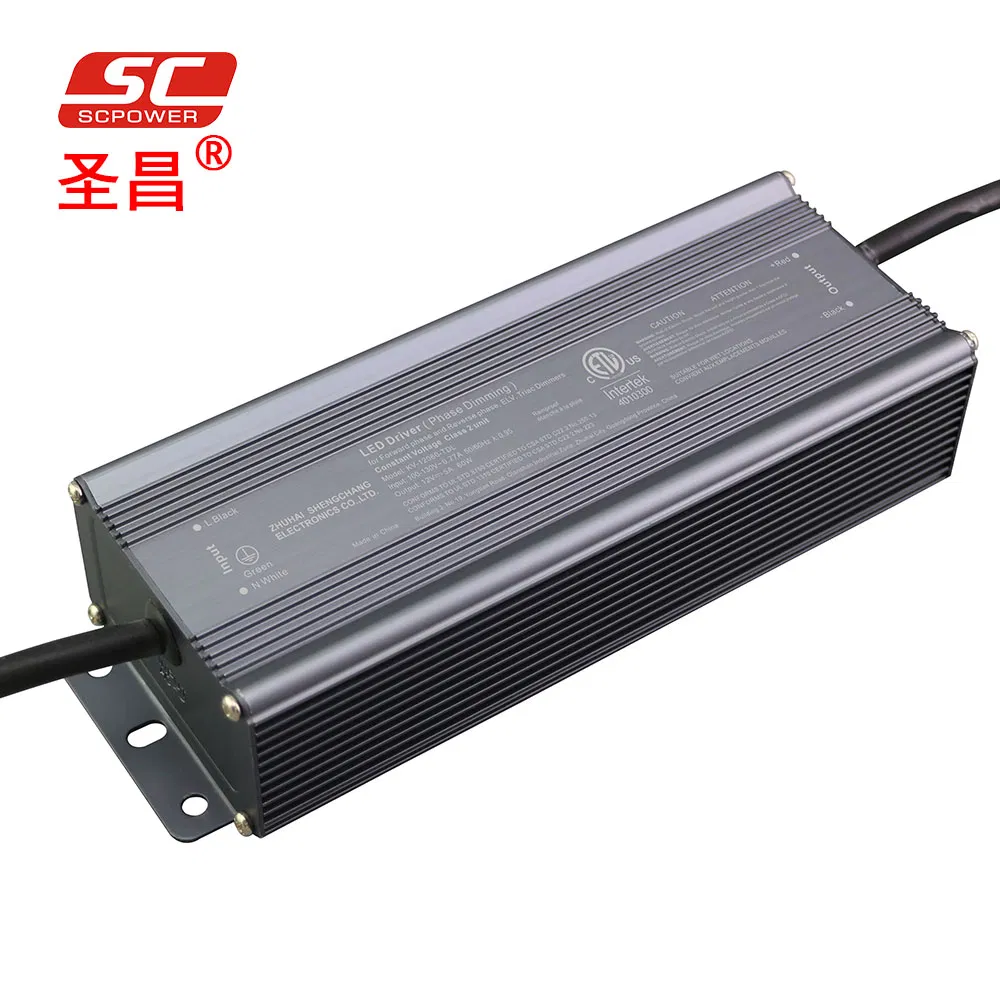

Sc Power 12V 5A 60W IP66 LED Power Supply 90- 130VAC or 170-265VAC Input LED Driver
Product DescriptionSC POWER 12V 5A 60W IP66 LED Power Supply 90-130VAC Or 170-265VAC INPUT LED DriverFeature·Output constant voltage·Universal AC input: 100-130VAC·High efficiency :up to 87%·Protection:short circuit/over loading/over current/ Over temperat......
Send Inquiry
Product Description
SC POWER 12V 5A 60W IP66 LED Power Supply 90-130VAC Or 170-265VAC INPUT LED Driver
Feature
·Output constant voltage
·Universal AC input: 100-130VAC
·High efficiency :up to 87%
·Protection:short circuit/over loading/over current/ Over temperature
·Full protection plastic housing
·Easy installation
·Cooling by free air convection
·Compatible with Forward & Reverse phase, Triac, ELV Dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications and others
·Provide with a junction box for connection to line voltage
·Suitable for wet location use, IP66
Specification
Model | KV-12060-TDL | KV-24060-TDL | KV-36060-TDL | KV-48060-TDL | ||
Output | DC Voltage | 12V | 24V | 36V | 48V | |
Voltage Tolerance | ±0.5V | |||||
Rated current | 5A | 2.5A | 1.65A | 1.25A | ||
Rated power | 60W | |||||
Input | Voltage Range | 100~130VAC | ||||
Frequency Range | 47~63HZ | |||||
Power Factor | PF≥ 0.95 (Full loading) | |||||
Efficiency(Typ.) | 82% | 85% | 86% | 87% | ||
AC Current(Max.) | 0.77A | 0.76A | 0.74A | 0.72A | ||
Leakage current | <0.50mA/120VAC | |||||
Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | ||||
Over Current | ≤1.2*I out | |||||
Over Loading | ≤120% | |||||
Over temperature | 100ºC±10ºC,Shut down o/p voltage,recover automatically after temperature goes down. | |||||
Others | Net. Weight | 0.95 Kg | 1.55Kg (with junction box) | |||
Size | 200*70*46mm(L*W*H) | 350*77*57mm(L*W*H) (with junction box) | ||||
packing | 329*279*176mm 10PCS | 350*85*65mm 10PCS | ||||
Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25ºC of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3.Loading should be 60-100%. | |||||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
