Sc IP66 High Pfc LED Driver 0-10V LED Dimmable Driver 15V -25V 1400mA Constant Current Driver for LED Lighting
SC IP66 high PFC led driver 0-10v led dimmable driver 15v -25v 1400ma constant current driver for led lighting Feature · Output constant current · Universal AC input:100-265VAC · Built-in active PFC function · High efficiency up to 84% · ......
Send Inquiry
Product Description

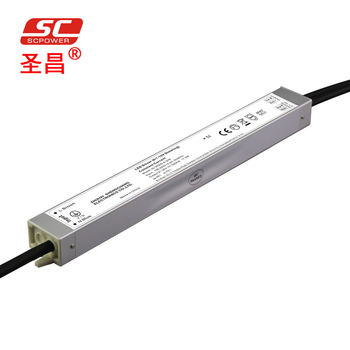

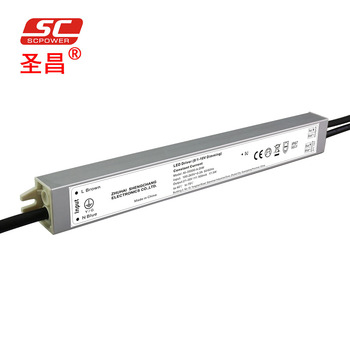

SC IP66 high PFC led driver 0-10v led dimmable driver 15v -25v 1400ma constant current driver for led lighting
Feature
· Output constant current
· Universal AC input:100-265VAC
· Built-in active PFC function
· High efficiency up to 84%
· Protections:Short circuit/Over current/Over loading
· Cooling by free air convection
· IP67 design for indoor or outdoor installation
· Class 1 power unit

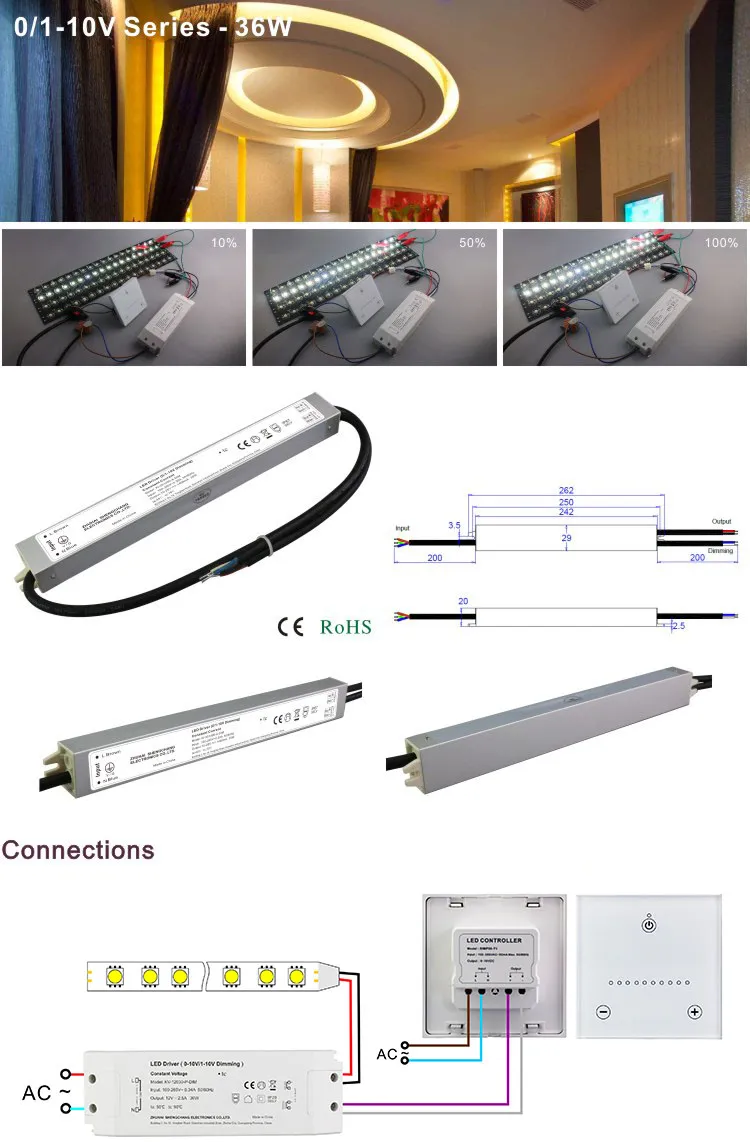

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)
· Dimming range: 0-100%
· Suitable for LED lighting and moving sign applications
· Compliance to worldwide safety regulations for lighting
· Three years warranty
Specification
model | KI-75500-A-DIM | ||
Output | DC Voltage | 45-75V | |
Voltage Accuracy | ±0.5V | ||
Rated current | 0-500mA | ||
Rated power | 36W | ||
Input | Voltage Range | 100~265V AC (100-130V DC can customized ) | |
Frequency Range | 47~63HZ | ||
Power Factor ( Typ.) | PF≥0.97/170V PF ≥ 0.95220V PF ≥ 0.93/265V | ||
Full Load Efficiency(Typ.) | 83% |
| |
AC Current(Typ.) | 0.34A/170VAC 0.27A/220VAC 0.24A/265VAC | ||
Leakage current | <0.25mA/220VAC | ||
Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed. | |
Over voltage | ≤270VAC | ||
Environment | Working TEMP. | -40~+60°C | |
Working Humidity | 20~90%RH,non-condensing | ||
Storage TEM.,Humidity | -40~+80°C,10~95%RH | ||
TEMP.coefficient | ±0.03%/°C(0~50°C) | ||
Vibration | 10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
Safety&EMC | Safety standards | EN-60950-1. | |
Withstand voltage | I/P-O/P:3.75KVAC | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25°C/70%RH | ||
EMC EMISSION | Compliance toEN55015,EN61000-3-2 ( ≥ 50%load) | ||
EMC IMMUNITY | Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547,Alight industry level | ||
Others | Weight | 0.34Kg | |
Size | 257*29*20mm(L*W*H) | ||
packing | 324*298*188 50pcs/ctn | ||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25°Cof ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . | ||
