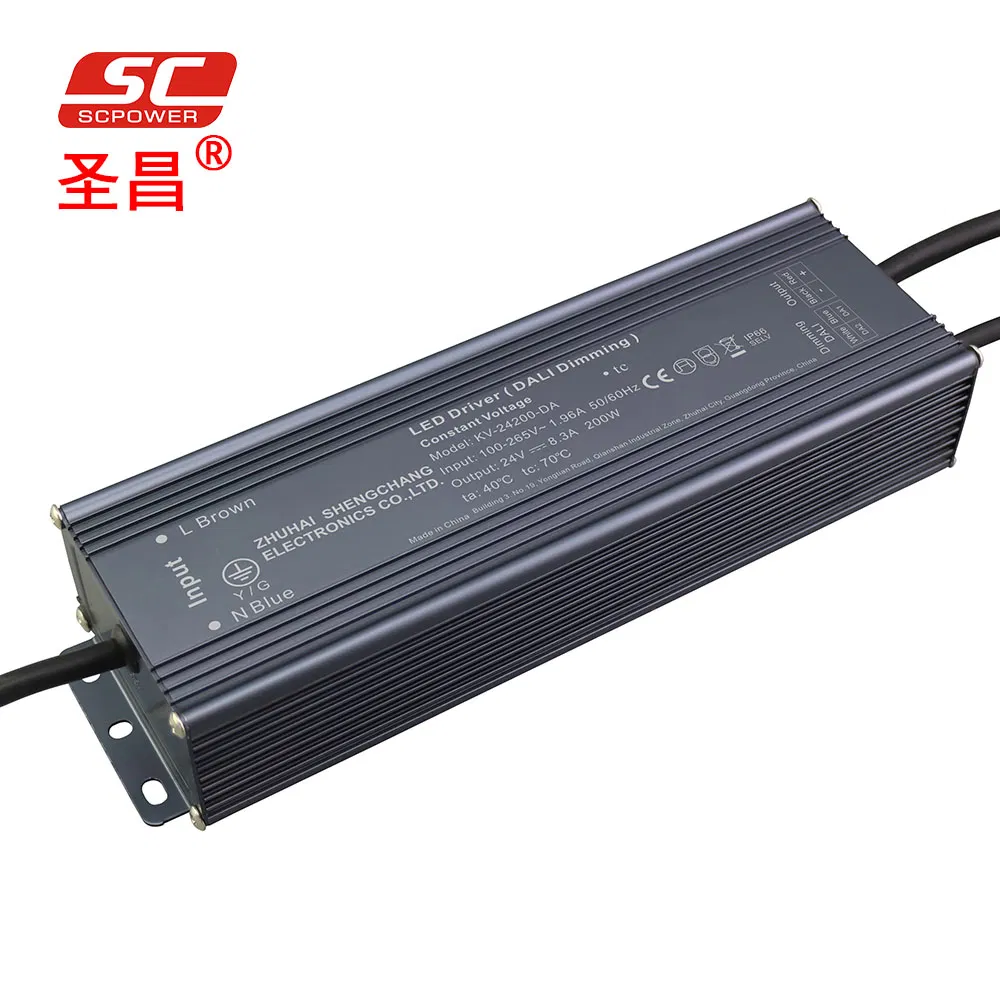

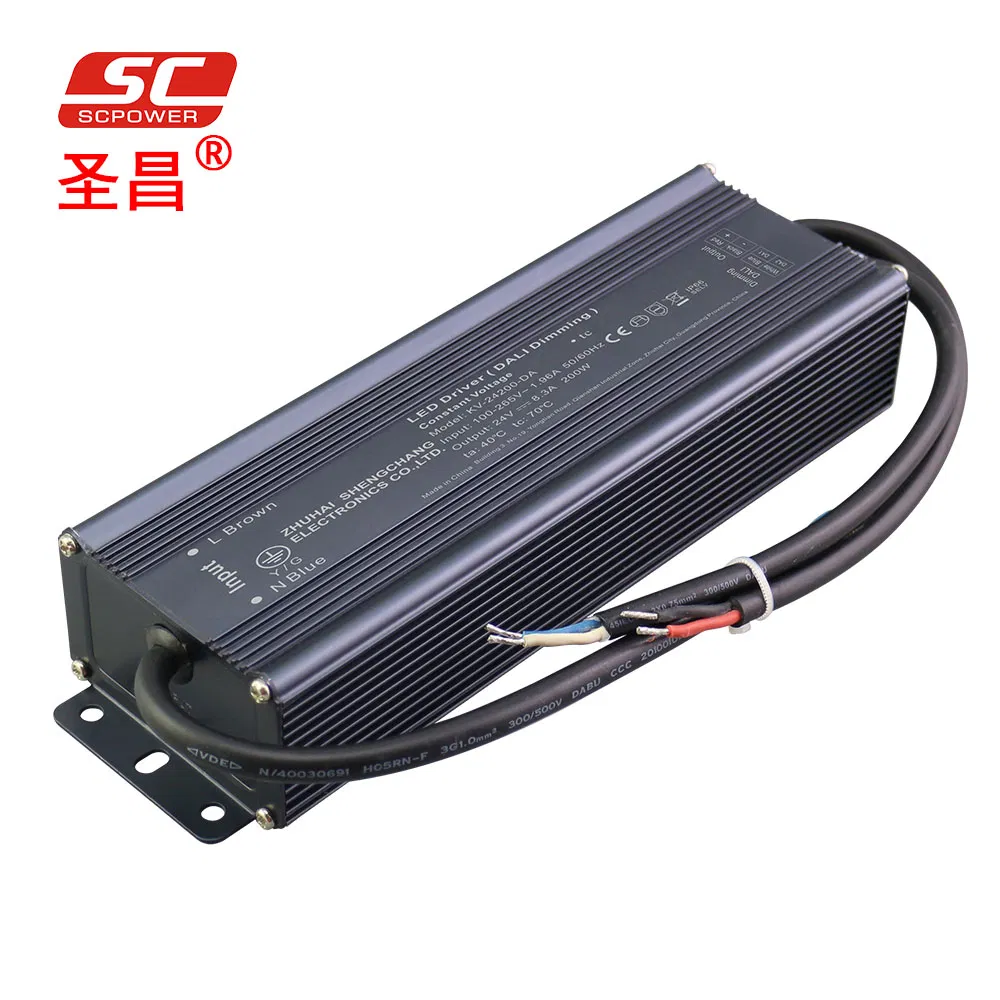

Sc 90-130V 170 -265V AC 200W Dali LED Dimming Constant Voltage LED Power Supply
Product DescriptionSC 90-130V 170-265V AC 200W DALI Led Dimming Constant Voltage LED Power Supply Feature ·Output constant Voltage ·Range 100-265VAC ·Built-in active PFC function ·Efficiency up to 90% ·Protections:short circuit/over load/ ......
Send Inquiry
Product Description
SC 90-130V 170-265V AC 200W DALI Led Dimming Constant Voltage LED Power Supply
Feature
·Output constant Voltage
·Range 100-265VAC
·Built-in active PFC function
·Efficiency up to 90%
·Protections:short circuit/over load/ over circuit/over temperature
·Cooling by free air convection
·IP20 design for indoor installation.
·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
·Dimming range from 1% to 100%
·Suitable for intelligent LED lighting
·Compliance to worldwide safety regulations for lighting
·Suitable for dry locations
Specification

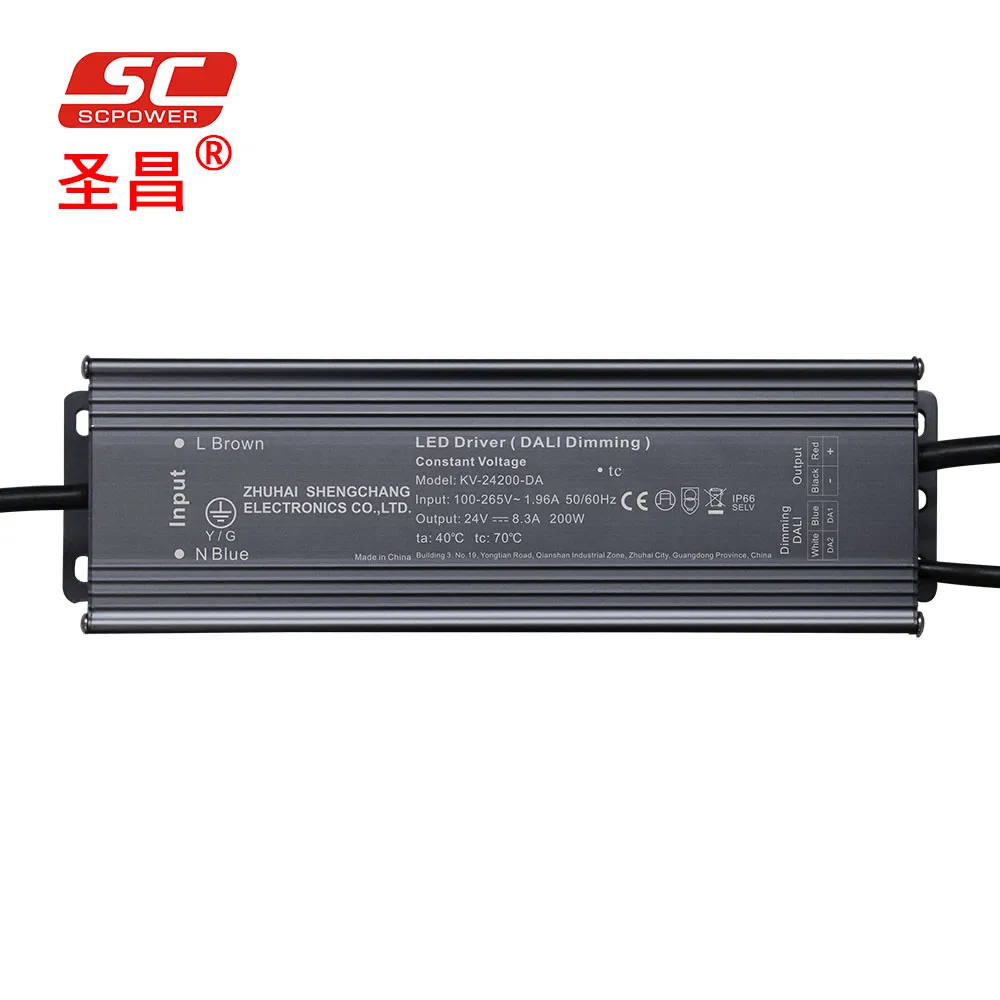

Model | KV-12180-DA | KV-24200-DA | |
Output | DC Voltage | 12V | 24V |
Voltage Tolerance | ±0.5V | ||
Rated current | 0 - 15A | 0 - 8.33A | |
Rated power | 180W | 200W | |
Input | Voltage Range | 100-265VAC | |
Frequency Range | 47 - 63HZ | ||
Power Factor | PF≥0.98/120VAC PF≥0.98/230VAC PF≥0.95/265VAC(Full loading) | ||
Full Load Efficiency(Typ.) | 89% | 90% | |
AC Current(Max.) | 1.78A | 1.96A | |
Leakage current | <0.5mA | ||
Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed. | |
Over Load | ≤120% | ||
Over Circuit | ≤1.2*Iout | ||
Protection Class: | I | ||
Over temperature | 100ºC±10ºC shut down o/p voltage, re-power on to recover | ||
Others | Weight | 1.6Kg | |

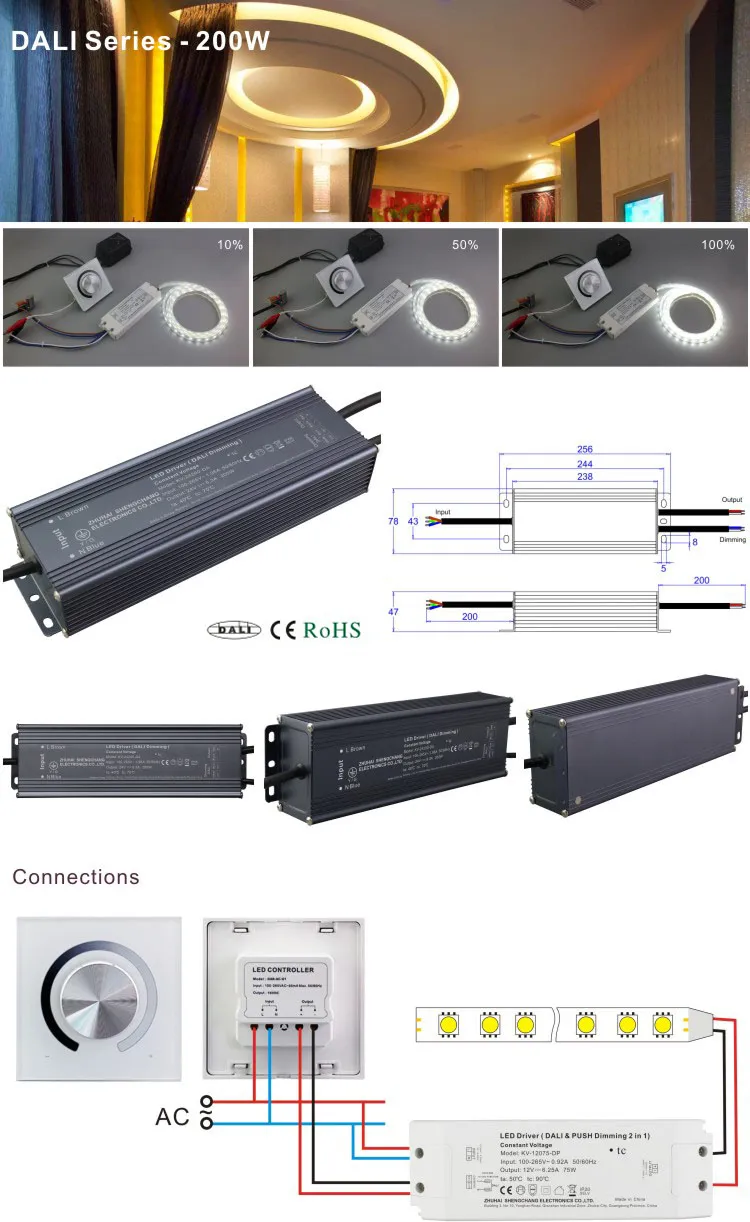

Dimension | 256*78*47mm(L*W*H) | ||
packing | 340*280*185mm/10pcs/CTN | ||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºCof ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again. | ||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
