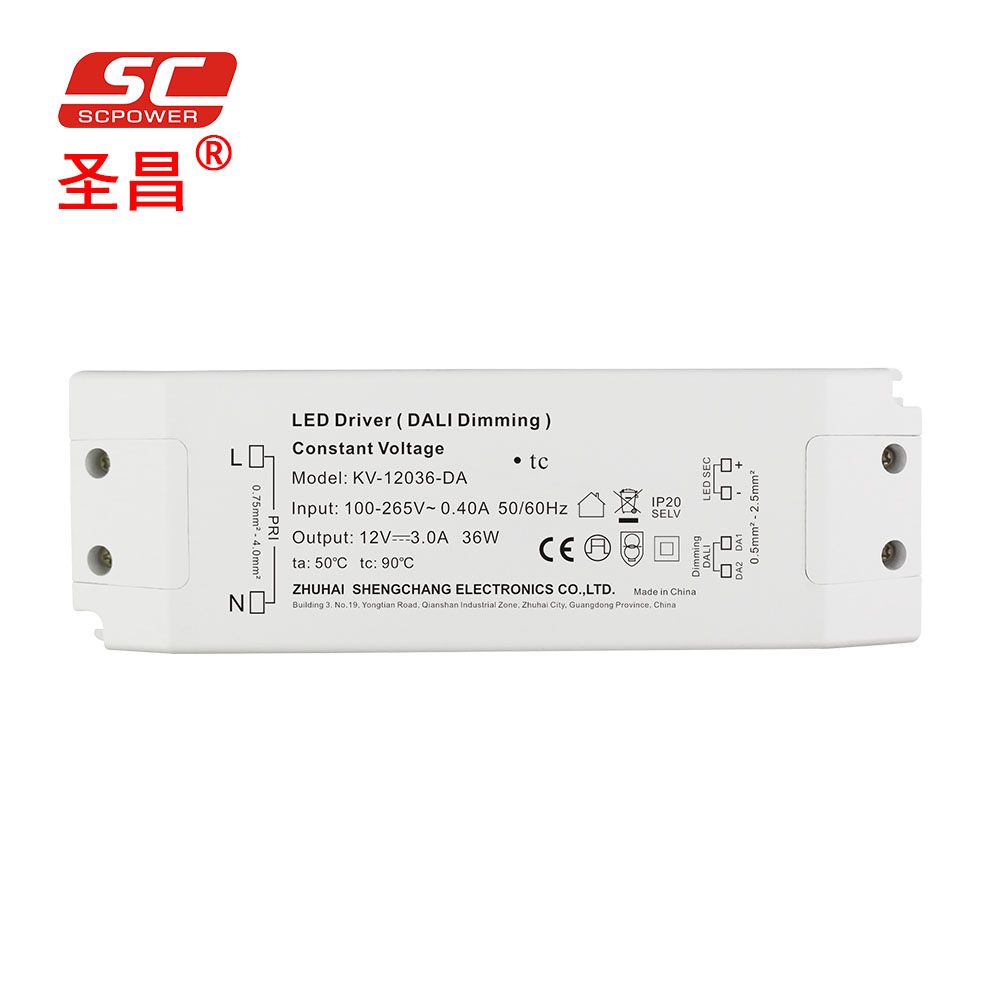

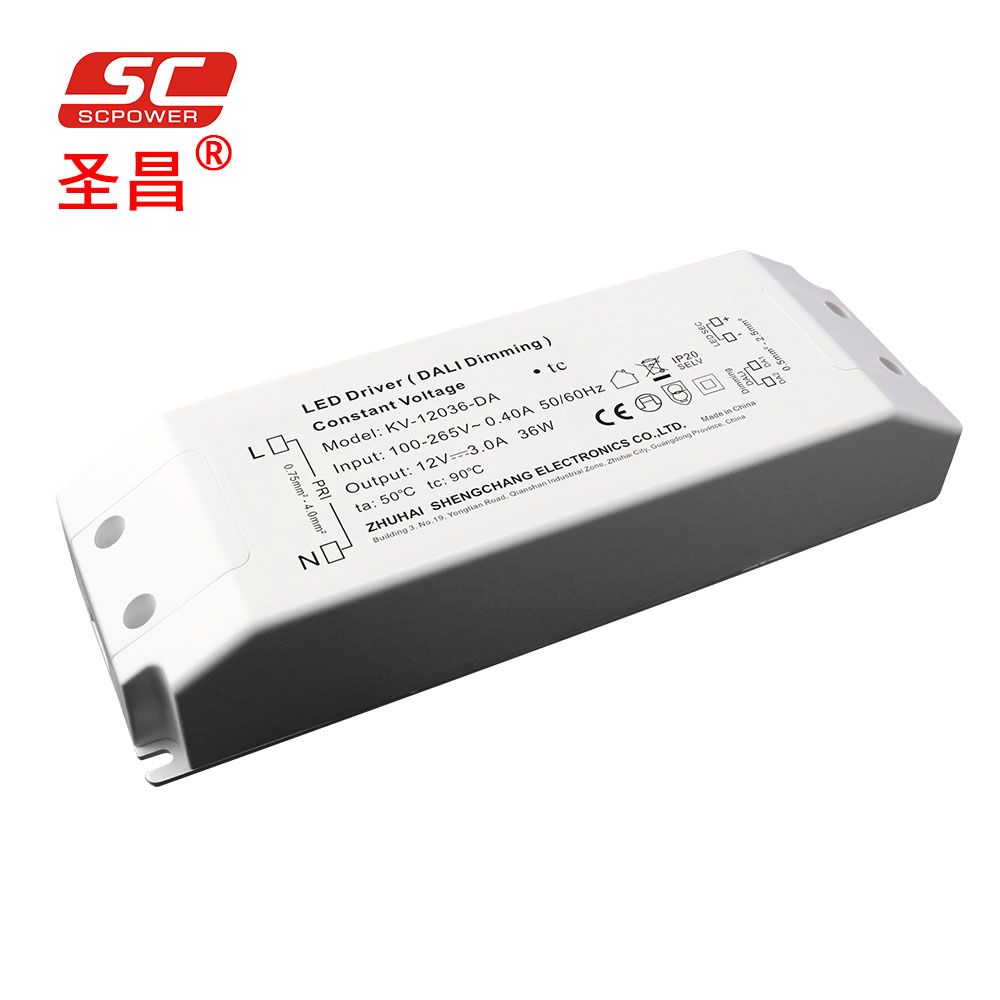

Sc 12V 3A 36W Constant Voltage Dali Dimming with IP20 Design LED Driver

Product Description

SC 12V 3A 36W Constant Voltage Dali Dimming With IP20 Design LED Driver

Feature

·Output constant Current

·Range 100-265VAC

·Built-in active PFC function

·Efficiency up to 83%

·Protections:short circuit/over load/ over circuit/over temperature

·Cooling by free air convection

·IP20 design for indoor installation.

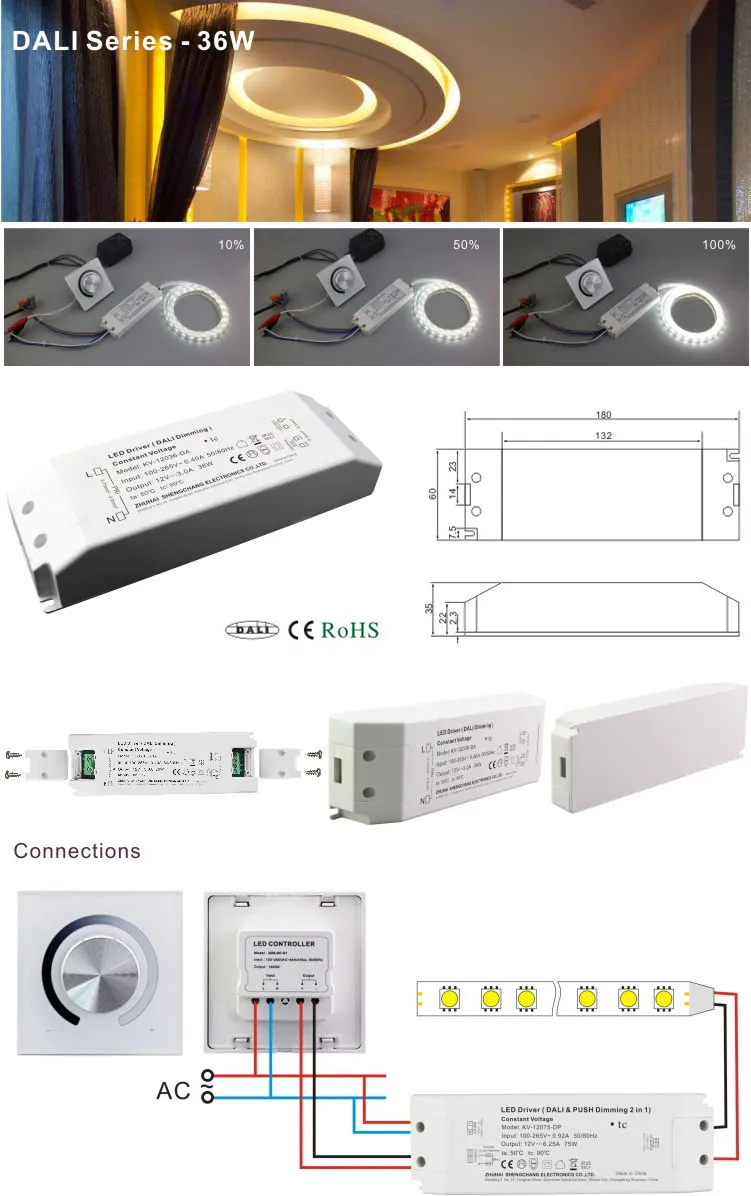

·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386

·Dimming range from 1% to 100%

·Suitable for intelligent LED lighting

·Compliance to worldwide safety regulations for lighting

·Suitable for dry locations

Specification

Model		KV-12036-DA	KV-24036-DA
Output	DC Voltage	12V	24V
	Voltage Tolerance	±0.5V
	Rated current	0 - 3A	0 -1.5A
	Rated power	36W	36W
Input	Voltage Range	100-265VAC
	Frequency Range	47 - 63HZ
	Power Factor	PF≥0.98/120VAC PF≥0.95/230VAC PF≥0.92/265VAC(Full loading)
	Full Load Efficiency(Typ.)	80%	83%
	AC Current(Max.)	0.40A	0.38A
	Leakage current	<0.5mA
Protection	Short Circuit	Protection type: Hiccup mode, recovers automatically after fault condition is removed.
	Over Load	≤120%
	Over Circuit	≤1.2*Iout
	Protection Class:	II
	Over temperature	100ºC±10ºC shut down o/p voltage, re-power on to recover
Others	Weight	0.45Kg
	Dimension	1806035mm(LWH)
	packing	355215215mm/20pcs/CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºCof ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
