Product Description

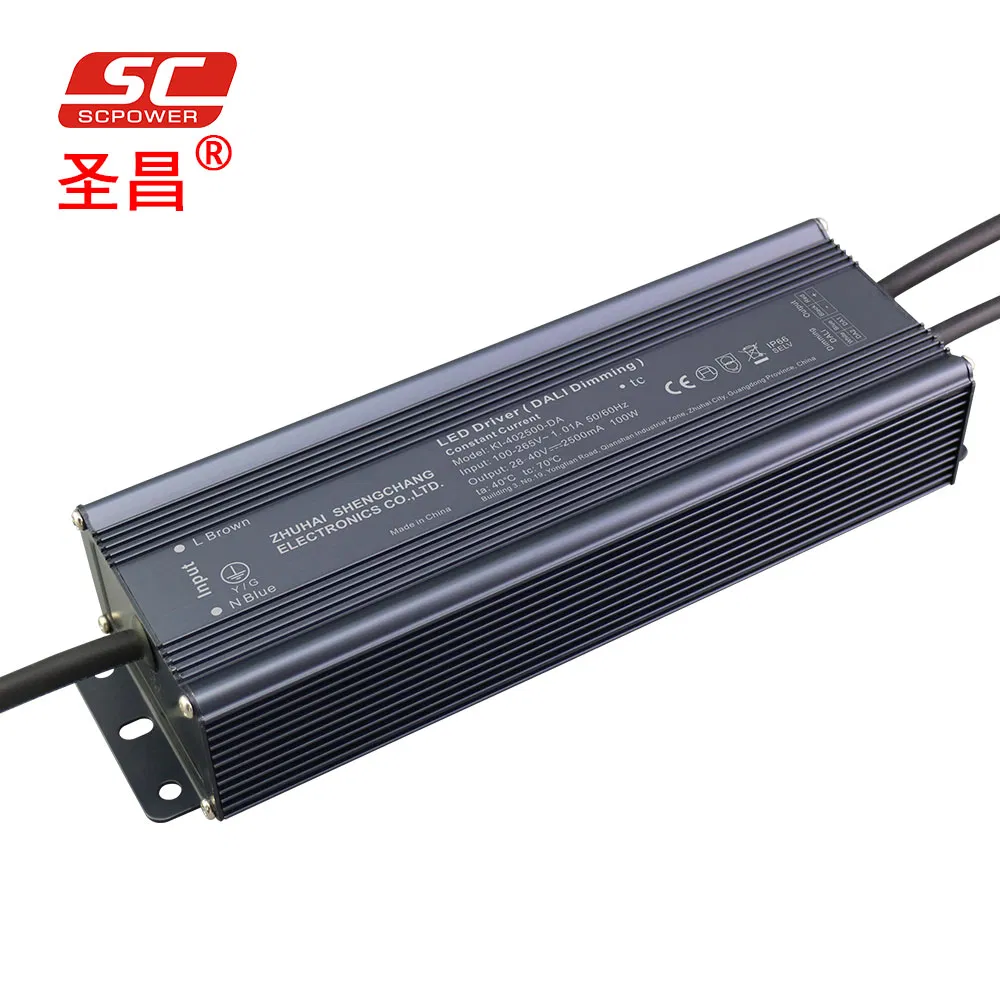

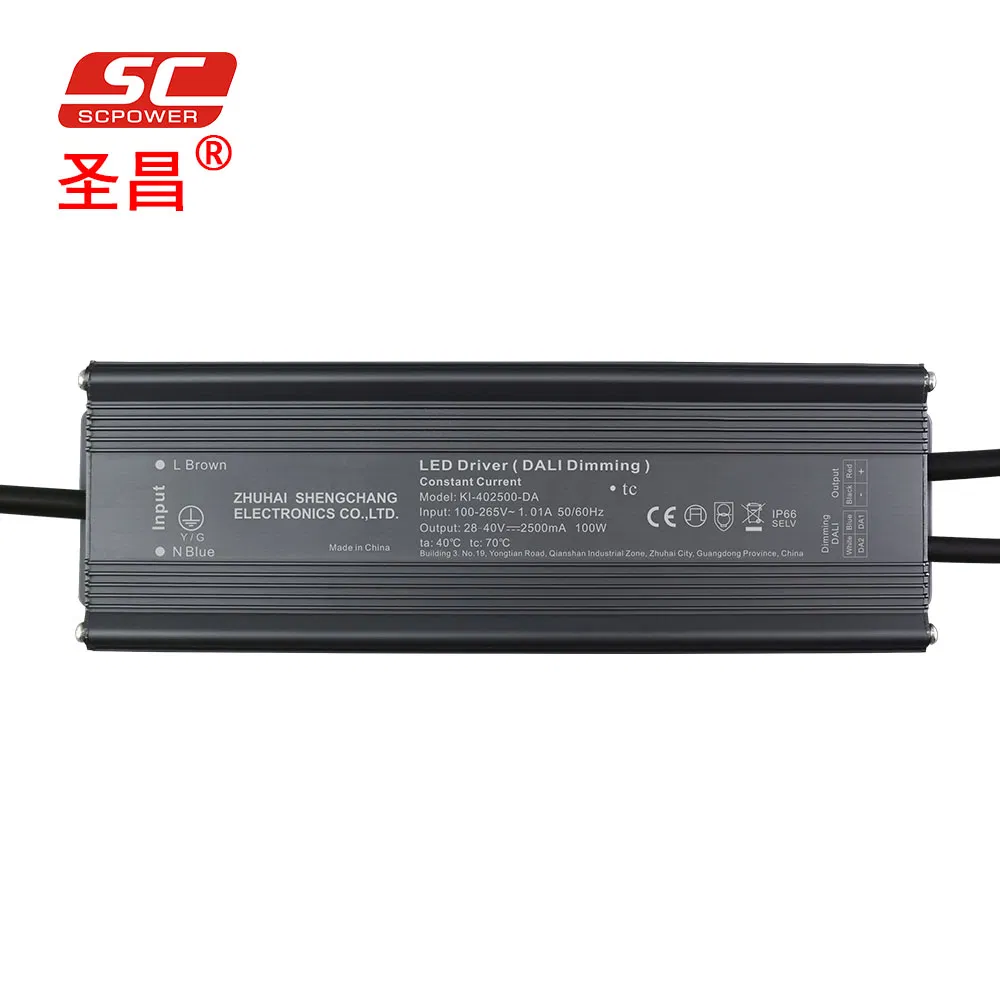

SC 100W 28v - 40V 2500mA DALI Dimmable Constant Current LED Lighting Driver

Feature

·Output constant Current

·Range 100-265VAC

·Built-in active PFC function

·Efficiency up to 87%

·Protections:short circuit/over loading/ Over temperature

·Cooling by free air convection

·IP20 design for indoor installation.

·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386

·Dimming range from 1% to 100%

·Compliance to worldwide safety regulations for lighting

·Suitable for dry locations

Specification

Model		KI-701400-DA	KI-601750-DA	KI-482100-DA	KI-402500-DA	KI-363000-DA
Output	Rated Current	1400mA	1750mA	2100mA	2500mA	3000mA
	Current Tolerance	±5%
	DC Voltage	49-70V	42-60V	33-48V	28-40V	25-36V
	Open Circuit Voltage (Max.)	75V	65V	55V	45V	40V
	Rated Power	98W	105W	100.8W	100W	108W
Input	Voltage Range	100-265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.98/120VAC PF≥0.98/230VAC PF≥0.95/265VAC(Full loading)
	Full Load Efficiency (Typ.)	87%	87%	87%	87%	87%
	AC Current(Max.)	0.99A	1.06A	1.01A	1.01A	1.09A
	Leakage Current	<0.5mA
Protection	Short Circuit	Protection type: Hiccup mode, recovers automatically after fault condition is removed
	Over Load	≤ 120%
	Protection Class:	I
	Over Temperature	100ºC±10ºC shut down o/p voltage, re-power on to recover
Environment	Working TEMP.	-40 - +60ºC
	Working Humidity	20 - 95%RH,non-condensing
	Storage TEM.,Humidity	-40 - +80ºC,10 - 95%RH
	TEMP.Coefficient	±0.03%/ºC(0 - 50ºC)
	Vibration	10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes.
Safety & EMC	Safety Standards	EN61347-1 EN61347-2-13 IP66
	Withstand Voltage	I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25ºC/70%RH
	EMC Emission	EN55015,EN61000-3-2 (≥60%load)
	EMC Immunity	EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV)
Others	Weight	1.1Kg
	Dimension	2307043mm(LWH)
	Packing	340275170mm/10pcs/CTN
Notes	All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºCof ambient temperature. Tolerance: includes set up tolerance, line regulation and load regulation . The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
