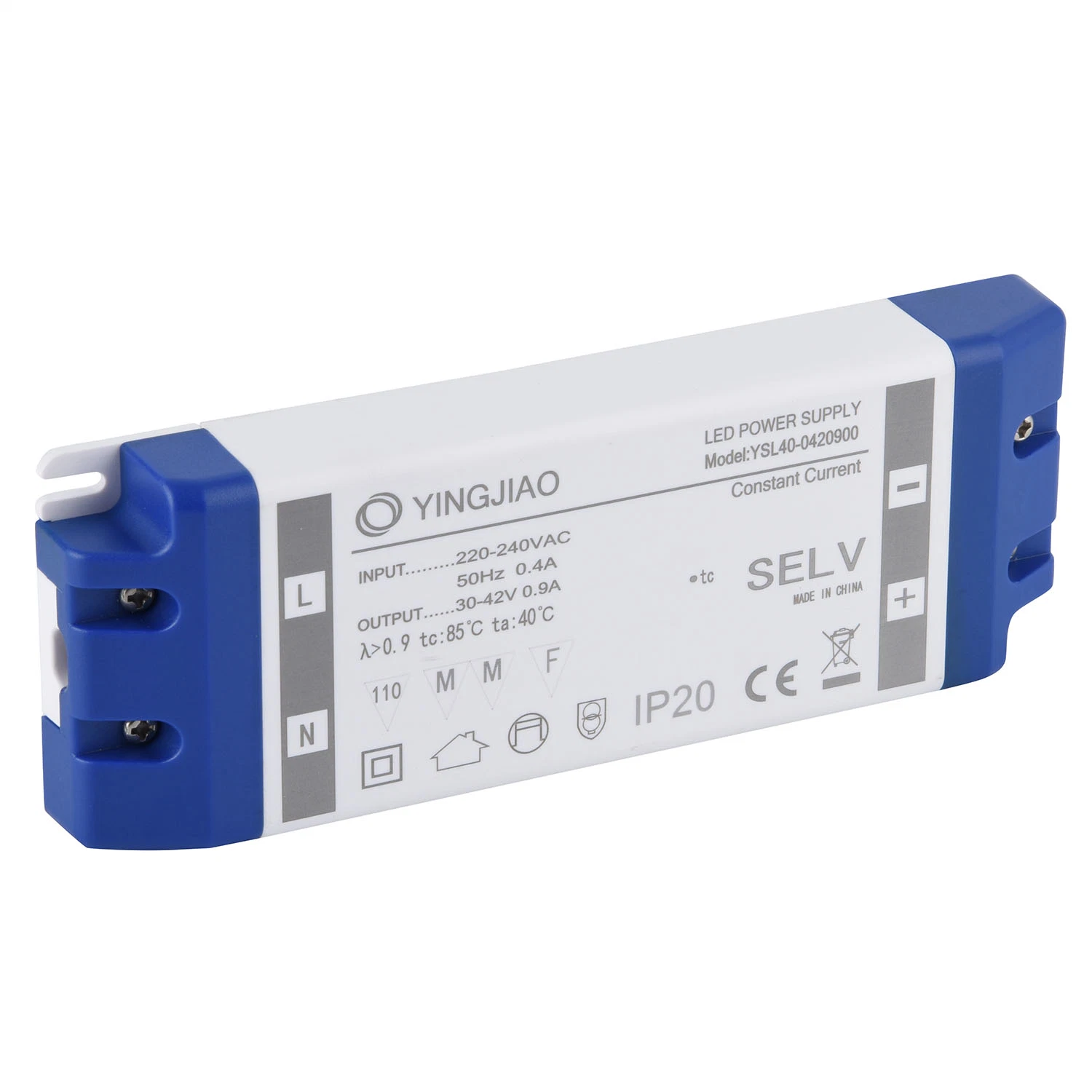

OEM/ODM/EMS 40W/50W/60W Constant Current LED Driver with Ce
LED adaptor&Driver60W Constant Current LED Driver with GS CE ULModel:YSL60 seriesRange:50-60WRated Power:60W Features:Safety: UL/cUL/TUV/GS/CE/CCC complianceRoHS ComplianceHigh efficiency & low power consumptionLED power indicatorShort Circuit ProtectionOver Current ProtectionOver Voltage Pr......
Send Inquiry
Product Description
LED adaptor&Driver
60W Constant Current LED Driver with GS CE UL
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
DATA:

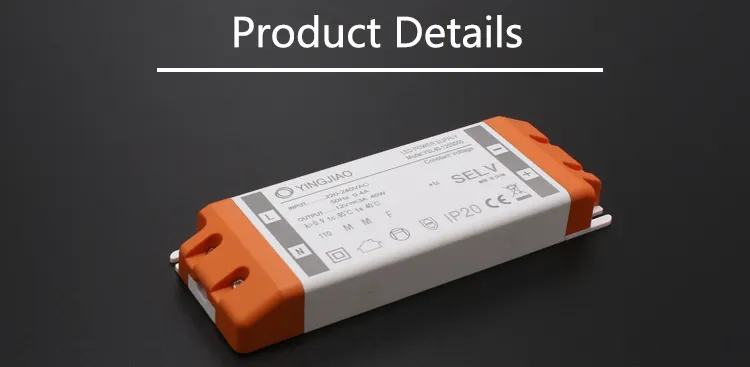

DETAILS:

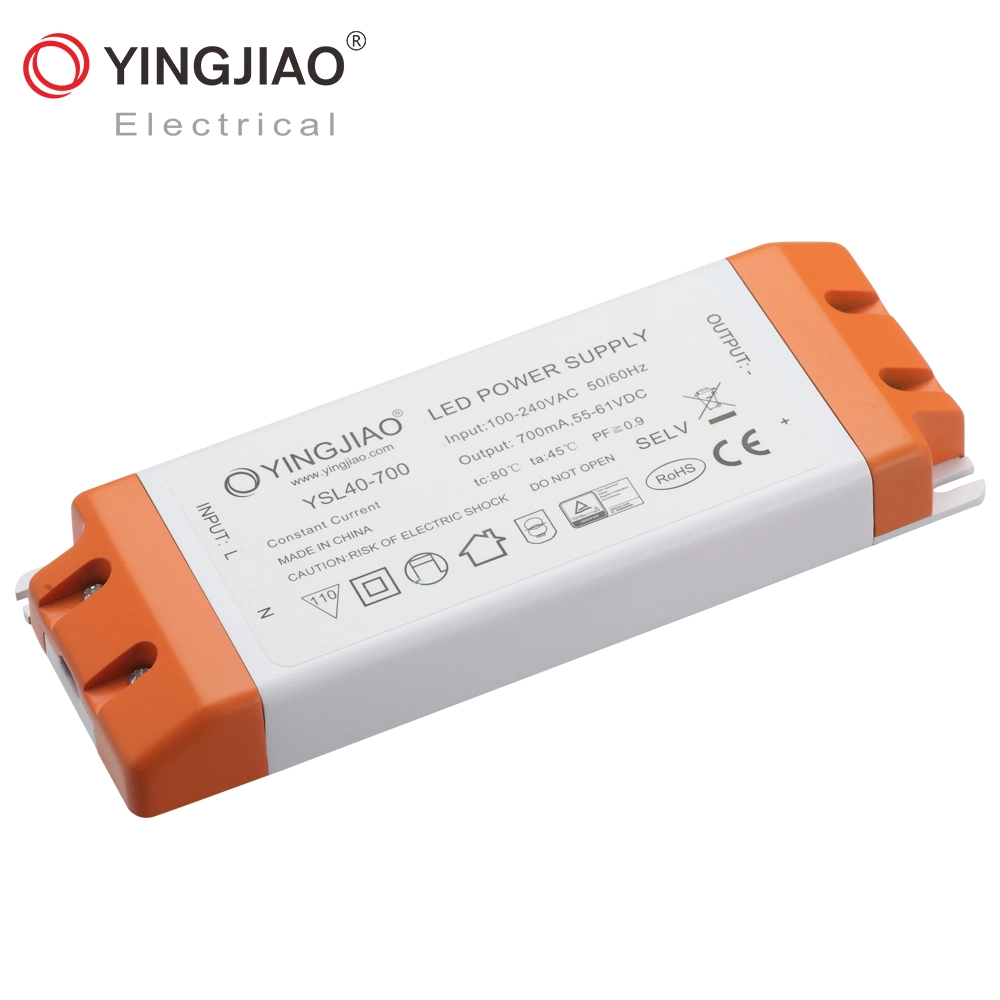

60W Constant Current LED Driver with GS CE UL
Model:YSL60 series
Range:50-60W
Rated Power:60W
Features:
Safety: UL/cUL/TUV/GS/CE/CCC complianceRoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
DATA:
| Model: | YSL60 Dimming series |
| Dimming type | Triac/0-10V/PWM |
| Power: | 40W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 12-100V |
| Output Current: | 100MA-5000MA |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 2.5mA Max. at 264VAC input |
| No Load Power Consumption : | <0.5W |
| Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | TUV-GS CB |
| EMI EMISSION: | Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25ºC ambient |
| Life: | 3-5 years alternative |
| Dimension: | 185*64*22mm |
| Weight: | 200g |
| Packing: | 50PCS/CTN,37.5*20.5*32cm |
DETAILS:
| Model: | YSL60-1203300 | YSL60-2401660 |
| DC Voltage: | 12V | 24V |
| Rated Current: | 3.3A | 1.66A |
| Current Range: | 0-3.3A | 0-1.66A |
| Rated Power: | 40W | 40W |
| Ripple & Noise(max.): | <1% | <1% |
| Voltage Tolerance: | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% |
| Efficiency: | 88% | 88% |
| Setup,Rise time | 1 second max./40 MS max. | |
