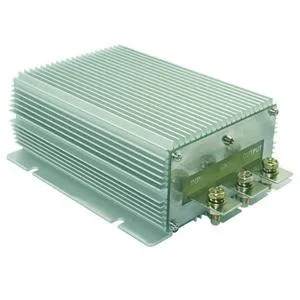

Non-Isolated 48VDC-12VDC 60A 720W DC to DC Step Down Converter
DC48V to DC12V 60A Power Converters 720WFeatures 1. 100% full power & stable current output2. 100% Imported components3. Wide input voltage from 35-60Vdc4. 100% waterproof & anti-shock protection, Ultra compact size, light weight5. Industry grade DC48V to DC12V step-down converter, efficienc......
Send Inquiry
Product Description
| DC48V to DC12V 60A Power Converters 720W | |
| Features |  |
| 1. 100% full power & stable current output 2. 100% Imported components 3. Wide input voltage from 35-60Vdc 4. 100% waterproof & anti-shock protection, Ultra compact size, light weight 5. Industry grade DC48V to DC12V step-down converter, efficiency up to 96% 6. Certificates: CE 7. Waterproof level: IP68 8. Aluminum shell, epoxy potting, Cooling by free air convection, 9. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, Auto-recovery when device is back to normal operating 10. Non-Isolated Module 11. 1 year warranty, lifetime up to 100,000 hours. | |
| Specifications | |
| Model | SDJ-48S1260 |
| Input rated voltage | 48V DC |
| Input voltage range | 35-60V DC |
| Efficiency | 97% (half load) ; 96% (full load) |
| Output voltage | 12V DC |
| Output current | 60 Amps |
| Output rated power | 720 Watts |
| Output peak power | 125% |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 100mV |
| No-load current | < 30mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP 68 |
| Protections | Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage |
| Machine size | 180*127*63mm |
| Package size | 230*152*100mm |
| N. Weight | 1.55kg |
| W. Weight | 1.62kg |
| Cooling way | Free air convection |
| Certifications | CE |
| Other | Carton packing |
