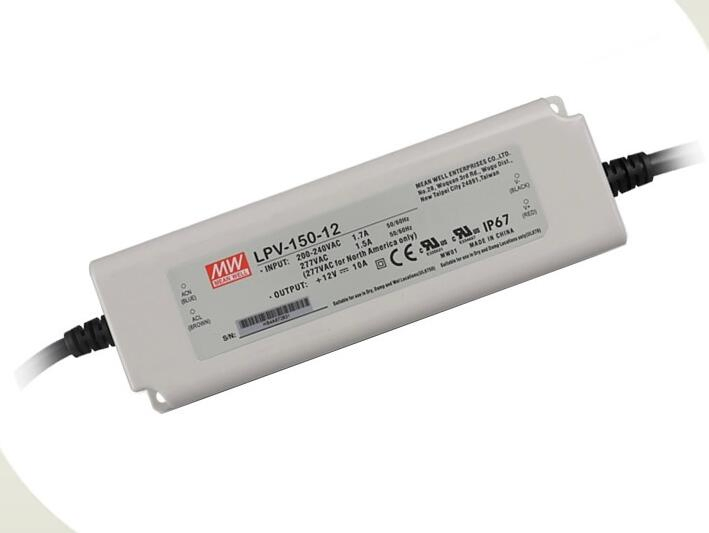

Meanwell 150W Waterproof LED Power Supply Lpv-150

150W Single Output Switching Power Supply

Features

Applications

LED channel letters

Indoor LED lighting

LED decorative lighting


Description
LPV-150 and LPVL-150 are 150W single output power supplies that specifically and perfectly workfor
LED lighting and LED moving sign applications. As a class II power unit, these two series are housed
with the UL 94V-0 rated flame retardant plastic enclosure. The IP67 design allows every model to fit
the use at dry, damp and wet locations. Both series are constant voltage mode design that various
models with 12V, 15V, 24V, 36V and 48V are offered for LPV-150 where as 12V and 24V are
provided for LPVL-150.

Features:
Constant voltage design
Fully encapsulated with IP67 level (Note.8)
Class  power unit, no FG
Protections: Short circuit/Overload/Over voltage/
Over temperature
Fully isolated plastic case
Fanless design, cooling by free air convection
100% full load burn-in test
Low cost, high reliability
