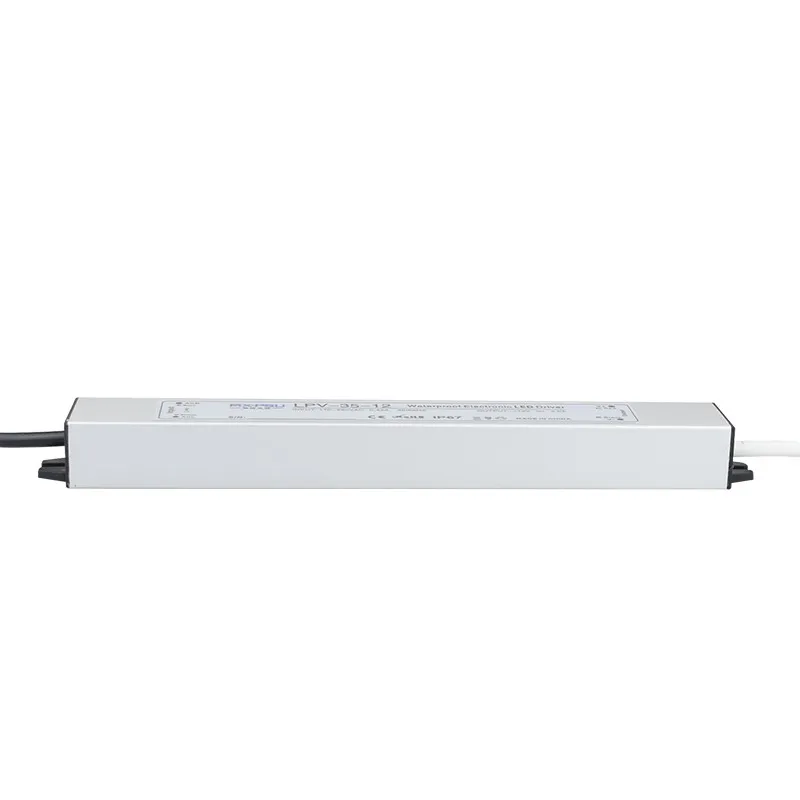

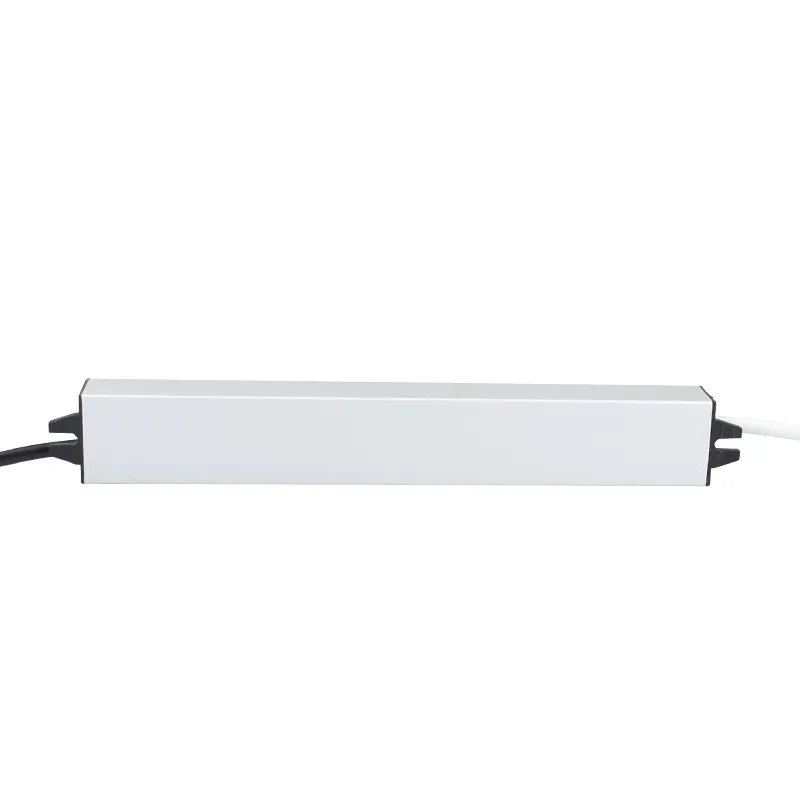

Lpv30W Waterproof Type 15V 30W LED Switching Power Supply SMPS

Product Description

LPV30W Waterproof Type 15V 30W LED Switching Power Supply SMPS

Features:

*High efficiency save energy protected environment

*High stability and low ripple, increase light efficiency and decrease light attenuation

*Meet to safety standard and EMC

*Assure LED stability long lift and light efficiency by constant voltage

*Passed high low temperature and waterproof testing

*Integrity protection, over loading over voltage over current

*24Hrs and 100% full load burn-in test

Specification
1. Waterproof power IP67
2. Input voltage: 110V/220V
3. Power factor: ≥ 0.5
4. Output voltage: 12V/24VV DC
5. Power Efficiency: 78%
6. Size: (Length, Width, Height) 222*30*20
7. Ambient temperature: -25 ~ +60° C
8. Ambient humidity: 80% non-condensing
9. Mean Time Between Failure: >20000 hours
10. Small size, high efficiency design
11. Adopt with high efficiency, low power wastage, stabilize PWM chip can reach energy efficiency and pro-environment
12. Constant output current, low ripple. Ensure the LED make use of security, stability, improve LED lighting effect, reduce optical decay
13. The product pass long time high/low temperature and aging test.
14. Over loading protection, over-voltage protection, over-current protection, primary, secondary isolated. Ensure power supply security

Details:

MODEL		LPV-30-12	LPV-30-15	LPV-30-24	LPV-30-48
OUTPUT	DC VOLTAGE	12V	15V	24V	48V
	RATED CURRENT	2.5A	2A	1.2A	0.6A
	RATED POWER	30W	30W	28.8W	28.8W
	RIPPLE&NOISE	50mVp-p	50mVp-p	100mVp-p	100mVp-p
	VOLTAGE ADJ.RANGE	4.75-5.5V	10.8-13.2V	13.5-16.5V	21.6-26.4V
	VOLTAGE TOLERANCE	±1.0%	±1.0%	±1.0%	±1.0%
	LINE REGULATION	±0.5%	±0.5%	±0.5%	±0.5%
	LOAD REGULATION	±1.0%	±1.0%	±0.5%	±0.5%
	SETUP,RISE TIME	300ms,50ms/230VAC 800ms,50ms/115VAC at full load
	HOLD UP TIME(TYP.)	90ms/230VAC 12ms/115VAC at full load
INPUT	VOLTAGE RANGE	90-264VAC
	FREQUENCY RANGE	47-63HZ
	EFFICIENCY(Typ.)	75%	80%	82%	85%
	AC CURRENT(Typ.)	0.4A/230VAC
	INRUSH CURRENT	COLD START 30A/230VAC
	LEAKAGE CURRENT	0.5mA/240VAC
PROTECTION	OVERLOAD	105-150% RATED OUTPUT POWER
		WATER-PROOF LEVEL:IP67
	OVER VOLTAGE	5.75V-6.75V		17.2V-20.25V	27.6V-32.4V
		Protection type:Hiccup mode,recovers automatically after fault condition
ENVIRONMENT	WORKING TEMP	-25~+50°C
	WORKING HUMIDITY	20-90%RH non-condesing
	STORAGE TEMP,HUMIDITY	-20~+85°C,10-95%RH
	TEMP.COEFFICIENT	±0.03%°C(0-50°C)
	VIBRATION	10-500HZ
SAFETY&EMC	SAFETY STANDARD	CE RoHS
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1minute
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC/25°C/70%RH
	EMI CONDUCTION&RADIATION	Design refer to GB4943,UL60950,EN60950
	EMC STANDARD	Design refer to GB9254,EN55022 Class A
	DIMENSION	L222W28H20mm
	PACKING	0.25kg
