Ki -362100-Da Waterproof Dimmable LED Power Supply 80W Work with Lutron Dali System
Product DescriptionKI-362100-DA waterproof dimmable led power supply 80w work with Lutron DALI system Feature ·Output constant Current ·Range 100-265VAC ·Built-in active PFC function ·Efficiency up to 86% ·Protections:short circuit/over lo......
Send Inquiry
Product Description

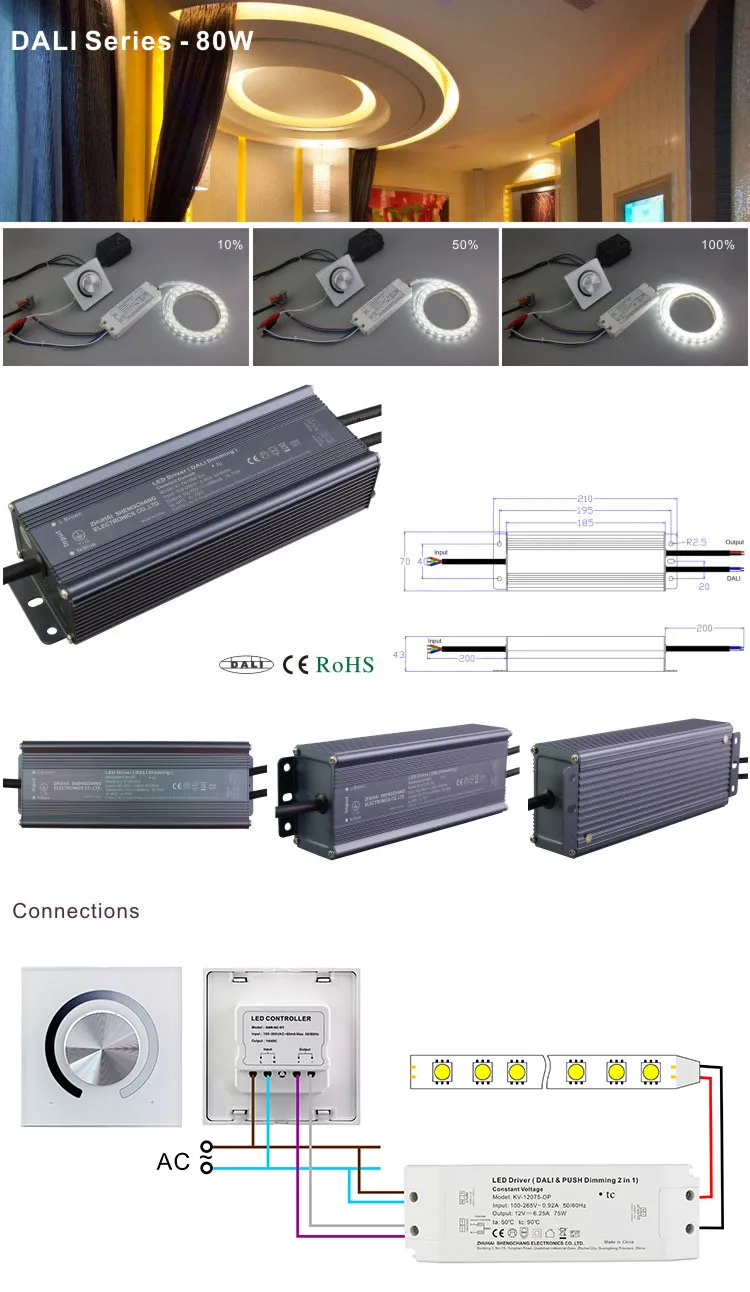

KI-362100-DA waterproof dimmable led power supply 80w work with Lutron DALI system
Feature
·Output constant Current
·Range 100-265VAC
·Built-in active PFC function
·Efficiency up to 86%
·Protections:short circuit/over loading/ Over temperature
·Cooling by free air convection
·IP20 design for indoor installation.
·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
·Dimming range from 1% to 100%
·Compliance to worldwide safety regulations for lighting
·Suitable for dry locations
Specification
| Model | KI-85900 -DA | KI-751050 -DA | KI-551400 -DA | KI-451750 -DA | KI-362100 -DA | KI-302500 -DA | |
| Output | Rated Current | 900mA | 1050mA | 1400mA | 1750mA | 2100mA | 2500mA |
| Current Tolerance | ±5% | ||||||
| DC Voltage | 59-85V | 52-75V | 38-55V | 32-45V | 25-36V | 21-30V | |
| Open Circuit Voltage (Max.) | 90V | 80V | 60V | 50V | 40V | 35V | |
| Rated Power | 76.5W | 78.75W | 77W | 78.75W | 75.60W | 75W | |
| Input | Voltage Range | 100-265VAC | |||||
| Frequency Range | 47~63HZ | ||||||
| Power Factor | PF≥0.98/120VAC PF≥0.95/230VAC PF≥0.95/265VAC(Full loading) | ||||||
| Full Load Efficiency (Typ.) | 86% | 86% | 86% | 86% | 86% | 86% | |
| AC Current(Max.) | 0.78A | 0.80A | 0.78A | 0.80A | 0.77A | 0.76A | |
| Leakage Current | <0.5mA | ||||||
| Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
| Over Load | ≤ 120% | ||||||
| Protection Class: | I | ||||||
| Over Temperature | 100ºC±10ºC shut down o/p voltage, re-power on to recover | ||||||
| Environment | Working TEMP. | -40 - +60ºC | |||||
| Working Humidity | 20 - 95%RH,non-condensing | ||||||
| Storage TEM.,Humidity | -40 - +80ºC,10 - 95%RH | ||||||
| TEMP.Coefficient | ±0.03%/ºC(0 - 50ºC) | ||||||
| Vibration | 10 - 500Hz, 5G 12min./1 cycle, period for 72min.each along X,Y,Z axes. | ||||||
| Safety & EMC | Safety Standards | EN61347-1 EN61347-2-13 IP66 | |||||
| Withstand Voltage | I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC | ||||||
| Isolation Resistance | I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25ºC/70%RH | ||||||
| EMC Emission | EN55015,EN61000-3-2 (≥60%load) | ||||||
| EMC Immunity | EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) | ||||||
| Others | Weight | 0.95Kg | |||||
| Dimension | 210*70*43mm(L*W*H) | ||||||
| Packing | 340*275*170mm/10pcs/CTN | ||||||
| Notes |
| ||||||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
