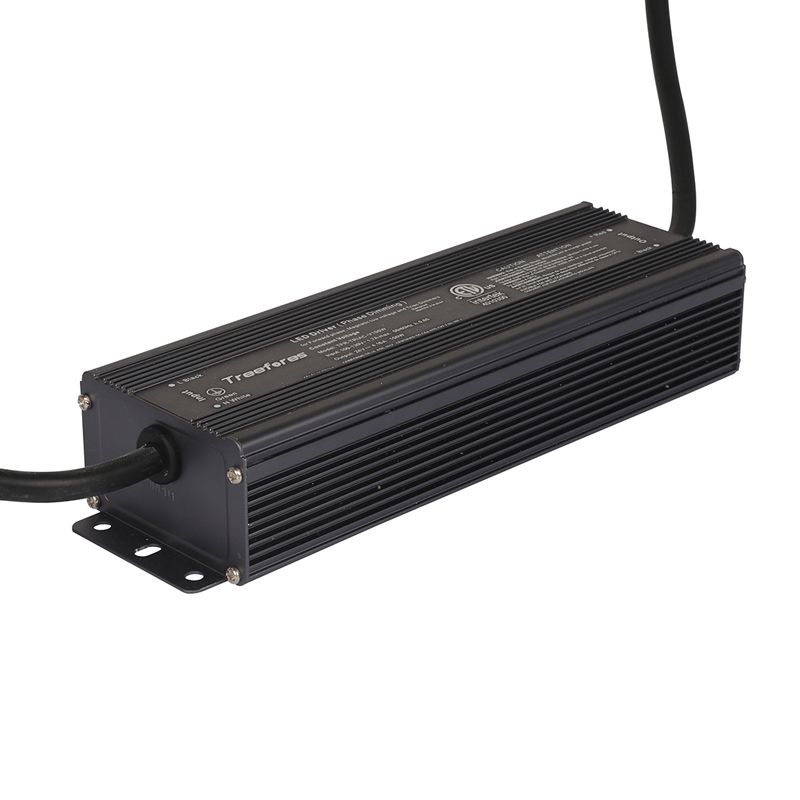

IP67 Triac Dimmable Transformer LED 300W 24V AC DC Power Supply for Strip Lighting
IP67 Triac Dimmable Transformer LED 300W 24V AC DC Power Supply for Strip Lighting Dimension: 300W: 275*80*50mm Power Factor: 95%Efficiency: 87%Leakage Current: <0.70mA/220VACShort Circuit: intermittent restart mode, recover after the exception is eliminatedOverload: <=120%Over-temperature pr......
Send Inquiry
Product Description
IP67 Triac Dimmable Transformer LED 300W 24V AC DC Power Supply for Strip Lighting
Power Factor: 95%
Efficiency: 87%
Leakage Current: <0.70mA/220VAC
Short Circuit: intermittent restart mode, recover after the exception is eliminated
Overload: <=120%
Over-temperature protection 100ºC±10ºC Over-temperature shuts off, automatically recover.
Working Temperature: -40~+60ºC
Working Humidity: 20~90%RH, non-condensing
Storage Temperature and Humidity: -40~+80ºC, 10~95%RH
Temperature Coefficient: ±0.03%/ºC (0~50ºC)
Vibration Resistance: 10~500Hz, 2G 10 minutes/cycle, X, Y, Z axis each for 60 minutes
Safety Regulations: EN61347-1 EN61347-2-13
Withstand Voltage: I/P-O/P: 3.75KVAC I/P-FG: 1.88KVAC O/P-FG: 0.5KVAC
Insulation resistance: I/P-O/P: 100MΩ/500VDC/25ºC/70%RH
Electromagnetic Compatibility Emission: EN55015, EN61000-3-2, 3 (>=50% load)
Electromagnetic Compatibility Cmmunity: EN61000-4-2,3,4,5,6,11 (surge 4KV)
Triac Dimmable Led Driver
Warranty policy:
1: Warranty: 3 years.
2: 100% of all products will be tested before shipping by our QC staff.
3: During the warranty period, we will immediately supply replacement for free.
4: Promot technciail supports and led solution will be offered!
5: Favorable price according to large qty.
6: Once partnership established, newest and hottest products information
Dimension:
300W: 275*80*50mm
Power Factor: 95%
Efficiency: 87%
Leakage Current: <0.70mA/220VAC
Short Circuit: intermittent restart mode, recover after the exception is eliminated
Overload: <=120%
Over-temperature protection 100ºC±10ºC Over-temperature shuts off, automatically recover.
Working Temperature: -40~+60ºC
Working Humidity: 20~90%RH, non-condensing
Storage Temperature and Humidity: -40~+80ºC, 10~95%RH
Temperature Coefficient: ±0.03%/ºC (0~50ºC)
Vibration Resistance: 10~500Hz, 2G 10 minutes/cycle, X, Y, Z axis each for 60 minutes
Safety Regulations: EN61347-1 EN61347-2-13
Withstand Voltage: I/P-O/P: 3.75KVAC I/P-FG: 1.88KVAC O/P-FG: 0.5KVAC
Insulation resistance: I/P-O/P: 100MΩ/500VDC/25ºC/70%RH
Electromagnetic Compatibility Emission: EN55015, EN61000-3-2, 3 (>=50% load)
Electromagnetic Compatibility Cmmunity: EN61000-4-2,3,4,5,6,11 (surge 4KV)
Triac Dimmable Led Driver
Warranty policy:
1: Warranty: 3 years.
2: 100% of all products will be tested before shipping by our QC staff.
3: During the warranty period, we will immediately supply replacement for free.
4: Promot technciail supports and led solution will be offered!
5: Favorable price according to large qty.
6: Once partnership established, newest and hottest products information
