Product Description

Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number (6)
Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	120Vac	220Vac	Model Number (6)
70-1050mA	700-1050mA	700 mA	90~305 Vac/ 127~300 Vdc	153~457 Vdc	320W	94.5%	0.99	0.96	EUM-320S105BG
105-1500mA	1050-1500mA	1400 mA	90~305 Vac/ 127~300 Vdc	107~305 Vdc	320W	94.0%	0.99	0.96	EUM-320S150BG
175-2500mA	1750-2500mA	2100 mA	90~305 Vac/ 127~300 Vdc	64~183 Vdc	320W	94.0%	0.99	0.96	EUM-320S250BG
285-5000mA	2850-5000mA	4900 mA	90~305 Vac/ 127~300 Vdc	32~112 Vdc	320W	93.5%	0.99	0.96	EUM-320S500BG (4)
535-7600mA	5350-7600mA	6700 mA	90~305 Vac/ 127~300 Vdc	21 ~ 60 Vdc	320W	92.5%	0.99	0.96	EUM-320S760BG (4)

Notes: (1) Output current range with constant power at 320W.

(2) Certified input voltage range: UL, FCC 100-277Vac; otherwise 100-240Vac.

(3) Measured at 100% load and 220Vac input (see below "General Specifications" for details).

(4) SELV Output.

Fetaures:

Full Power at Wide Output Current Range (Constant Power)

Adjustable Output Current (AOC) with NFC

DALI-2 and D4i Certified

3-Timer-Modes Dimmable

Dim-to-Off with Standby Power ≤ 0.5 W

Always-on Auxiliary Power:

24Vdc,125mA,3W (Transient Peak Power up to 10W)

Integrated 16Vdc current source power supply based on DALI-2

Integrated Power Monitoring with High Accuracy up to ±1%

Output Lumen Compensation

End-of-Life Indicator

Thermal Sensing and Protection for LED Module

Input Surge Protection: DM 6kV, CM 10kV

All-Around Protection: IUVP, IOVP, OVP, SCP, OTP

IP66 / IP67 and UL Dry / Damp / Wet Location

TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location

7 Years Warranty

Descriptions:

The EUM-320SxxxBx series is a 320W, constant-current, NFC programmable and IP66/IP67 rated LED driver that operates from 90-305Vac input with excellent power factor. Created for intra-luminaire solutions and health monitoring applications, this family provides integrated AC power monitoring with an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports two-way communication via DALI-2 and complies with D4i. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature.

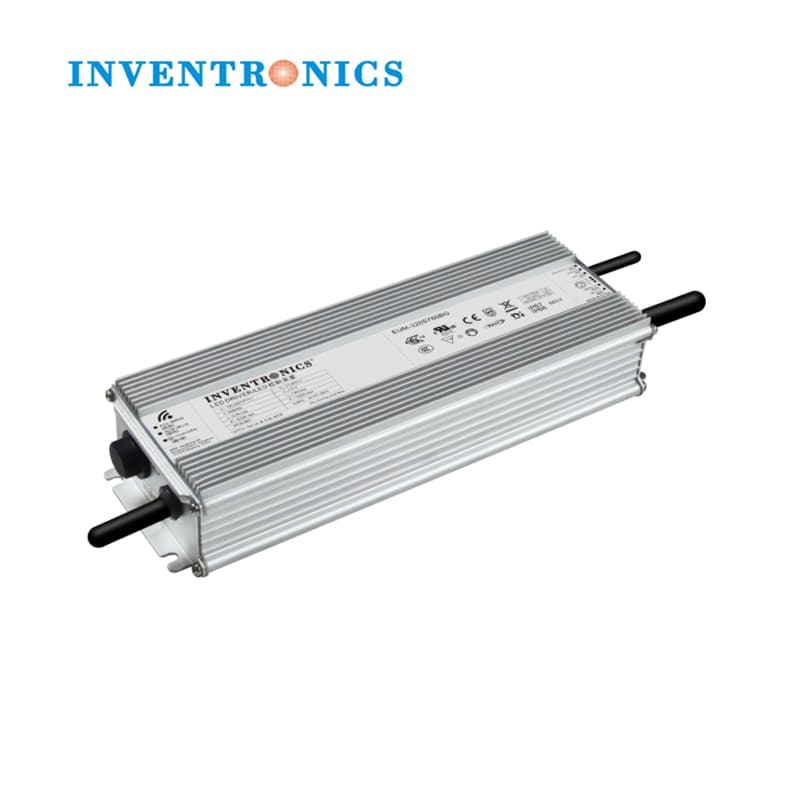

Product Pictures:

Inventronics Eum-320s250bg 320 300 W 175-2500mA 2000mA 2A 2.5A Dali -2 D4I LED Driver
