Inventronics Eud-096sxxxdta 96 Watt 96W 100W Smart- Controlled Programmable LED Driver

Product Description

Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor		Model Number (6)
Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	120Vac	220Vac	Model Number (6)
45-700mA	450-700mA	530 mA	90~305Vac/ 127~300Vdc	74~213Vdc	96W	91.5%	0.99	0.96	EUD-096S070DTA
70-1050mA	700-1050mA	700 mA	90~305 Vac/ 127~300 Vdc	48~137Vdc	96W	92.5%	0.99	0.96	EUD-096S105DTA
140-2100mA	1400-2100mA	2100 mA	90~305 Vac/ 127~300 Vdc	24~69Vdc	96W	93.0%	0.99	0.96	EUD-096S210DTA (4)
175-2150mA	1750-2150mA	2100 mA	90~305 Vac/ 127~300 Vdc	24~55Vdc	96W	92.5%	0.99	0.96	EUD-096S215DTA (5)
245-3500mA	2450-3500mA	2800 mA	90~305 Vac/ 127~300 Vdc	14~39Vdc	96W	91.0%	0.99	0.96	EUD-096S350DTA (5)

Notes:

(1) Output current range with constant power at 96W

(2) Certified input voltage range: UL, FCC 100-277Vac or 127-300Vdc; otherwise 100-240Vac or 127-250Vdc (except KS).

(3) Measured at full load and 220Vac input (see below "General Specifications" for details).

(4) SELV Output.

(5) Class 2 & SELV Output.

(6) Standard part UL Type TL. For UL Listed Class P models add suffix -00C0.

Fetaures:

Ultra High Efficiency (Up to 93.0%)

Full Power at Wide Output Current Range (Constant Power)

Thermal Sensing and Protection for LED Module

0-10V/PWM/Timer Dimmable (3 Timer Modes)

Dim-to-Off with Standby Power ≤ 0.5 W

Always-on Auxiliary Power: 12Vdc, 200mA (Transient Peak Current up to 400mA)

Output Lumen Compensation

Input Surge Protection: 6kV line-line, 10kV line-earth

All-Around Protection: OVP, SCP, OTP

Waterproof (IP67) and UL Dry / Damp / Wet Location

Class 2 & SELV Output

TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location

Class P, UL Listed Versions Available (See Note 6)

7 Years Warranty

Descriptions:

The EUD-096SxxxDTA series is a 96W, constant-current, programmable LED driver that operates from 90-305 Vac input with excellent power factor. Created for low bay, tunnel and street lights, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

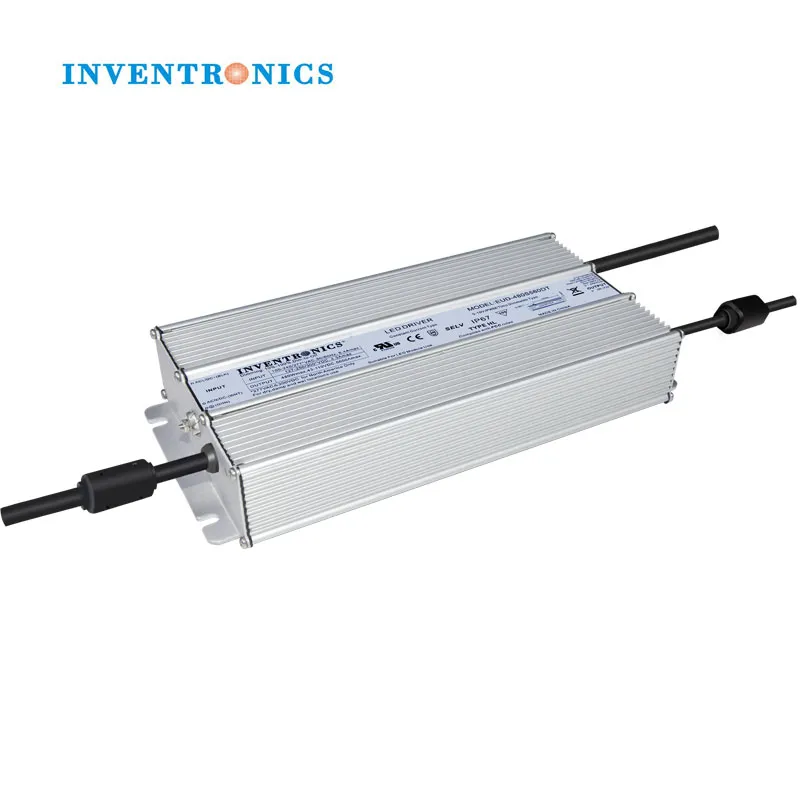

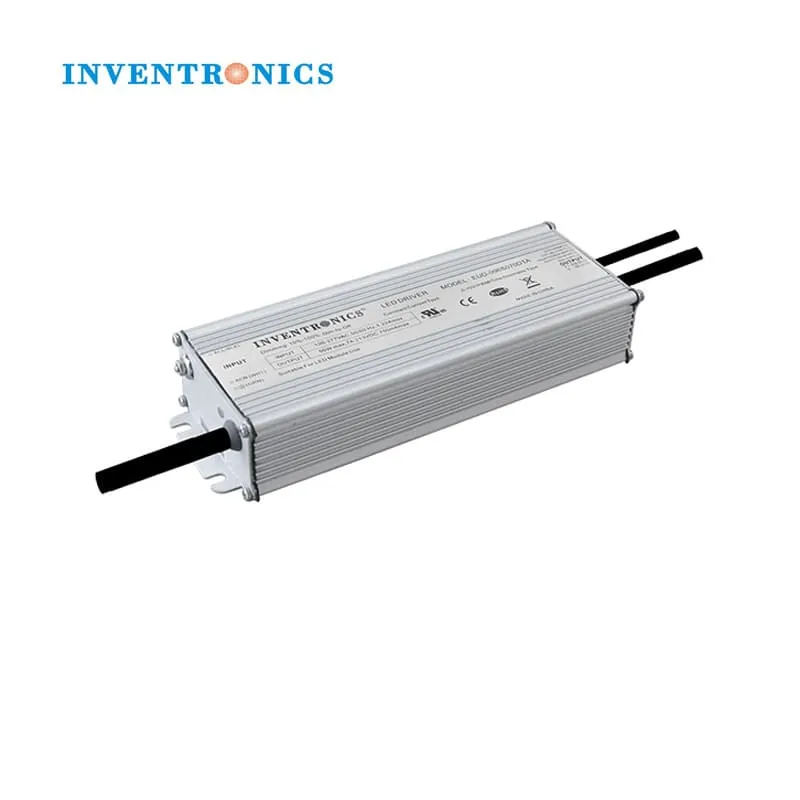

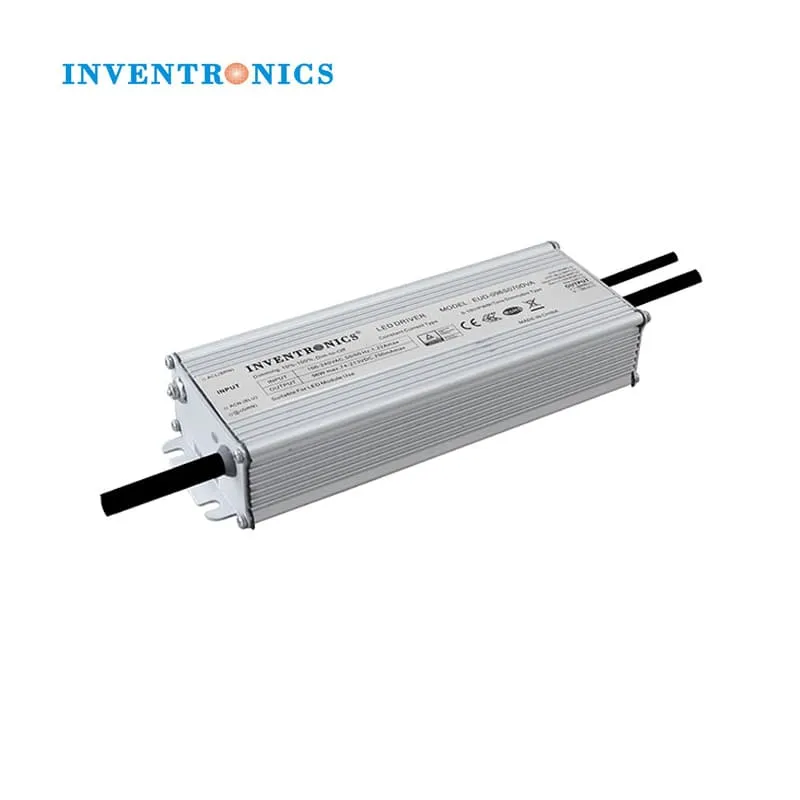

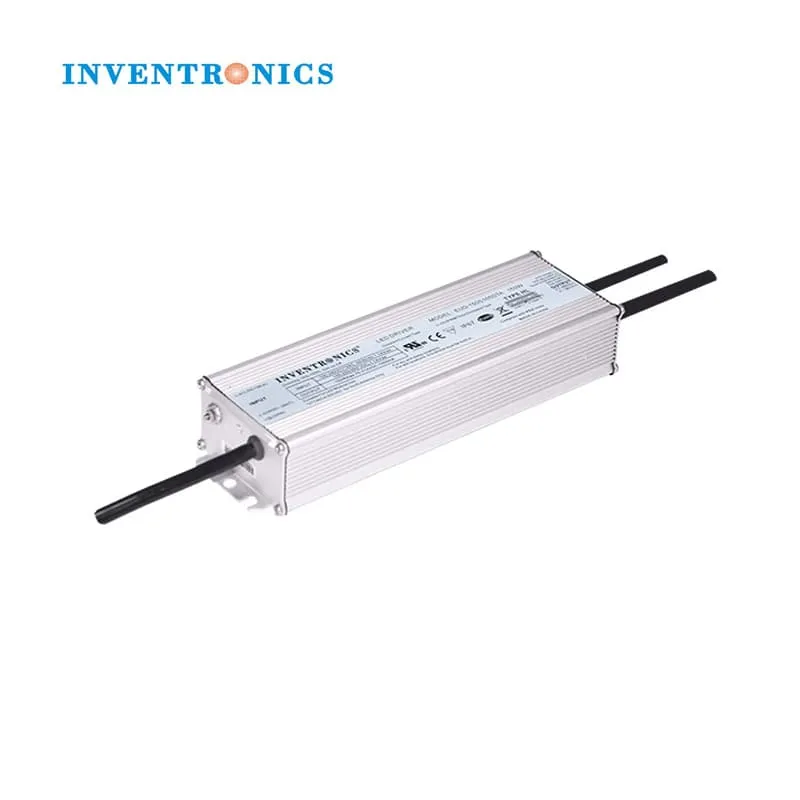

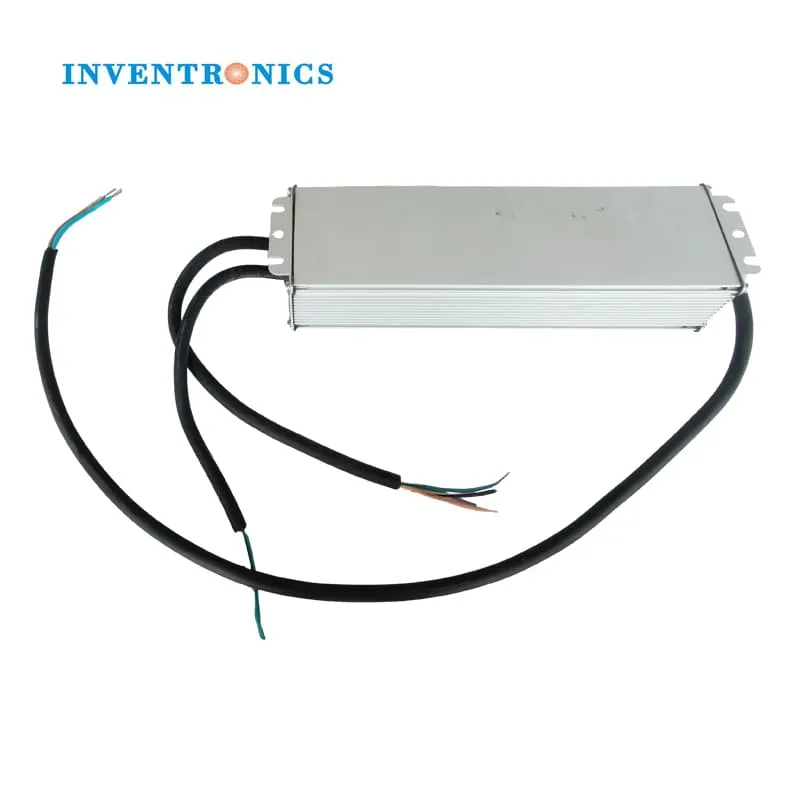

Product Pictures:
Inventronics Eud-096sxxxdta 96 Watt 96W 100W Smart-Controlled Programmable LED Driver
