China Inventronics Ebs-080sxxxbt2 80W Class I II NFC LED Driver with Dali-2 and D4I

Product Description

Models:

Adjustable Output Current Range	Full-Power Current Range (1)	Default Output Current	Input Voltage Range(2)	Output Voltage Range	Max. Output Power	Typical Efficiency (3)	Power Factor	Model Number (6)
45-700mA	450-700mA	530 mA	176~305 Vac 171~275 Vdc	57~178Vdc	80 W	92.5%	0.98	EBS-080S070BT2
70-1050mA	700-1050mA	700 mA	176~305 Vac 171~275 Vdc	48~143 Vdc	80 W	92.5%	0.98	EBS-080S105BT2 (4)
105-1500mA	1050-1500mA	1050 mA	176~305 Vac 171~275 Vdc	34~95 Vdc	80 W	92.0%	0.98	EBS-080S150BT2 (4)

Notes: (1) Output current range with constant power at 80W.

(2) CCC certified input voltage range: 220-240 Vac; other certified input voltage range except CCC: 200-240 Vac.

(3) Measured at 100%load and 220Vac input (see below "General Specifications" for details).

(4) SELV output.

(5) All the models are certificated to BIS, except EBS-080S070BT2.

Fetaures:

Full Power at Wide Output Current Range (Constant Power)

Adjustable Output Current (AOC) with NFC

DALI-2 and D4i Certified

3-Timer-Modes Dimmable

Dim-to-Off with Standby Power ≤ 0.5 W

Always-on Auxiliary Power:

24Vdc,125mA,3W (Transient Peak Power up to 10W)

Integrated 16Vdc Bus Power Supply based on DALI-2

Integrated Power Monitoring with High Accuracy up to ±1%

Output Lumen Compensation

End-of-Life Indicator

Thermal Sensing and Protection for LED Module

Input Surge Protection: DM 6kV, CM 10kV

All-Around Protection: IUVP, IOVP, OVP, SCP, OTP

IP66 / IP67 and UL Dry / Damp / Wet Location

TYPE HL, for Use in a Class I, Division 2 Hazardous (Classified) Location

7 Year Warranty

Descriptions:

The EBS-080SxxxBT2 series is a 80W, constant-current, NFC programmable and IP20 rated LED driver that operates from 176-305 Vac input with excellent power factor. Created for many lighting applications including street, tunnel and low bay, etc., this family provides integrated AC power monitoring with an auxiliary voltage and dim-to-off functionality for powering low voltage, wireless controls. The dimming control supports two-way communication via DALI-2 and complies with D4i. The high efficiency of these drivers and better thermal design enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, input under voltage, input over voltage, output over voltage, short circuit, and over temperature of both the driver and the external LED array.

Product Pictures:

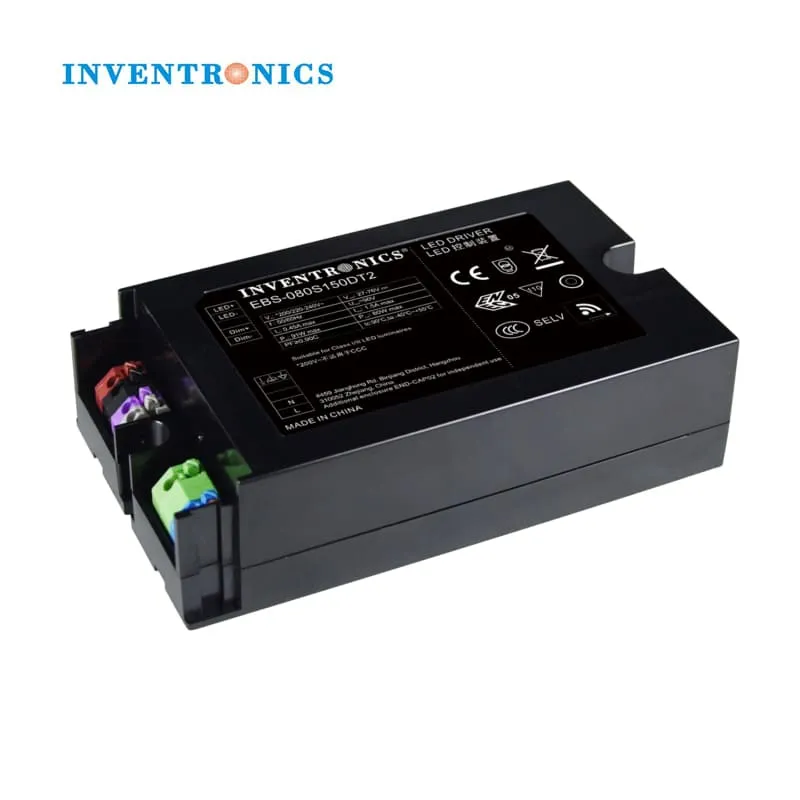

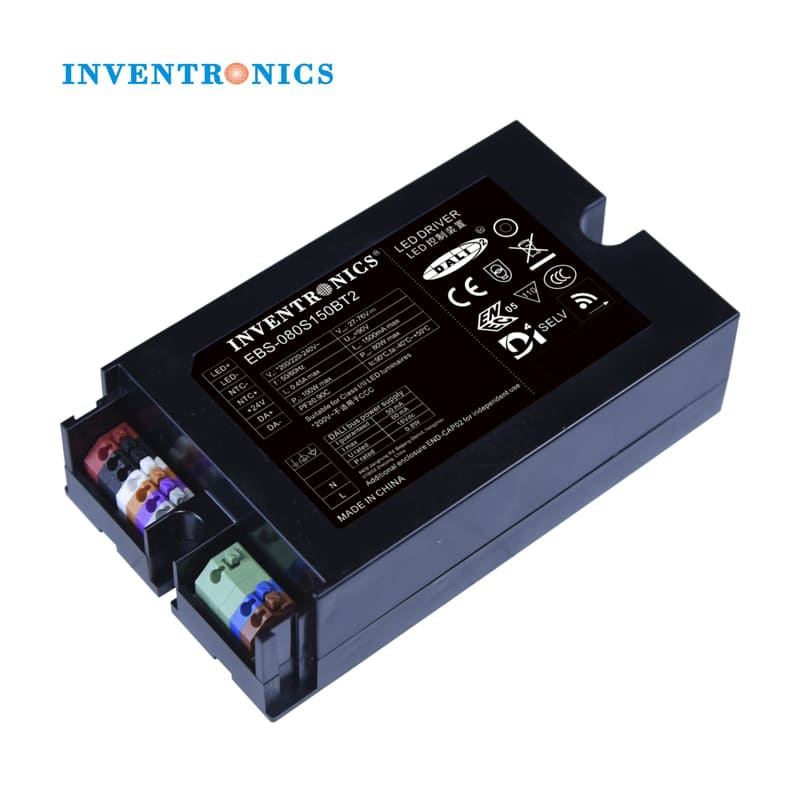

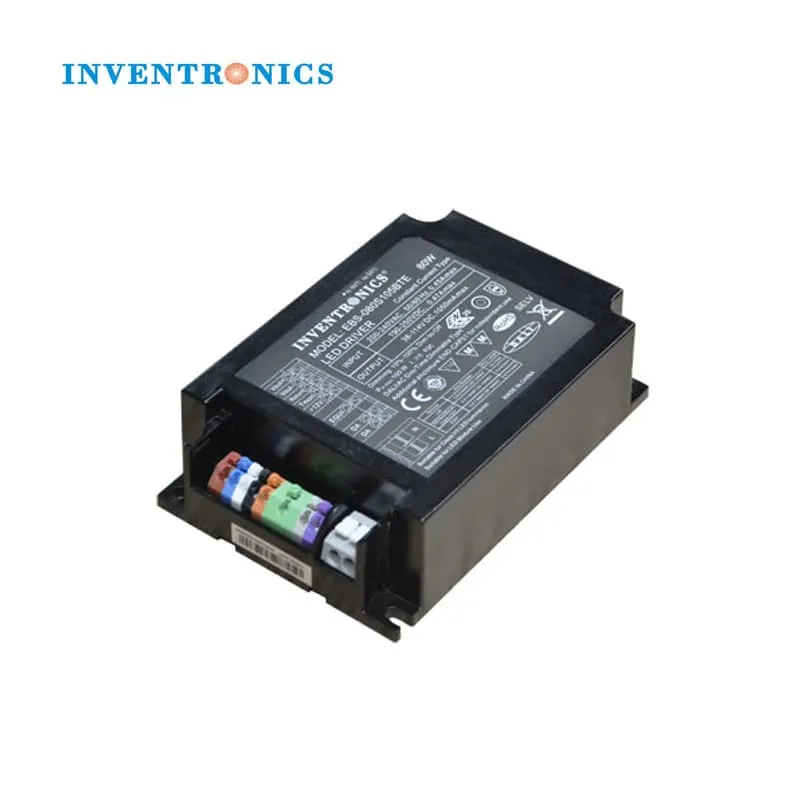

Inventronics Ebs-080sxxxbt2 80W Class I II NFC LED Driver with Dali-2 and D4I
