Inventronics 150W 160W 160 150 W Class I II Programmable IP20 LED Driver with Dali
Models:Adjustable Output Current Range Full-Power Current Range (1)Default Output Current Input Voltage Range(2) Output Voltage Range Max. Output PowerTypical Efficiency (3)Power FactorModel Number (6) 45-700 mA450-700 mA530 mA176~305 Vac171~275 Vdc115~356Vdc160 W94.0% 0.98EBS-160S070BTE70-1050mA700......
Send Inquiry
Product Description
Models:
Fetaures:
Product Pictures:
Adjustable Output Current Range | Full-Power Current Range (1) | Default Output Current | Input Voltage Range(2) | Output Voltage Range | Max. Output Power | Typical Efficiency (3) | Power Factor | Model Number (6) |
| 45-700 mA | 450-700 mA | 530 mA | 176~305 Vac 171~275 Vdc | 115~356Vdc | 160 W | 94.0% | 0.98 | EBS-160S070BTE |
| 70-1050mA | 700-1050mA | 700 mA | 176~305 Vac 171~275 Vdc | 76~229Vdc | 160 W | 94.0% | 0.98 | EBS-160S105BTE |
Notes: (1) Output current range with constant power at 160W
(2) Certified voltage range: 200-240Vac or 190-250Vdc (except CCC and KS)
(3) Measured at 100% load and 220Vac input (see below "General Specifications" for details).
(4) EBS-160S105BTE is certificated to KS.
(2) Certified voltage range: 200-240Vac or 190-250Vdc (except CCC and KS)
(3) Measured at 100% load and 220Vac input (see below "General Specifications" for details).
(4) EBS-160S105BTE is certificated to KS.
Fetaures:
Ultra High Efficiency (Up to 94.0%)
Full Power at Wide Output Current Range (Constant Power)
Thermal Sensing and Protection for LED Module
DALI/AC Dim/3-Timer-Modes Dimmable
Dim-to-Off with Standby Power ≤ 0.5 W
Always-on Auxiliary Power: 12Vdc, 200mA (Transient Peak Current up to 400mA)
Output Lumen Compensation
Long Lifetime Over 100k Hours at 75°C Case Temperature
Input Surge Protection: DM 6 kV, CM 10 kV
All-Around Protection: OVP, SCP, OTP
IP20 Design and Suitable for Outdoor Applications in Luminaires with IP>54
Suitable for Luminaires with Protection Class I and II
Complies with Zhaga Interface Specification Book 13
7 Years Warranty
Full Power at Wide Output Current Range (Constant Power)
Thermal Sensing and Protection for LED Module
DALI/AC Dim/3-Timer-Modes Dimmable
Dim-to-Off with Standby Power ≤ 0.5 W
Always-on Auxiliary Power: 12Vdc, 200mA (Transient Peak Current up to 400mA)
Output Lumen Compensation
Long Lifetime Over 100k Hours at 75°C Case Temperature
Input Surge Protection: DM 6 kV, CM 10 kV
All-Around Protection: OVP, SCP, OTP
IP20 Design and Suitable for Outdoor Applications in Luminaires with IP>54
Suitable for Luminaires with Protection Class I and II
Complies with Zhaga Interface Specification Book 13
7 Years Warranty
Descriptions:
The EBS-160SxxxBTE series is a 160W, constant-current, programmable LED driver that operates from 176-305Vac input with excellent power factor. Created for many lighting applications including street, tunnel and high bay, it provides a dim-to-off mode with low standby power. The high efficiency of these drivers and better thermal design enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature of both the driver and the external LED array.

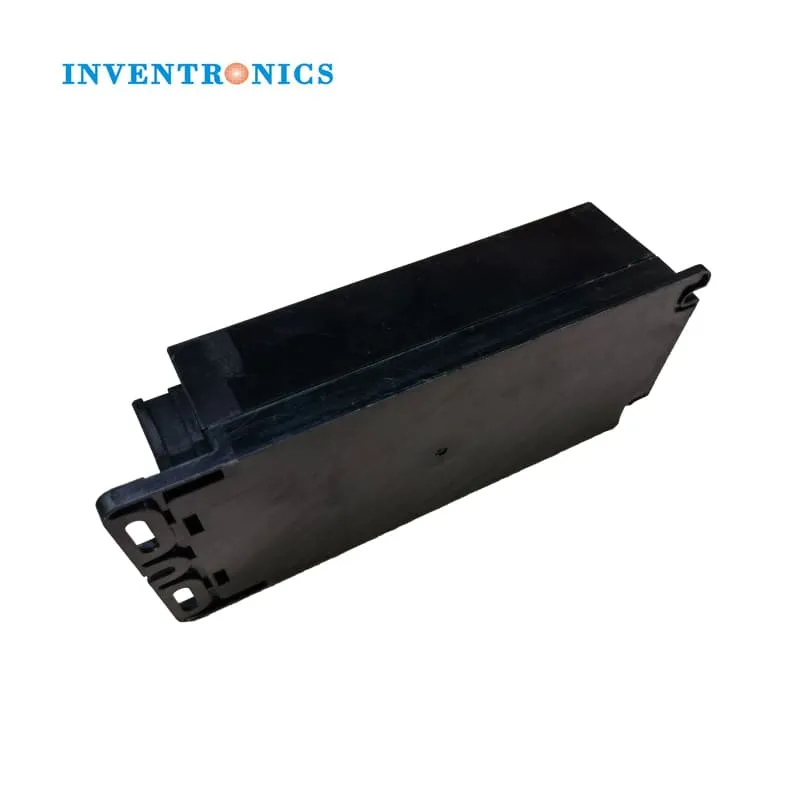

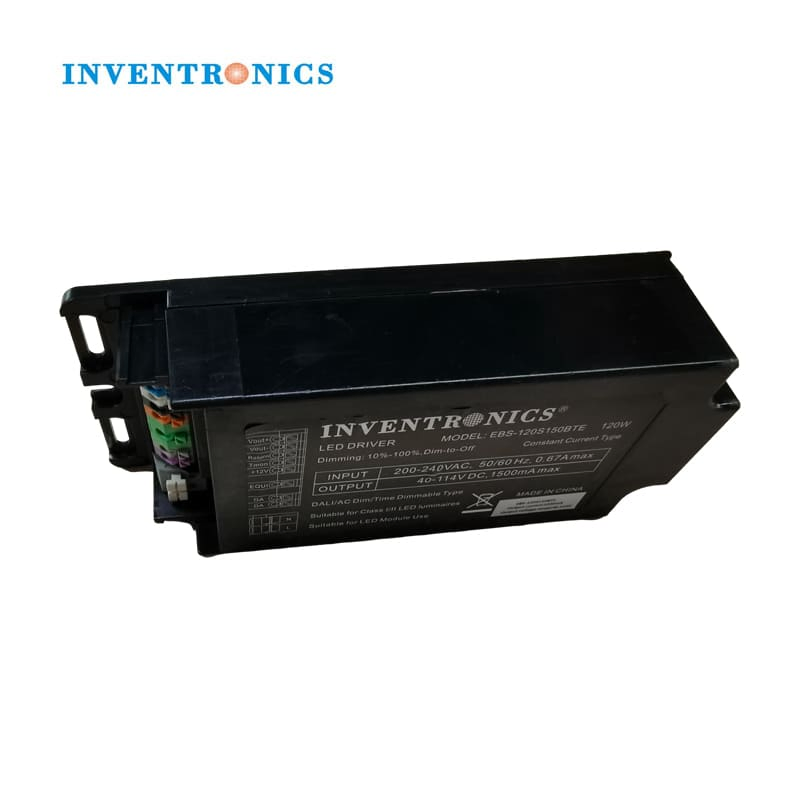

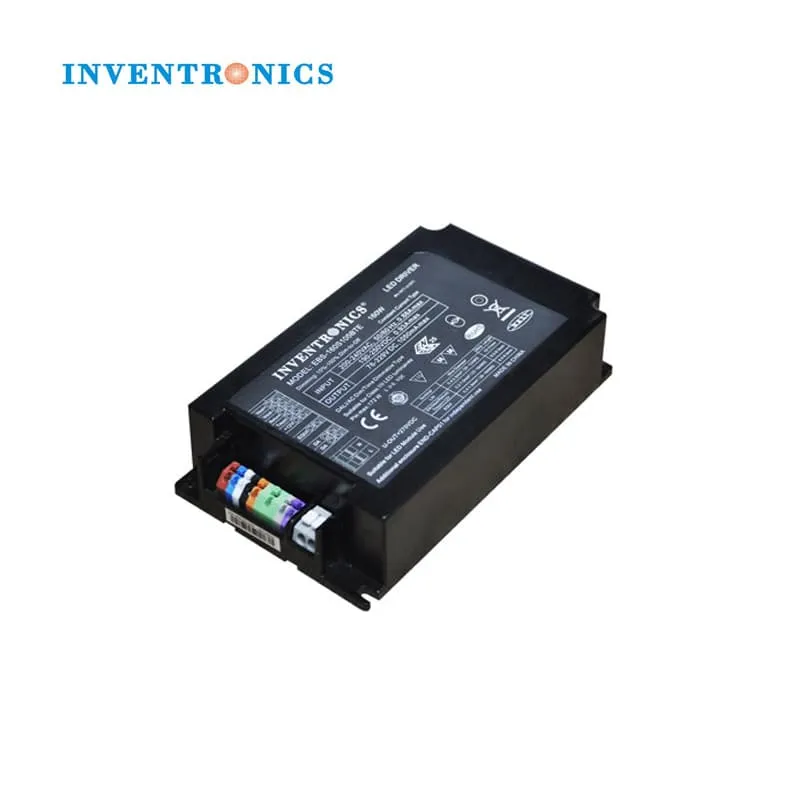

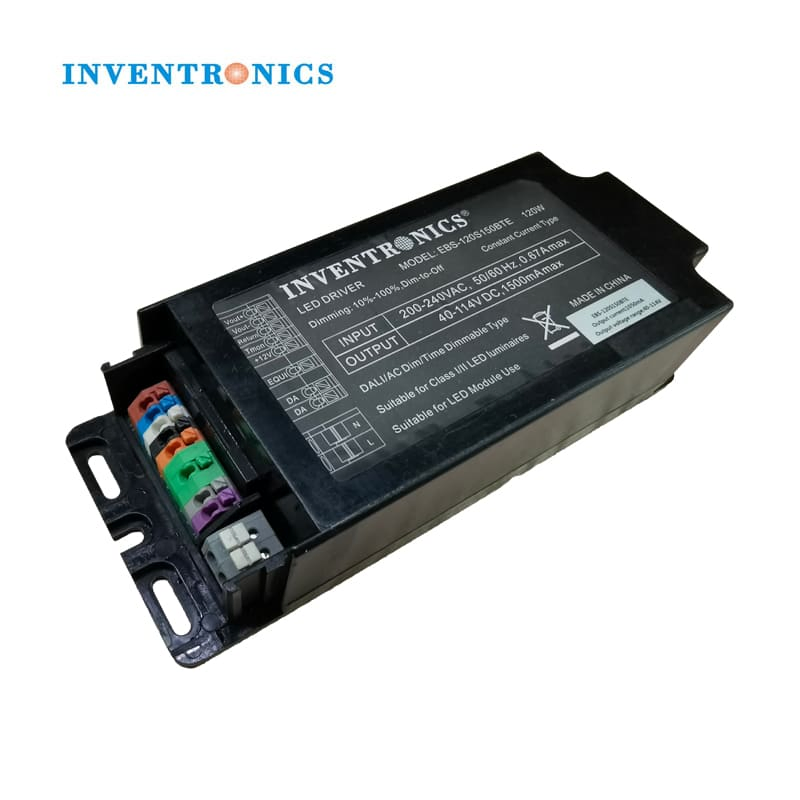

Product Pictures:
