Product Description

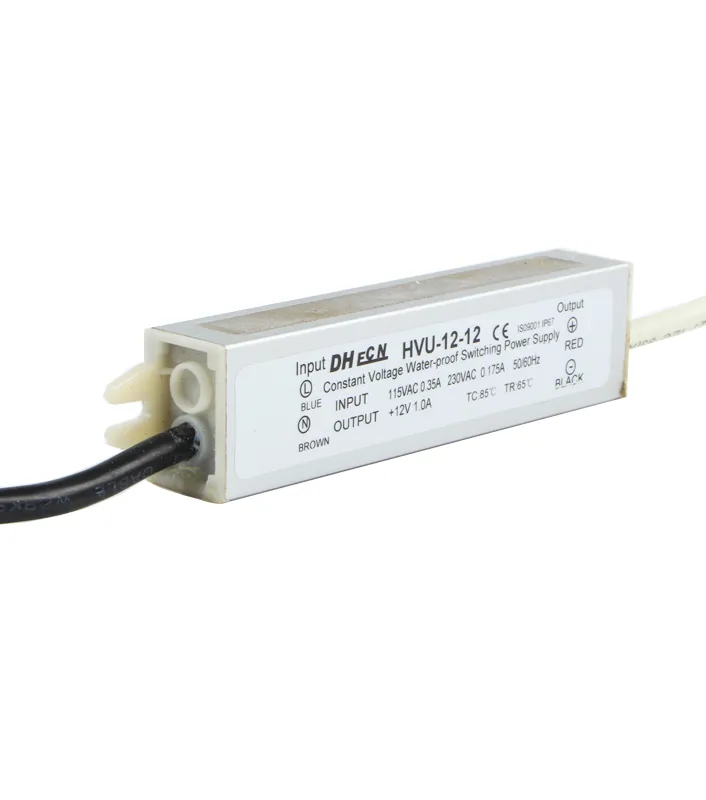

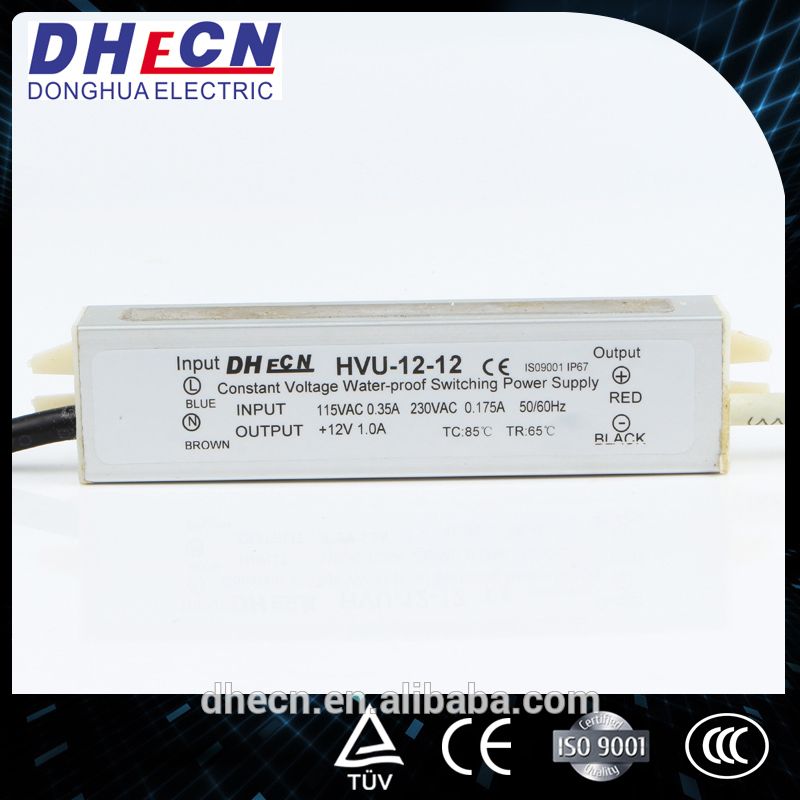

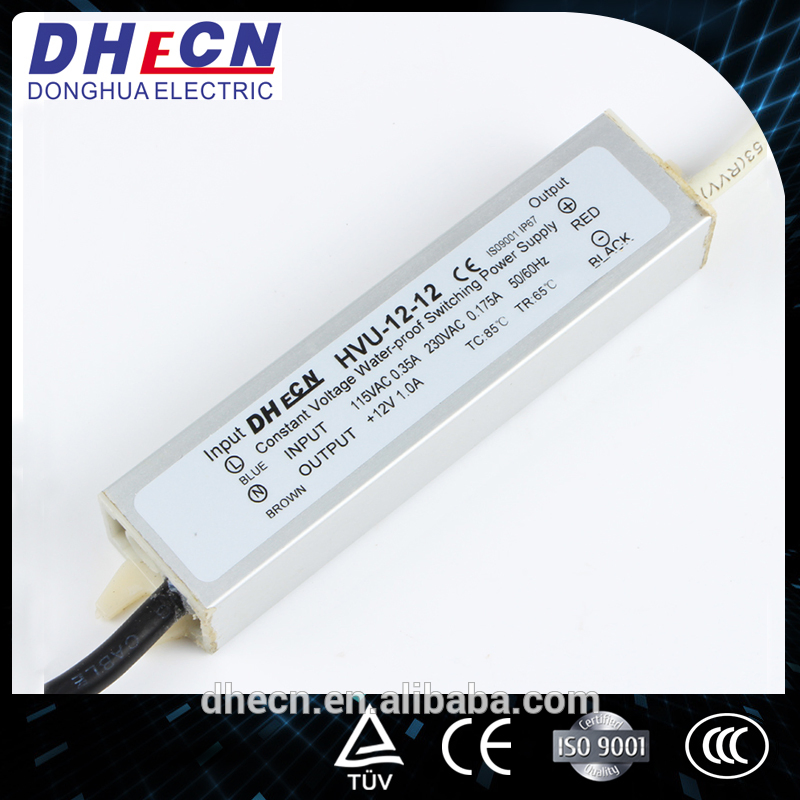

Single Output Waterproof Power Supply (HVU-12)
Features:
High effectiency,High reliability,Low cost
Protections: Short circuit/ Over load/ Over voltage/ High temperature
Waterproof grade: IP67
Working Frequncy: 65KHz
Suitable for LED lighten and moving sign applications.
I year warranty
Dimensions: 118*35*26mm (L*W*H)

MODEL		HVU-12-12	HVU-12-24	HVU-12-48
OUTPUT	DC Voltage	12V	24V	48V
	Voltage Tolerance (note 3)	±1%	±1%	±1%
	Rated Current(note 5)	1A	0.5A	0.25A
	Current Range	0-1A	0-0.5A	0-0.25A
	Rated Power	12W	12W	12W
	Ripple & Noise(note 2)	120mVp-p	120mVp-p	120mVp-p
	Setup, Rise, Hold Time	800ms,30ms,20ms
INPUT	Voltage Range	88~264 VAC 47-63Hz; 125~370VDC
	AC Current	0.25A/230VAC 0.5A/115VAC
	Efficiency	81%	83%	83%
	Inrush Current	COLD START 36A/230VAC
	Leakage Current	<2 mA/240VAC
PROTECTION	Over Load	≥110%
		Protection:Hiccup mode,recovers automatically after fault condition is removed
	HIGH TEMPERATURE	Temperature of transistor internal contact over 150ºC, start the over temperature protection
		Protection:cut off the output,recovers automatically after fault condition is removed
ENVIRONMENT	Working Temp., Humidity	-10ºC~+60ºC;20%~90 %RH
	Storage Temp., Humidity	-20ºC~+85ºC;10%~95 %RH
	Vibration	10~500Hz,2G 10min./1cycle,period for 60 min, each along X.Y.Z axes
SAFETY	Withstand Voltage	I/P-O/P:1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC
STANDARD	Safety Standard	EN61347-1 EN61347-2-13 EN62384 IP67
	EMC Standard	EN55015 EN61547 EN 61000-3-2/3 EN61000-4-2/3/4/5/6/8/11
OTHERS	Weight	0.15Kg
	Packing	100PCS/16Kg/0.027m3
NOTE	1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature.
	2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf
	parallel capacitor.
	3.Tolerance : includes set up tolerance, line regulation and load regulation.
