Hot Dimmable Smart Light Supplier 12V 24V LED Driver with TUV UL
Product Description12V 24V DC Output PWM 30W 60W 100W 200W 300W 360W 400W Triac Dimmable LED DriverFeature·Output constant voltage·Range AC input: 200-240VAC·With slightly adjustable output voltage·Efficiency :up to 79%·Protections:short circuit......
Send Inquiry
Product Description

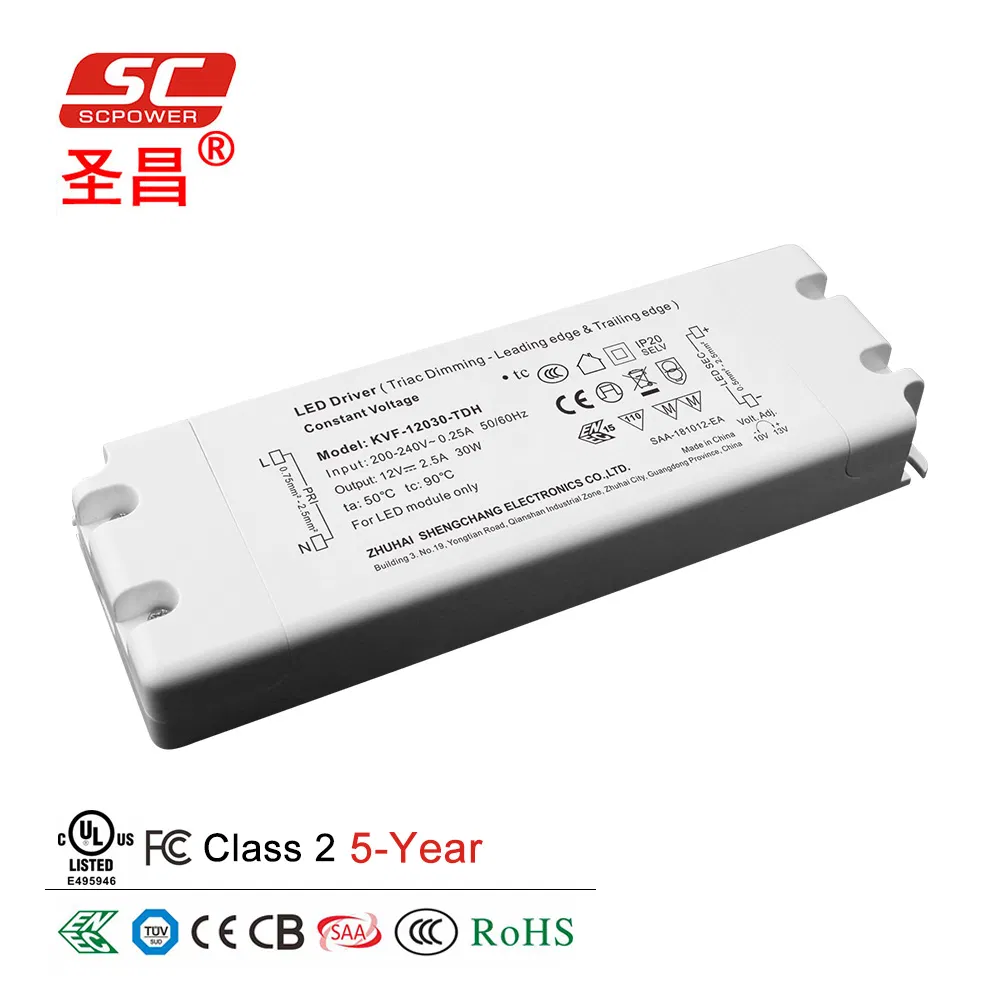

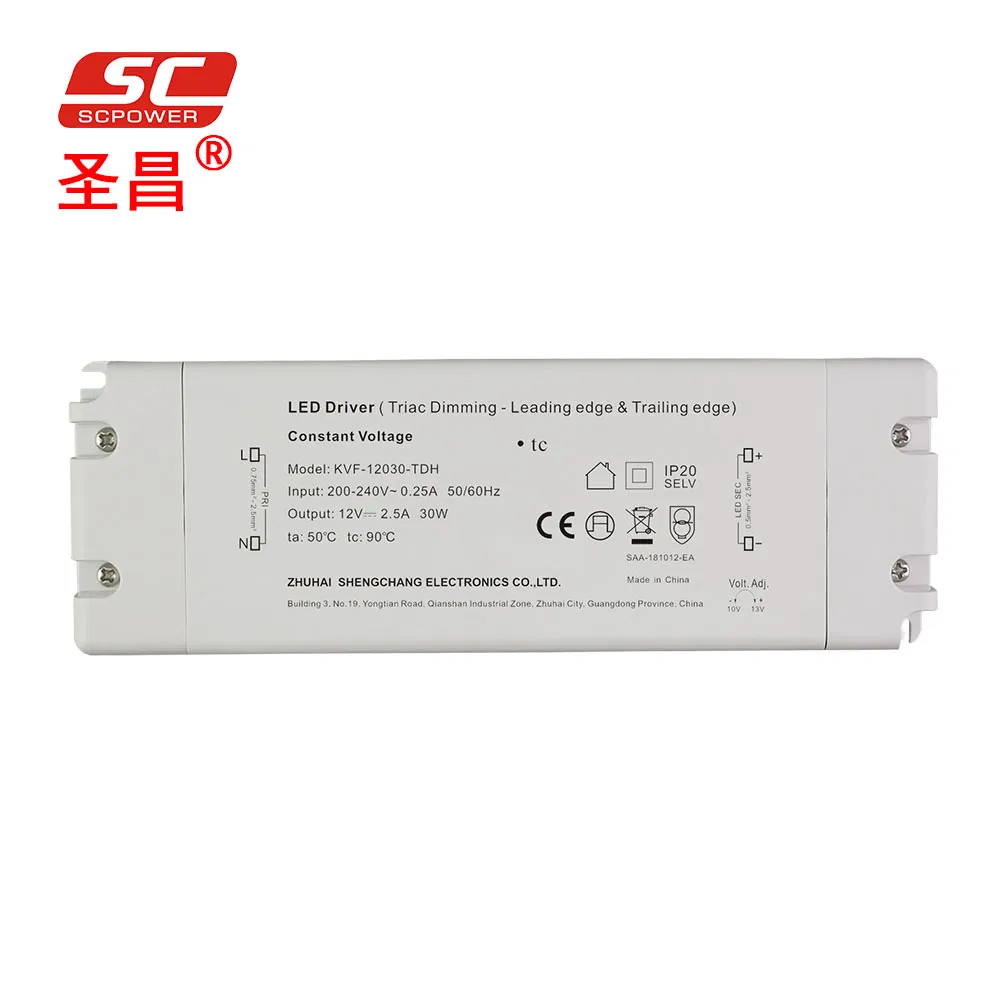

12V 24V DC Output PWM 30W 60W 100W 200W 300W 360W 400W Triac Dimmable LED Driver
Feature
·Output constant voltage
·Range AC input: 200-240VAC
·With slightly adjustable output voltage
·Efficiency :up to 79%
·Protections:short circuit/over loading/over current/over temperature

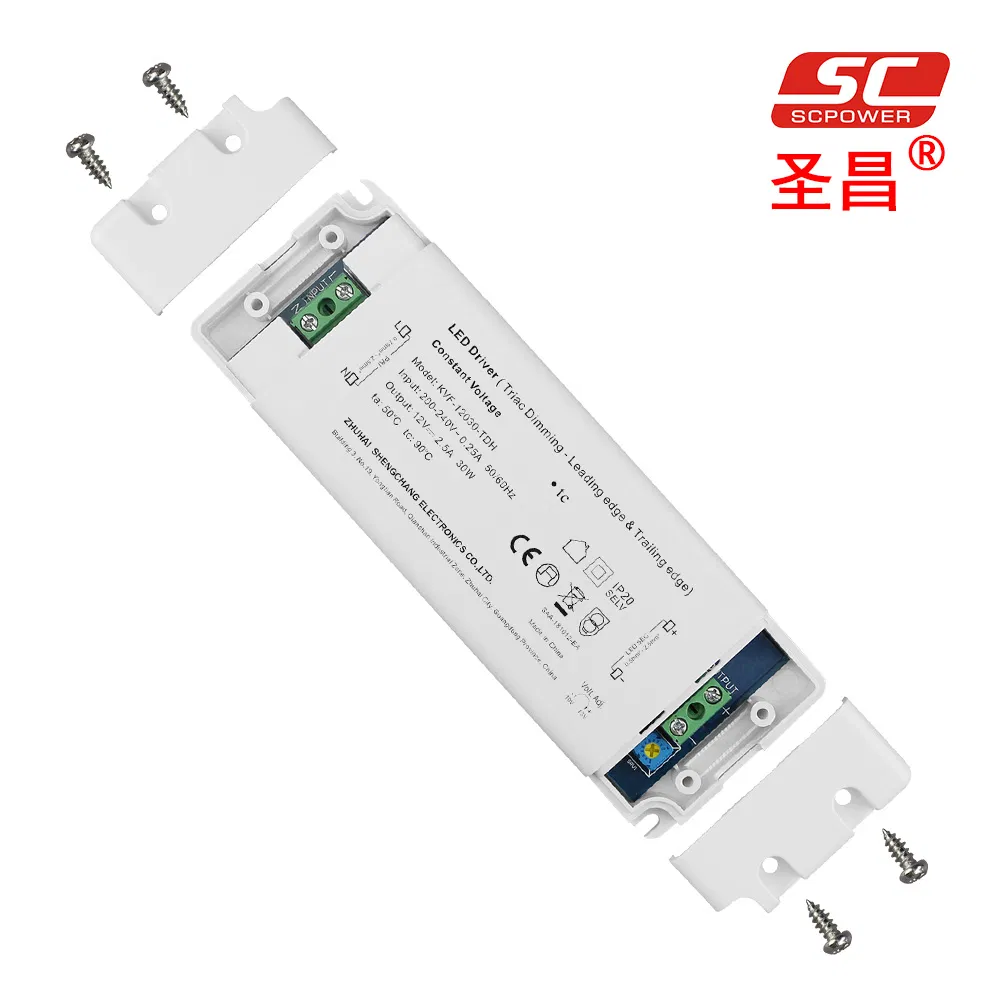

·Full protection plastic housing easy installation
·IP20 design for indoor installation
·Cooling by free air convection
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
Specification
Model | KVF-12030-TDH | KVF-24030-TDH | |
Output | DC Voltage | 12V | 24V |
Voltage Tolerance | ±0.5V | ||
Rated current | 2.5A | 1.25A | |
Rated power | 30W | ||
Input | Voltage Range | 200-240VAC | |
Frequency Range | 47~63HZ | ||
Power Factor | PF≥0.97/200VAC PF≥0.97/230VAC PF≥0.97/240VAC(Full loading) | ||
Full Load Efficiency(Typ.) | 79% | 79% | |
AC Current (Max.) | 0.22A | 0.22A | |
Leakage current | <0.50mA | ||
Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Loading | ≤120% shut down o/p voltage, re-power on to recover | ||
Over Current | ≤ 1.2 *Iout | ||
Over Temperature | 100ºC± 10ºC shut down o/p voltage ,re-power on to recover | ||
Others | Net.Weight | 0.21KG | |
Size | 155*54*20mm (L*W*H) | ||
packing | 160*60*23mm for inner box ; 350*240*130mm for carton 40PCS/CTN | ||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again 4. Loading range from 10% to 100% | ||
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
