High PF>0.9 200W 12V 24V Waterproof Power Supply

Product Description

High PF>0.9 200W 12V 24V Waterproof power supply

Features of led power supply: 200W 12V

1. Features of LED Power Supply
-Long life span waterproof LED power supply with high efficiency
-With EMC, meet the newest electromagnetic compatibility standard
-Meet the IEC energy efficiency standards.5 Years warranty
-With built-in Active PFC(Power Factor Corrector), PF> 0.9
-Waterproof IP67,suitable for indoor or outdoor LED application
-Seamless aluminum housing with Class I design & Cooling by free air
convection
-Protection: undervoltage/short circuit/over voltage/over load/over
temperature

2. Specifications of LED Power Supply

Model no.	HPS-12E200
Input voltage	90-265 VAC 50/60 Hz
Max. power	200W max
Output type	Constant voltage
Built-in active PFC	Yes
Power factor	0.9
Efficiency	91%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	16.7A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~+40 ºC
Installation	Outdoor waterproof
IP rating	IP67
Cooling	Free air convection
Certificates/standards	CE
Product Dimension	32271.538mm
Packing	10pcs/ carton; 23KG; 410315225mm

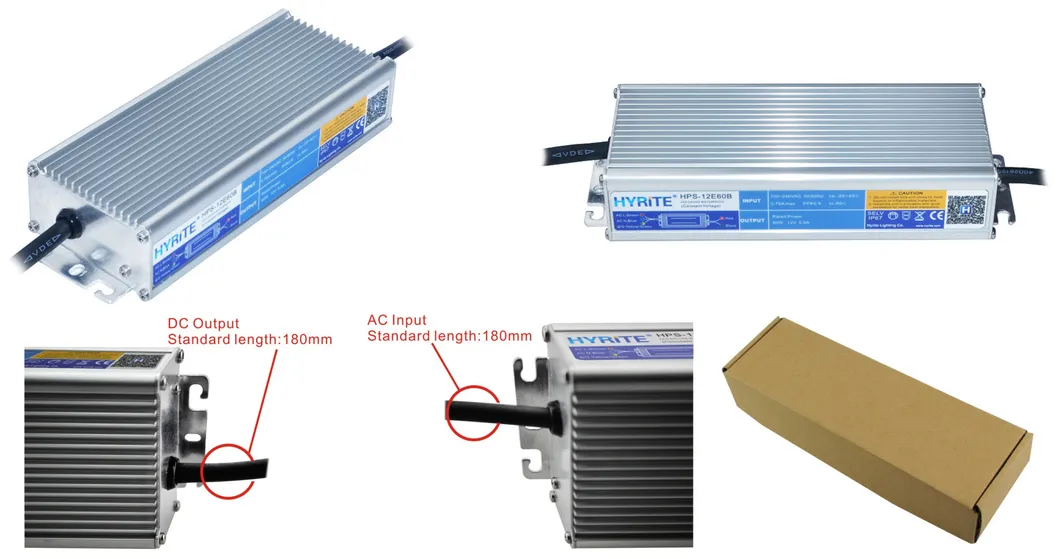

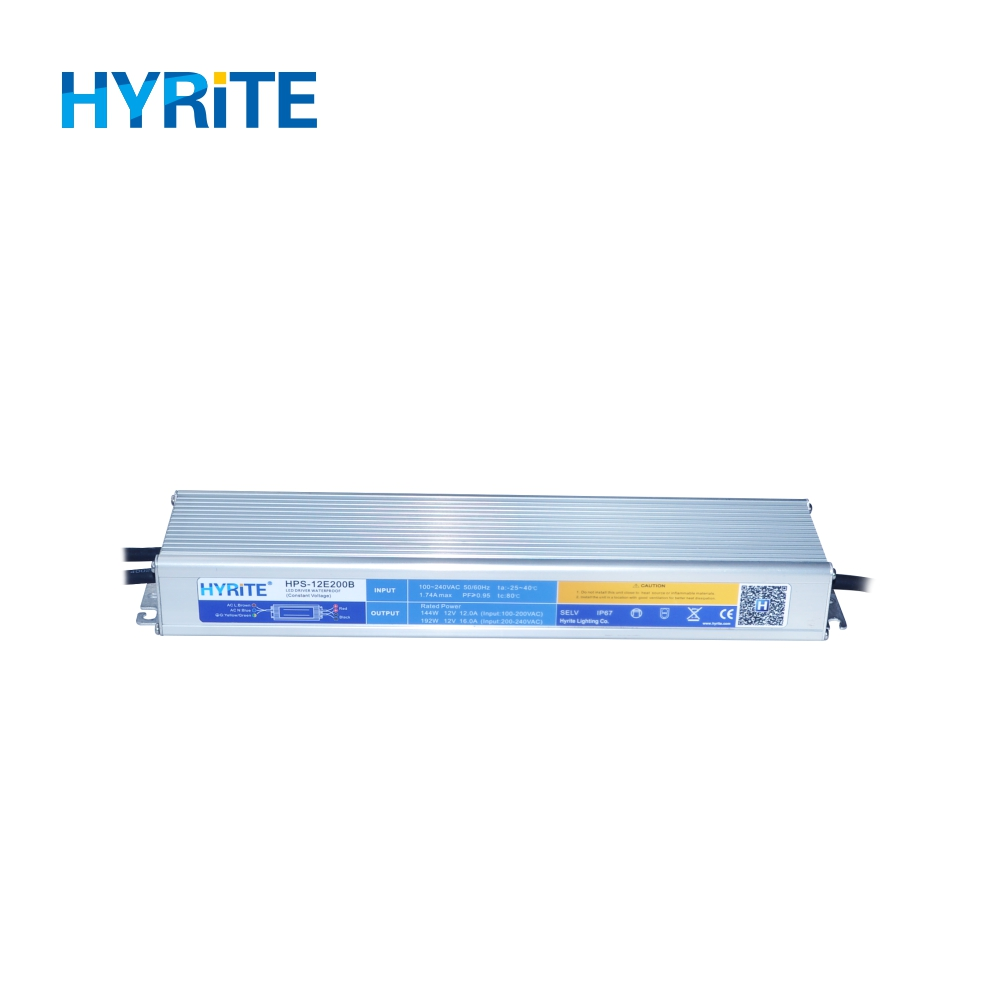

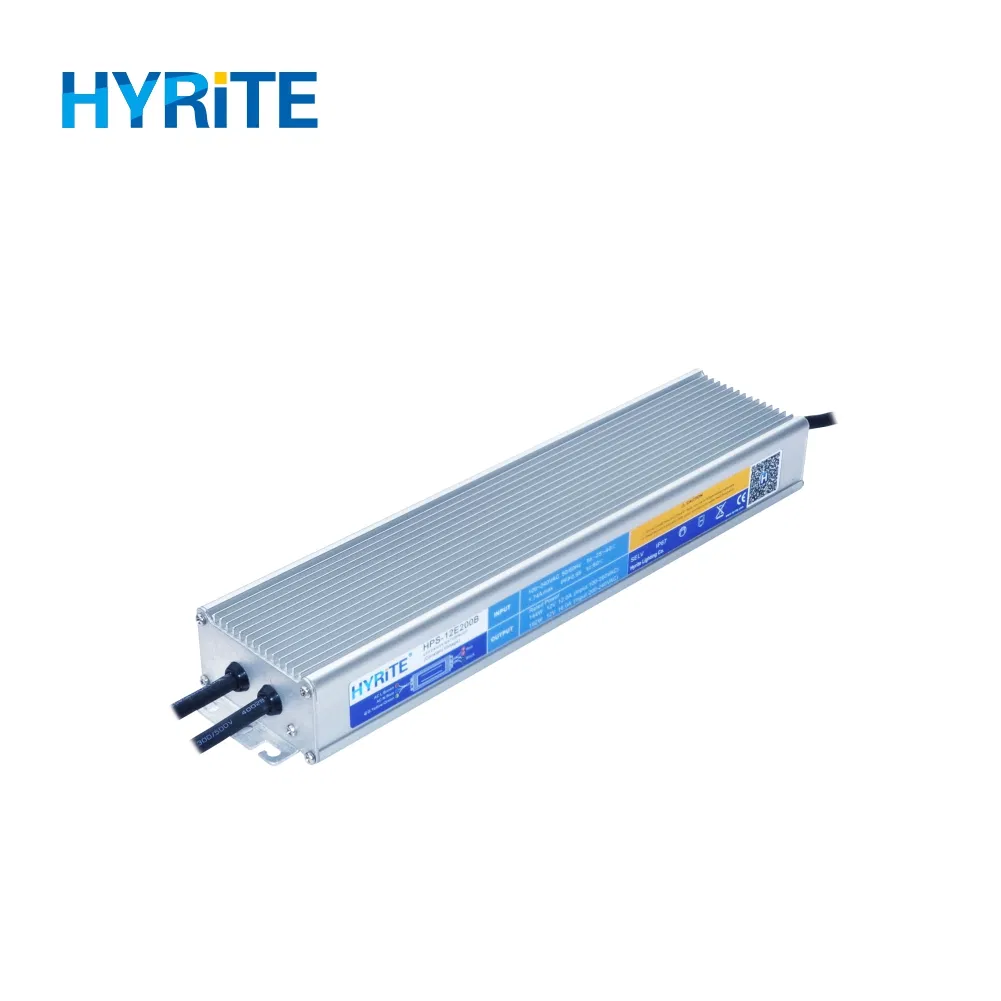

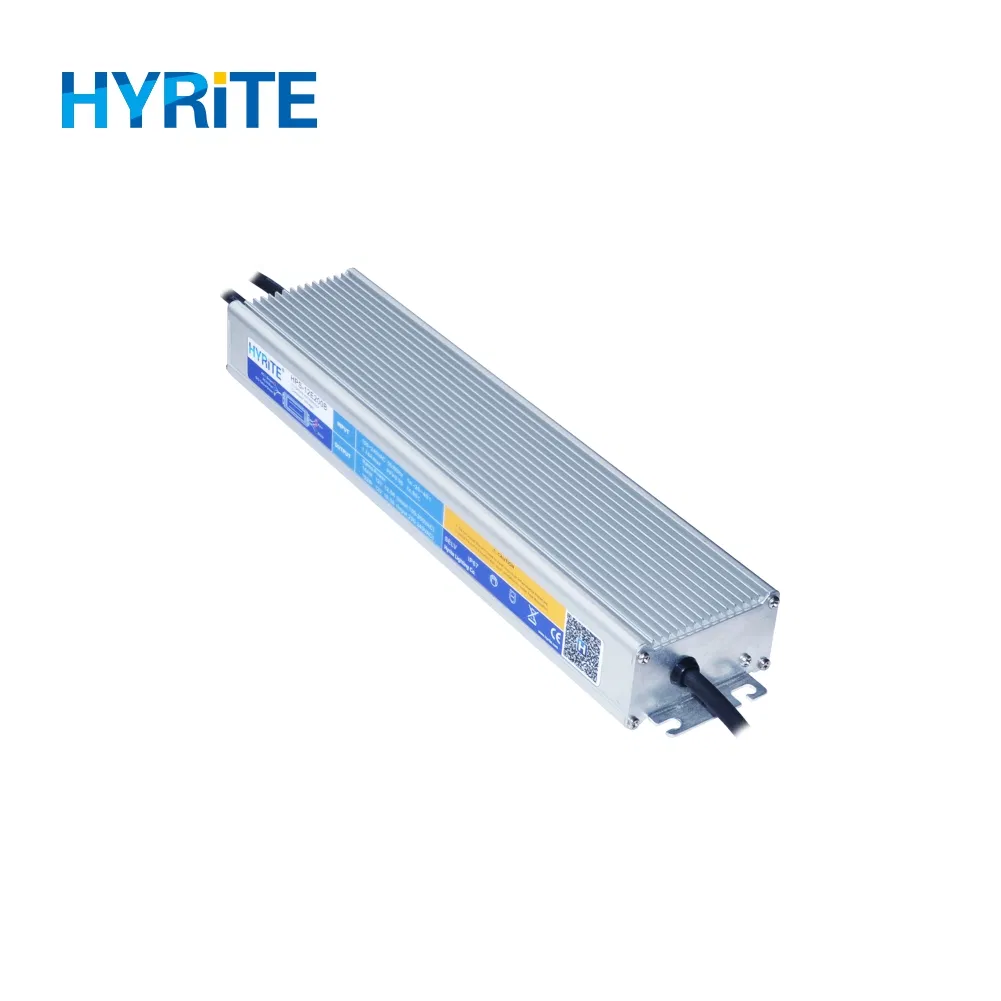

3. Detail pictures of LED power supply
High PF>0.9 200W 12V 24V Waterproof Power Supply

Our main products includes:
-IP67 Waterproof constant voltage LED power supply with CE SASO SAA BIS
-IP45 Rainproof constant voltage LED power supply with CE UL BIS
-IP20 Indoor constant voltage LED power supply with CE BIS
-Constant Current led driver for lighting with CE SAA
-Dimmbale LED Driver with CE SAA
-LED Modules with CE UL

Shipping Pictures of Slim Indoor Power Supply:
High PF>0.9 200W 12V 24V Waterproof Power Supply

Project pictures of Slim Indoor Power Supply:
High PF>0.9 200W 12V 24V Waterproof Power Supply

Note of Slim Indoor Power Supply:
Trade Terms: EXW, FOB, CIF and CNF term are available
Lead time: 1-15 working days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 ctn

Shipping of Slim Indoor Power Supply:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

FAQ

Q1. Can I have a sample order for power supply?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 15-20 working days.

Q3. Do you have any MOQ limit for power supply order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for power supply?

A:1. please let us know your product's requirements

2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.

Q6. Is it OK to print my logo on power supply product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: How to deal with the faulty?

A: 1. Our products are produced in strict quality control system and the defective rate will be less

than 0.1%.
2.During the guarantee period, we will send new power supply with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
