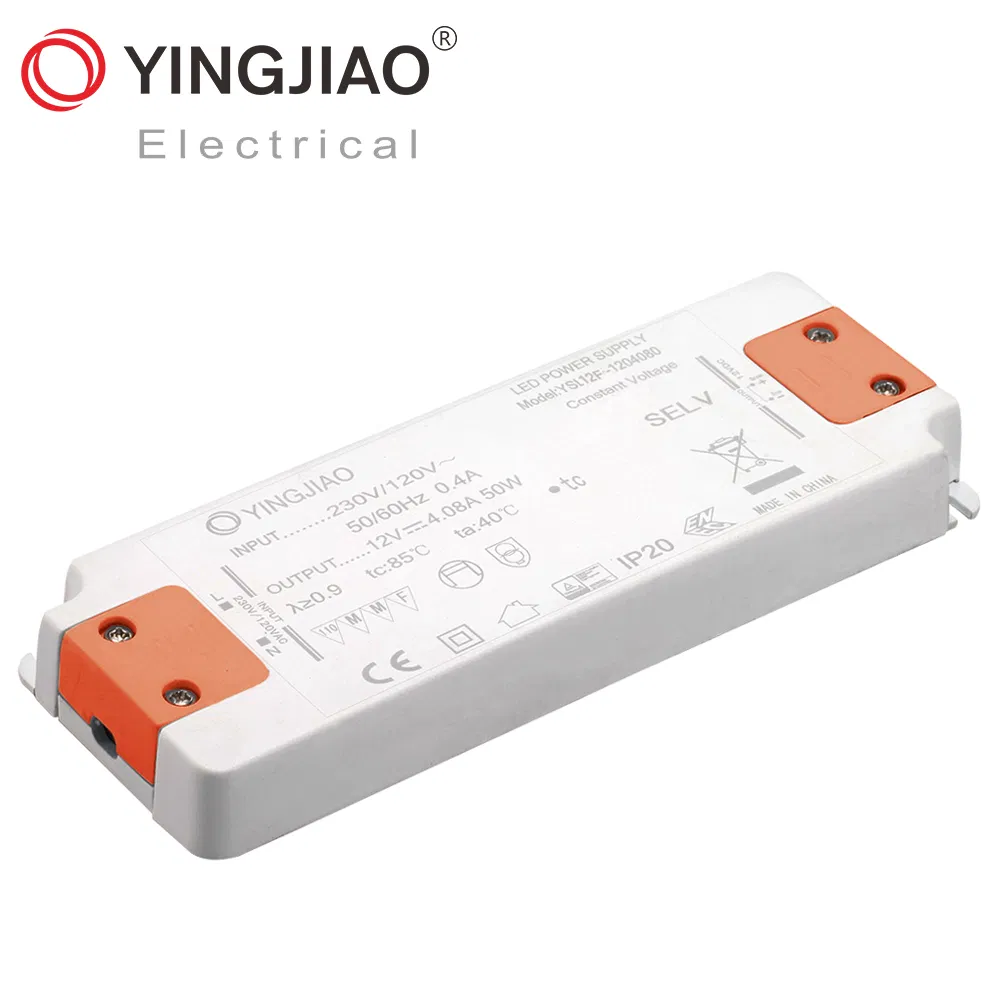

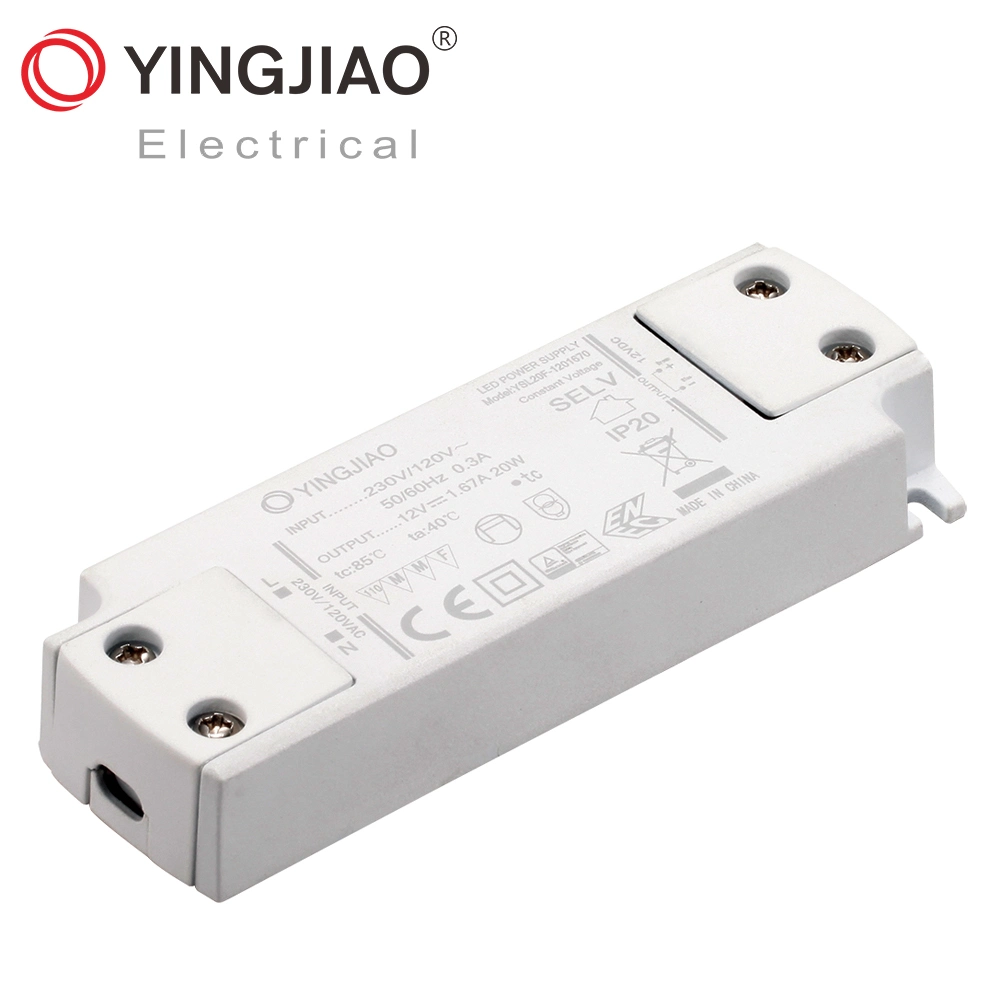

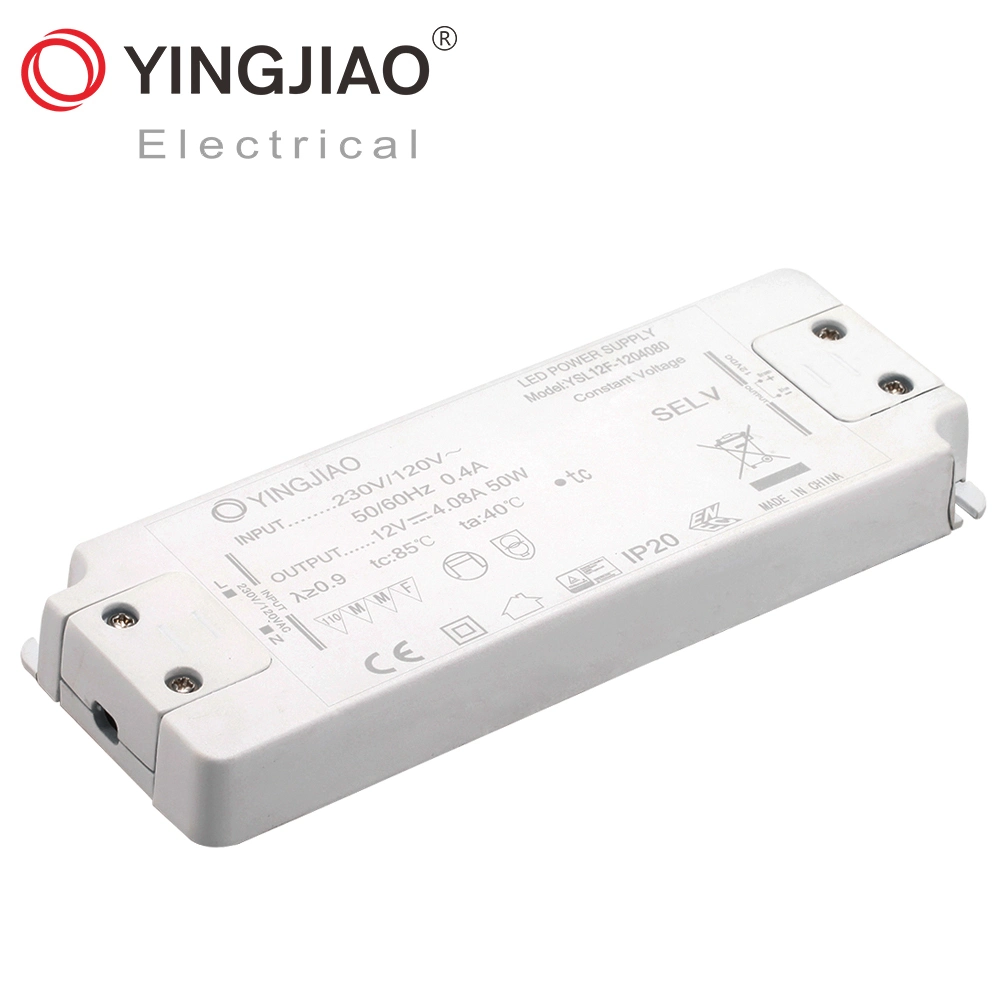

Factory Price OEM/ODM LED Driver 12W/20W/30W/50W IP44 IP20 Super Thin LED Power Supply with TUV/Ce/UL/RoHS/ISO9001
LED adaptor&Driver12W waterproof led power supply with GE UL FCCFeatures:Safety: UL/cUL/TUV/GS/CE/CCC complianceRoHS ComplianceHigh efficiency & low power consumptionLED power indicatorShort Circuit ProtectionOver Current ProtectionOver Voltage ProtectionLight Weight & CompactEnvironment......
Send Inquiry
Product Description
LED adaptor&Driver
12W waterproof led power supply with GE UL FCC
Features:
Safety: UL/cUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
DATA:
DETAILS:
12W waterproof led power supply with GE UL FCC
Features:
Safety: UL/cUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact
Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing
DATA:
| Model: | YSL12F |
| Power: | 12W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 3-48V |
| Output Current: | 10MA-1330MA |
| Inrush Current:() | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 2.5mA Max. at 264VAC input |
| No Load Power Consumption : | <0.5W |
| Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | CE,EMC,RoHS,REACH |
| EMI EMISSION: | Conducted disturbance at mains terminals:EN 55015Radiation Test&Conduction Test: EN 55015Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESDTest:IEC 61000-4-2 RSTest:IEC 61000-4-3 EFT/B ImmunityTest:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity:IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11Voltage dips and interruptions,100% reduction: IEC 61000-4-11Voltage dips and interruptions,30% reduction: IEC 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25ºC ambient |
| Life: | 3-5 years alternative |
| Dimension: | 127*50*12mm |
| Weight: | |
| Packing: | 100pcs/CTN30.5*29.5*18cm |
| Model: | YSL12F-350 | YSL12F-500 | YSL12F-700 | YSL12F-1050 |
| Rated Current: | 350mA | 500mA | 700mA | 1050mA |
| voltage Range: | 20-34V | 16-24V | 10-21V | 7-11V |
| Rated Power: | 12W | 12W | 12W | 12W |
| Ripple & Noise(max.): | <1% | <1% | <1% | <1% |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% |
| Efficiency: | 88% | 88% | 88% | 88% |
| Setup,Rise time | 1 second max./40 MS max. | |||
