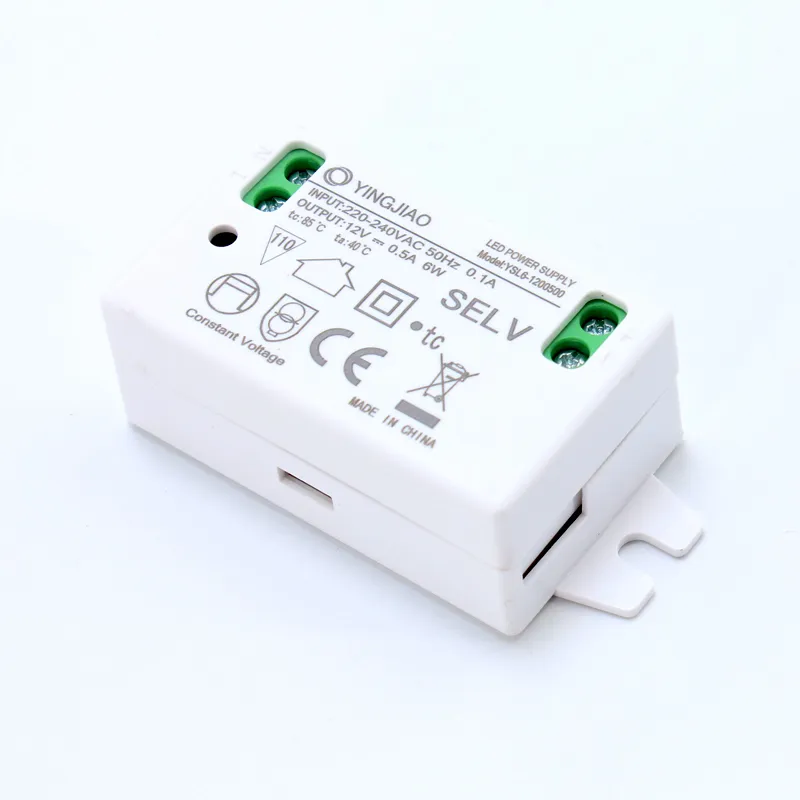

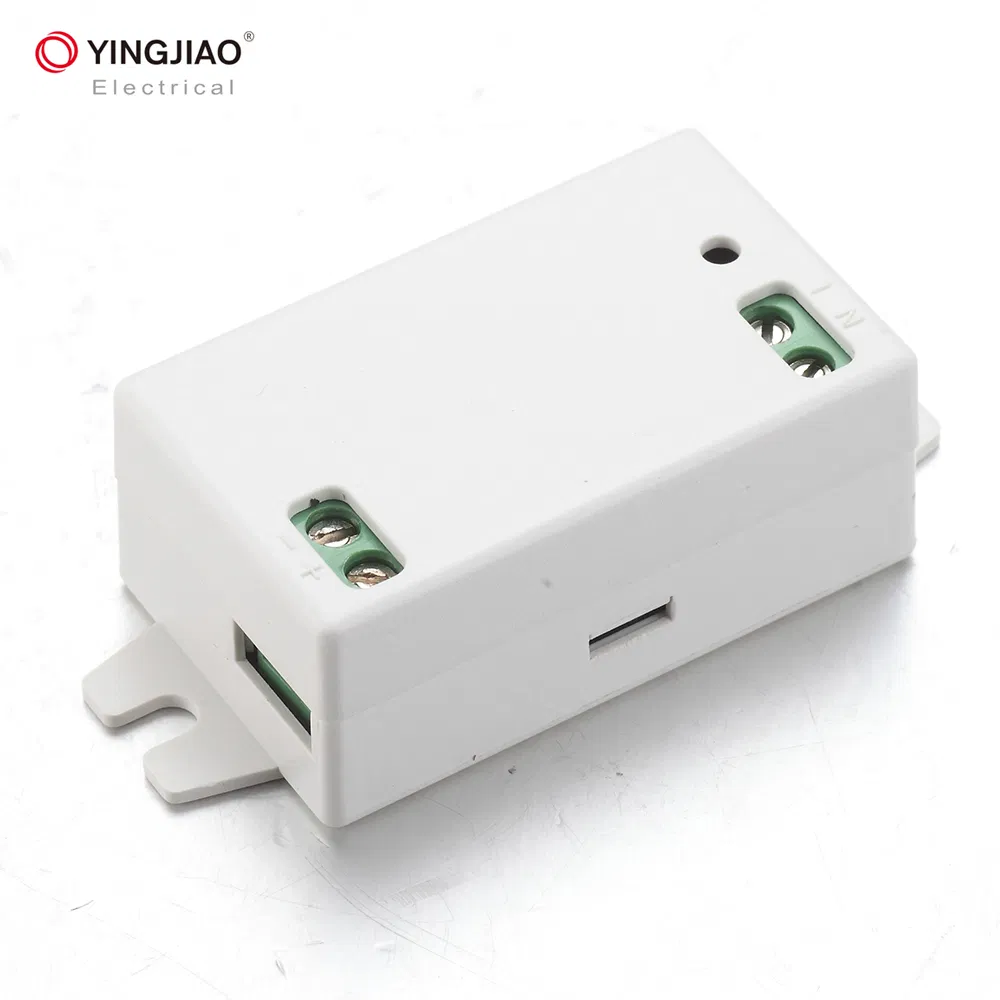

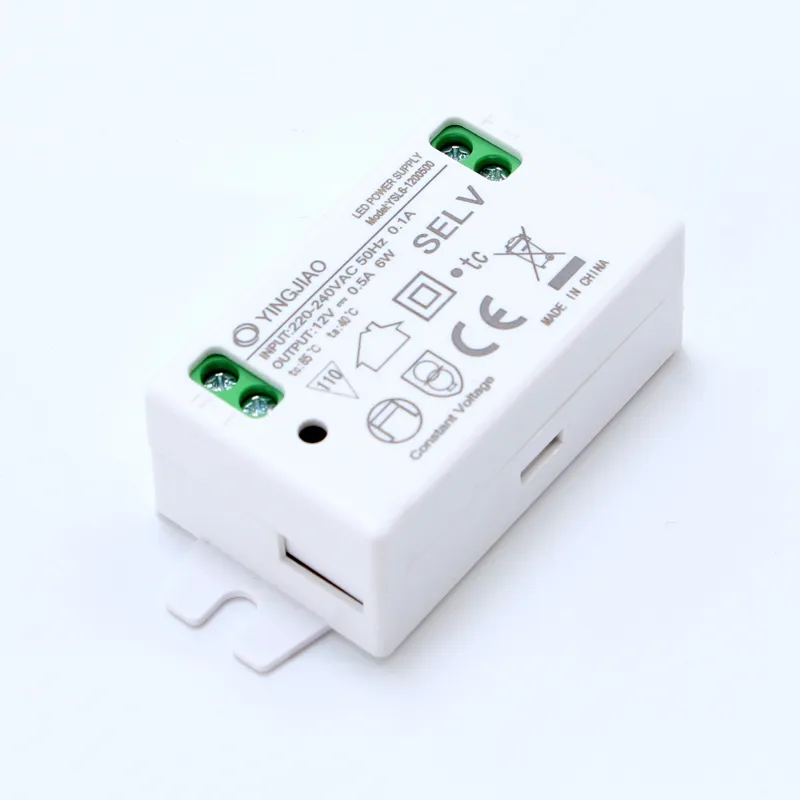

Factory Customized 12V DC Output LED Driver Constant Voltage Mini Plastic Shell
Factory Customized 12V DC Output LED Driver Constant Voltage Mini Plastic ShellProduct DescriptionModel:YSL6 dimming seriesDimming typeTriacPower:6W max.Input:100-240VAC 50/60HzOutput Voltage:6-36V Output Current:100MA-1000MA Inrush Current:65 Amps max. at 230VAC/50Hz,full loadLeakage Current:2......
Send Inquiry
Product Description
Factory Customized 12V DC Output LED Driver Constant Voltage Mini Plastic Shell
Product Description
| Model: | YSL6 dimming series |
| Dimming type | Triac |
| Power: | 6W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 6-36V |
| Output Current: | 100MA-1000MA |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 2.5mA Max. at 264VAC input |
| No Load Power Consumption : | <0.5W |
| Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | CE,EMC,RoHS,REACH |
| EMI EMISSION: | Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25 ambient |
| Life: | 3-5 years alternative |
| Dimension: | 67.5*31*21mm |
| Weight: | 34g |
| Packing: | 200PCS/CTN,40*27*25cm |
Details:
| Model: | YSL6-1200500 | YSL6-2400250 |
| DC Voltage: | 12V | 24V |
| Rated voltage: | 0.5A | 0.25A |
| currente Range: | 6-12V | 12-24V |
| Rated Power: | 6W | 6W |
| Ripple & Noise(max.) | <1% | <1% |
| Voltage Tolerance: | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% |
| Efficiency: | 84% | 84% |
| Setup,Rise time | 1 second max./40 MS max. | |
