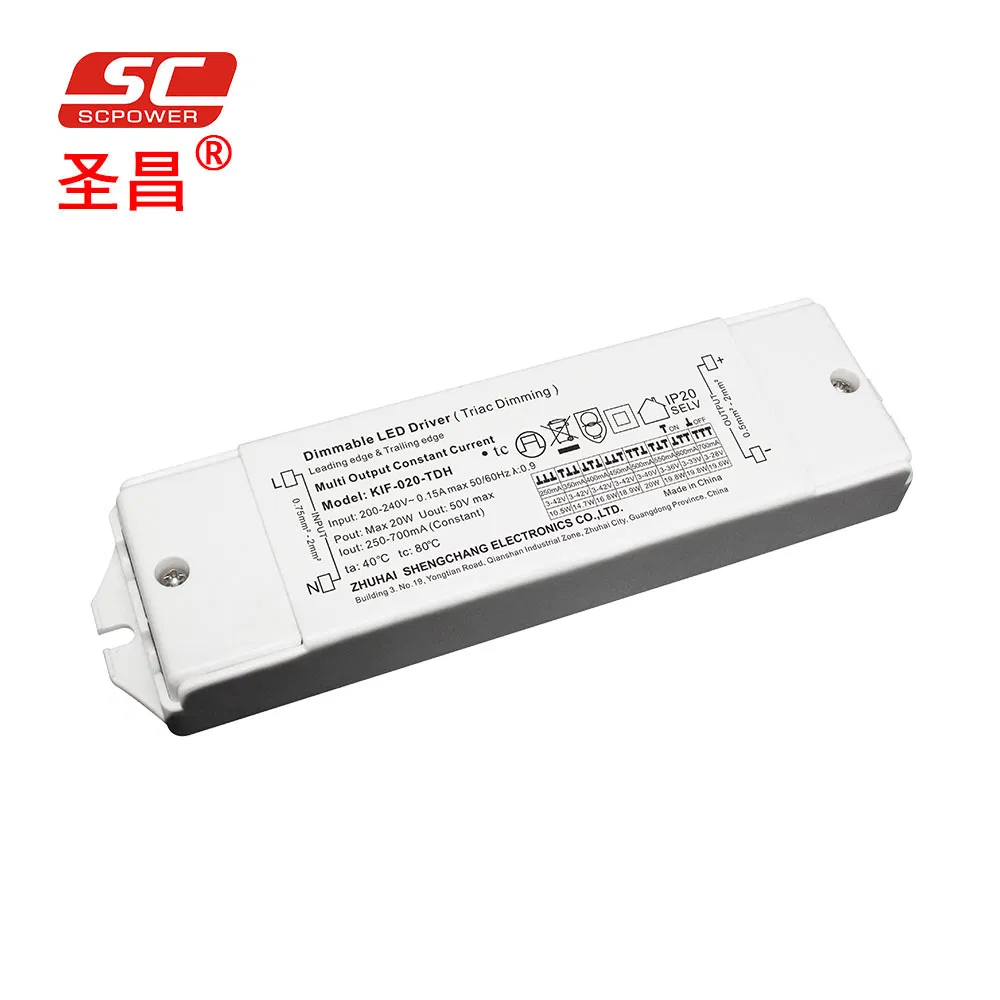

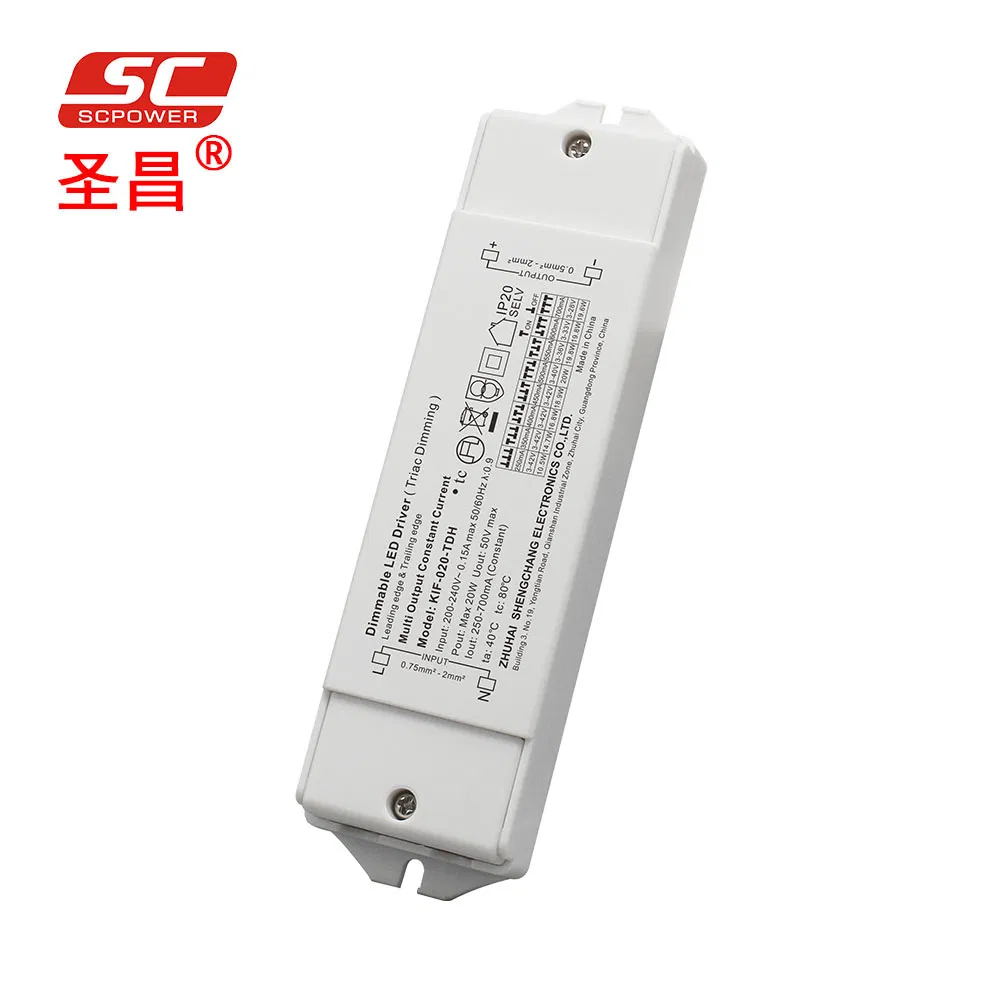

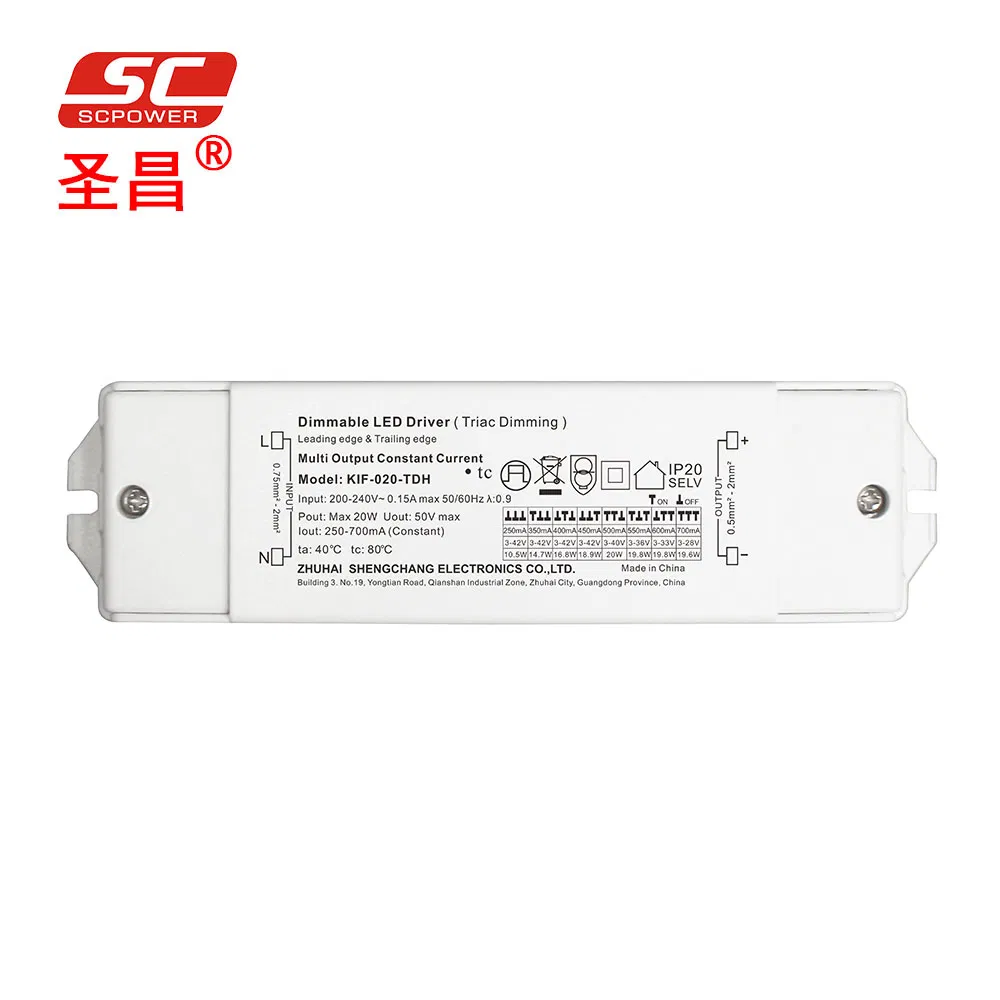

DIP Switch Adjustment Driver 250mA 700mA 20W Constant Current LED Driver

Product Description

DIP Switch adjustment driver 250ma 700ma 20w constant current led driver

Feature

·Output constant current

·Range AC input :200-240VAC

·Efficiency up to 83%

·Built-in active PFC function

·Protections: short circuit/over current

·Full protection plastic housing easy installation

·IP20 design for indoor installation

·Cooling by free air convection

·Dimming function: Triac/phase cut dimming

·Work with leading or trailing edge TRIAC dimmers

·Strong compatibility, flicker-free dimming

·Suitable for LED lighting and moving sign applications

Specification

Model		KIF-010-TDH
Output	Rated current	450mA	400mA	350mA	300mA	250mA	200mA	150mA	100mA
	Current Tolerance	±25mA
	DC Voltage	3-22V	3-25V	3-28V	3-33V	3-40V	3-42V	3-42V	3-42V
	Rated power	10W	10W	10W	10W	10W	8.4W	6.3W	4.2W
Input	Rated Input Voltage	200-240VAC
	Rated Frequency	47-63HZ
	Power Factor	PF≥0.9 (full loading @230VAC)
	Efficiency (Typ.)	About 75% (full loading @230VAC)
	AC Current (Max.)	0.1A
	Inrush Current (Typ.)	11A Twidth=2us @50% Ipeak
	Leakage current	<0.50mA
Protection	Short Circuit	Constant current mode, recovers automatically after fault condition is removed
	Output No-Load Voltage	52V max.
	Over temperature	Ambient temp. over 45±5ºC, output current will be reduced to 75%; Ambient temp. over 55±5ºC, output current will be reduced to 55%; Ambient temp. over 65±5ºC, output current will be reduced to 25%; Ambient temp. over 70±5ºC, output will be off; recovers automatically after temp. drops.
	Protection Class:	II
Environ- ment	Working TEMP.	-40-+60ºC
	Working Humidity	20-90%RH, non-condensing
	Storage TEMP. Humidity	-40-+80ºC,10-95%RH
	TEMP. coefficient	±0.03%/ºC (0-50ºC)
	Vibration	10-500Hz, 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1; EN61347-2-13
	Withstand voltage	I/P-O/P:3.75KVAC
	Isolation resistance	I/P-O/P:100MΩ/500VDC/25ºC/70%RH
Others	Weight	0.10Kg
	Size	1353020mm(LWH)
	packing	1455036mm for inner box 320280215mm (50PCS/CTN ) for outer carton
Notes	All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25ºCof ambient temperature. Tolerance: includes set us tolerance, line regulation and load regulation.
