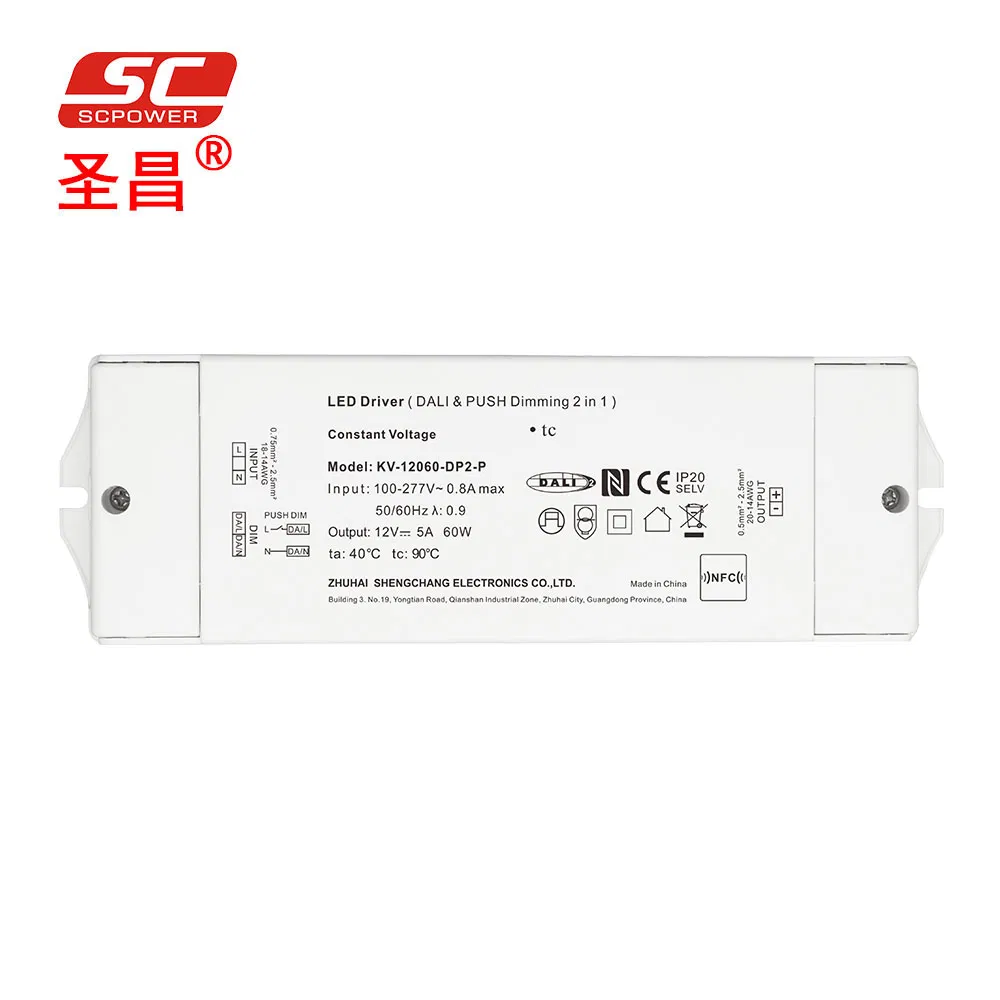

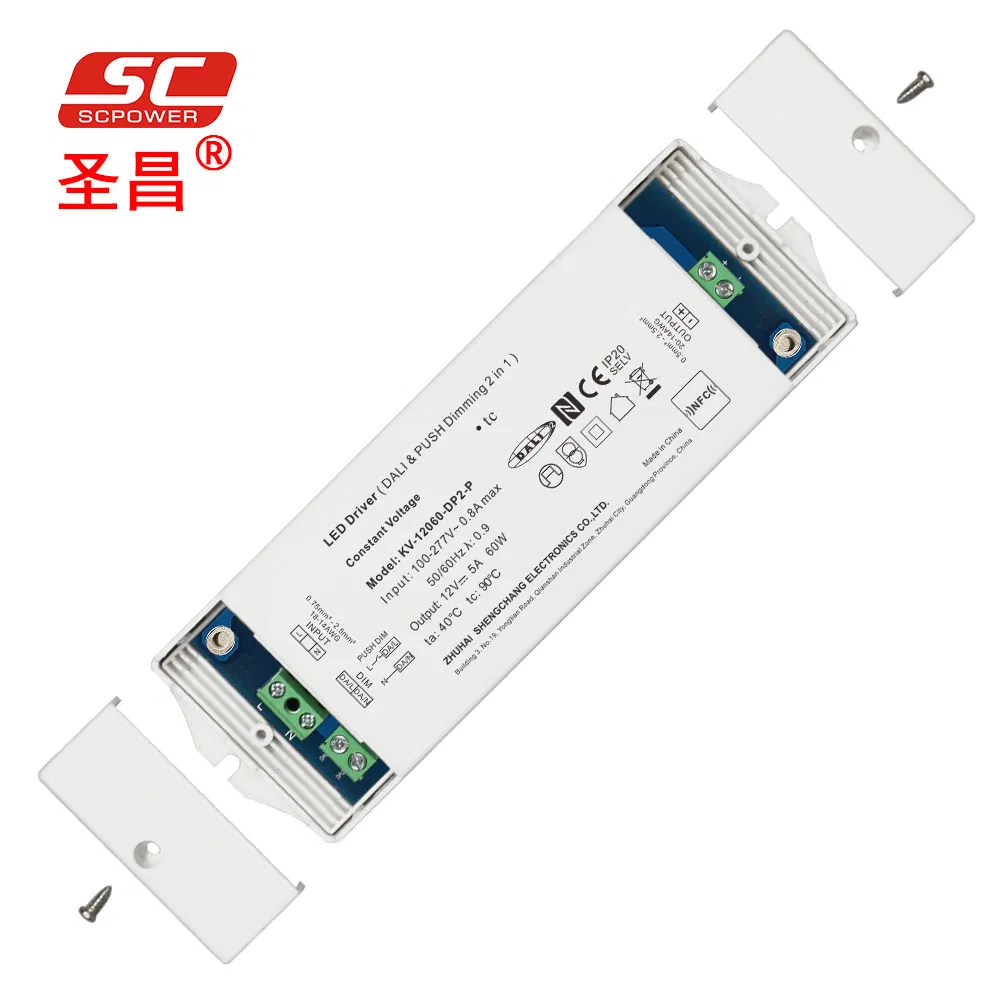

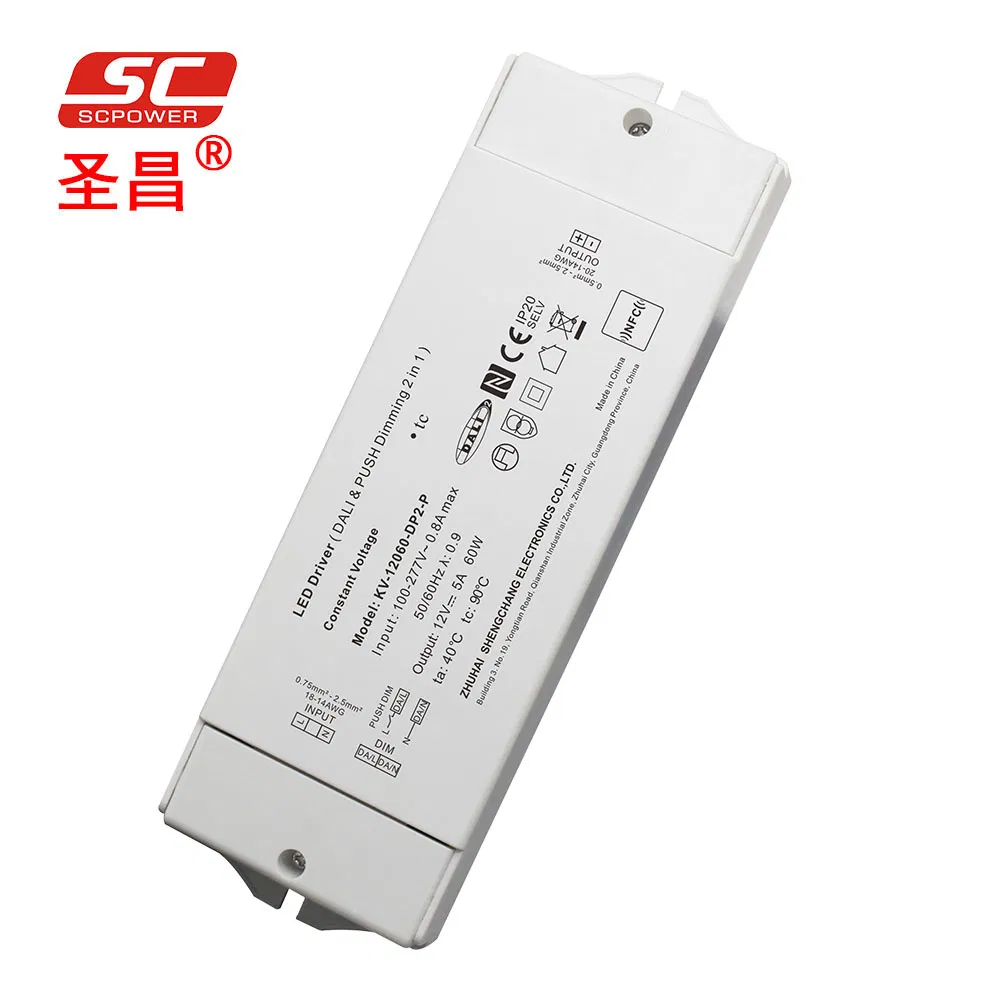

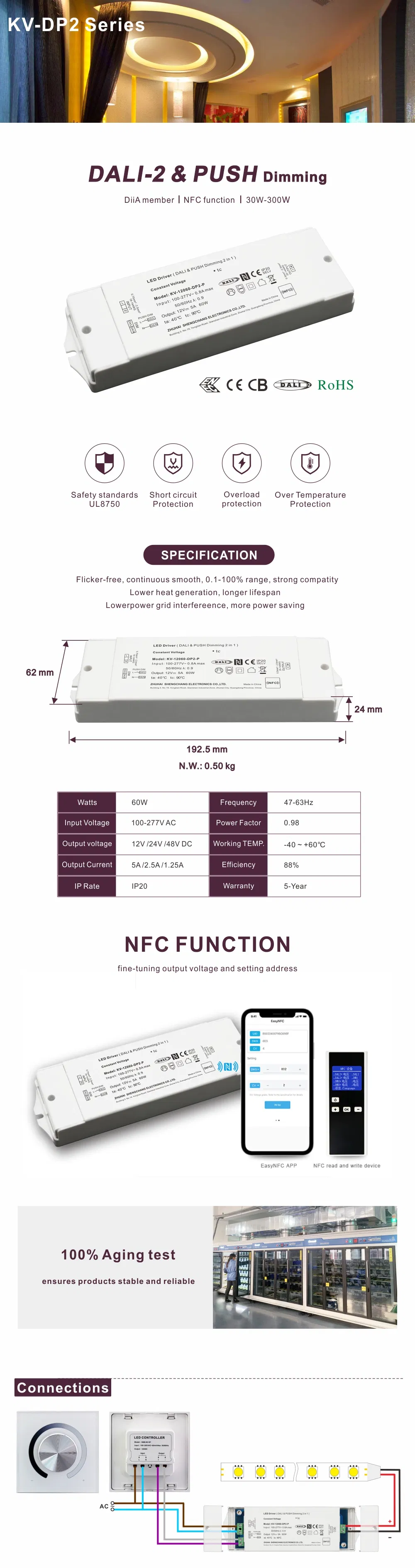

China Dali-2 Dt8 60W 24V 48V DC Dali Dimmable Cw Ww CCT LED Driver

Product Description

dali-2 DT8 60w 24v 48v dc dali dimmable cw ww cct led driver

Features:

·Output constant Voltage (NFC regulation)

·Range: 100-277VAC

·Built-in active PFC function

·Efficiency up to 88%

·Protections: short circuit/ over load/ over temperature

·Cooling by free air convection; IP20 for indoor

·Dimming curve: Logarithmic (default) and Linear

·Dimming protocol: DALI Protocol IEC62386; PUSH-DIM

·NFC function to adjust output voltage and set address

·Dimming range: 0-100%, LED start at 0.1% possible

·Suitable for intelligent LED lighting

Specification

Model		KV-12060-DP2	KV-24060-DP2		KV-36060-DP2		KV-48060-DP2
Output	DC Voltage	12V (12-13.5V adjust by NFC)	24V (24-26V adjust by NFC)		36V (36-38V adjust by NFC)		48V (48-50V adjust by NFC)
	Voltage Tolerance	±0.2V
	Rated current	5A	2.5A		1.67A		1.25A
	Rated power	60W
	Load Regulation	±1%
Input	Standby power consumption	≤0.5W	≤0.5W		≤0.5W		≤0.5W
	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor(Typ.)@ full load	PF≥0.98@120VAC PF≥0.95@230VAC PF≥0.92@277VAC (Full loading)
	THD(Typ.)@ full load	≤15%@120VAC ; ≤15%@230VAC; ≤15%@277VAC
	Efficiency(Typ.)@ full load	86%@120VAC; 88%@230VAC; 88%@277VAC;
	AC Current(Max.)	0.8A		0.8A		0.8A	0.8A
	Inrush Current (Typ.)	20A, 220us@50%Ipeak (120VAC); 45A, 175us@50%Ipeak (230VAC); 37A, 302us@50%Ipeak (277VAC)
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recover automatically after fault condition is removed
	Over Load	≤120% ,hiccup mode, recover automatically after fault condition is removed
	Over temperature	Ambient temp. over 55ºC±10ºC, output will be off; recovers automatically after temp. drops.
Environ- ment	Working TEMP.	-40~+60ºC (see below derating curve)
	Working Humidity	20 - 90%RH,non-condensing
	Storage TEM.,Humidity	-40 - +80ºC,10 - 95%RH
	TEMP.coefficient	±0.03%/ºC(0 - 50ºC)
	Vibration	10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1 EN61347-2-13 (EU) & UL8750 (US)
	Withstand voltage	I/P-O/P:3.75KVAC (EU); I/P-O/P:1.88KVAC (US)
	Isolation resistance	I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25ºC/70%RH
	EMC Emission	EN55015 EN61000-3-2 EN61000-3-3 (EU)≥50% Load & FCC Part 15 B (US)
	EMC Immunity	EN61000-4-2,3,4,5,6 ,11, EN61547
Others	Weight	0.35Kg
	Dimension	192.5x62x24mm(LWH)
	packing	290215140mm (20PCS/CTN )
Notes	All parameters NOT specially mentioned are measured at 120VAC/230VAC input , rated load and 25ºCof ambient temperature. Tolerance: includes set up tolerance, line regulation and load regulation . The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
