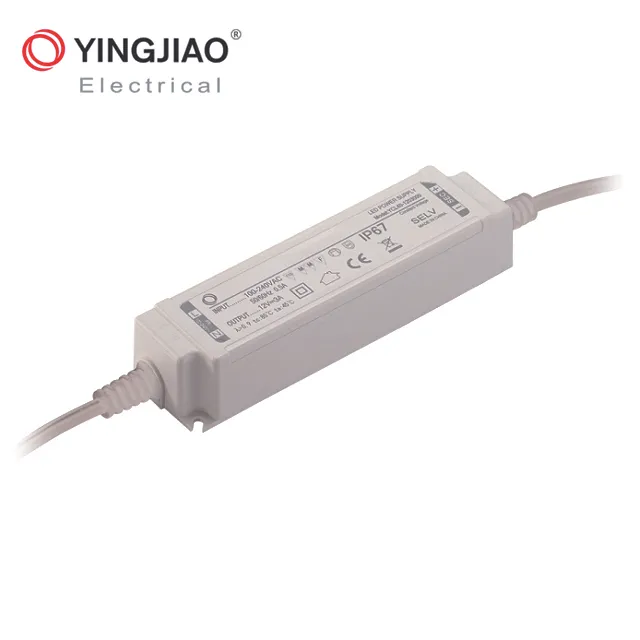

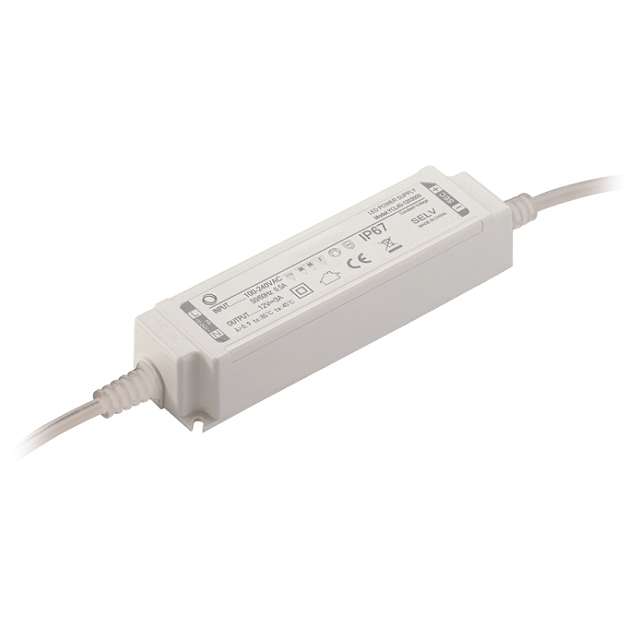

Customized AC DC Constant Current 1400mA LED Driver IP67
Customized AC DC Constant Current 1400mA Led Driver IP67Product DescriptionModel:YCL40Power:40W max.Input:100-240VAC 50/60HzOutput Voltage:12-100VOutput Current:100MA-3300MAInrush Current:65 Amps max. at 230VAC/50Hz,full loadLeakage Current:2.5mA Max. at 264VAC inputNo Load Power Consumption :<0.......
Send Inquiry
Product Description
Customized AC DC Constant Current 1400mA Led Driver IP67
Product Description
| Model: | YCL40 |
| Power: | 40W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 12-100V |
| Output Current: | 100MA-3300MA |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 2.5mA Max. at 264VAC input |
| No Load Power Consumption : | <0.5W |
| Protections: | Short Circuit /Over Current /Over Voltage/over temperature protection |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40 ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Certificates and approvals: | CE EMC ROHS |
| EMI EMISSION: | Conducted disturbance at mains terminals:EN 55015 Radiation Test&Conduction Test: EN 55015 Magnetic Emission:EN55015:2013 Harmonic Test : EN 61000-3-2 Voltage fluctuation and Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:IEC 61000-4-2 RS Test:IEC 61000-4-3 EFT/B Immunity Test:IEC61000-4-4 Surge Immunity :IEC61000-4-5 Conduted RF Immunity: IEC 61000-4-6 Power frequency magnetic field:IEC 61000-4-11 Voltage dips and interruptions,100% reduction: IEC 61000-4-11 Voltage dips and interruptions,30% reduction: IEC 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25 ambient |
| Life: | 3-5 years alternative |
| Dimension: | 148*40*30mm |
| Weight: | 200g |
| Packing: | 100PCS/CTN,35*28*35cm |
Details:
| Model: | YCL40-0800500 | YCL40-0570700 | YCL40-0381050 | YCL40-0281400 |
| DC Voltage: | 500mA | 700mA | 1050mA | 1400mA |
| Rated Current: | 40-80V | 28-57V | 16-68V | 14-28V |
| Voltage Range: | 40W | 40W | 40W | 40W |
| Rated Power: | <1% | <1% | <1% | <1% |
| Ripple & Noise(max.): | <1% | <1% | <1% | <1% |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% |
| Efficiency: | 88% | 88% | 88% | 88% |
| Setup,Rise time | 1 second max./40 MS max. | |||

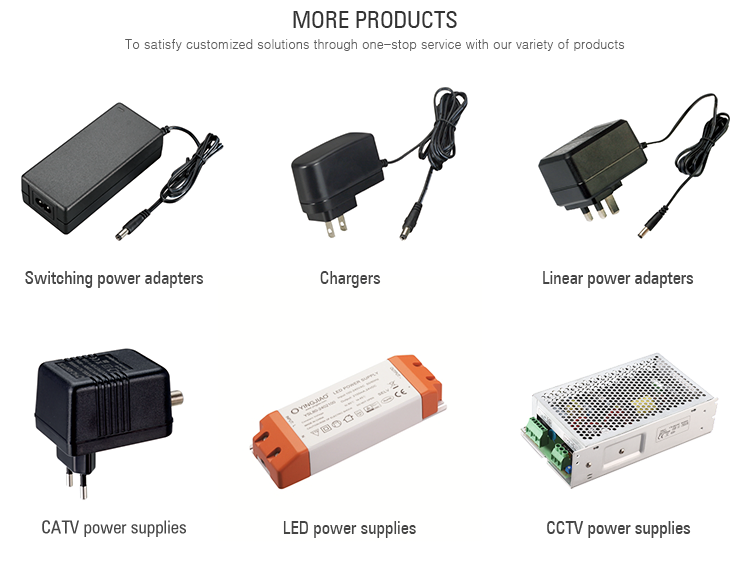

MORE PRODUCTS
ABOUT YINGJIAO

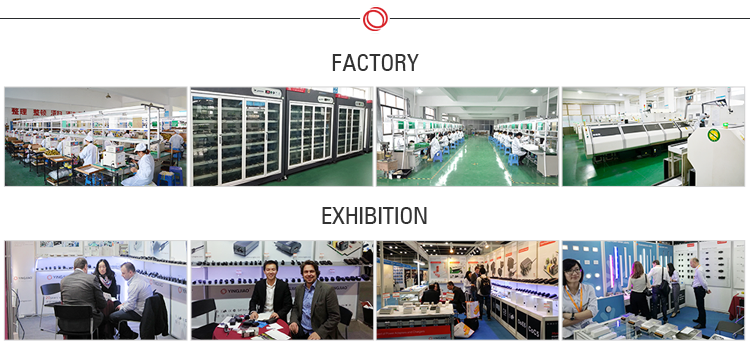

FACTORY&EXHIBITION
CERTIFICATE

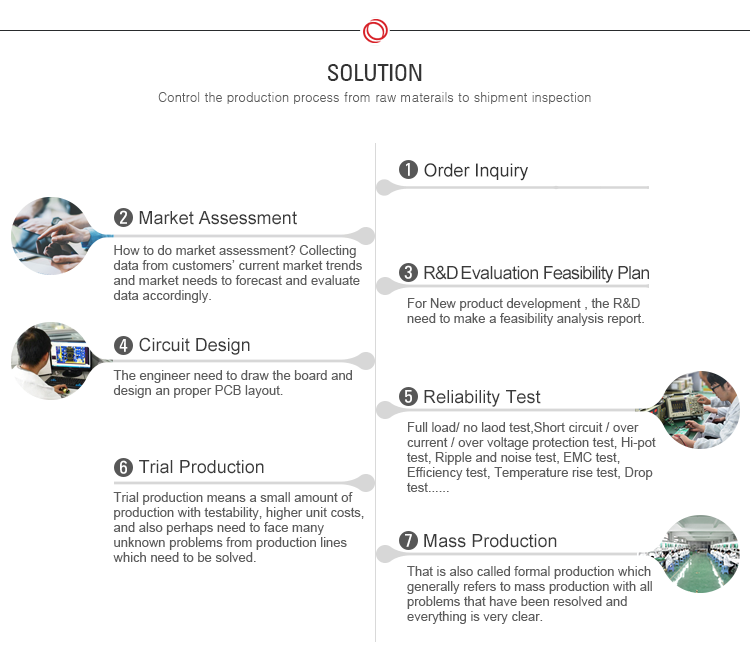

SOLUTION
