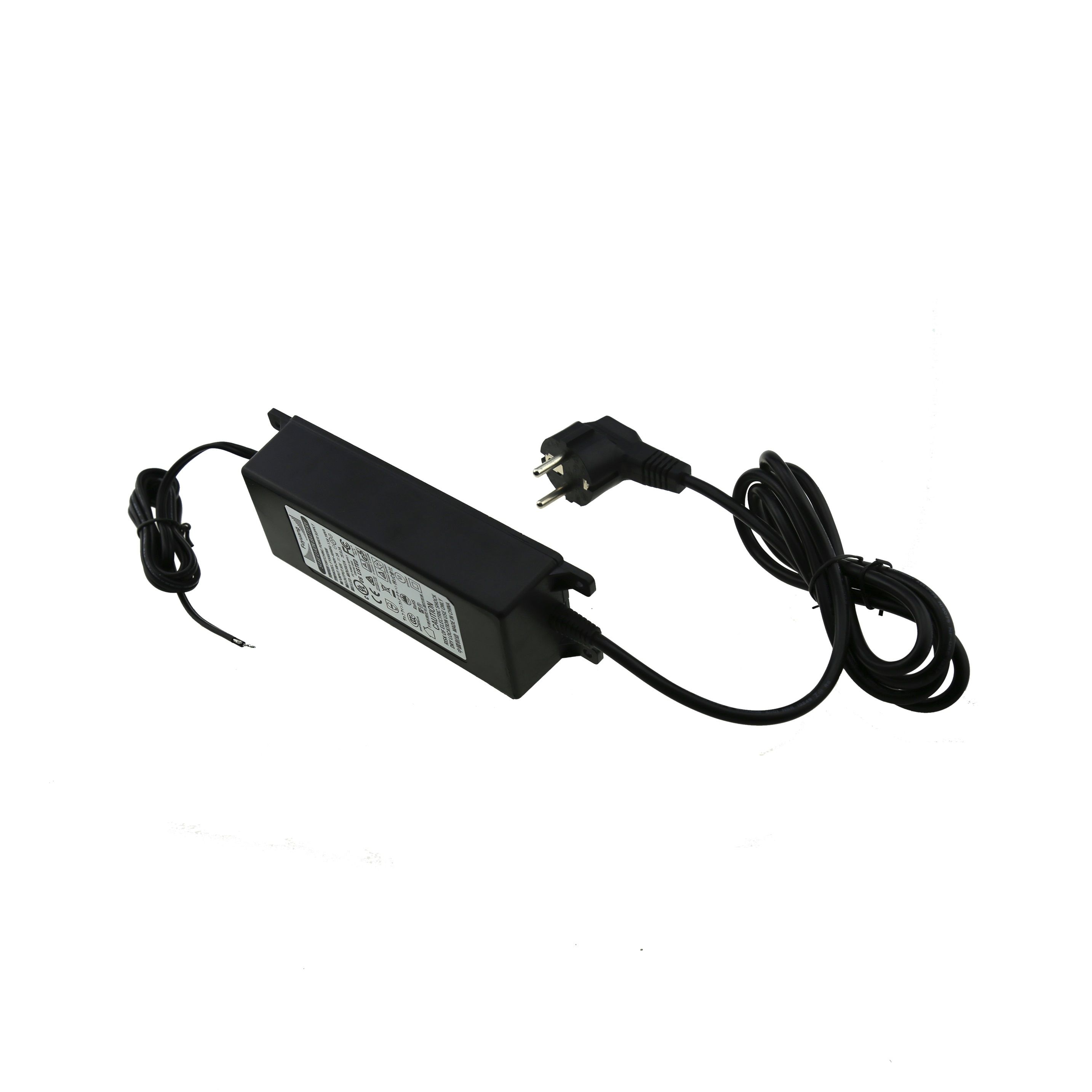

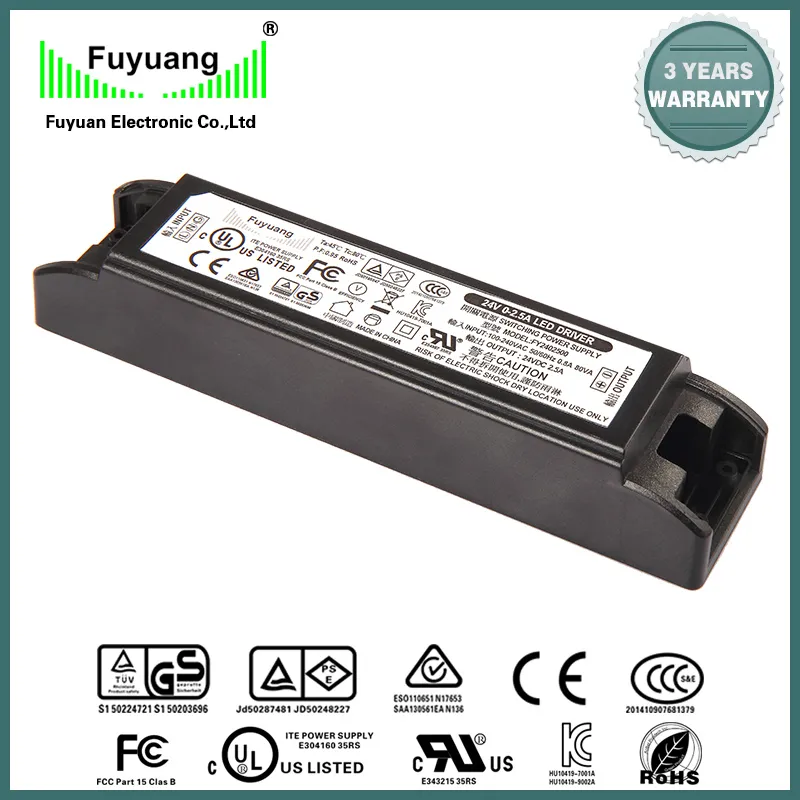

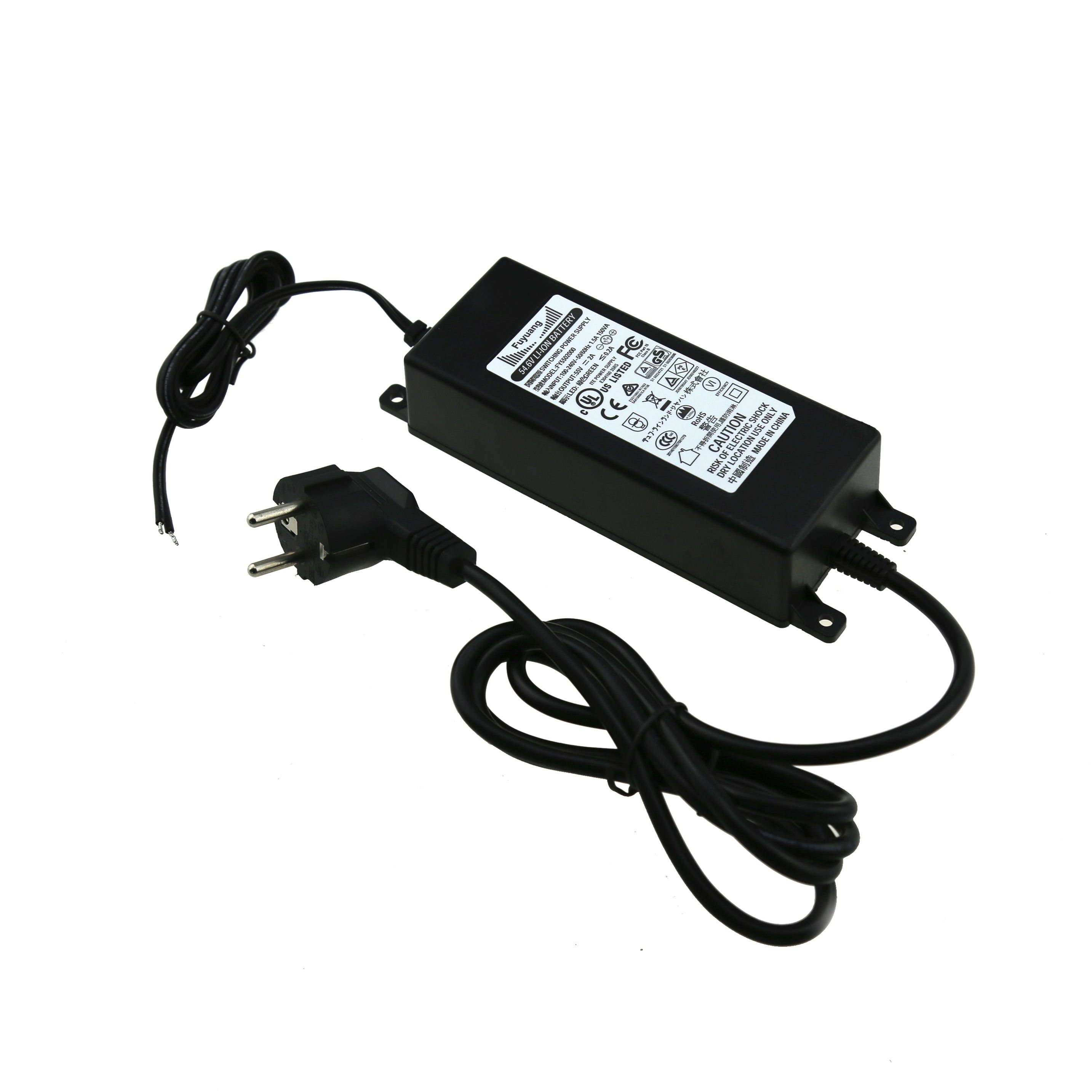

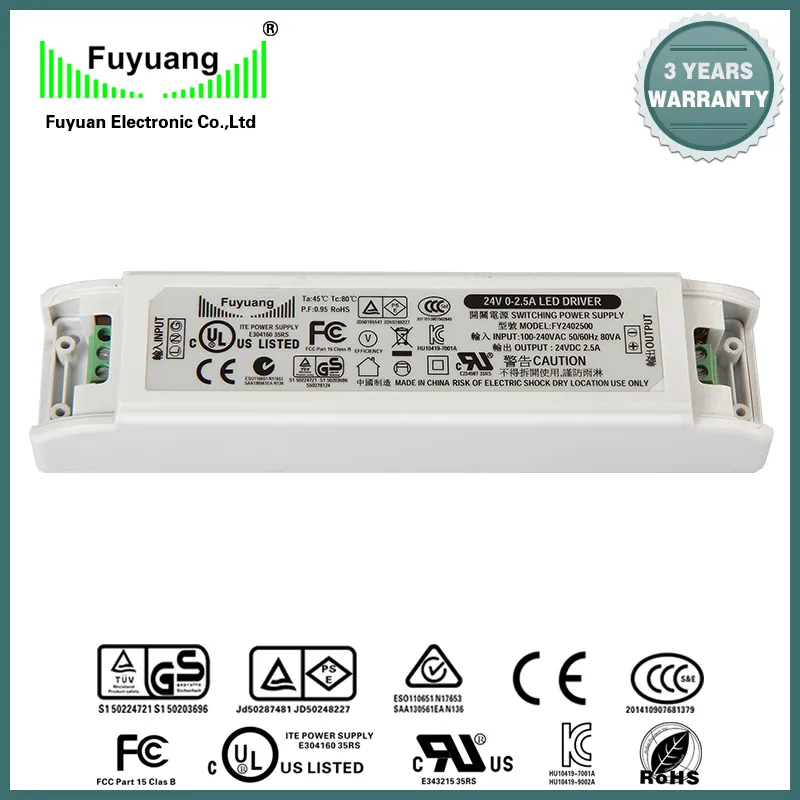

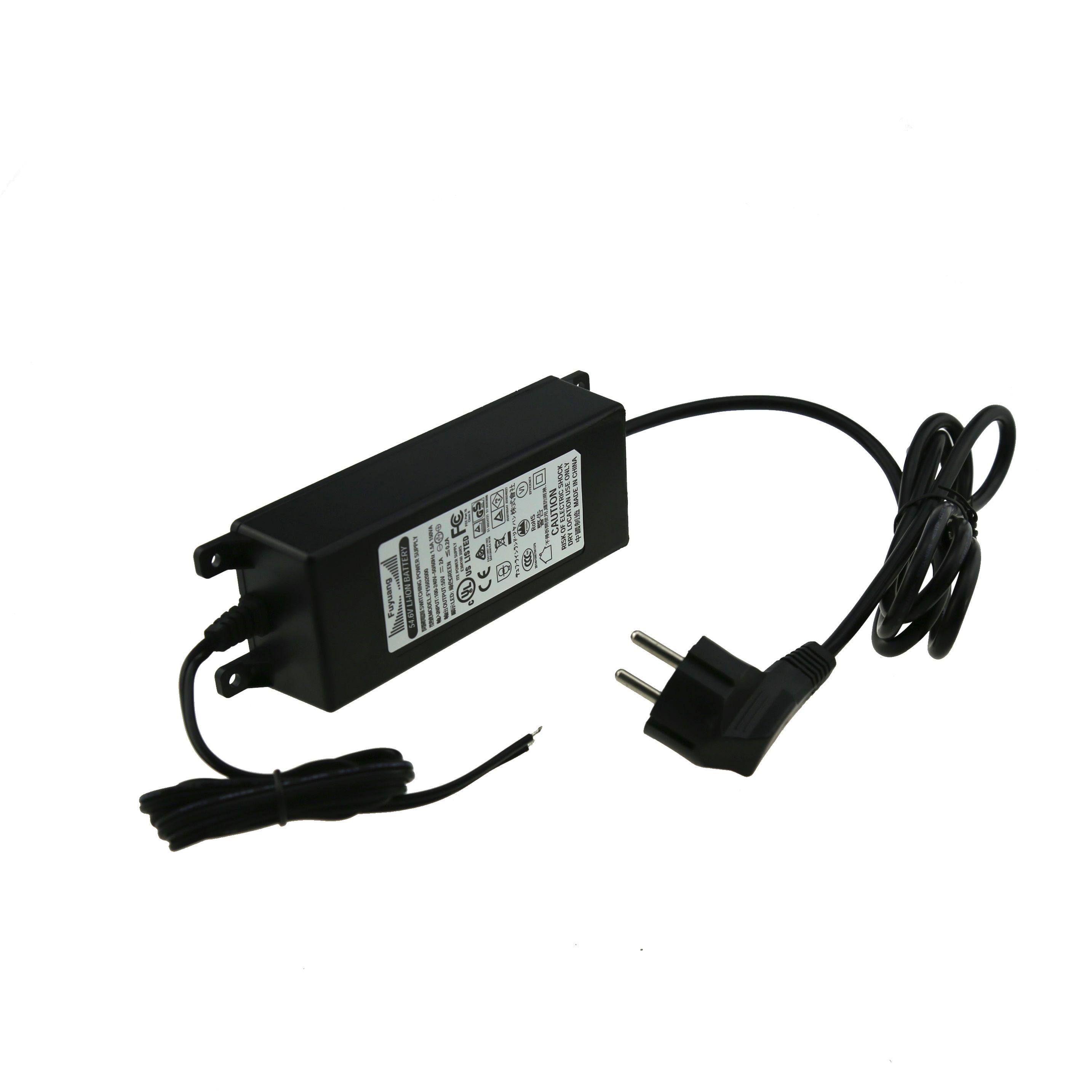

Constant Voltage AC DC Single Output LED Lighting Power Supply Driver

42.5V1200mA LED driver (FY4251200)

Features/ Functions
Regulated output with low ripple
With a power-on LED indicator

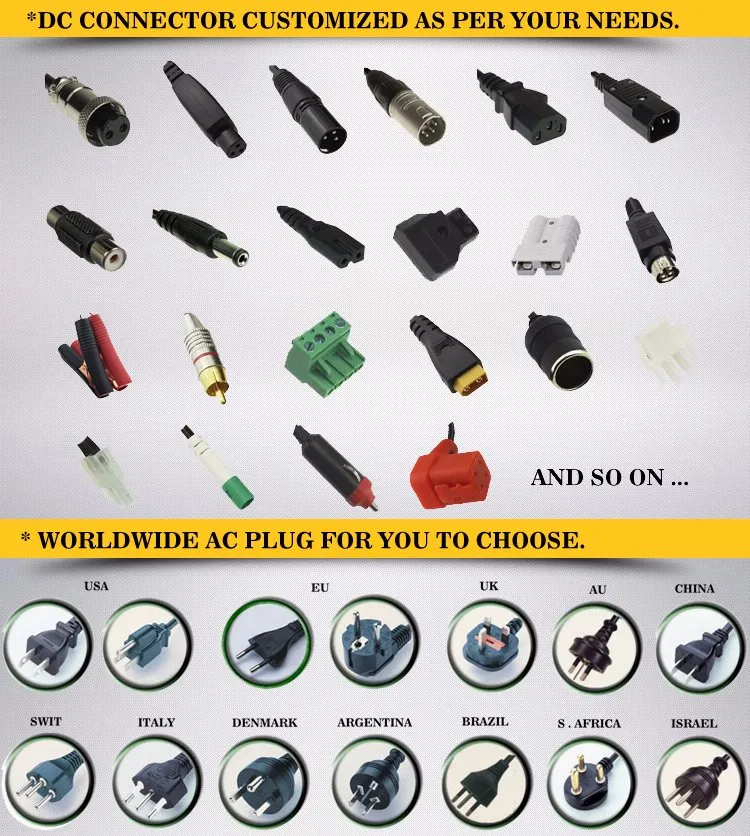

Modified and custom designs
Constant output current option
Comply with ENERGY STAR requirements
Certifications: UL, cUL, CE,PSE, CB, ROHS,FCC

General Specifications
Input: 100-240VAC, 50/60Hz
Output voltage: 42.5 VDC
Output current: 1200 mA +/-5%
Ripple: 500 MVP-p Max.
Inrush current: Limited 15A for a cold start
No load standby power ≤ 0.5W
Efficiency: 88% Min.
Temperature: Case 65 ºC Max.
Operating temperature: -29ºC~+45.5ºC
Storage temperature: -40ºC~+75ºC
Operating relative humidity: 5%~95% RH
Over load protection: Auto recovery
Short circuit protection: Auto recovery
MTBF: 30000 hours full rated load at 25ºC
AQL: MIL-STD-105D II CRI 0; MAJ 0.25; NIN 2.5

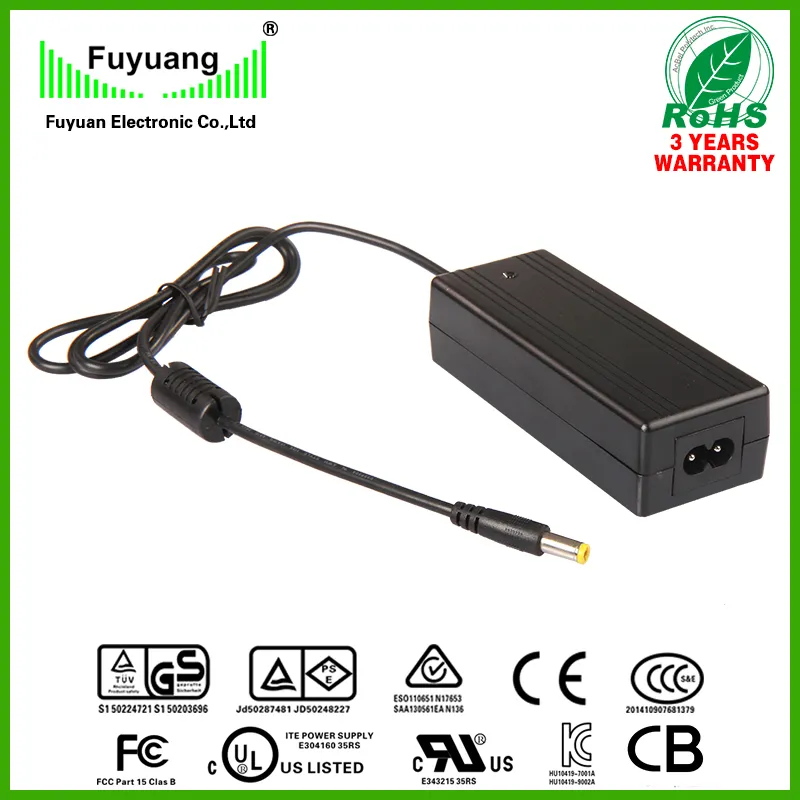

                                                                       60W



                                                                               60W

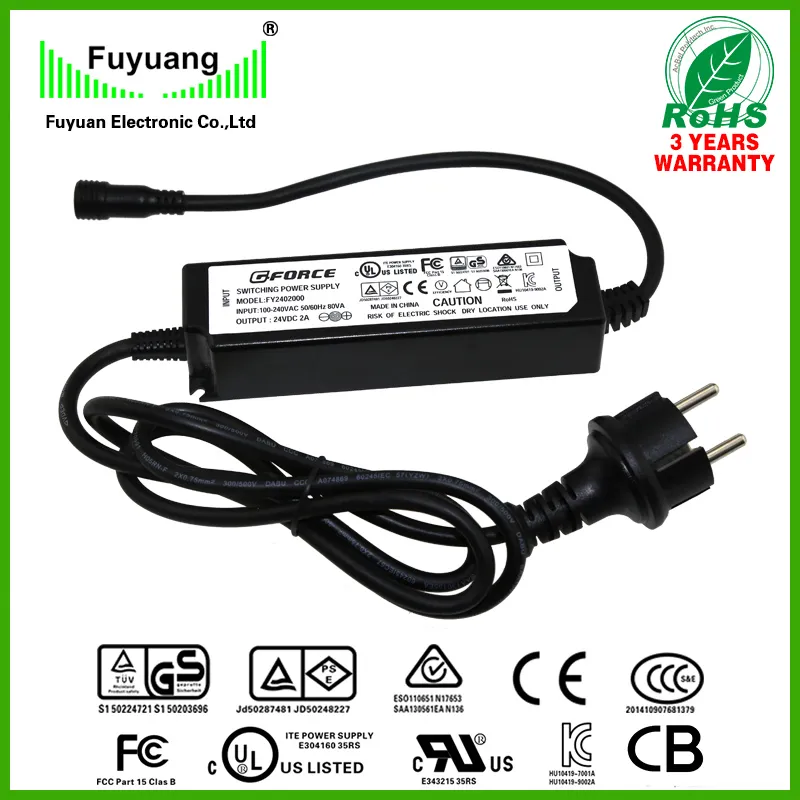

                                                                              50W



                                                                              50W





Advantages :

*All our battery chargers,power adapters and LED drivers come with UL,cUL,CE, GS, PSE, SAA,CCC,KC,CB,ROHS,LVD,EMC,ERP.RCM,C-TICK and FCC approvals.

*Strong Independent R&D Team -- 30 years Switching Power Supply R&D working experience team.
*Meets Level VI standard,DoE VI, CoC V and CEC VI.

*Self-built 8,000 sq.m. self-built garden-like factory, TUV-verified supplier.

*ISO 9001:2015-, ISO 14000:2015- and QC 080000:2015-certified

*Product Range:10W-500W, more than 1,000 items

*Main Clients: SMP, Stanley, Pentair, CDVI, Hitachi, Onewheel, Hama, YikeBike, TC Electronic, Heter, Tenda and Konka.

*Main parts are made by by ourselves.

*Leadtime :3days for samples, 2-3 weeks for orders.

*Support OEM/ODM services

* Warranty : 3years

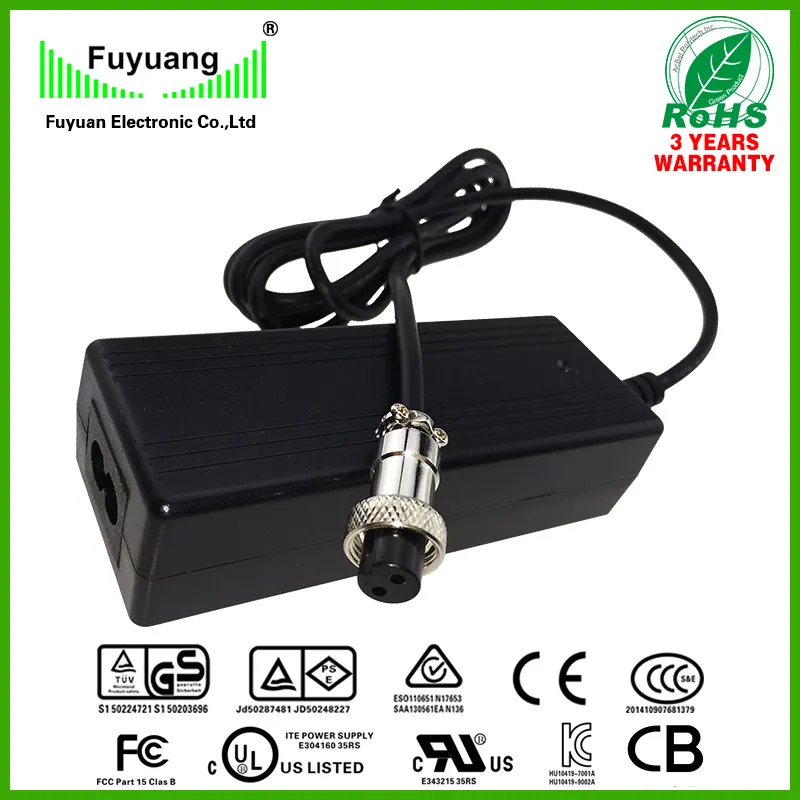

50W

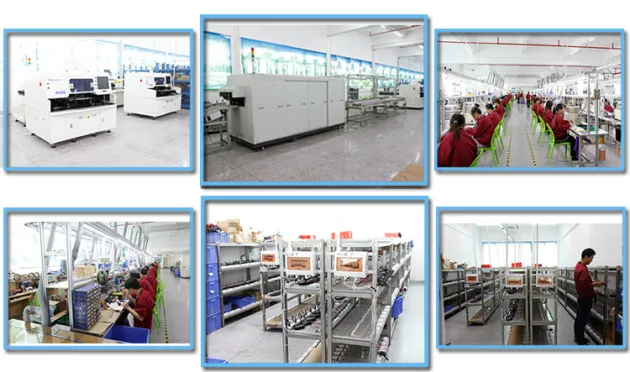

                                                                              Company Show

Welcome customized.
3 Day for Samples, 3 Week for bulk orders !
All products have 3 years warranty.

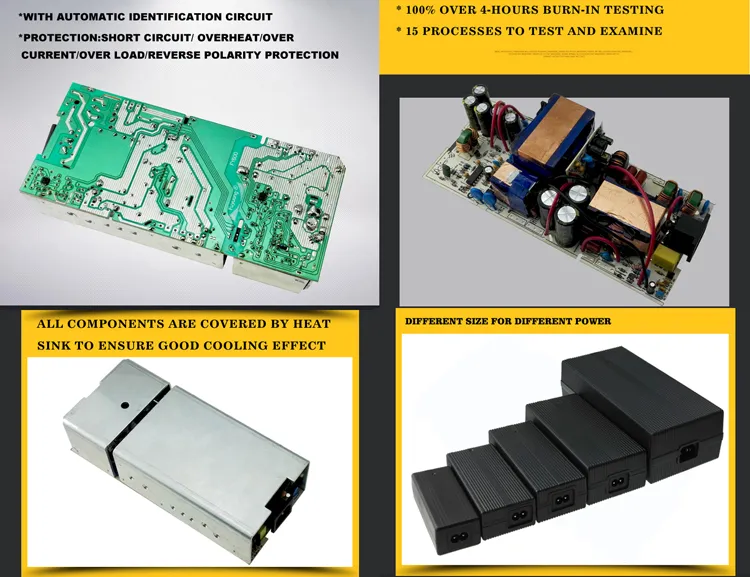

Internal Photos & Features:

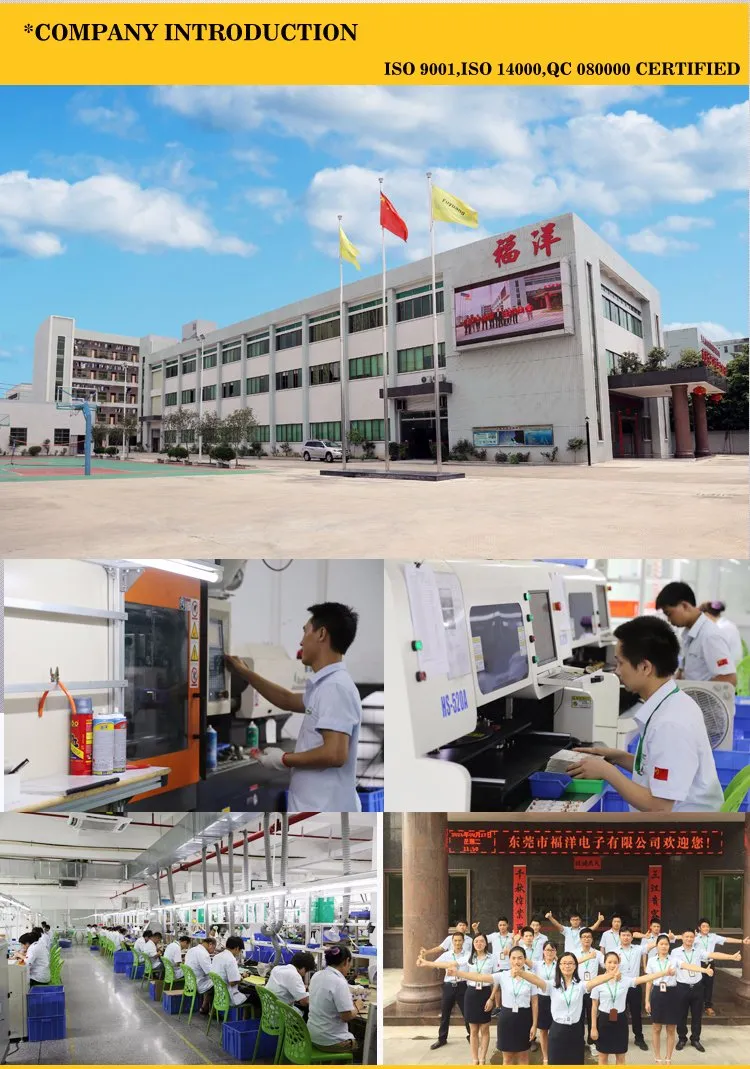

Company Introduction:

Fuyuang is the Chinese famous switching power supply brand, product line include Battery Charger, Power Adapter and LED Driver. Located in Dongguan of China, the company is integrated with product design, R&D and production as a whole. Established in 2005, Fuyuang has 8,000 sq.m. self-built garden-like factory buildings and 200 staff members. With 26-year senior engineer team personally led by the founder Mr. Huang Shaocheng, the company has mastered core technologies, adhered to the enterprise's concept of "seeking greater perfection and giving top priority to quality", upheld the pioneering and progressive spirits that "we have what others don't have and ours are better than others", built the leading brand in the battery charger and adapter manufacture industry, and enjoyed good reputation at home and abroad.

Fuyuang products range 0.9W~500W and cover over 1,000 models, all products have passed quality certification UL,FCC,cUL,CE,RoHs,CB,TUV/GS,SAA,RCM,PSE,KC,CCC ,currently, its 60W~400W large-capacity products take the leading position in the power supply industry. Fuyuang is the preferred supplier for such industries as electric motor car, battery, electric tool, LED lamp, security, acoustic equipment, massaging machine, beauty apparatus and robot.

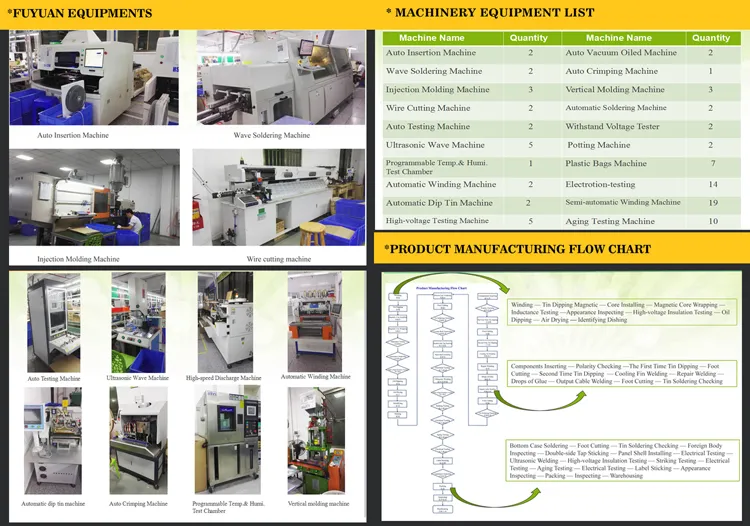

Our Production Capacity:

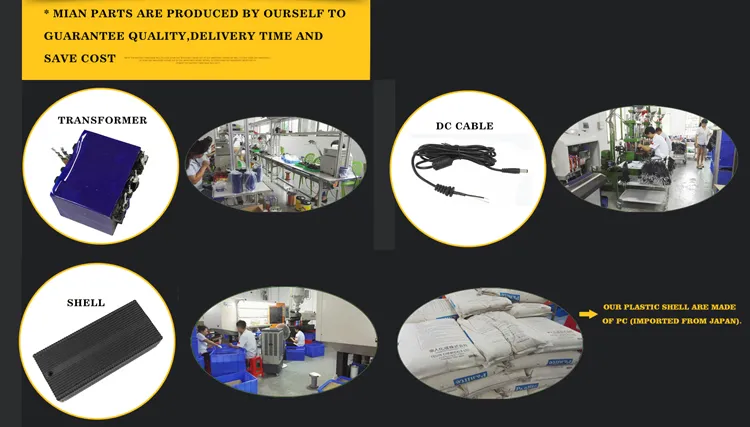

*Main parts of our products ( transformer, plastic housing, DC cable ) are made by ourselves,  which can guarantee our quality, delivery time, and can save cost.

*Our daily production is 5000pcs.

*Number of Employees is 150.

*Number of Engineer is 10.

*Annual output value: 20 million U.S. dollars.

*Only takes 10 days to design and develop a brand-new product.
