Product Description

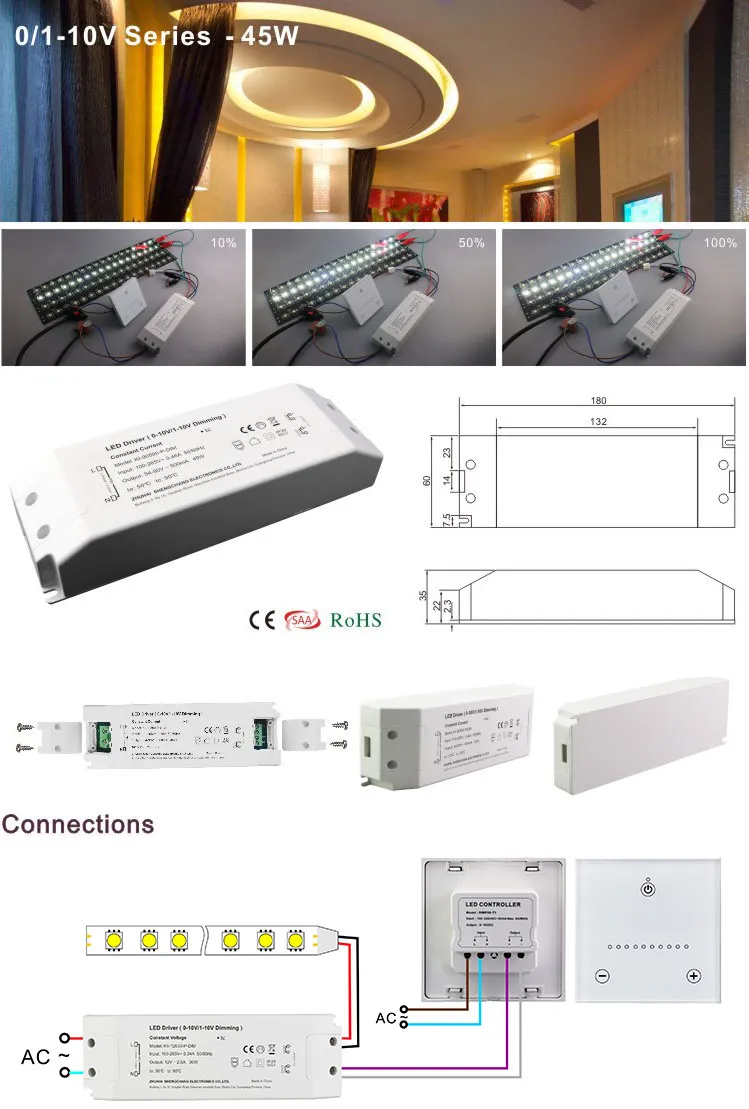

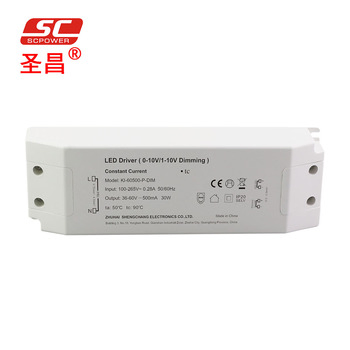

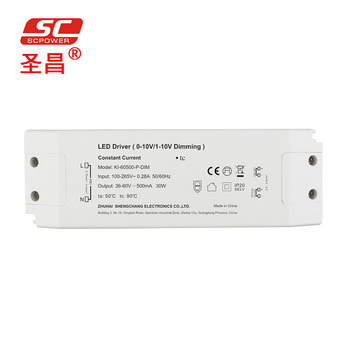

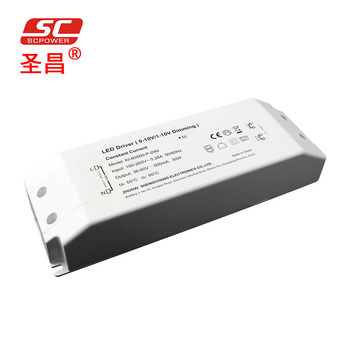

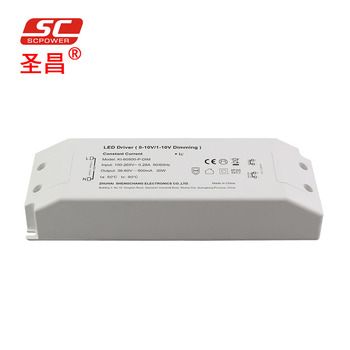

Constant current led driver 500ma 45 watt 55v 90v dc led down light driver 220v 110v power supplies

Feature

·Output constant voltage

· Universal AC input:100-265VAC

· Built-in active PFC function

· High efficiency up to 86%

· Protections: Short circuit/Over current/Over loading

· Cooling by free air convection

· Fully isolated plastic case with terminals IP20

· Class 2 power unit

· Three in one dimming function(0/1-10Vdc or PWM signal or resistance)

· Dimming range: 0-100%

· Suitable for LED lighting and moving sign applications

· Compliance to worldwide safety regulations for lighting

· Three years warranty

Specification

Model		KI-120350-P-DIM	KI-90500-P-DIM	KI-65700-P-DIM
Output	DC Current	350mA	500mA	700ma
	Current Tolerance	±5%
	Output voltage range	72-120V	54-90V	39-65V
	Rated power	42W	45W	45.5W
	Open circuit voltage(Max)	125V	95V	70V
Input	Voltage Range	100~265VAC
	Frequency Range	47~63HZ
	Power Factor	PF≥0.95/120VAC PF≥0.90/230VAC PF≥0.85/265VAC(Full loading)((Full loading)
	Efficiency(Typ.)	86%	86%	86%
	AC Current(Max.)	0.43A	0.46A	0.47A
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
Protection	Over Loading	≤120%
Others	Net.Weight	0.45Kg
	Size	1806035mm(LWH)
	Packing	355215215mm/20pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºC of ambient temperature. 2. Tolerance:includes set up tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
