Product Description

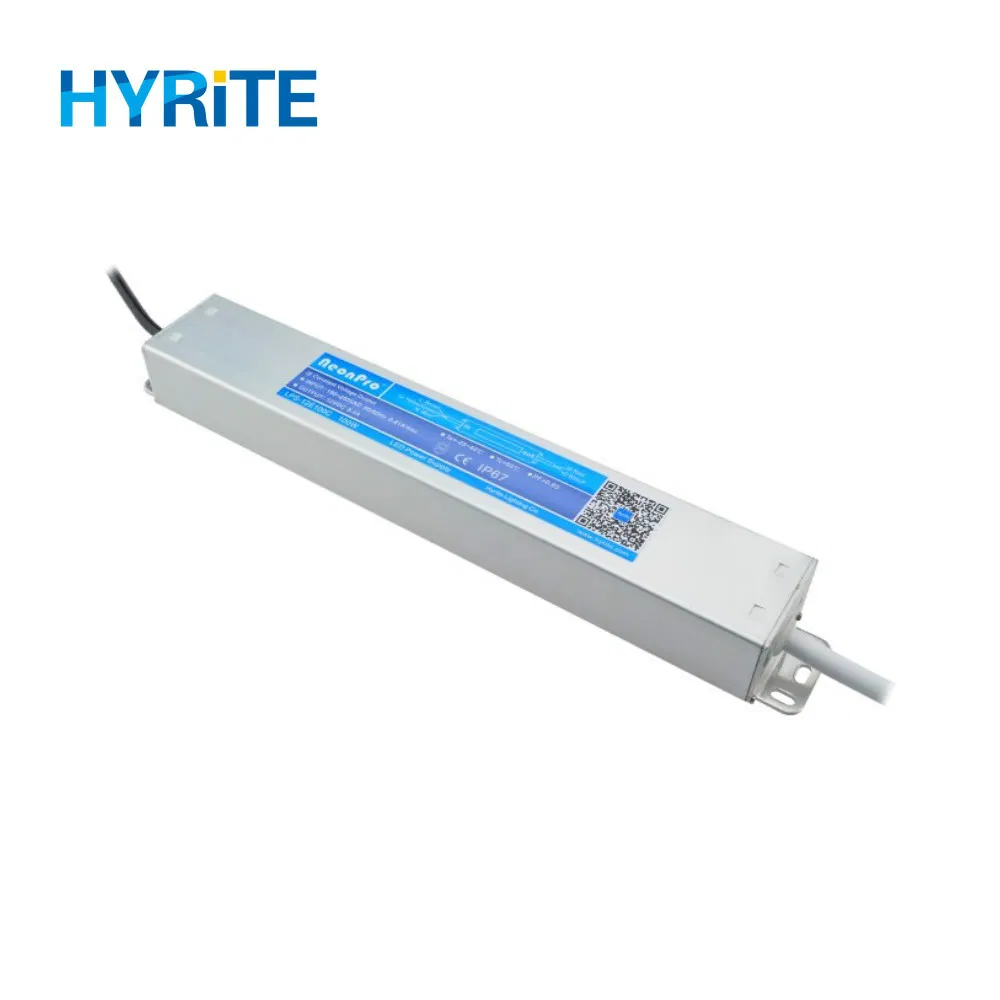

Bis Sosa SAA 100W 12V Waterproof LED Driver for Light Box

1. Feature of LED Driver

External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light, etc...
Slim body, special design for application with narrow space, such as celling led strip back light, led light box
Fully sealed and waterproof, IP67 led power supply
Constant voltage output led power supply
100% burn-in test

2. Specifications of LED Driver

Model no.	LPS-12E100C
Input voltage	185-264 VAC 50/60 Hz
Max. power	100 W max
Output type	Constant voltage
Efficiency	86%
AC inrush current(max.)	Cold start, 40A@230VAC
Output voltage	12VDC ± 5%
Output current	8.33A max
Overload protection	105% hiccup mode, auto-recovery
Over voltage protection	120% rated output voltage
Withstand voltage	I/P~O/P:1.5kVAC, 1 minute
Operating temperature	-25~40 ºC
Installation	Outdoor waterproof
IP rating	IP 67
Cooling	Free air convection
Certificates/standards	CE,TUV,BIS

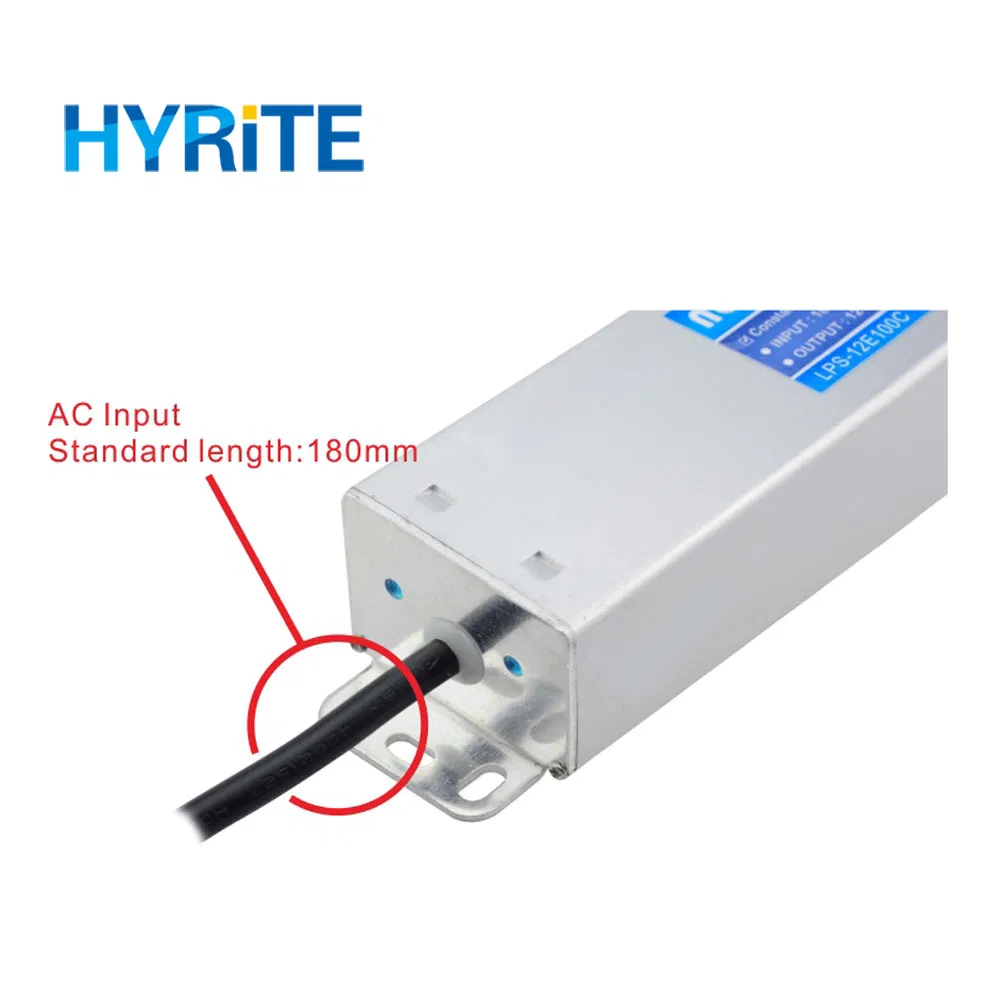

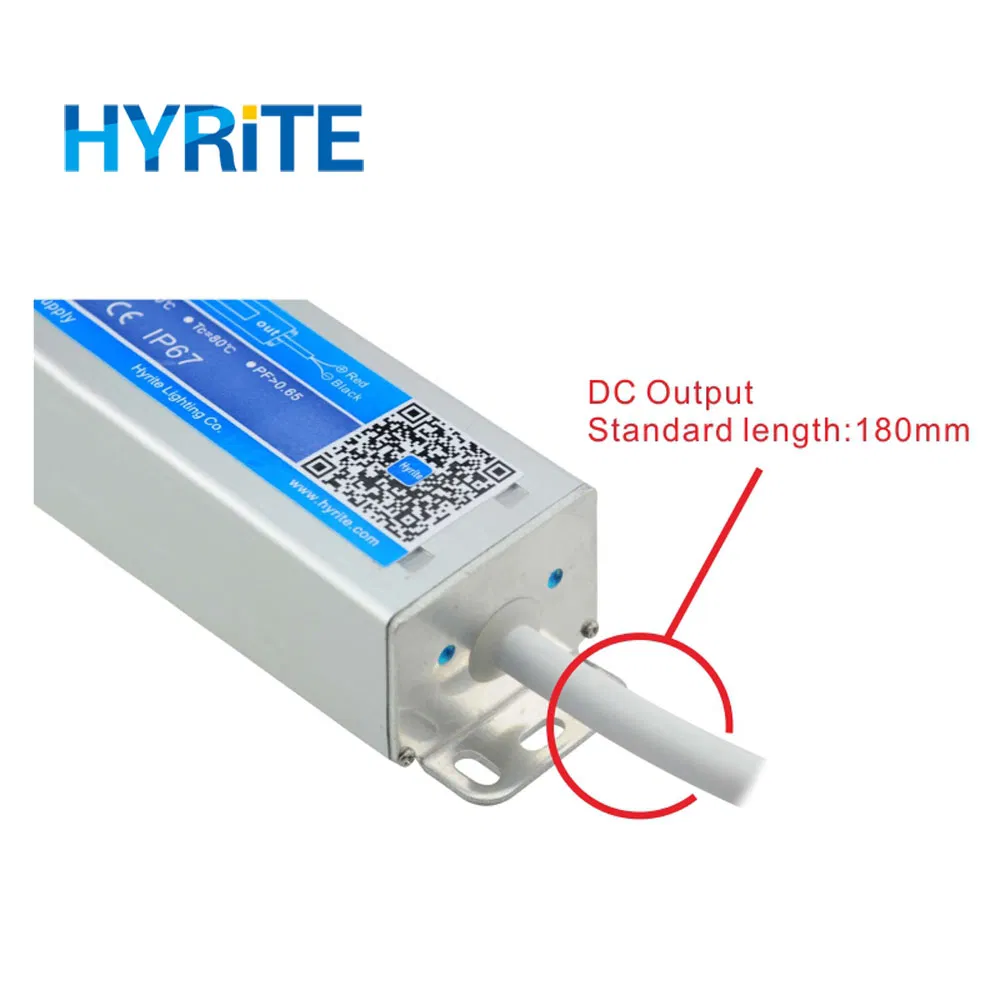

Connection input/output	Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm)

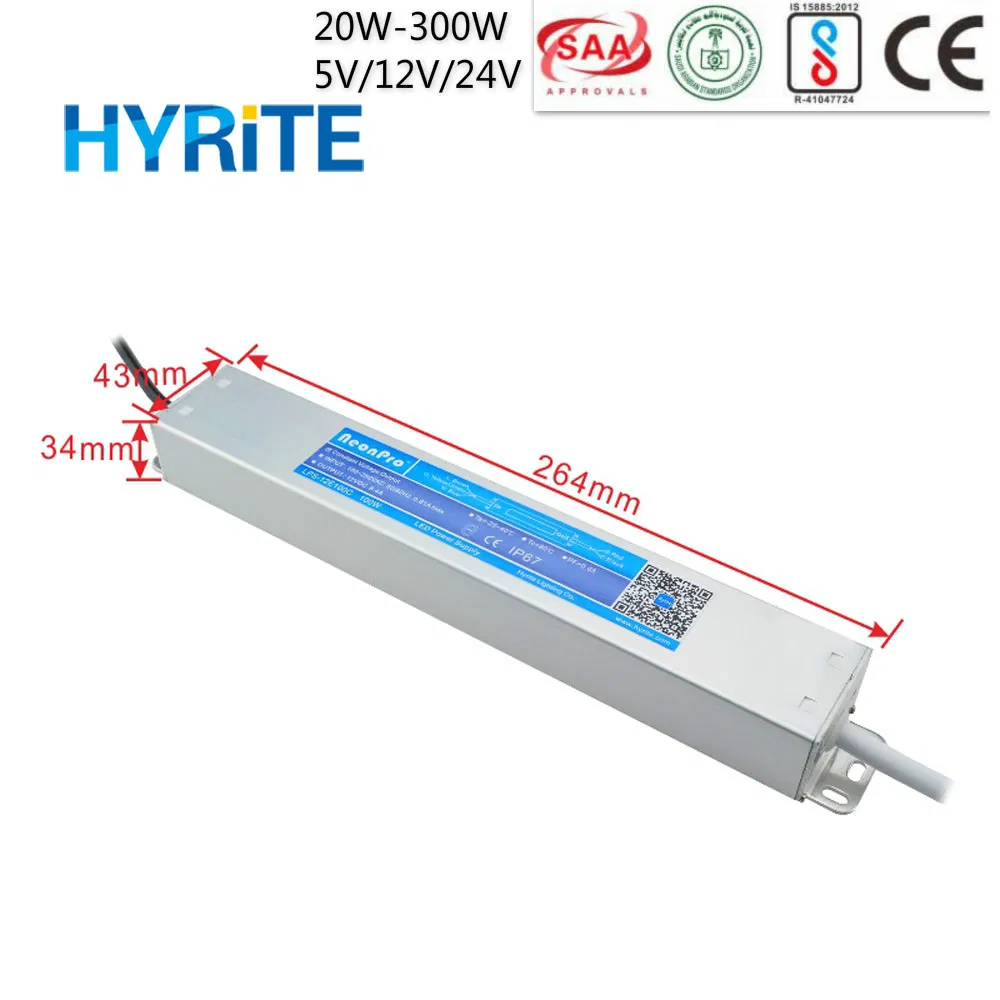

Dimensions(LWH)	2924334mm

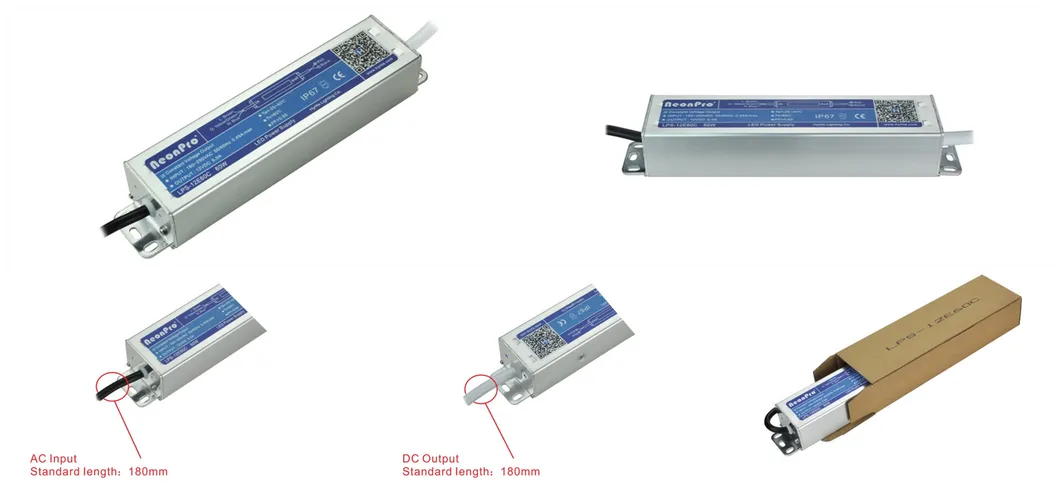

3. Packing detail of LED Driver
Bis Sosa SAA 100W 12V Waterproof LED Driver for Light Box

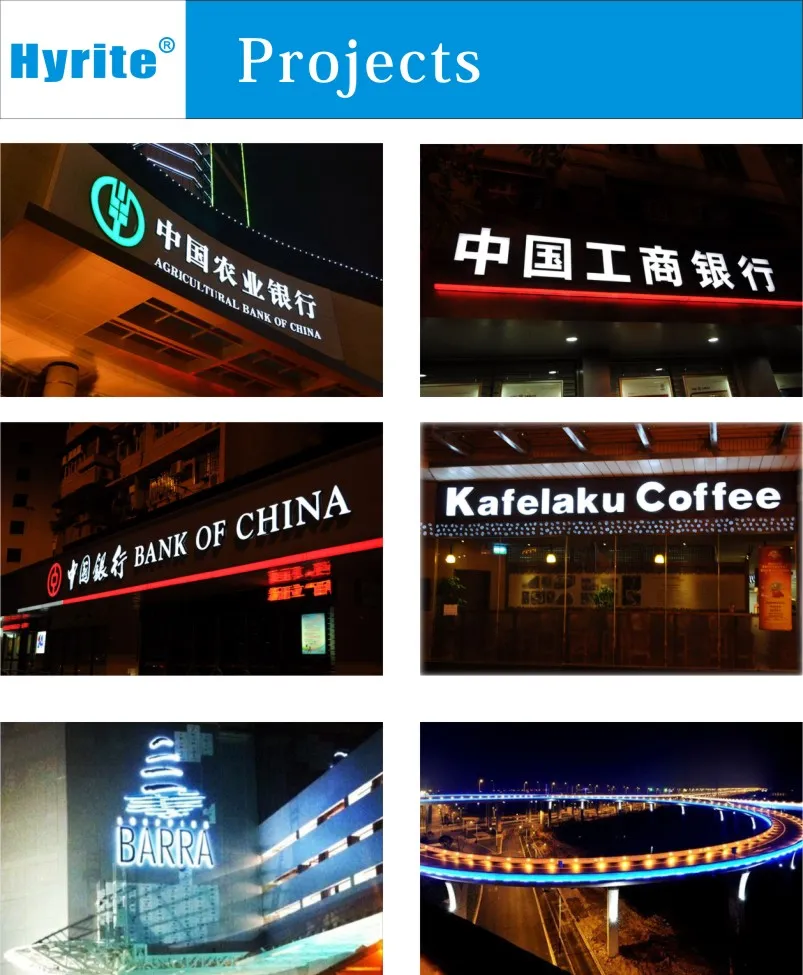

4. Applications of LED Driver
*LED module & LED strip
*Perforating lamp & pixel lamp
*Light box & channel letter
*Wall washer
*Other signage lighting

5. Important Parameter of LED Driver
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP67

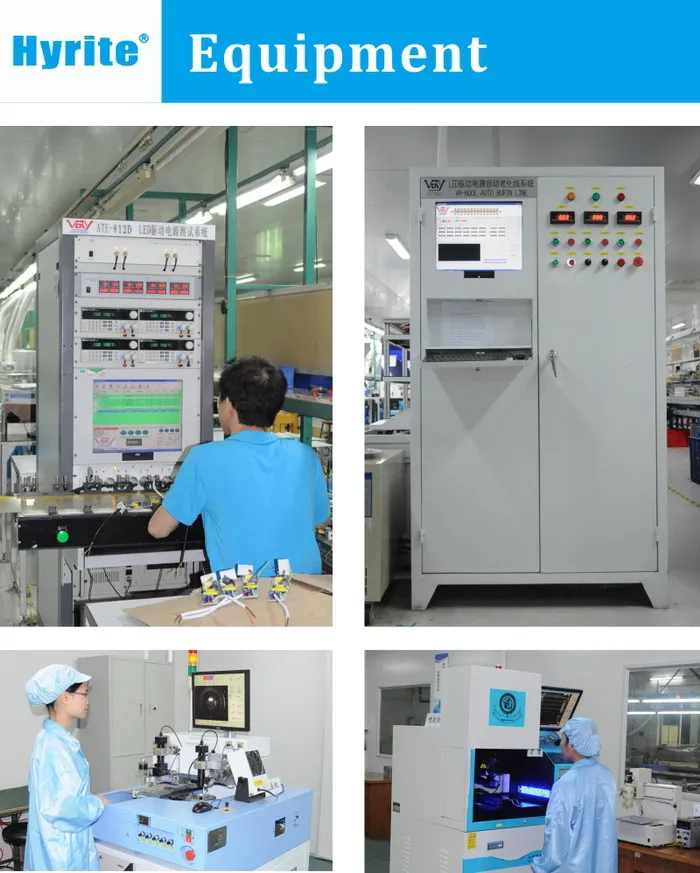

6. Equipments and production Lines
Bis Sosa SAA 100W 12V Waterproof LED Driver for Light Box
