Alexa and Google Home Amazon Hot Sale OEM ODM LED Drivers Wholesale BLE WiFi Zigbee Dimmable Wireless LED Driver for LED Light
Product DescriptionAlexa and Google Home Amazon Hot Sale OEM ODM led drivers wholesale BLE Wifi ZigBee dimmable wireless led driver for led lightProduct DescriptionProcduct DescriptionFeature 1. Brightness 0%-100% dimmable.2.16+ million different color changeable.3. Color temperature 3000K-6500K cha......
Send Inquiry
Product Description
Alexa and Google Home Amazon Hot Sale OEM ODM led drivers wholesale BLE Wifi ZigBee dimmable wireless led driver for led light
Product Description
Procduct Description

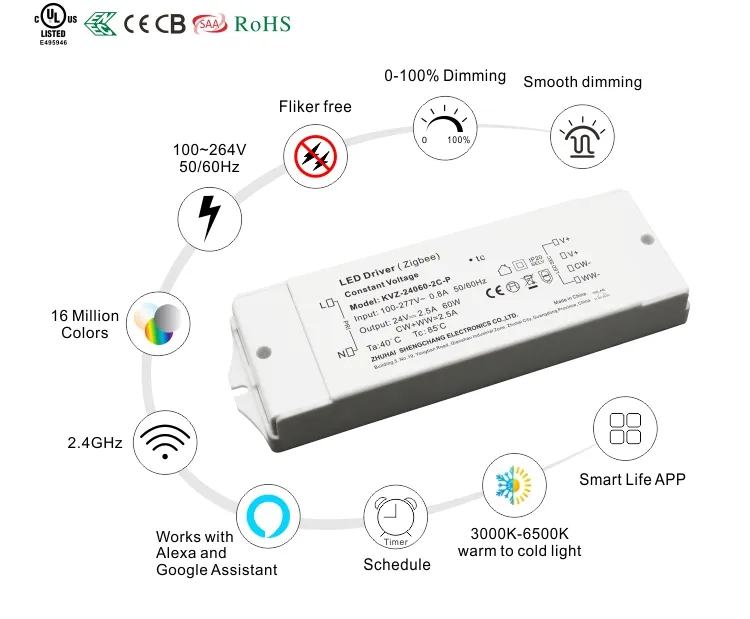

Feature
1. Brightness 0%-100% dimmable.
2.16+ million different color changeable.
3. Color temperature 3000K-6500K changeable.
4. Voice control: Alexa and Google Assistant compatible.
5. Timmer function: automatically on / off time setting.
6. Smart Life App control by phone, control the driver anywhere any time.
·Output constant Voltage
·Range: 100-277VAC
·Built-in active PFC function
·Efficiency up to 88%
·Protections: short circuit /over load /over temperature
·Cooling by free air convection; IP20 design for indoor installation
·Dimming function: Bluetooth wireless dim., which can be controller by Mobile App or Smart speaker, like Google home or Amazon echo
·Adopt TUYA module, 8K Hz PWM output; Minimum dimmability is 1%
·Different channels to be chosen, 1CH, 2CH, 3CH, 4CH or 5CH
·Suitable for intelligent LED lighting for all over the world

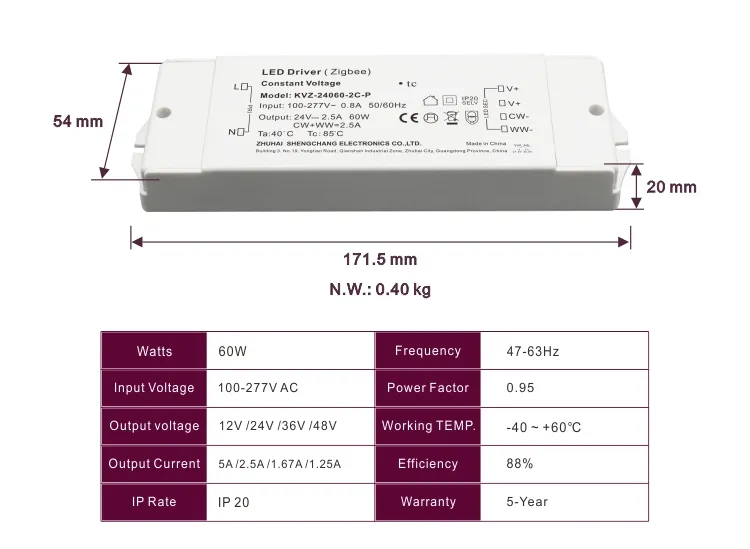

Specification
Model | KVZ-12060-xC-P | KVZ-24060-xC-P | |
X=1 , 2, 3, 4, 5 for DIM (DW); CCT(TW); RGB; RGBW; RGBW+CCT | |||
Output | DC Adj. Voltage Range | 11-13V | 23-25V |
Voltage Tolerance | ±0.5V | ||
Voltage Regulation | ±0.5% | ||
Rated current | CH1+CH2+CH3+CH4+CH5=5A | CH1+CH2+CH3+CH4+CH5=2.5A | |
Rated power | 60W | ||
Load Regulation | ±2% | ||
Input | Voltage Range | 100-277VAC | |
Frequency Range | 47 - 63Hz | ||
Power Factor(Typ.)@ full load | PF≥0.95/ 230VAC (Full loading) | ||
THD(Typ.)@ full load | <15% | ||
Efficiency(Typ.)@ full load | 87% @230VAC | 88%@230VAC | |
AC Current(Max.) | 0.72A | 0.72A | |
Inrush Current (Typ.) | 45A (Twidth 145us measured at 50% I peak, COLD START, 230VAC) | ||
Leakage current | <0.5mA | ||
Protection | Short Circuit | Hiccup mode, recover automatically after fault condition is removed | |
Over Load | ≤120% ,hiccup mode, recover automatically after fault condition is removed | ||
Over temperature | ≤100ºC±10ºC, shutdown output voltage, recover automatically after temperature drop | ||
Protection Class | II | ||

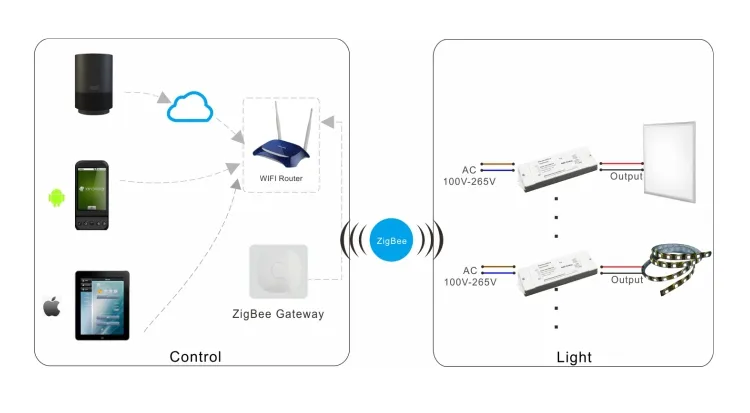

Connections
Application
Control Your Lights With Your Voice
Enjoy Fully Hands-free Experience with Your Amazon Alexa
and Google Assistant Device
1. How about your goods' quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
