Product Description

LED adaptor&Driver

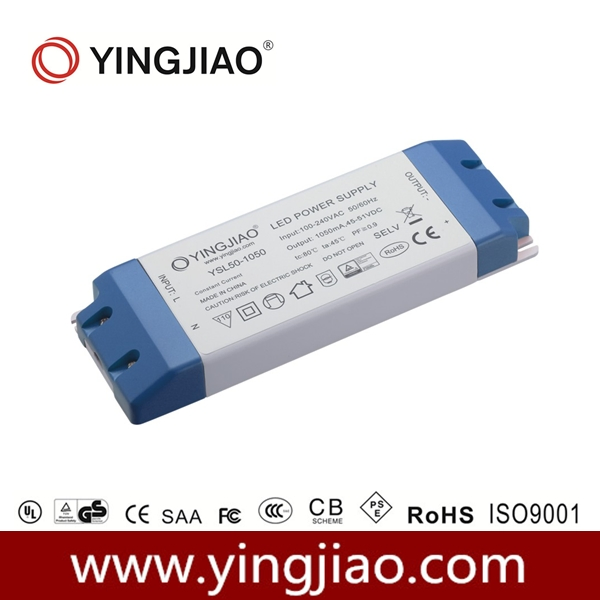

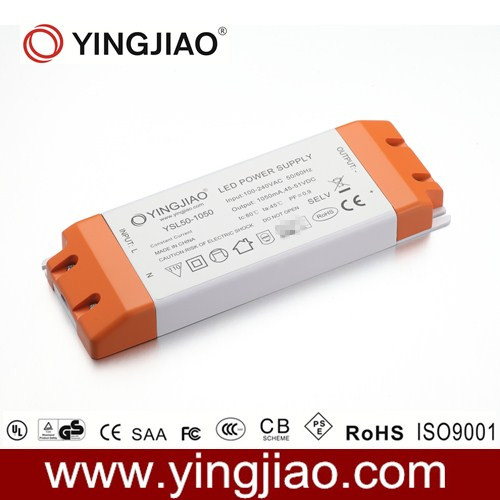

60W Constant Current LED Driver with GS CE UL

Model:YSL60 series
Range:50-60W
Rated Power:60W

Constant Output Current:
Model	Power (max.)	Input Voltage	Output Current (max.)	PF	Ta	Tc	L×W×H (mm)
YSL60	60W	90-265V AC	2100mA	≥0.9	45ºC	85ºC	185×64×22
Constant Output Voltage:
Model	Power (max.)	Input Voltage	Output Voltage	PF	Ta	Tc	L×W×H(mm)
YSL60	60W	90-265V AC	12V/24V	≥0.9	45ºC	85ºC	185×64×22

60W Constant Current LED Power Adapter with CE

Features:
Safety: UL/cUL/TUV/GS/CE/CCC compliance
RoHS Compliance
High efficiency & low power consumption
LED power indicator
Short Circuit Protection
Over Current Protection
Over Voltage Protection
Light Weight & Compact

Environmental:
Operating Temperature: 0 to 40 degrees centigrade
Storage Temperature: -40 to +70 degrees centigrade
Operating Humidity: 10% ~ 90% RH Non-condensing
Storage Humidity: 5% ~ 95% RH Non-condensing

60W Constant Current LED Power Adaptor with CE
