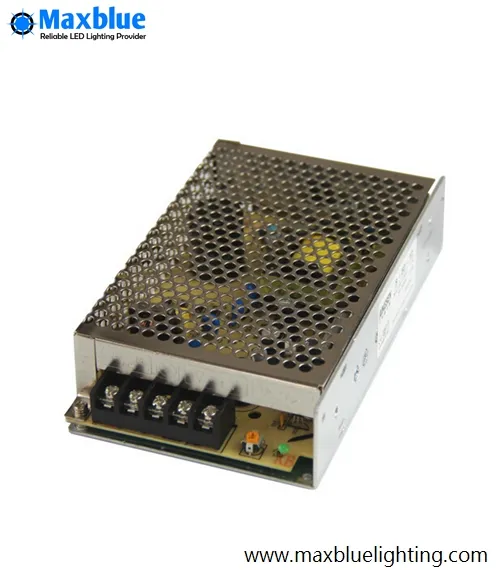

50W DC12V Switching Power Supply for LED Strip
Product Description:Single Output 50W AC to DC12V Switching Power Supply with CE RoHS approvalProduct SpecificationAC Input 88-132VAC, 170~264VAC 47-63Hz DC output DC12V 0~10AAdjustable range for DC voltage ± 10%AC Inrush currentCold-start current 15A/115V 30A/230VOver Load Protec......
Send Inquiry
Product Description
Product Description:
Single Output 50W AC to DC12V Switching Power Supply with CE RoHS approval
Product Specification
Product Feature:
Universal AC input
Small size, High power density
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Protection: Short circuit / Over load protection/ Over voltage protection
Indoor use, Non-waterproof
IT IS IDEAL FOR LED STRIP CONNECTING
.
Single Output 50W AC to DC12V Switching Power Supply with CE RoHS approval
Product Specification
| AC Input | 88-132VAC, 170~264VAC 47-63Hz |
| DC output | DC12V 0~10A |
| Adjustable range for DC voltage | ± 10% |
| AC Inrush current | Cold-start current 15A/115V 30A/230V |
| Over Load Protection | 105%-150% rated output power |
| Over Voltage Protection | 115%-135% hiccup mode, auto-recovery |
| Withstand voltage | I/P-O/P: 1.5Kv I/P-FG: 1.5KV O/P-FG: 0.5KV 1minute |
| LINE REGULATION | ± 0.5% |
| Load REGULATION | ± 1% |
| Efficiency | 78% |
| Working temperature | -10º C - +50º C, 20%~90% RH |
| Safety Standards | Design refer to U11012, TUV EN60950-1 approved |
| EMC Standards | Design refer to EN55022 Class B, EN61000-3-2,3 EN61000-4-2,3,4,5,6,8,11, ENV50204 |
| Connection Way | 5pins 9.5mm |
| Weight | 0.48Kg |
Product Feature:
Universal AC input
Small size, High power density
Fixed switching frequency at 47-63Hz
Protections: Short circuit/Overload/Over voltage
Protection: Short circuit / Over load protection/ Over voltage protection
Indoor use, Non-waterproof
IT IS IDEAL FOR LED STRIP CONNECTING
.
