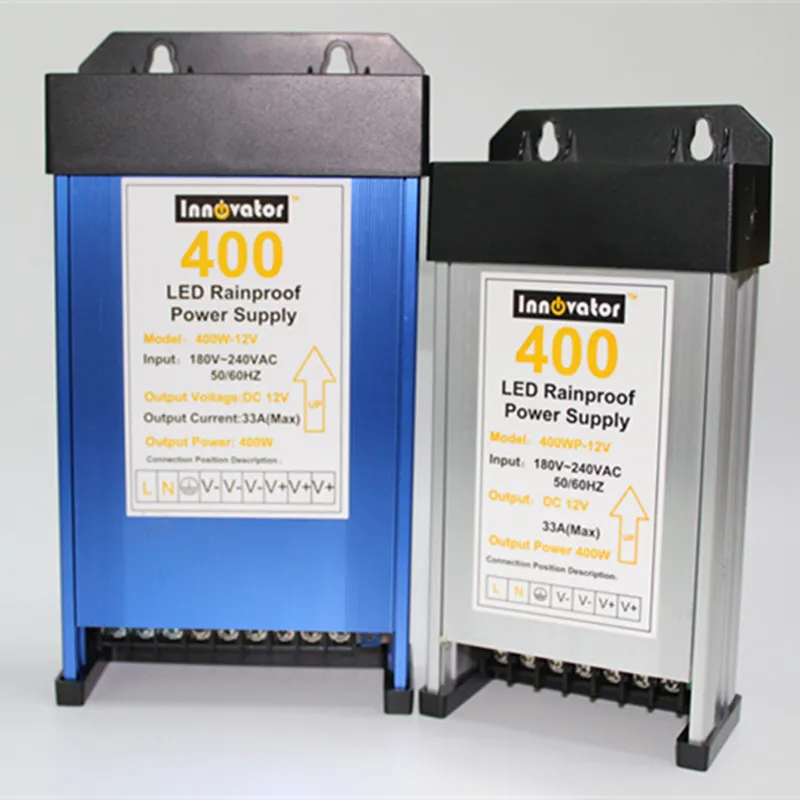

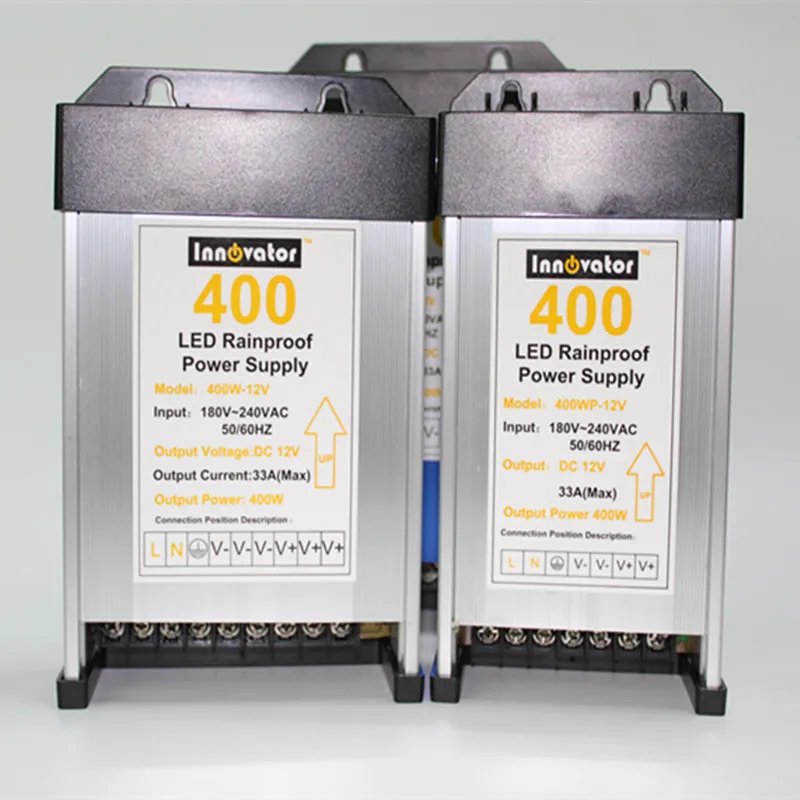

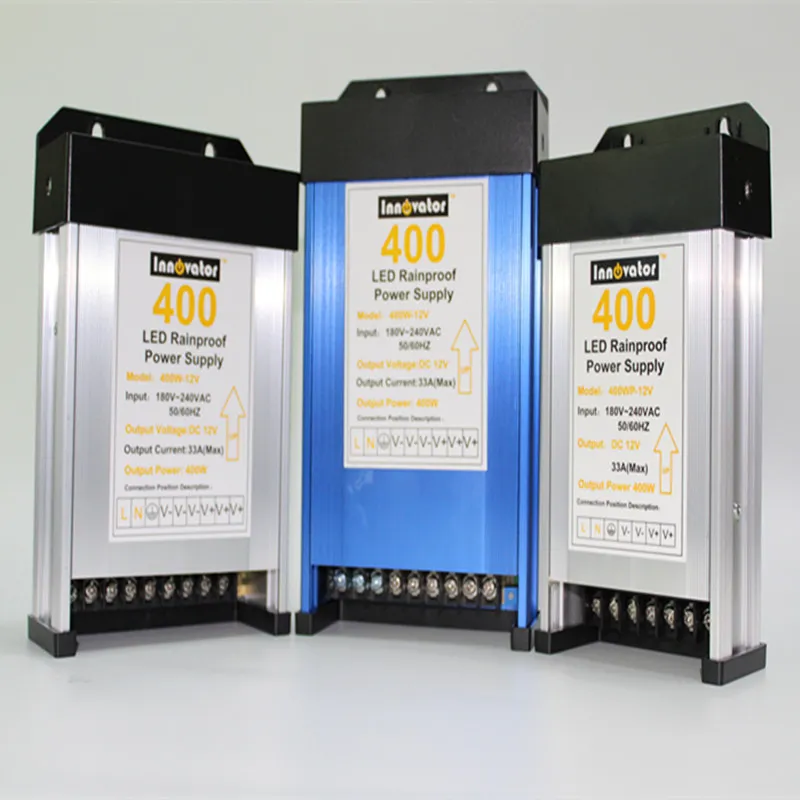

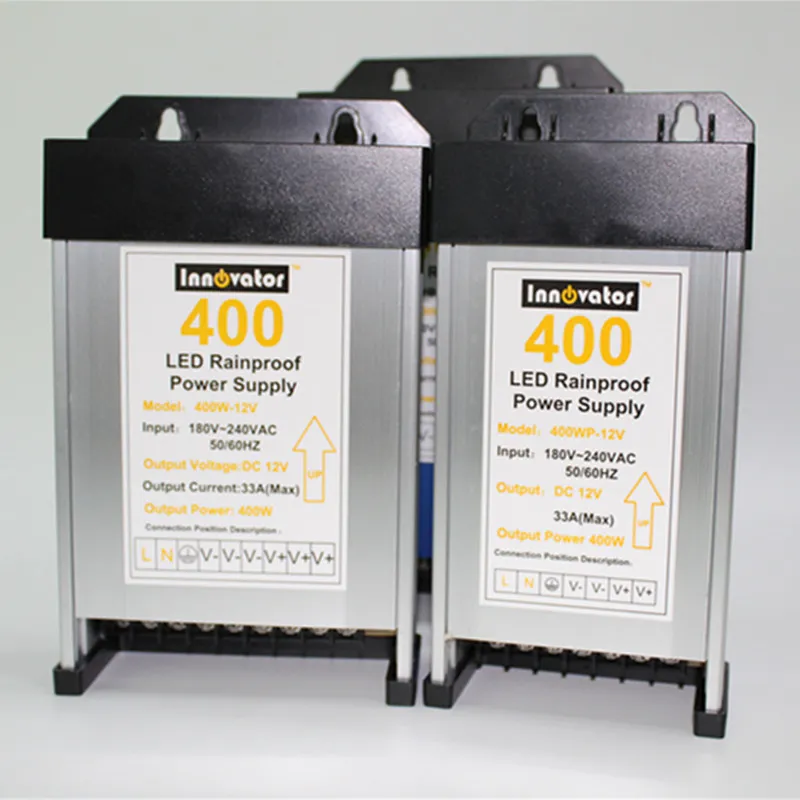

400W DC Single Output LED Rainproof Power Supply for LED Light, Certified by Ce RoHS

Product Description

specifications
specifications
12V 33.5A 400W LED Rain Proof Power Supply
12V 33.5A 400W LED Rain Proof Power Supply
Output
DC Voltage	12V
Rated Current	33.3A
Current Range	0~33.3A
Rated Power	400W
Ripple	200mVp-p(oscilloscope probe with a 0.1uF ceramic and a 10uF electrolytic capacitor)
Ripple
Voltage Accuracy	±1%
Line Regulation	±0.5%
Load Regulation	±1%
Start / Rise Time (Max)	1000mS/40mS
Maintain Time	10mS min
Input
Voltage Range	180~240Vac
Frequency Range	47~63HZ
Efficiency(max)	more then 80%
Surge Current(max)	CCA 50A/230V
Leakage Current(max)	5mA
Protection
Overload	34A~37A
Overload	Constant power mode, output voltage drop after overload
short circuit	Septum Model
Environment
Waterproof grade	IPX3
Operating Temp/Hum	-30ºC~+55ºC /20~90%RH
Storage Temp/Hum	-40ºC~+85ºC/10~95%RH
Safety rules and electromagnetic compatibility
safety specification	Reference to UL60950-1, TUE EN60950-1 standard design
withstand voltage	I/P-O/P:0.5KVAC;I/P-FG:0.5KVAC;O/P-FG:500VDC
Insulation impedance	I/P-O/P,I/P-FG:100M Ohms/500VDC
EMI(RE,CE)	Reference to EN55002 Class B standard design
harmonic current	Reference to EN61000-3-2, Class A standard design
Electro Magnetic Susceptibility(RS,CS)	Reference to IEC61000-4-6, IEC61000-4-3 standard design
Electro Magnetic Susceptibility(RS,CS)	Reference to IEC61000-4-6, IEC61000-4-3 standard design
others
Single weight	538g
Size	1959550mm
Package	56 Pcs/box
