350W 400W Power Supply Outdoor Rainproof Power Supply
350W 400W power supply Outdoor Rainproof Power Supply Product Description:Features:1.Built-in EMI filter2.100% full load burn-in test3.Low output ripple and noise4.Protection:Over load/Over voltage/Short circuit5.High efficiency,High reliability,Long lifetimespecifications12V 33.5A 400W LED Rain Pro......
Send Inquiry
Product Description

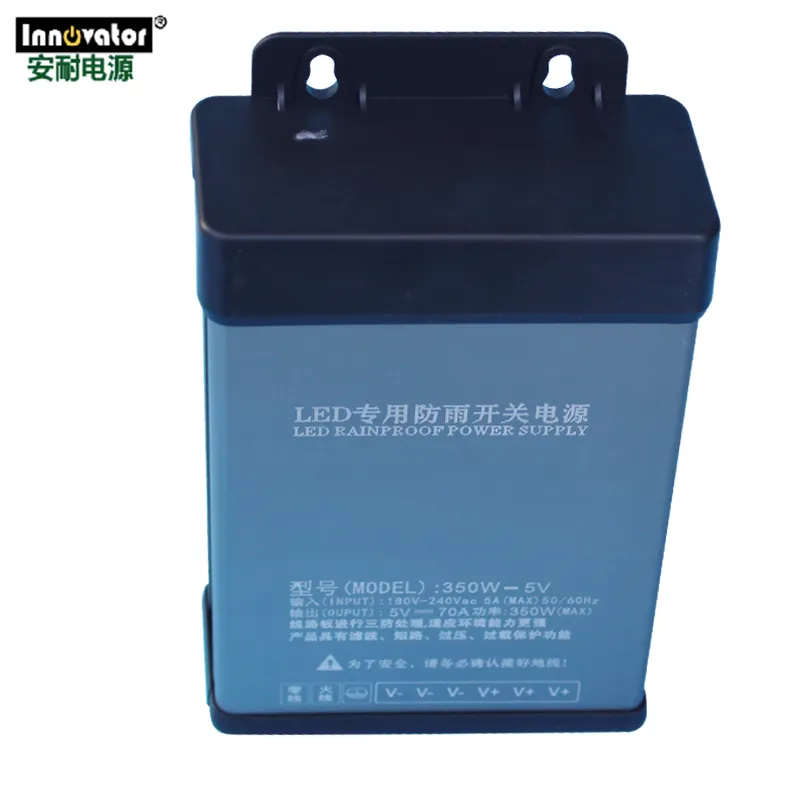

350W 400W power supply Outdoor Rainproof Power Supply
Product Description:
Features:
1.Built-in EMI filter

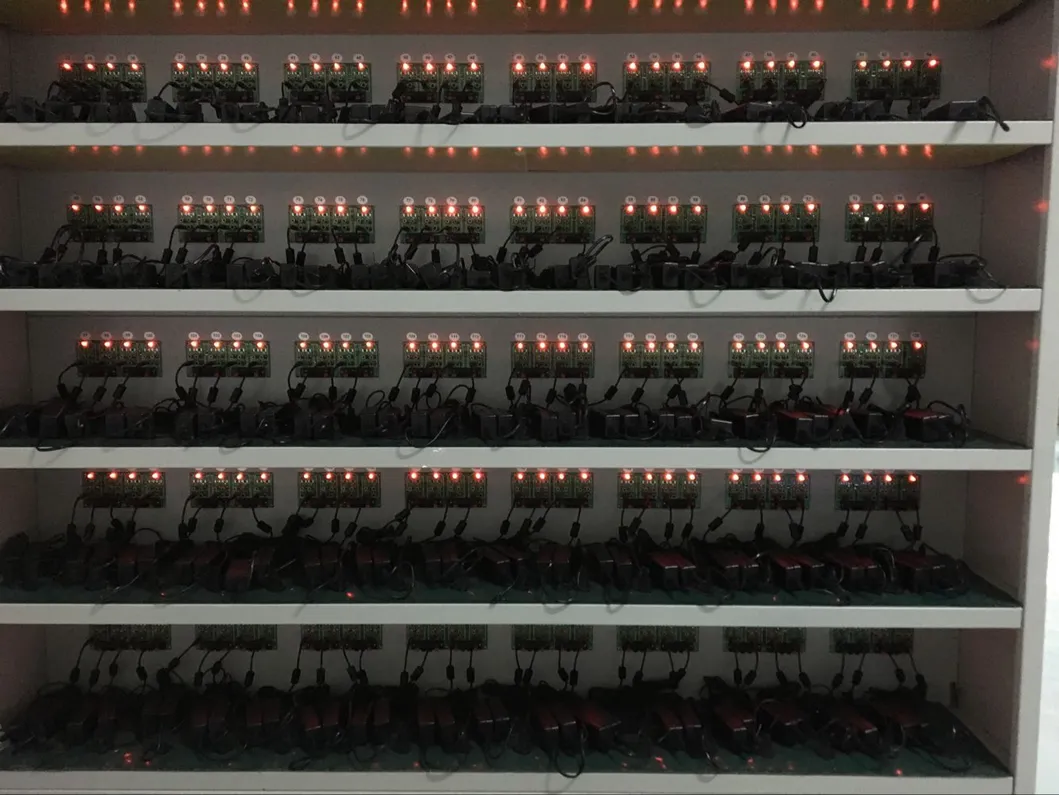

2.100% full load burn-in test
3.Low output ripple and noise
4.Protection:Over load/Over voltage/Short circuit
5.High efficiency,High reliability,Long lifetime

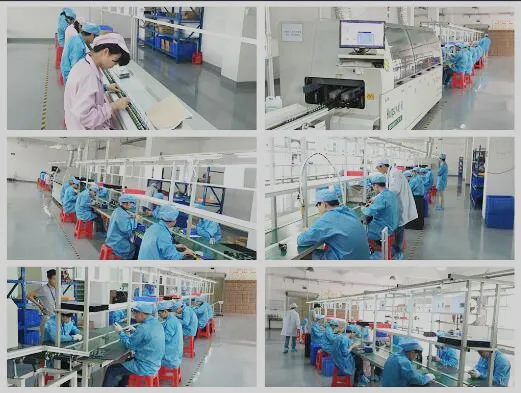

Shenzhen Innovator Electronic Limited was found in the year 2015, since then, we are focusing only on producing Power supply/Adapter/ Charger/LED rainproof power supply/LED ultra thin light box power supply relative products and become as one of the major power supply products manufacturers in China. LED Power Supply, adapter, charger, These products are widely used in all kinds of LED strip, CCTV camera, STB, Audio, Telecommunication, UAV and Intelligent robot etc., and wall lights in large shopping malls or hotels, billboards, glowing fonts. Both the low watt or large watt power supply products are available for customers to provide them more options. With our strict quality control system and efficient production process, we can do our best in terms of good quality and price!
Our Advantages
As a manufacturer, we have the ability to produce competitive products because we just concentrate on doing one thing at a time. With every passing year, we are manufacturing better power supply related products as compared to the previous goods. Some of the factors that keeps us ahead from the competitors is innovation, stable raw material supply chain, superb producing flow & quality control system, talented workforce etc. Due to all this, we are able to maintain consistency in the quality along with cost minimization. In addition, we have provided laptop adapter products in various specifications, so that our clients can find the right model within our product range. We stick to the principle of"quality first, service first, continuous improvement and innovation to meet customers" for the management and "zero defect, zero complaints"as the quality objective.
Application of Products
With quality being of utmost priority, our company leaves no stone unturned when it comes to providing its patrons with the best of LED power supply, Power adapter and other similar goods.Giving you a great deal of convenience. The various aspects in which our products are used include- -- Billboards --LED Lighting --Display screen --Printer --CCTV camera --Laptop --Audio -- Telecommunication --STB -- Intelligent robot
Fore more information, please contact us at any time.
Product Description:
Features:
1.Built-in EMI filter
2.100% full load burn-in test
3.Low output ripple and noise
4.Protection:Over load/Over voltage/Short circuit
5.High efficiency,High reliability,Long lifetime
| specifications | |
| 12V 33.5A 400W LED Rain Proof Power Supply | |
| Output | |
| DC Voltage | 5V |
| Rated Current | 70A |
| Current Range | 0~70A |
| Rated Power | 350W |
| Ripple | 200mVp-p(oscilloscope probe with a 0.1uF ceramic and a 10uF electrolytic capacitor) |
| Voltage Accuracy | ±1% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1% |
| Start / Rise Time (Max) | 1000mS/40mS |
| Maintain Time | 10mS min |
| Input | |
| Voltage Range | 180~240Vac |
| Frequency Range | 47~63HZ |
| Efficiency(max) | more then 80% |
| Surge Current(max) | CCA 50A/230V |
| Leakage Current(max) | 5mA |
| Protection | |
| Overload | 34A~37A |
| Constant power mode, output voltage drop after overload | |
| short circuit | Septum Model |
| Environment | |
| Waterproof grade | IPX3 |
| Operating Temp/Hum | -30ºC~+55ºC /20~90%RH |
| Storage Temp/Hum | -40ºC~+85ºC/10~95%RH |
| Safety rules and electromagnetic compatibility | |
| safety specification | Reference to UL60950-1, TUE EN60950-1 standard design |
| withstand voltage | I/P-O/P:0.5KVAC;I/P-FG:0.5KVAC;O/P-FG:500VDC |
| Insulation impedance | I/P-O/P,I/P-FG:100M Ohms/500VDC |
| EMI(RE,CE) | Reference to EN55002 Class B standard design |
| harmonic current | Reference to EN61000-3-2, Class A standard design |
| Electro Magnetic Susceptibility(RS,CS) | Reference to IEC61000-4-6, IEC61000-4-3 standard design |
| others | |
| Single weight | 538g |
| Size | 195*95*50mm |
| Package | 56 Pcs/box |
Shenzhen Innovator Electronic Limited was found in the year 2015, since then, we are focusing only on producing Power supply/Adapter/ Charger/LED rainproof power supply/LED ultra thin light box power supply relative products and become as one of the major power supply products manufacturers in China. LED Power Supply, adapter, charger, These products are widely used in all kinds of LED strip, CCTV camera, STB, Audio, Telecommunication, UAV and Intelligent robot etc., and wall lights in large shopping malls or hotels, billboards, glowing fonts. Both the low watt or large watt power supply products are available for customers to provide them more options. With our strict quality control system and efficient production process, we can do our best in terms of good quality and price!
Our Advantages
As a manufacturer, we have the ability to produce competitive products because we just concentrate on doing one thing at a time. With every passing year, we are manufacturing better power supply related products as compared to the previous goods. Some of the factors that keeps us ahead from the competitors is innovation, stable raw material supply chain, superb producing flow & quality control system, talented workforce etc. Due to all this, we are able to maintain consistency in the quality along with cost minimization. In addition, we have provided laptop adapter products in various specifications, so that our clients can find the right model within our product range. We stick to the principle of"quality first, service first, continuous improvement and innovation to meet customers" for the management and "zero defect, zero complaints"as the quality objective.
Application of Products
With quality being of utmost priority, our company leaves no stone unturned when it comes to providing its patrons with the best of LED power supply, Power adapter and other similar goods.Giving you a great deal of convenience. The various aspects in which our products are used include- -- Billboards --LED Lighting --Display screen --Printer --CCTV camera --Laptop --Audio -- Telecommunication --STB -- Intelligent robot
Fore more information, please contact us at any time.
