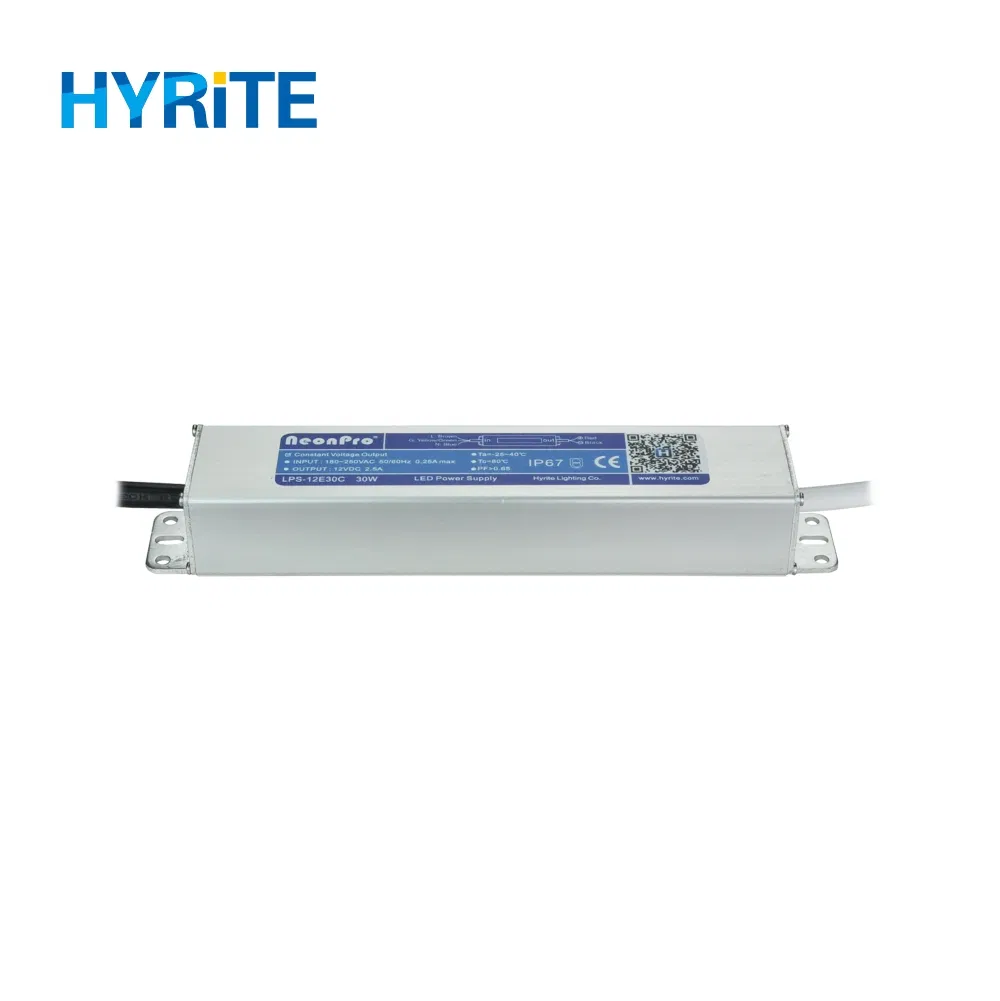

30W 24V AC to DC Slim Waterproof LED Driver Lps -C Series
30W 24V AC to DC Slim Waterproof LED Driver Lps-C Series1.Brief Introduction of 30w LED Transformer*Fully sealed & waterproof, IP67*Constant voltage output*High efficiency 90%*Short circuit and overload protection*100% burn-in test*3 years warrenty2.Technical Specification of 30w LED Transformer......
Send Inquiry
Product Description
1.Brief Introduction of 30w LED Transformer
*Fully sealed & waterproof, IP67
*Constant voltage output
*High efficiency 90%
*Short circuit and overload protection
*100% burn-in test
*3 years warrenty
2.Technical Specification of 30w LED Transformer
| Model no. | LPS-24E30C |
|---|---|
| Input voltage | 220+-15% VAC 50/60 Hz |
| Max. power | 30 W max |
| Output type | Constant voltage |
| Efficiency | 83% |
| AC inrush current(max.) | Cold start, 40A@230VAC |
| Output voltage | 24VDC ± 5% |
| Max. output current | 1.25A max |
| Overload protection | 105% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -25~40 ºC |
| Installation | Outdoor waterproof |
| IP rating | IP 67 |
| Cooling | Free air convection |
| Certificates/standards | CE,SAA,SASO |

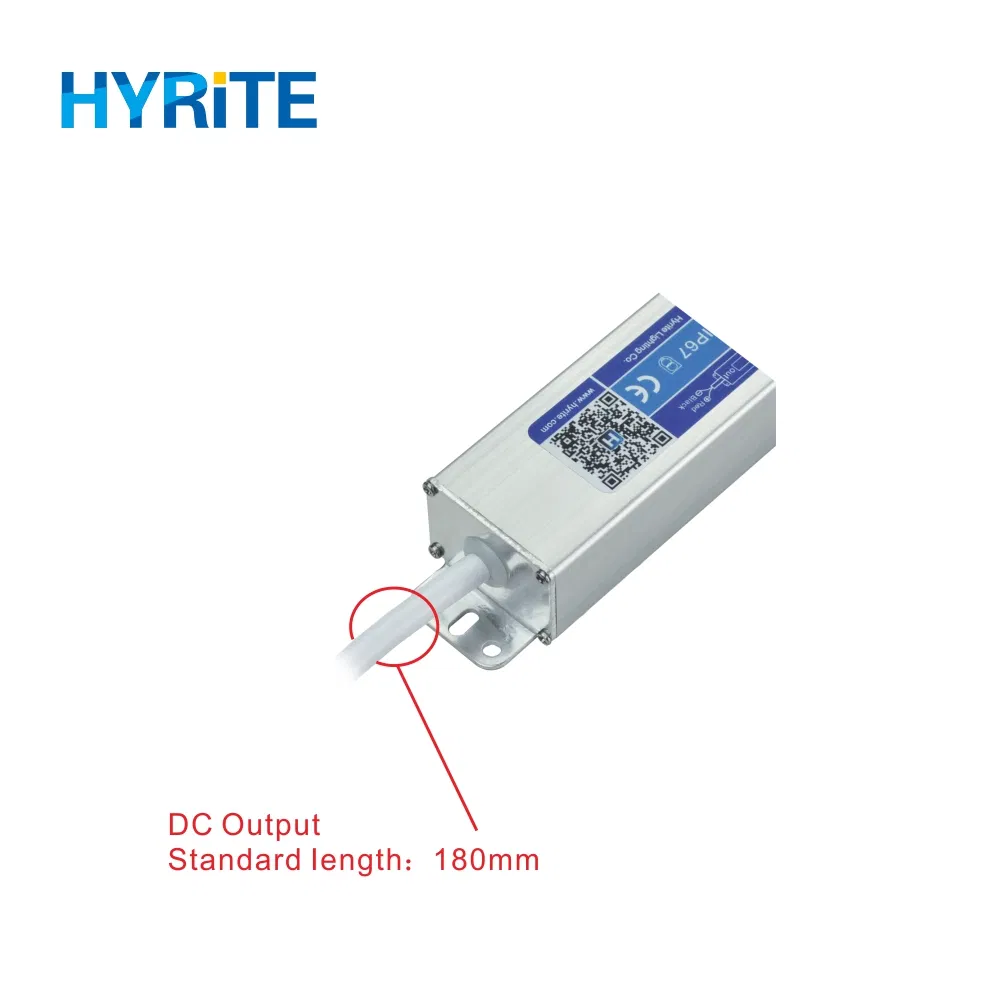

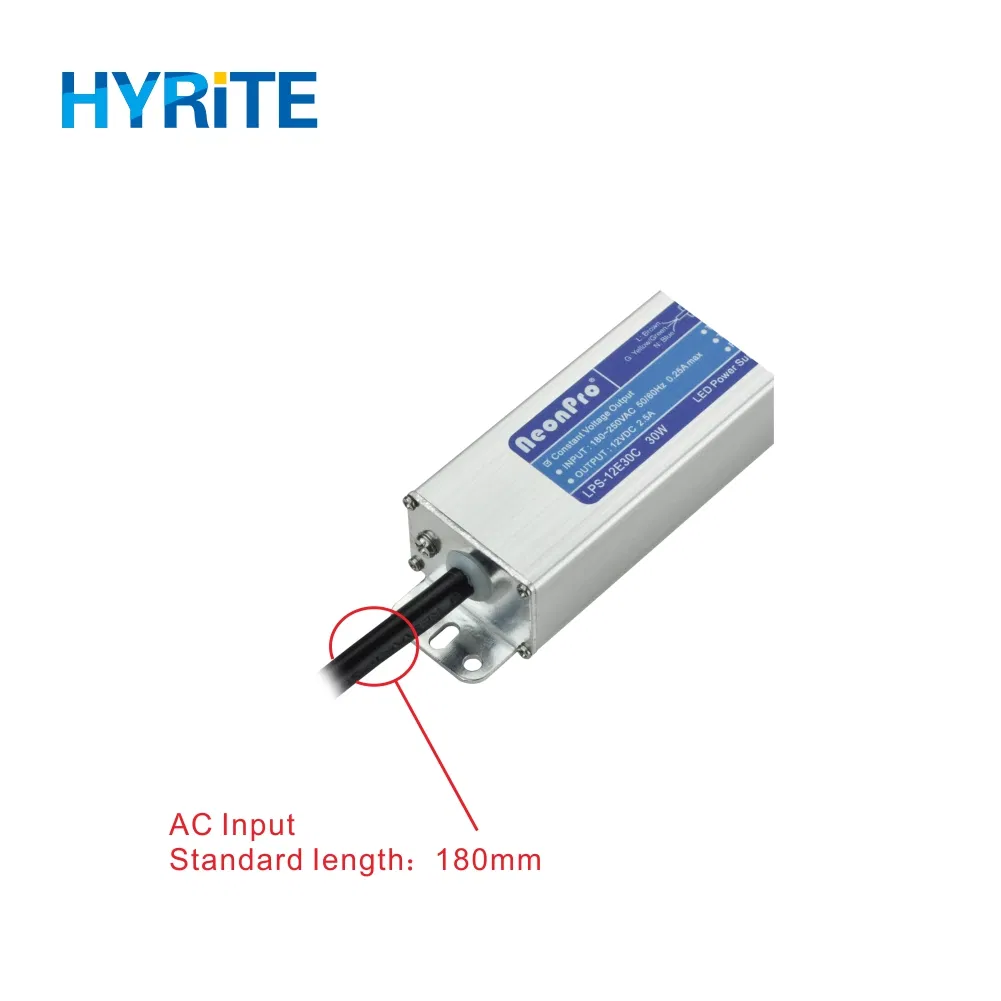

| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*2 (18cm) |

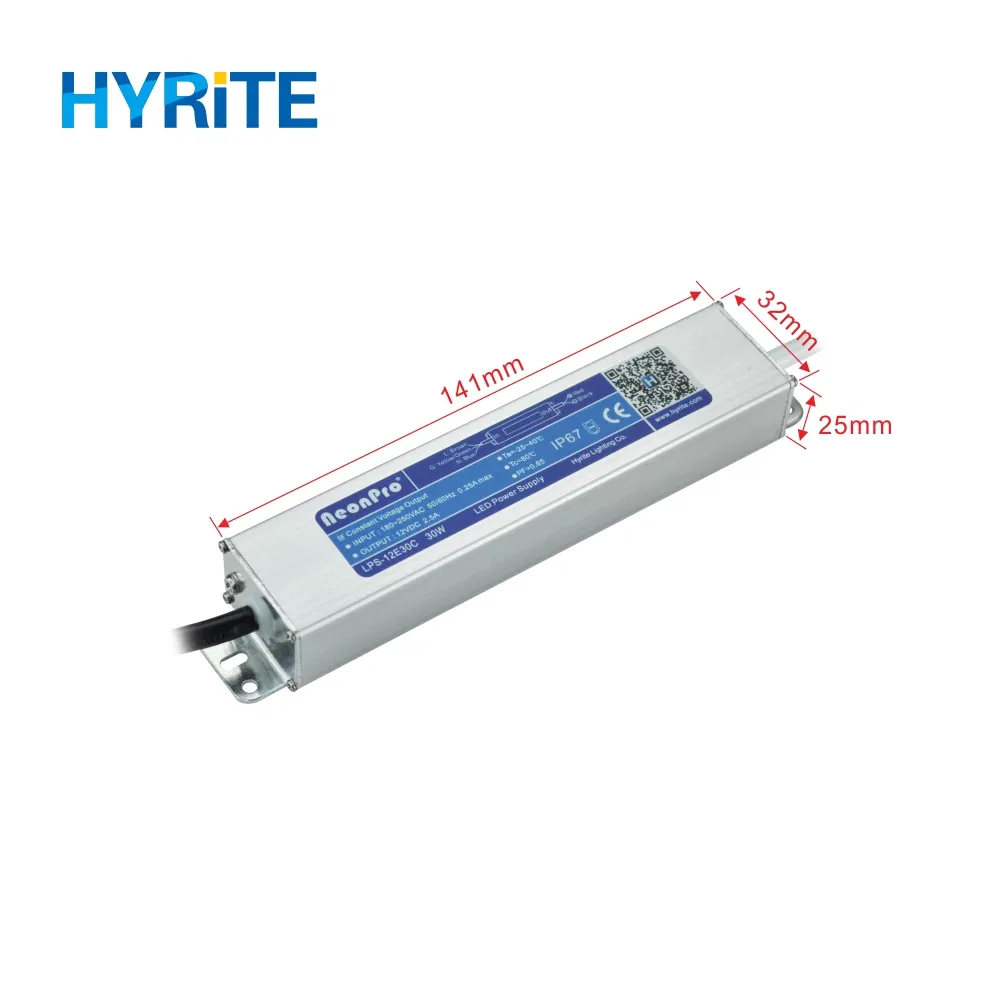

| Dimensions(L*W*H) | 164*32*25mm |
3. Applications of 30w LED Transformer
LED light box and channel letter
LED neon light
LED bar
Wall washer & panel light
Other signage lightings

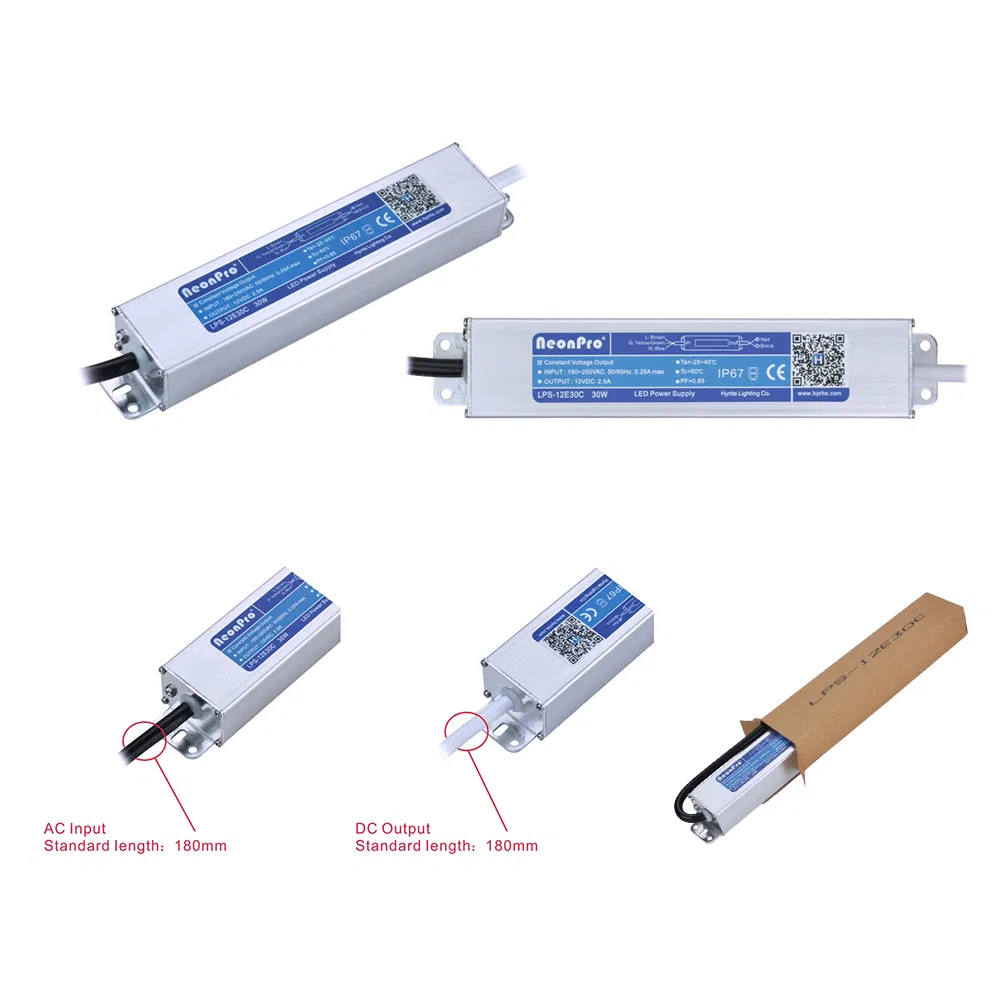

4.Product Details of 30w LED Transformer

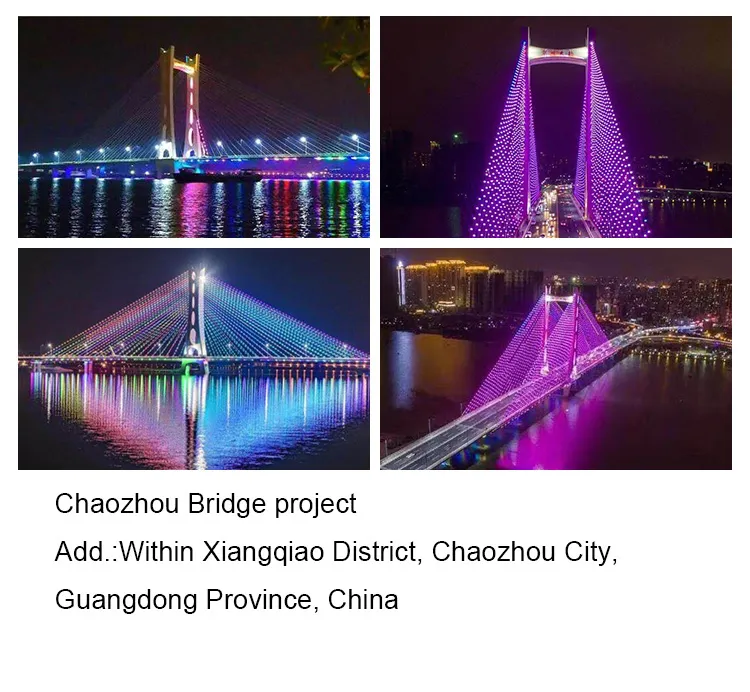

5.Projects & Workshop & Exhibitions

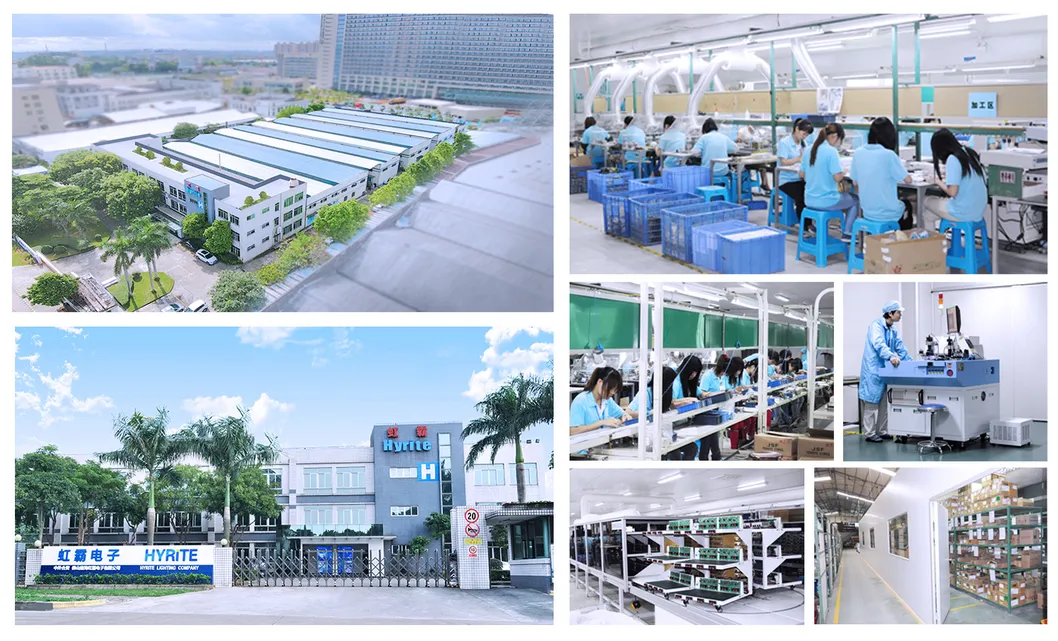

6. Factory profile:
Hyrite Lighting Co. was found in 1993,ISO9001:2015 certificated,with 10,000m2 clean workshop on 15,000m2 land in Guangdong, China,offices in USA and Europe.Hyrite has been dedicating itself to manufacturing switching power supply for signage and decorative lighting.
Our products passed UL,CSA,FCC,PFC,TUV,CE,C-Tick,EMC,CCC,SAA,SASO,BIS,etc.
Product Line: LED power supply,COB/SMD LED module,Neon power supply,electrode,with full range of certifications and wide range models to be used in different countries or areas.
Quality Control: DVT/DQT,IQC/IPQC/FQC,product 100% burn-in test (aging test),reliable resting labs,climatic environmental testing equipments.
Corporate Culture: Sincere,Optimistic,Creative,Mutually complementary.
Mission: To serve the needs of our clients in gaining a competitive advantage by harnessing technology.

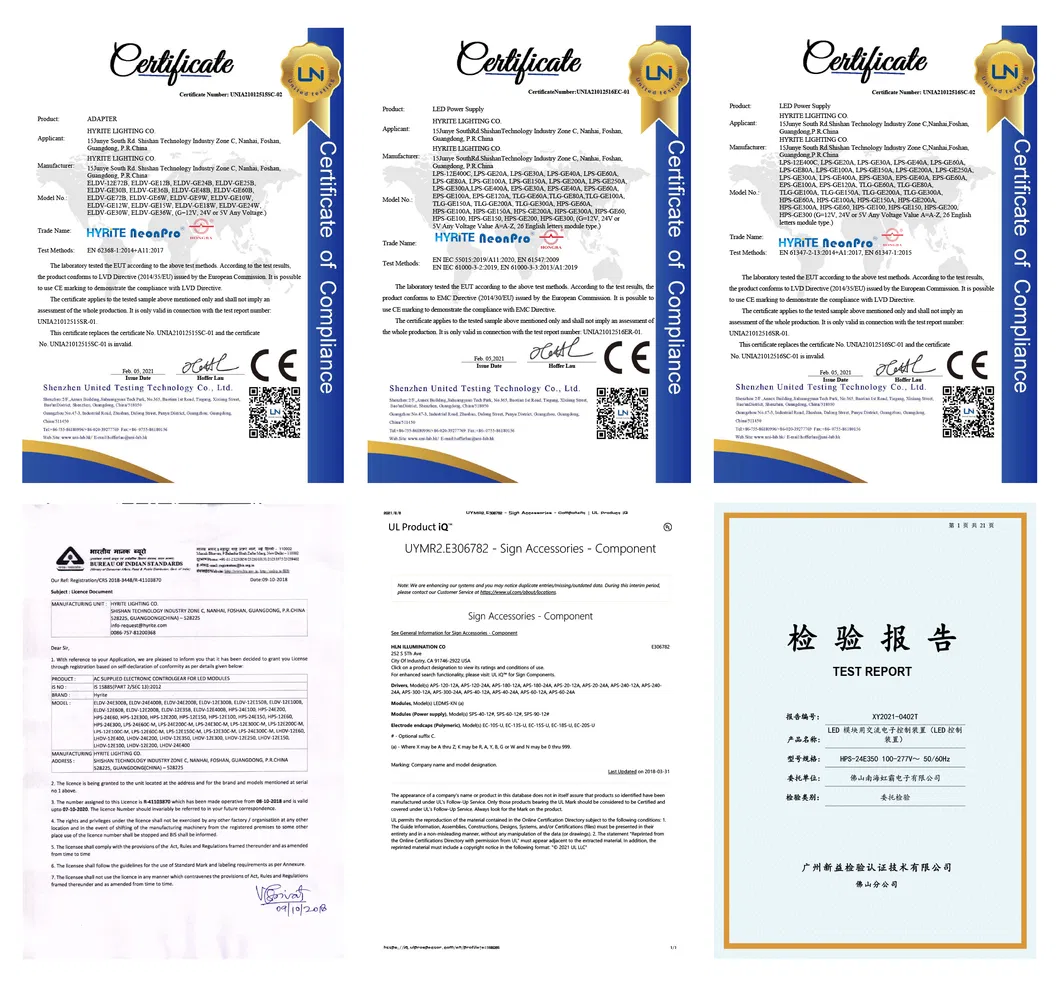

7. Certificates:
8. Exhibitions:
9.RFQ
Q1. Can I have a sample order for LED Power Supply?
A: Yes, sample order for testing and checking our quality is available. Mixed samples are acceptable.
Q2. What about the lead time?
A: For normal samples order: 1-3 days, mass production time should be checked according to your total order quantity.
Q3. Do you have any MOQ requirement for LED Power Supply order?
A: At least 1 carton, it depends on your order details, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: By DHL, UPS, FedEx or TNT. It usually takes 3-7 days for delivery. Airline and sea shipping also optional.
Q5. How to proceed an order for LED Power Supply?
A: 1. Kindly please let us know your requirements or application.
2. We quote according to your requirements or our suggestions.
3. Confirms the samples and arranges deposit for formal order.
4. We arrange the production for your confirmed order.
5. Balance of payment should be arranged before delivery.
6. Express Tracking number will be provided after delivery.
Q6. Is it OK to print my logo on LED Power Supply?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products, kindly please let us know your requirement.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.3%.
Secondly, during the guarantee period, we will send new power supply with new order for small quantity. For
defective batch products, please send the pictures or videos for them, if possible, we can discuss the solution including re-call according to real situation.
