30W - 400W Intelligent Dimmable LED Driver with TUV CB ENEC UL cUL FCC Listed SAA CE RoHS CCC Certificate

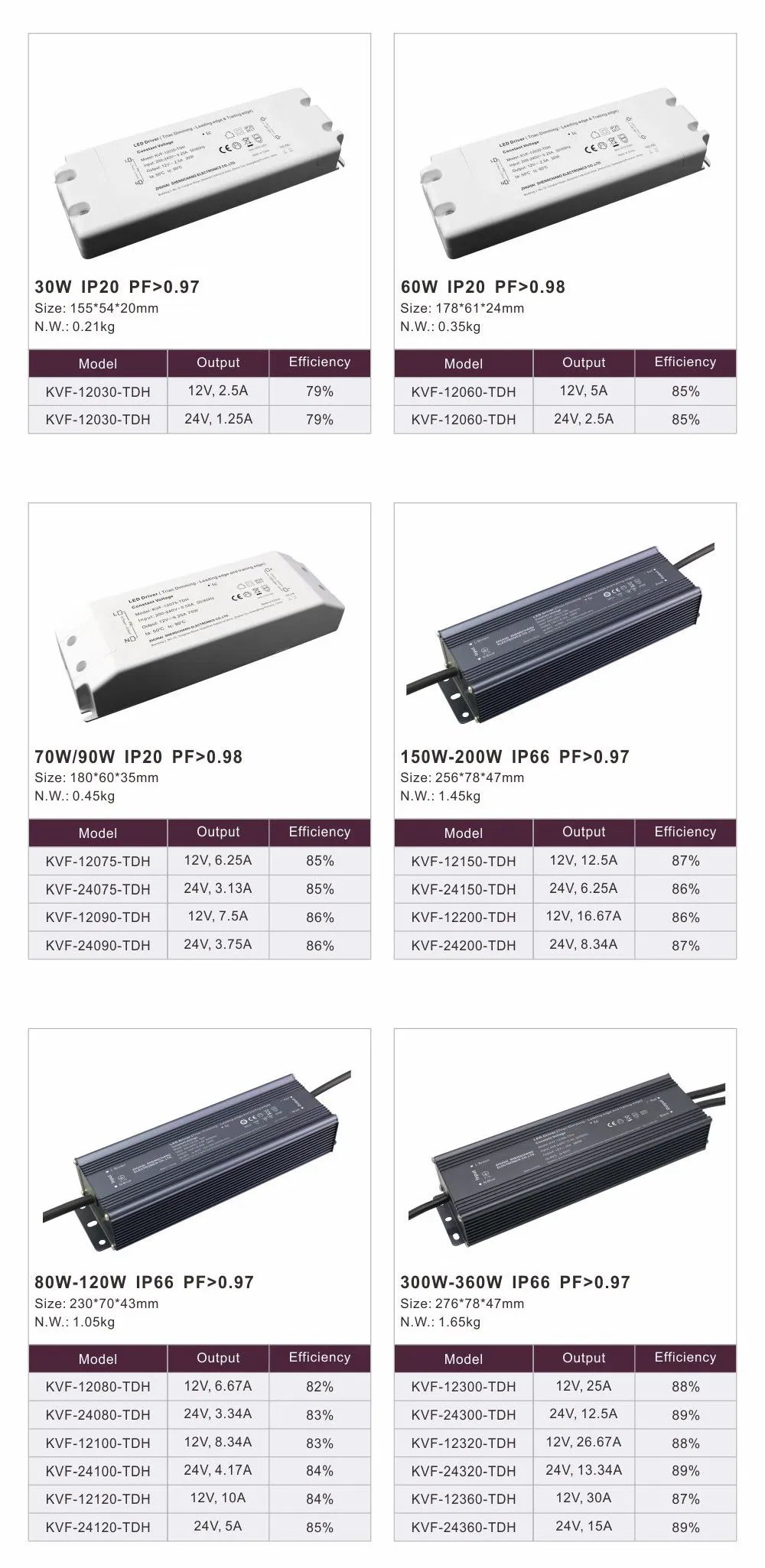

30W - 400W intelligent dimmable LED driver
our product contents

Feature

·Output constant voltage

·Range AC input: 200-240VAC

·With slightly adjustable output voltage

·Efficiency :up to 84%

·Protections:short circuit/over loading/over current/over temperature

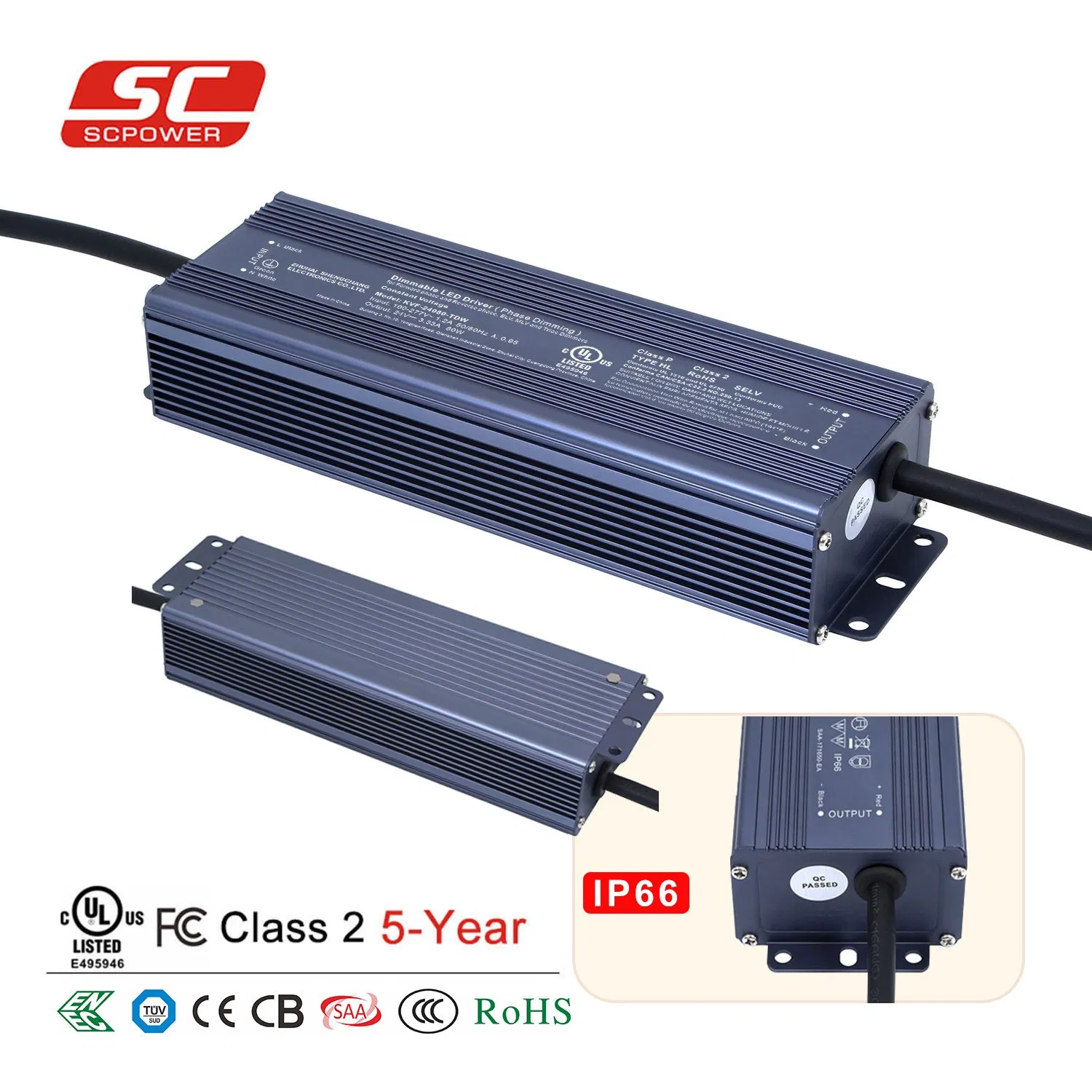

·Full protection plastic housing easy installation

·IP66 design for indoor installation

·Cooling by free air convection

·Work with leading edge and trailing edge TRIAC dimmers

·Strong compatibility, flicker-free dimming

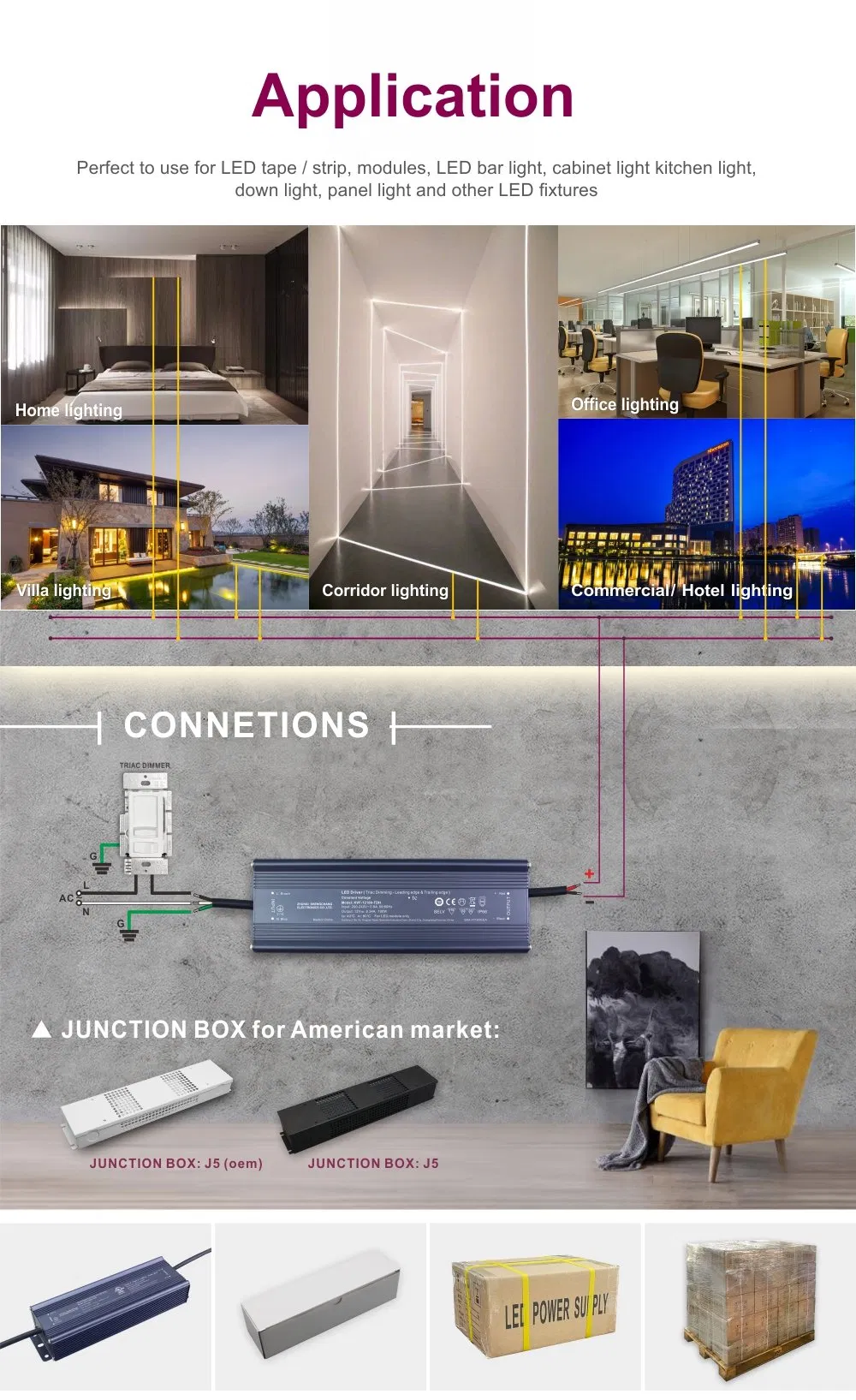

·Suitable for LED lighting and moving sign applications

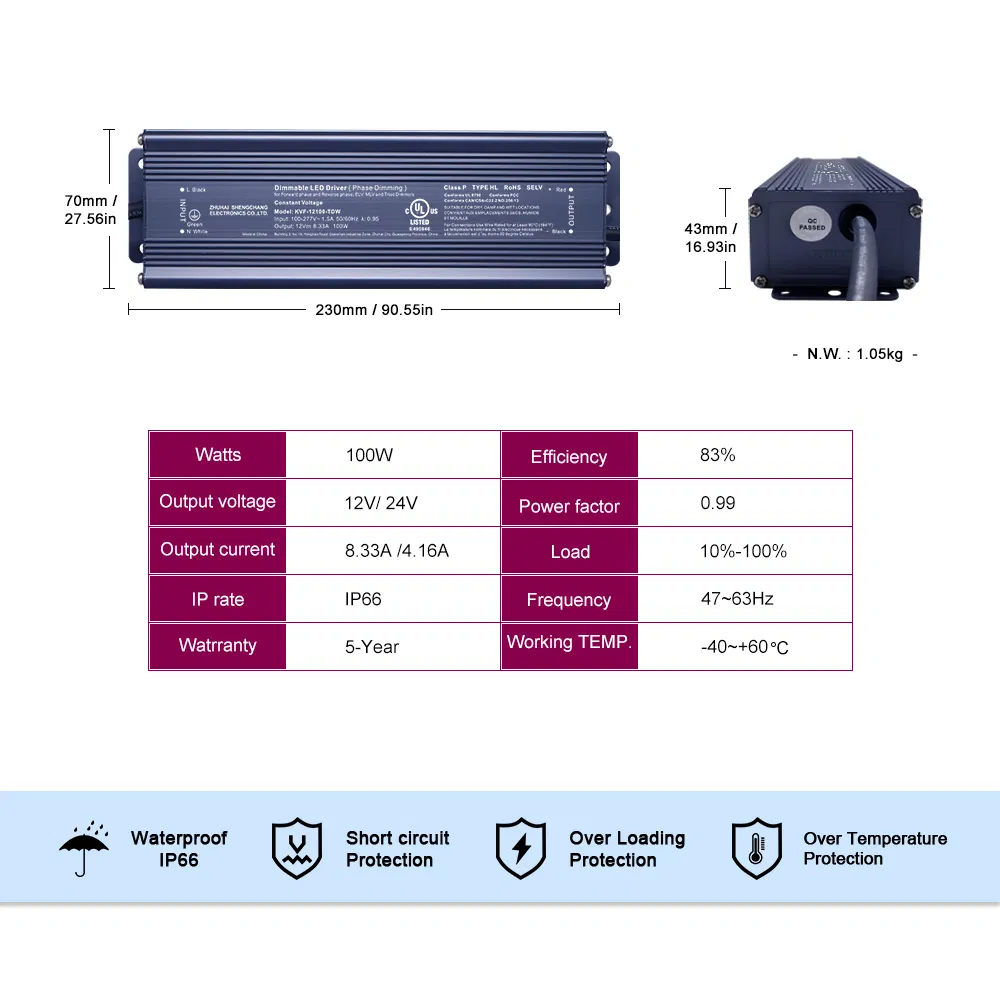

Specification

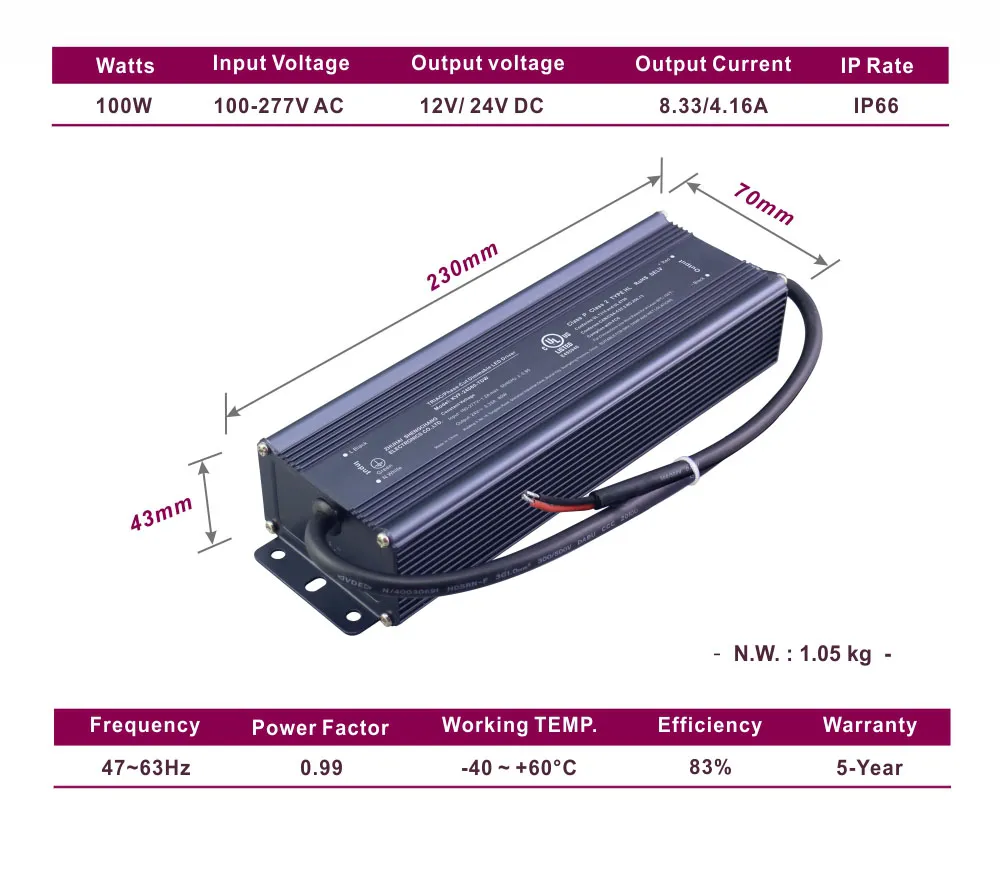

Model		KVF-12100-TDW	KVF-24100-TDW
Output	DC Voltage	12V	24V
	Rated Current	8.33A	4.16A
	Rated Power	100W
	Voltage Tolerance	±0.5V
	Voltage Regulation	±0.5%
	Load Regulation	±1%
Input	Voltage Range	100-277VAC
	Frequency Range	47-63Hz
	Power Factor(Typ.)@ full load	0.99@120VAC  0.96@277VAC	0.98@120VAC  0.96@277VAC
	THD(Typ.)@ full load	<20%
	Efficiency(Typ.)@ full load	80%	83%
	AC Current(Max.)	1.5A@100VAC
	Inrush Current (Typ.)	20A, 50%, 1.6ms
	Leakage current	<0.50mA
Protection	Short Circuit	shut down o/p voltage, re-power on to recover after fault condition is removed
	Over Loading	≤120% constant current limiting, auto-recovery
	Over temperature	100ºC±10ºC shut down o/p voltage, automatically recover after cooling.
Environment	Working TEMP.	-40~+60ºC (see below derating curve)
	Working Humidity	20~90%RH, non-condensing
	Storage TEMP. Humidity	-40~+80ºC,10~95%RH
	TEMP .coefficient	±0.03%/ºC(0~50ºC)
	Vibration	10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Company Profile

1. How about your goods' quality?

    100% burn-in tests, full-round tests.

    All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.

2. What is your warranty? And if I got wrong ones, how will you do with it?

    3 years. If any wrong, we will replace in your next order, or refund.

3. What is your minimum order quantity?

   The MOQ is 1pcs.

4. Which payment terms you can accept?

    We accept T/T, Western Union, Money Gram, Paypal, etc.

5. What are the shipping ways you can offer?

    By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.

6. How about your delivery time?

    3-7 working days according the order.

7. Can you make OEM?

    Of course, OEM ODM provided.

More information, please feel free to contact us.
