300W 200W High PF 120V~277VAC Switching LED Power Supply
300W 200W high PF 120V~277VAC switching led power supplyProduct Description1.Brief Introduction of 300W LED Driver-Slim body, special design for application with narrow space, such as cove light, LED light box, channel letter...-Fully sealed & waterproof, IP67-Constant voltage output-High effici......
Send Inquiry
Product Description
300W 200W high PF 120V~277VAC switching led power supply
1.Brief Introduction of 300W LED Driver
-Slim body, special design for application with narrow space, such as cove light, LED light box, channel letter...
-Fully sealed & waterproof, IP67
-Constant voltage output
-High efficiency up to 90%
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP67
2.Technical Specification of 300W LED Driver
| Model no. | HPSB-5E300;HPSB-12E300;HPSB-24E300 |
|---|---|
| Input Voltage System | 100-240VAC |
| Max. output power | 300W |
| Output type | Constant voltage |
| Power Factor | High PF>0.9 |
| Output voltage | 5V/12V/24V |
| Max. output current | 50A,22A,12.5A |
| Installation | Indoor |
| Protection | Overload, Short circuit, Overheat |
| Dimensions(L*W*H) | 369*71.5*38mm |
| Weight(kg) | 2.1000 |
3. Applications of 300W LED Driver
*Perforating lamp & pixel lamp
*Light box & channel letter
*Wall washer
*Other signage lighting
* flex ribbon, bar light, etc...

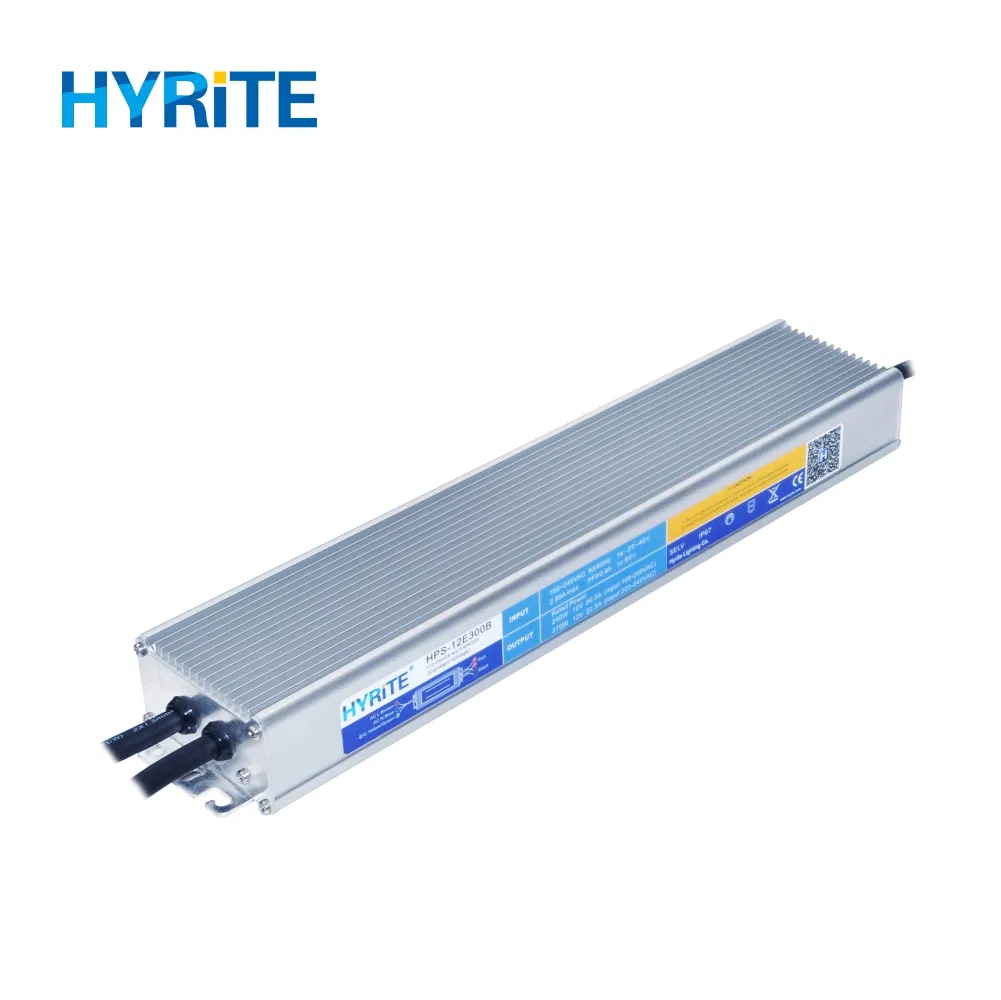

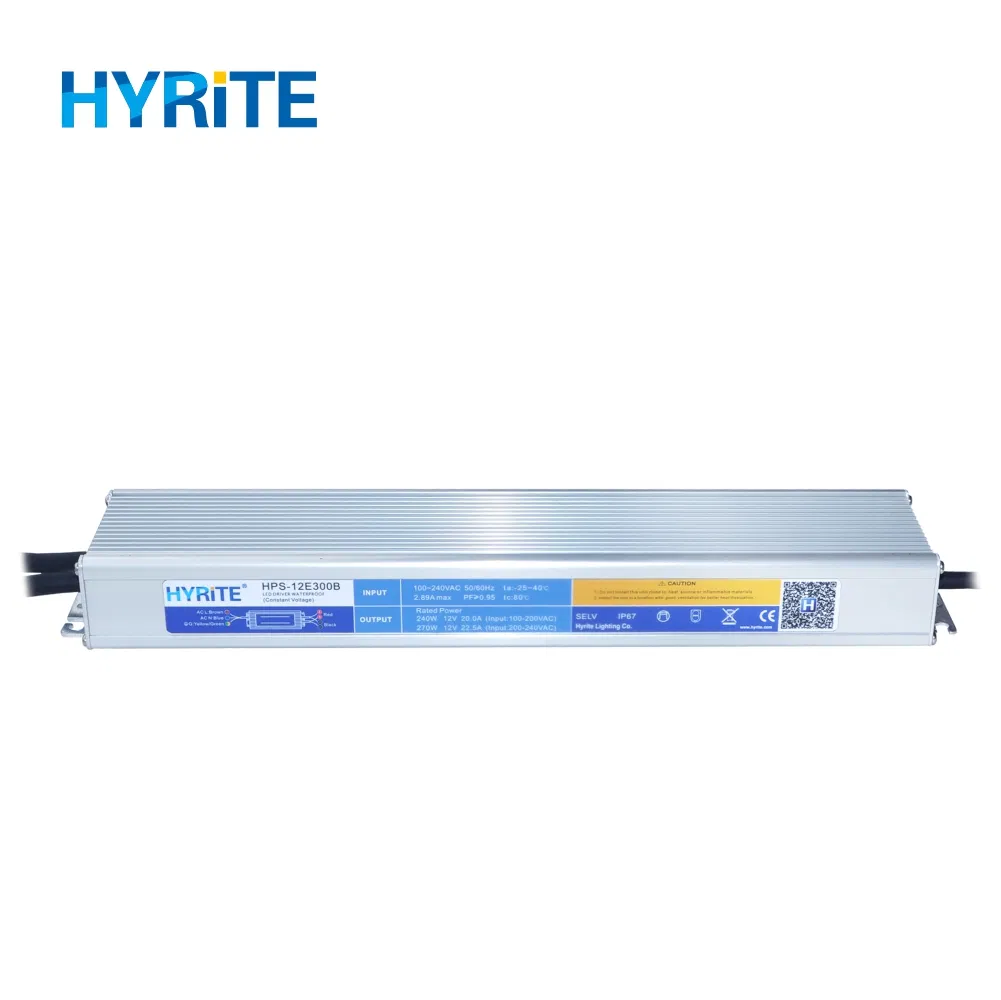

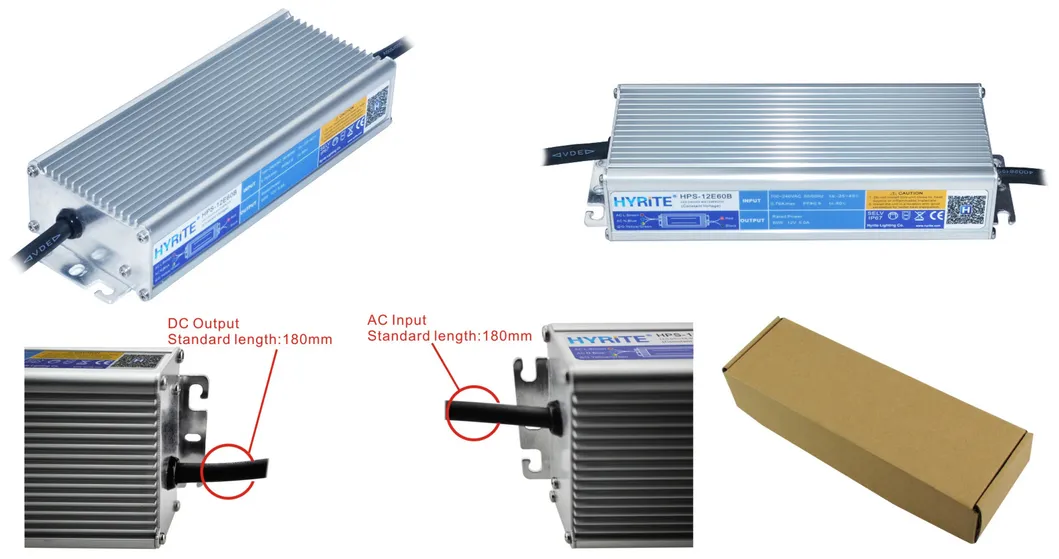

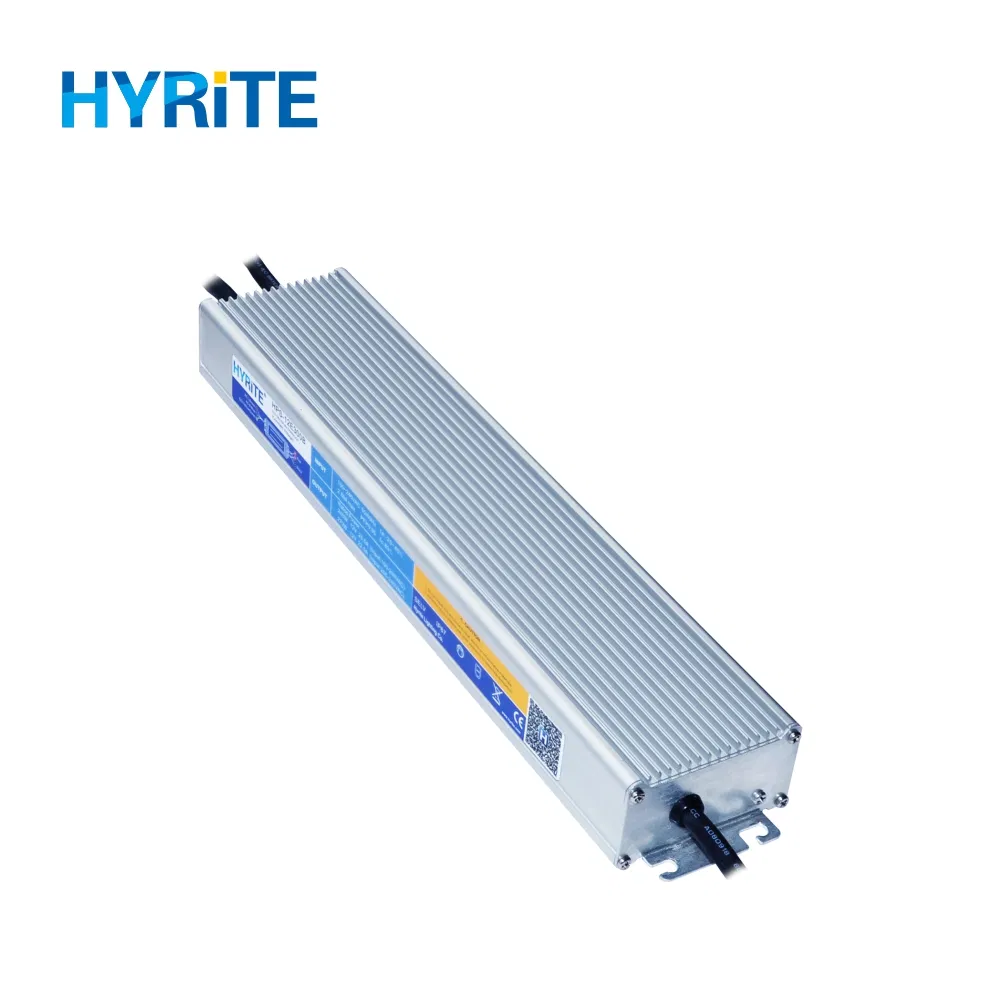

4.Product Details of 300W LED Driver
5.Projects & Workshop & Exhibitions
Hyrite Lighting Co. was found in 1993,ISO9001:2015 certificated,with 10,000m2 clean workshop on 15,000m2 land in Guangdong, China,offices in USA and Europe.Hyrite has been dedicating itself to manufacturing switching power supply for signage and decorative lighting.
Our products passed UL,CSA,FCC,PFC,TUV,CE,C-Tick,EMC,CCC,SAA,SASO,BIS,etc.Product Line: LED power supply,COB/SMD LED module,Neon power supply,electrode,with full range of certifications and wide range models to be used in different countries or areas.
Quality Control: DVT/DQT,IQC/IPQC/FQC,product 100% burn-in test (aging test),reliable resting labs,climatic environmental testing equipments.
Corporate Culture: Sincere,Optimistic,Creative,Mutually complementary.
Mission: To serve the needs of our clients in gaining a competitive advantage by harnessing technology.
Q1. Can I have a sample order for led Driver?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 15-20 working days.Q3. Do you have any MOQ limit for led Driver order?
A: Low MOQ, 1pc for sample checking is availableQ4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.Q5. How to proceed an order for led Driver?
A:1. please let us know your product's requirements2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on led Driver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.Q7: How to deal with the faulty?
A: 1. Our products are produced in strict quality control system and the defective rate will be lessthan 0.1%.
2.During the guarantee period, we will send a new led driver with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
including re-call according to real situation.
