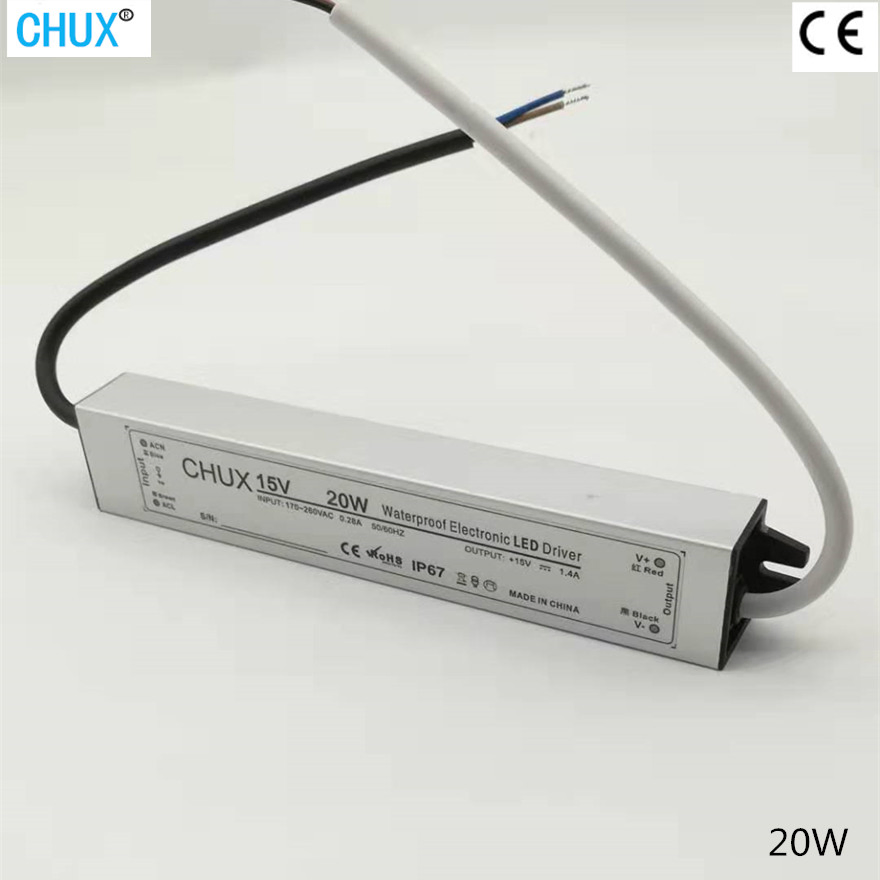

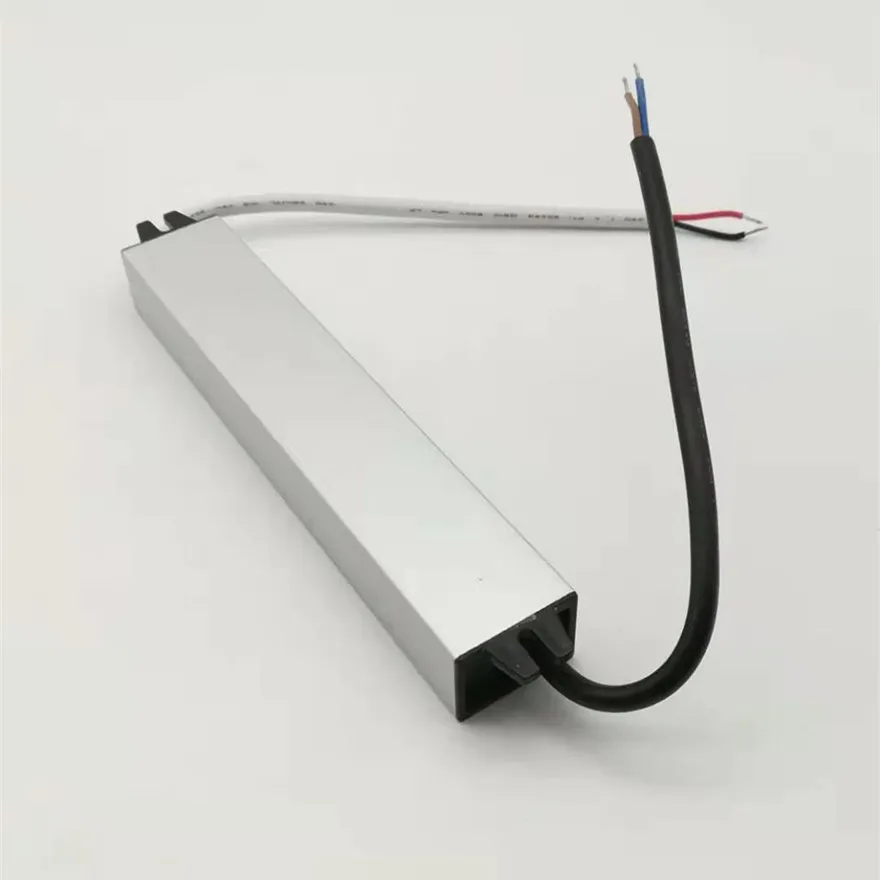

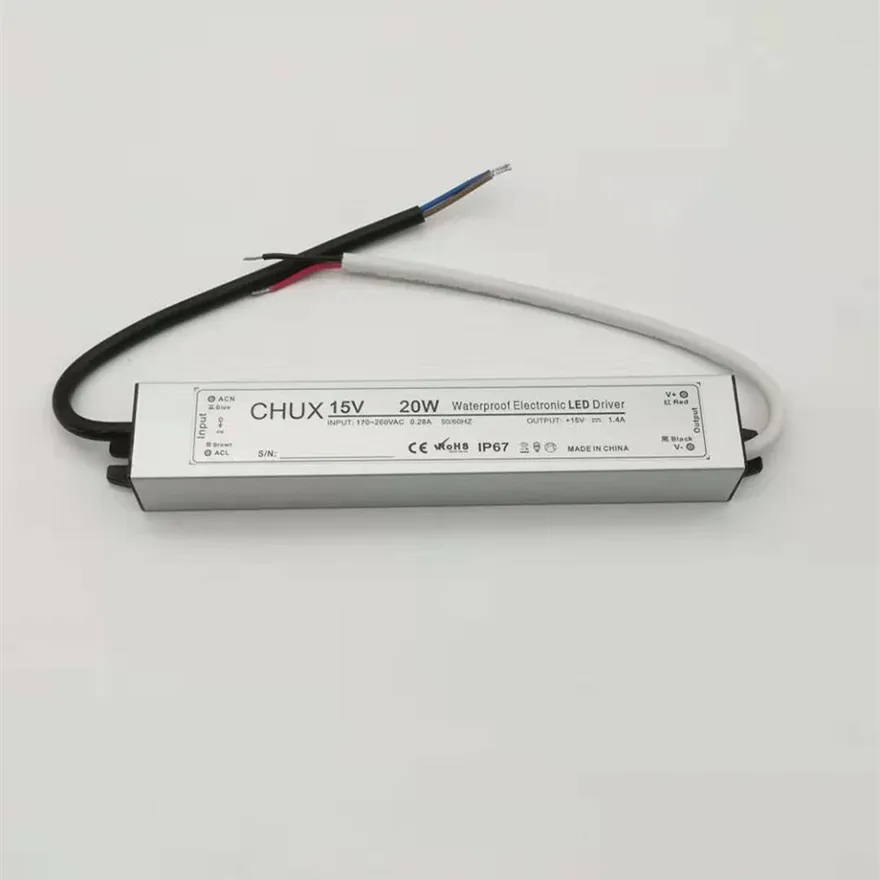

20W Aluminium Case 15V SMPS Lpv20W LED Switching Mode Power Supply

Product Description

20W Aluminium Case 15V SMPS LPV20W LED Switching Mode Power Supply

Feature:

1. Low price and high reliability of LED switching power supply
2.105 degree output capacitor
3. AC input power suitable for the world
4. High efficiency and low operation temperature
5. Soft-start current can reduce the AC input impact effecticly
6. Compact size, light weight
7.100% full-load bum-in test
8.24hours testing
9. Installed with EMI filter, minimum wave.
10. Waterproof level: IP67

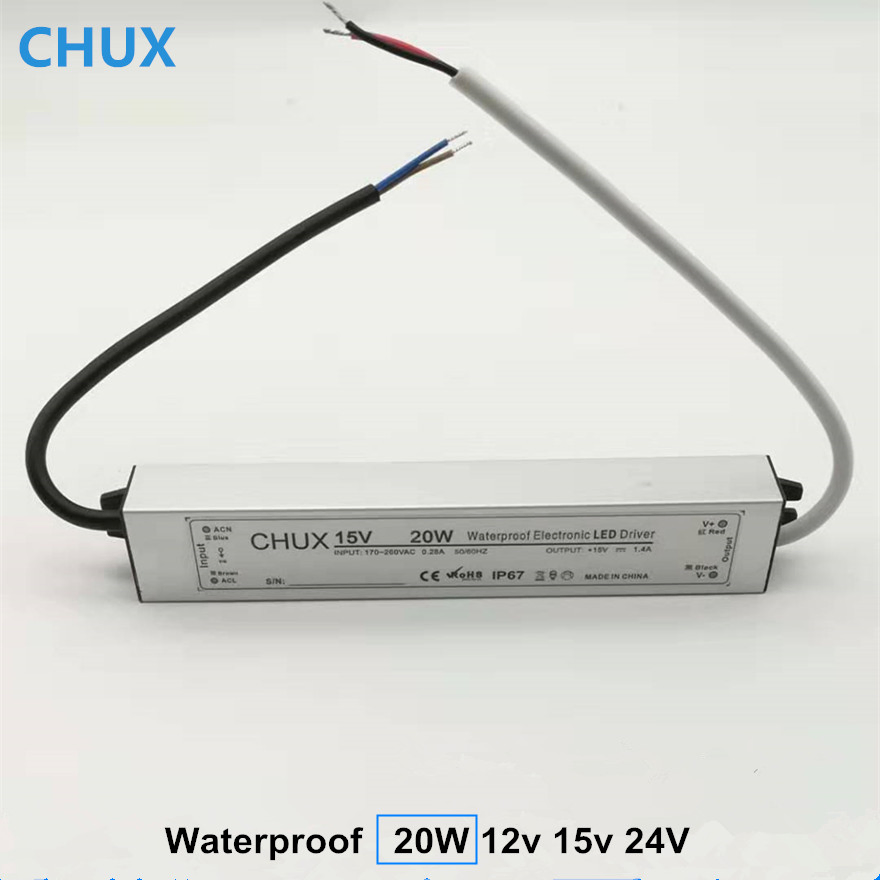

LPV-20W LED driver water-proof power supply
Model NO.	OUTPUT	Tolerance	range	efficiency
LPV-20-12	12V,0-2A	±1%	50mV	75%
LPV-20-15	15V,0-1.3A	±1%	50mV	80%
LPV-20-24	24V,0-0.8A	±1%	100mV	85%
AC input voltage range		90-260vac 47-63hz
input current		0.3A/230V
AC inrush current		Cold-start current30A/230V
Leakage current		<0.5mA/240VAC
DC adjustable range		±10% rated output voltage
Over load protection		105-150%cut down output, auto-recovery
Water-proof degree		IP67
set up, rise,hold up time:		200ms,100ms 30ms
withstand voltage:		I/P-O/P:1.5KVAC 1Minutes I/P-FG:1.5KVAC 1MInutes O/P-FG:0.5VAC 1minutes
working temperature		-10~+60°C,20-90%RH
weight/packing:		0.2kg
Size		1802820MM
certificate		CE ISO9001 ROHS
Warranty year		1 year
Protections		Short circuit / Over load / Over voltage
