Product Description
2021 new product ELV MLV triac dimmable driver 36W 12V 24V LED Driver
Feature
·Output constant voltage
·UL, cUL listed, Class 2, Class P, Type HL, FCC
·Universal AC input: 100-277VAC
.Power Factor: up to 0.99
·High efficiency : up to 80%
·Dimming range: 10-100%
·Load: 10-100%
·Protection:short circuit/over loading/ Over temperature
·PWM output, does not change the color index
·Flicker-free
·Full protection aluminum housing, for dry, damp and wet location
·Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
·Cooling by free air convection
·Suitable for LED lighting and moving sign applications
Specification

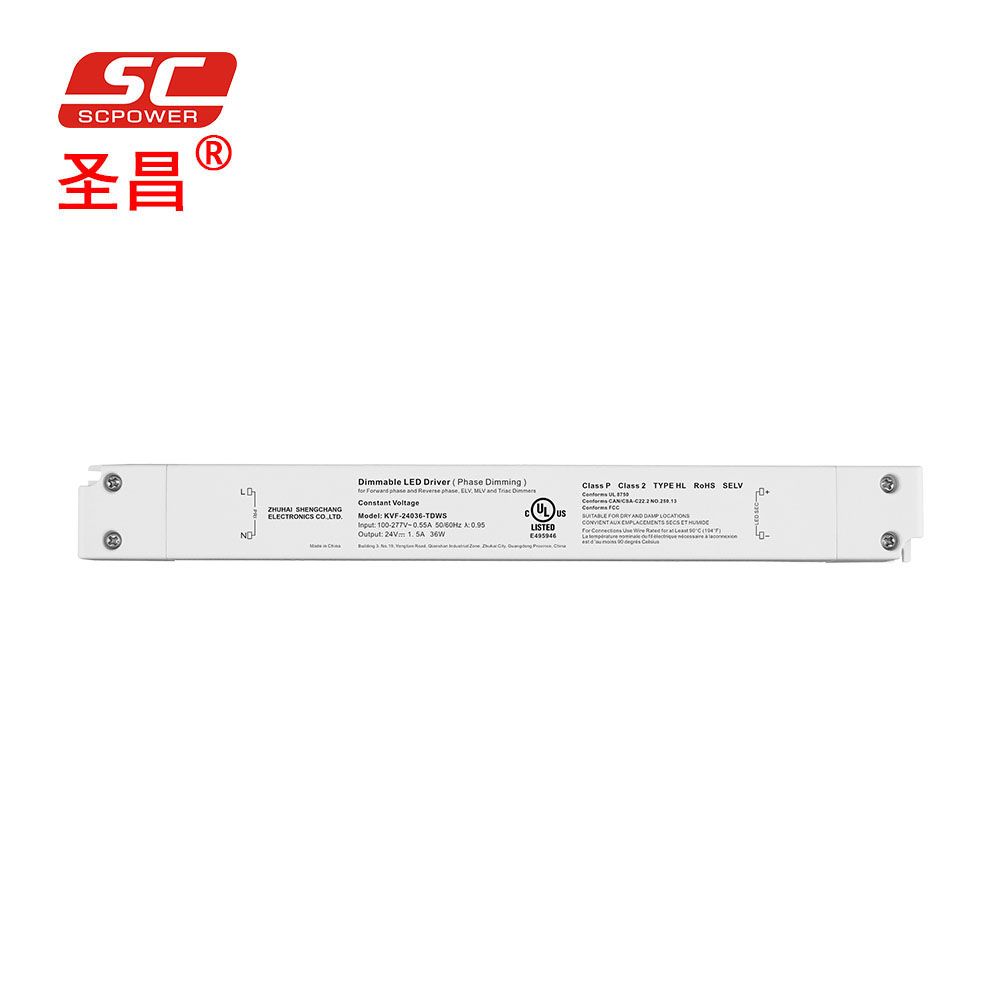

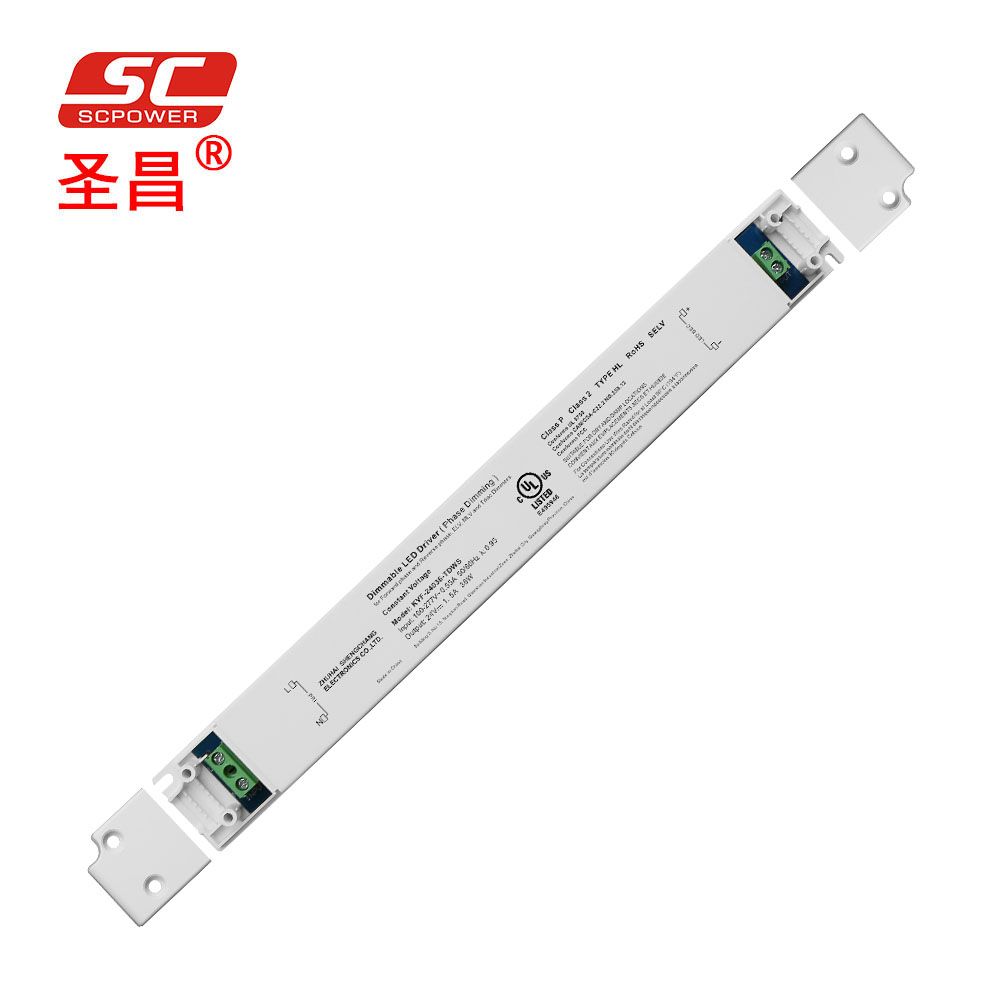

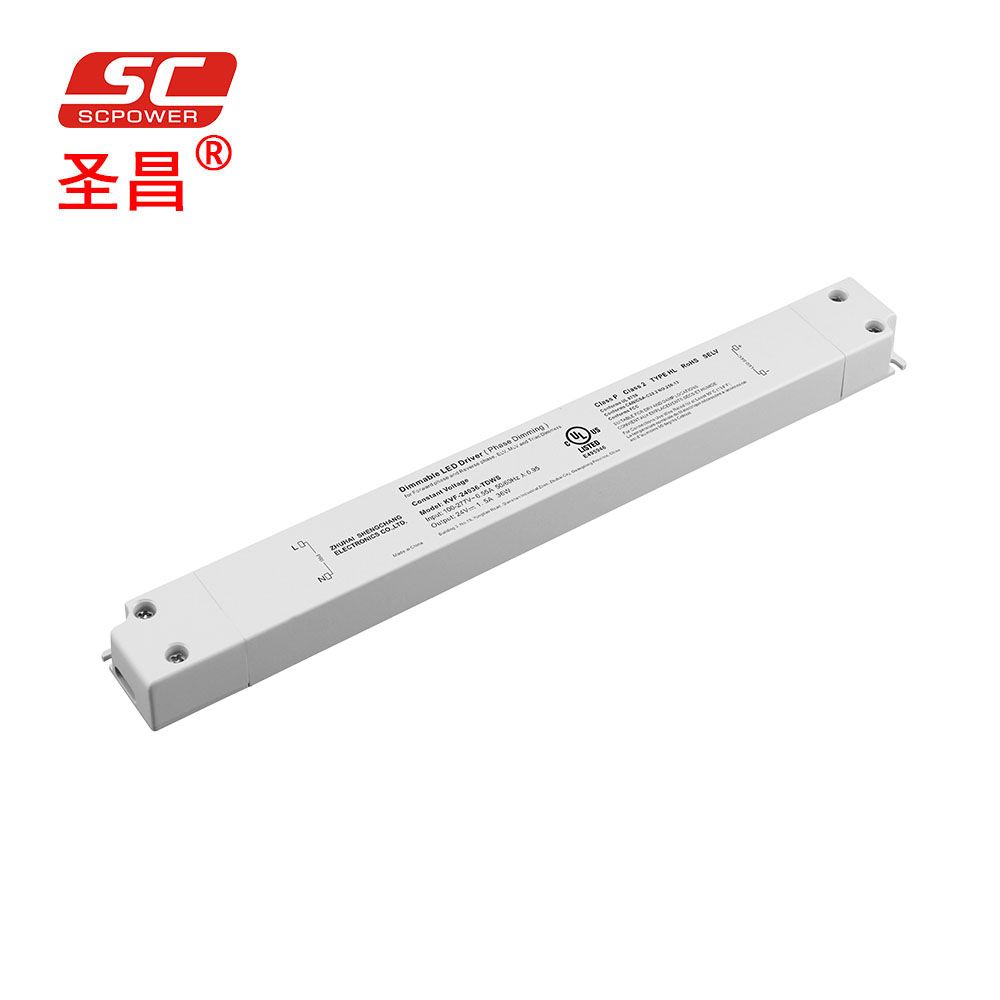

| Model | KVF-12036-TDWS | KVF-24036-TDWS | |
| Certificates | FCC UL cUL Class 2 | FCC UL cUL Class 2 | |
| Output | DC Voltage | 12V | 24V |
| Rated Current | 3A | 1.5A | |
| Rated Power | 30W | ||
| Voltage Tolerance | ±0.5V | ||
| Voltage Regulation | ±0.5% | ||
| Load Regulation | ±1% ±1% | ||
| Input | Voltage Range | 100-277VAC | |
| Frequency Range | 47-63Hz | ||
| Power Factor(Typ.)@ full load | 0.99@120VAC 0.95@277VAC | 0.99@120VAC 0.95@277VAC | |
| THD(Typ.)@ full load | 120V<10%; 277V<15% | ||
| Efficiency(Typ.)@ full load | 120V 79% ; 277V 80% | 120V 79% ; 277V 80% | |
| AC Current(Max.) | 0.5A@100VAC | ||
| Inrush Current (Typ.) | 120V--5A, 50%, 960us ; 277V--13A, 50%, 1ms | ||
| Leakage current | <0.50mA | ||
| Protection | Short Circuit | 120VAC Hiccup mode,recovers automatically after fault condition is removed 277AVC shut down o/p voltage, re-power on to recover after fault condition removed. | |
| Over Loading | ≤120% Hiccup mode,recovers automatically after fault condition is removed. | ||
| Over temperature | 100ºC±10ºC shut down o/p voltage, automatically recover after cooling. | ||
| Environment | Working TEMP. | -40~+60ºC (see below derating curve) | |
| Working Humidity | 20~90%RH, non-condensing | ||
| Storage TEMP. Humidity | -40~+80ºC,10~95%RH | ||
| TEMP .coefficient | ±0.03%/ºC(0~50ºC) | ||
| Vibration | 10~500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes | ||
| Safety& EMC | Safety standards | UL8750+UL1310, CAN/CSA-C22.2 No.250.13 | |
| Withstand voltage | I/P-O/P:1.88KVac | ||
| Isolation resistance | I/P-O/P:100MΩ/500VDC/25ºC/70%RH | ||
| EMC EMISSION | FCC 47 CRF Part 15, Subpart B | ||
| others | Net. Weight | 0.2Kg | |
| Size | 260*30*18.5mm (L*W*H) | ||
| packing | 330*270*130mm/50pcs /CTN | ||
| Notes | 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25ºCof ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. | ||
