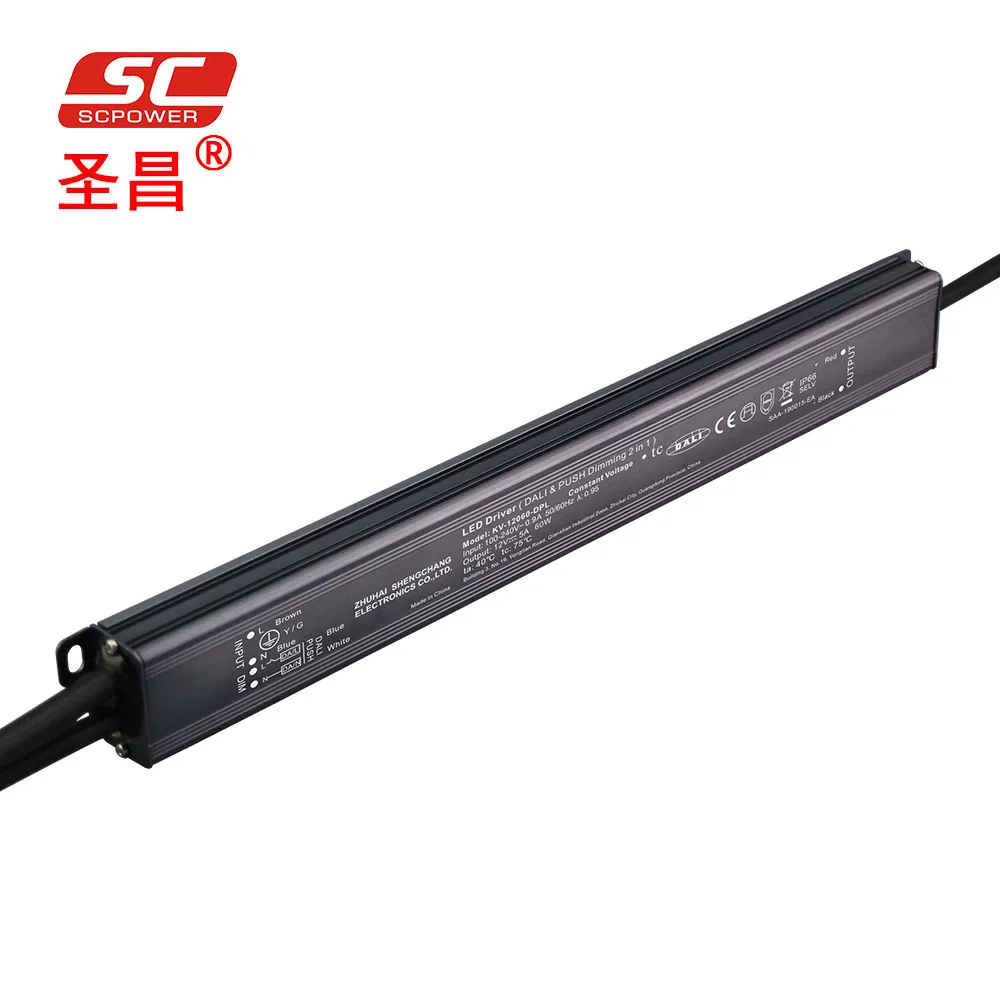

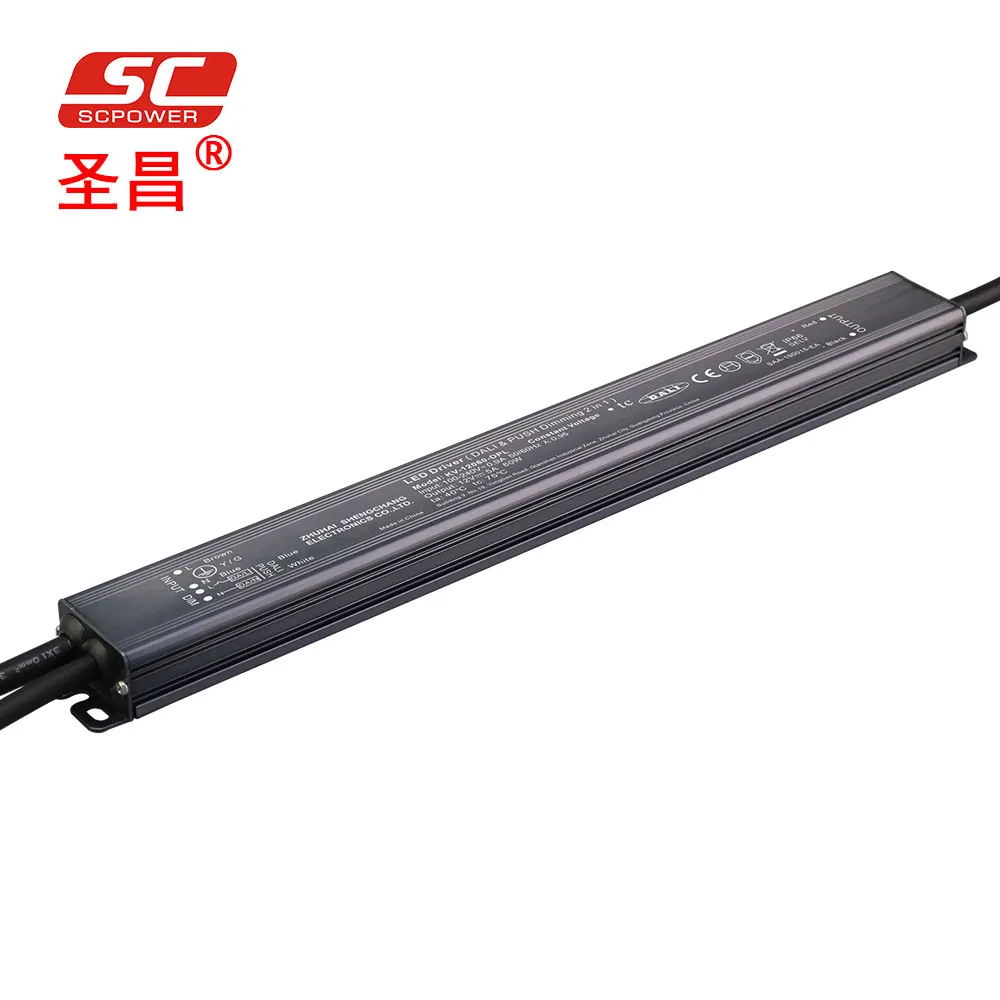

150 Linear Dali Driver Dali Push 12V DC Rain Proof LED Driver Transformer

Product Description

150 linear dali driver dali push 12v dc rain proof led driver transformer

Feature

·Output constant Voltage

·Range: 100-277VAC

·Built-in active PFC function

·Efficiency up to 88%

·Protections: short circuit/over load/ over temperature

·Cooling by free air convection

·IP66 design for indoor and outdoor installation.

·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386

·Push dimming function

·Dimming range: 0-100%, LED start at 0.1% possible

·Suitable for intelligent LED lighting

Specification

Model		KV-12100-DPL	KV-24100-DPL
Output	DC Voltage	12V	24V
	Voltage Tolerance	±0.5V
	Voltage Regulation	±0.5%
	Rated current	8.34A	4.17A
	Rated power	100W
	Load Regulation	±2 %
Input	Voltage Range	100-277VAC
	Frequency Range	47 - 63Hz
	Power Factor(Typ.)@ full load	0.98@120VAC	0.98@120VAC
	THD(Typ. ) @ full load	10%@120VAC	10%@120VAC
	Efficiency(Typ.)@ full load	88%	88%
	AC Current(Max.)	1.2A@100VAC
	Inrush Current (Typ.)	4.1A (twidth=220us) @120VAC ; 35.2A (twidth=164us) @230VAC ; 12.8A (twidth=960us) @277VAC ;
	Leakage current	<0.5mA
Protection	Short Circuit	shut down o/p voltage, re-power on to recover after fault condition removed
	Over Load	≤120% Hiccup mode ,recovers automatically after fault condition is removed or shut down o/p voltage, re-power on to recover after fault condition removed
	Over temperature	100ºC±10ºC shut down o/p voltage, automatically recover after cooling.
	Protection Class	I
Others	Net Weight	0.53Kg
	Dimension	3303223mm (LWH)
	packing	360270175mm/30PCS/CTN G.W.:16.9KG/CTN
Notes	1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25ºCof ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
