China 12V LED Power Supply 4A LED Drive for Output Type Wholesale Single

Product Description

Overview

Quick Details

Place of Origin:

Guangdong, China

Brand Name:

AOTU

Model Number:

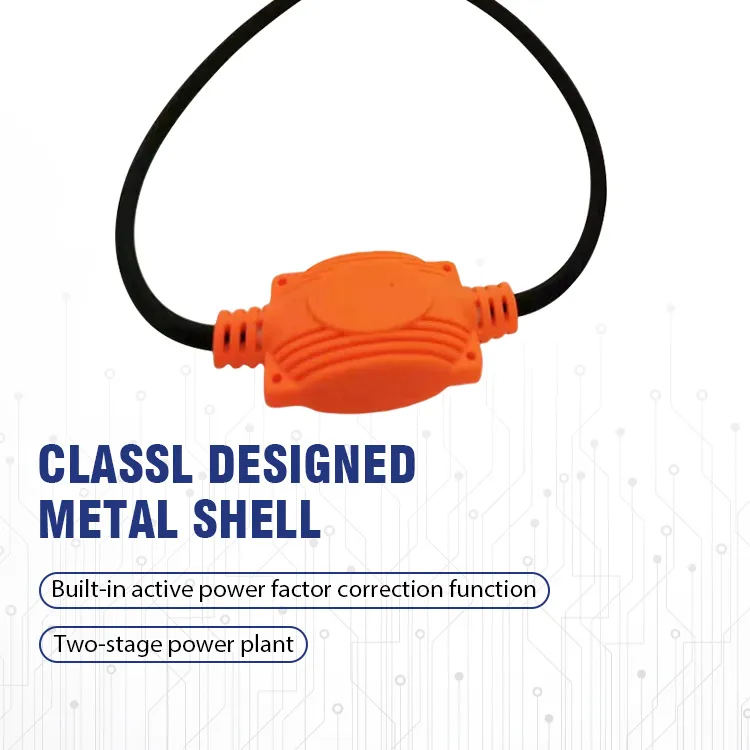

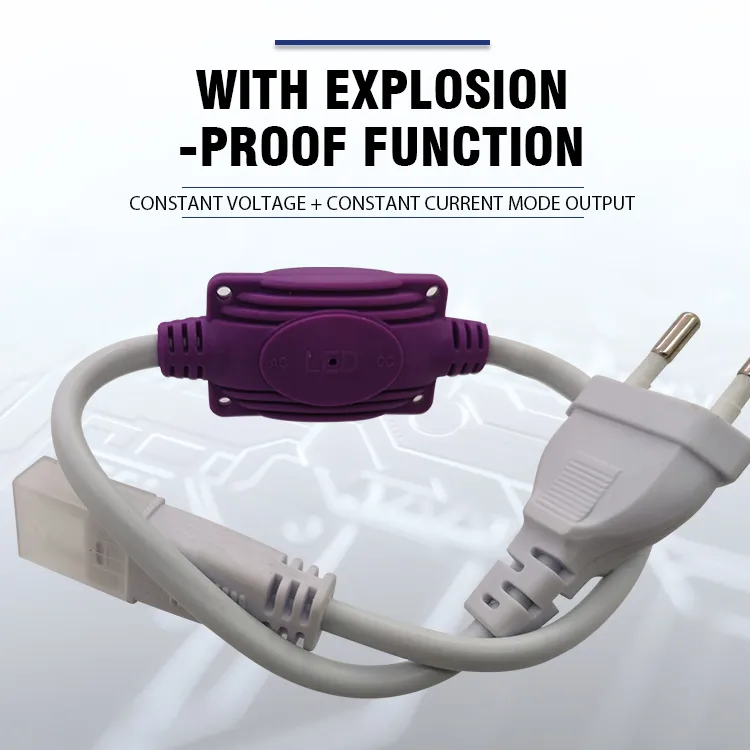

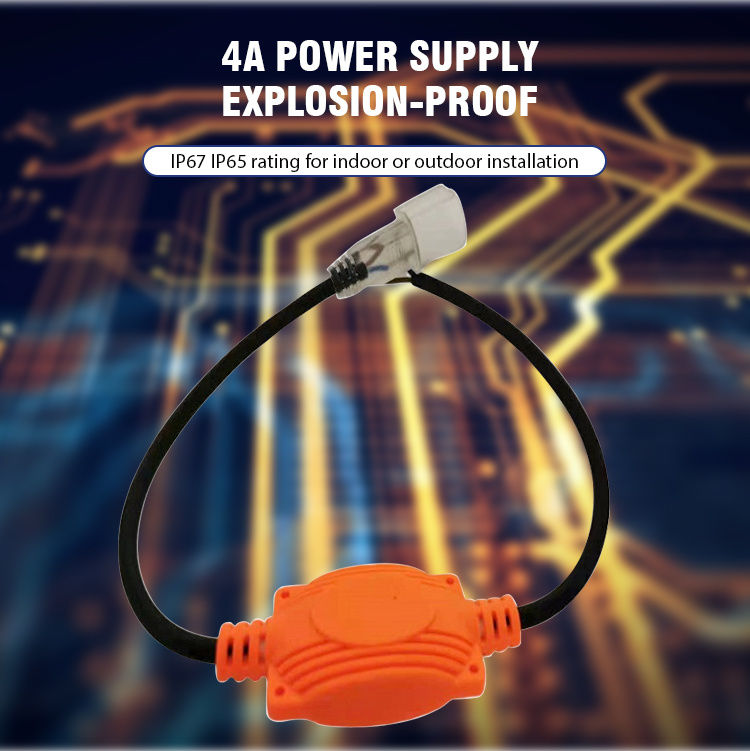

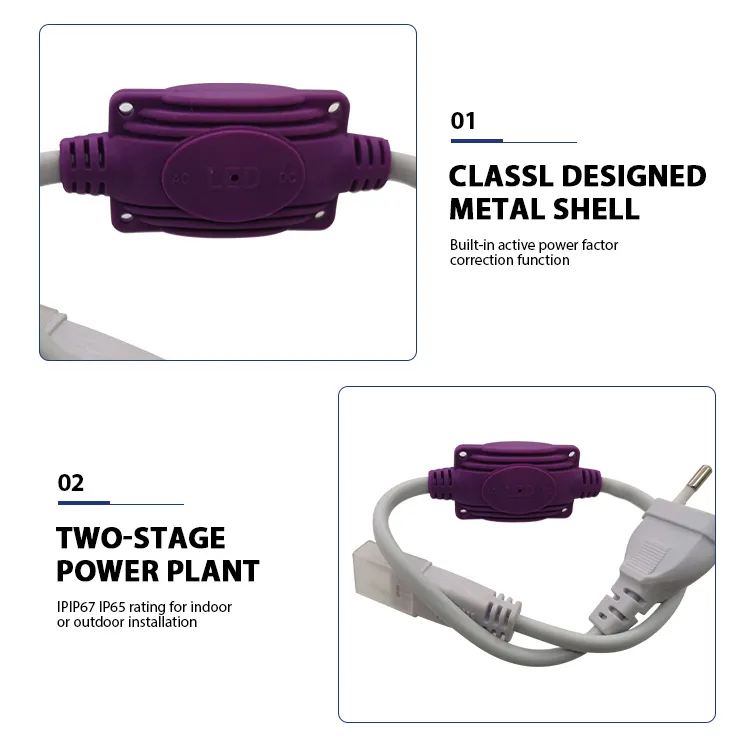

4A Explosion-Proof Power Supply

Output Power:

51 - 100W

Output Type:

Single

Input Voltage:

Other

Output Voltage:

Other

Output Frequency:

Other

Output Current:

Other

Product Name:

12V Waterproof Switch Power

Application:

Outdoor Lighting

Certification:

RoHS/CE/FCC/ISO9001

Size:

190*66*45mm

Warranty:

2 Years

Waterproof Standard:

IP67

Working temperature:

0~40°C

Protections:

Short circuit/over load/over voltage

ODM OEM:

Accept

Weight:

880g

Selling Units:
Single item
Single package size:
XX cm
Single gross weight:
kg
Package Type:
BOX
Lead Time:

Quantity(Pieces)	1 - 500	>500
Est. Time(days)	20	To be negotiated

Brand Name	AOTU
Product Name	4A Explosion-Proof Power Supply
Size	1906645mm
Material	Plastic
Warranty	2 Years
Certificate	RoHS/CE/FCC/ISO9001
Application	Outdoor Lighting
Protection Design	Short Circuit/Over Load/Over Voltage
DC Output	1.DC Voltage: 12V 2.DC Current : 8.3A 3.Ripple & Noise: 80MV 4.DC Adjustable Range: ±10% Rated Voltage 5.Voltage Tolerance: ±2.0% 6.Line Regulation: ±0.5% 7.Load Regulation: ±1% 8.Setup,Rise Time,Hold Up Time:200ms,50ms, 20ms/230VAC
AC Input	1.AC Voltage Range: 85-264VAC 2.Frequency Range: 47-63Hz 3.Efficiency:90% 4.AC Current: 0.86/115V 0.4A/230V 5.AC Inrush Current: 20A/115V 40A/230V 6.Leakage Current< 0.5mA /240VAC
Environment	1.Working temp.: -10~ +60C° (Refer to output load derating curve) 2.Working Humidity:20 ~ 90% RH, non-condensing 3.Storage Temp.: -10~ +60C° 4.Storage Humidity: 10 ~ 95% RH
