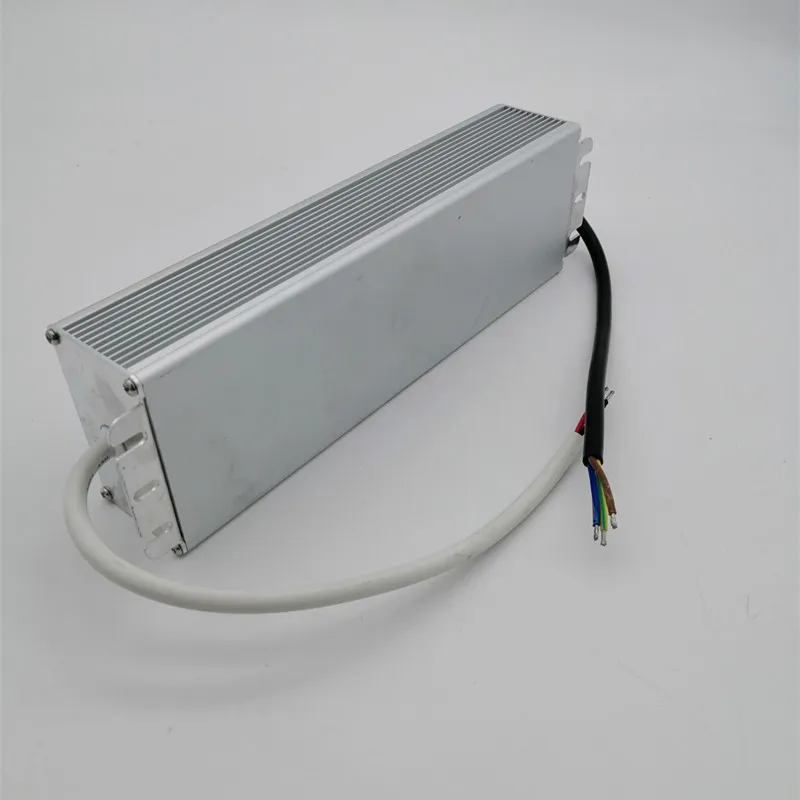

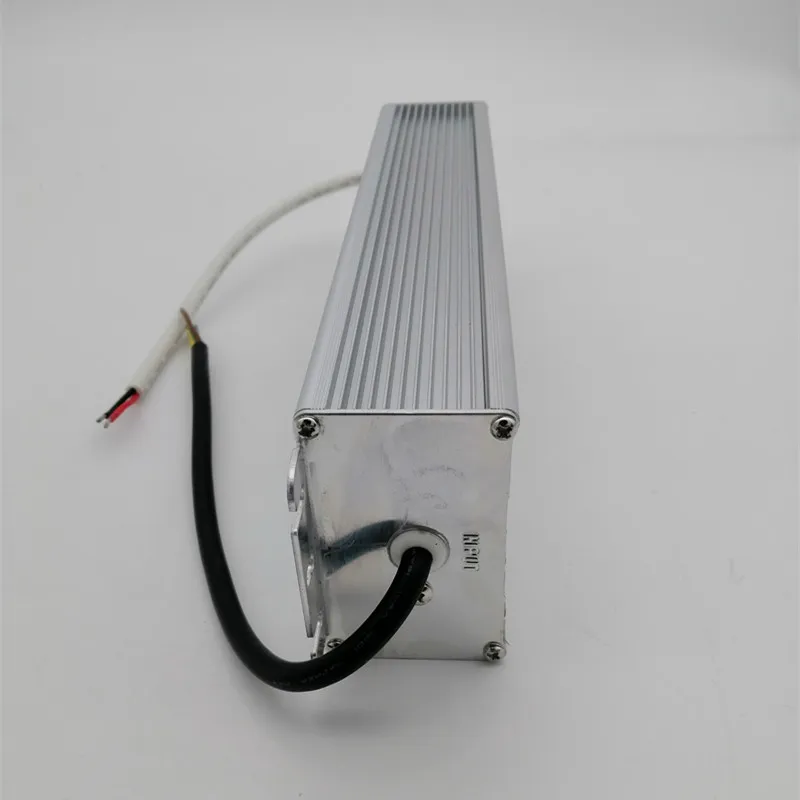

12V DC LED Waterproof Type 200W Switching Power Supply Lpv-200W-12V

Product Description

12V DC LED Waterproof Type 200W Switching Power Supply LPV-200W-12V

Lpv30W Waterproof Type 24V 30W LED Switching Power Supply SMPS

Feature:

1. Low price and high reliability of LED switching power supply
2.105 degree output capacitor
3. AC input power suitable for the world
4. High efficiency and low operation temperature
5. Soft-start current can reduce the AC input impact effecticly
6. Compact size, light weight
7.100% full-load bum-in test
8.24hours testing
9. Installed with EMI filter, minimum wave.
10. Waterproof level: IP67

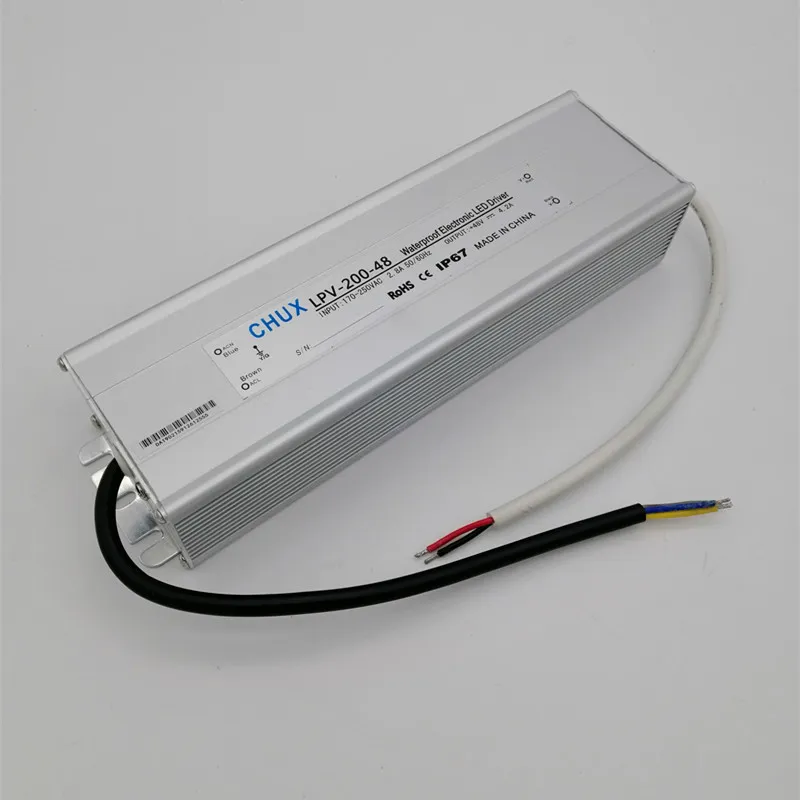

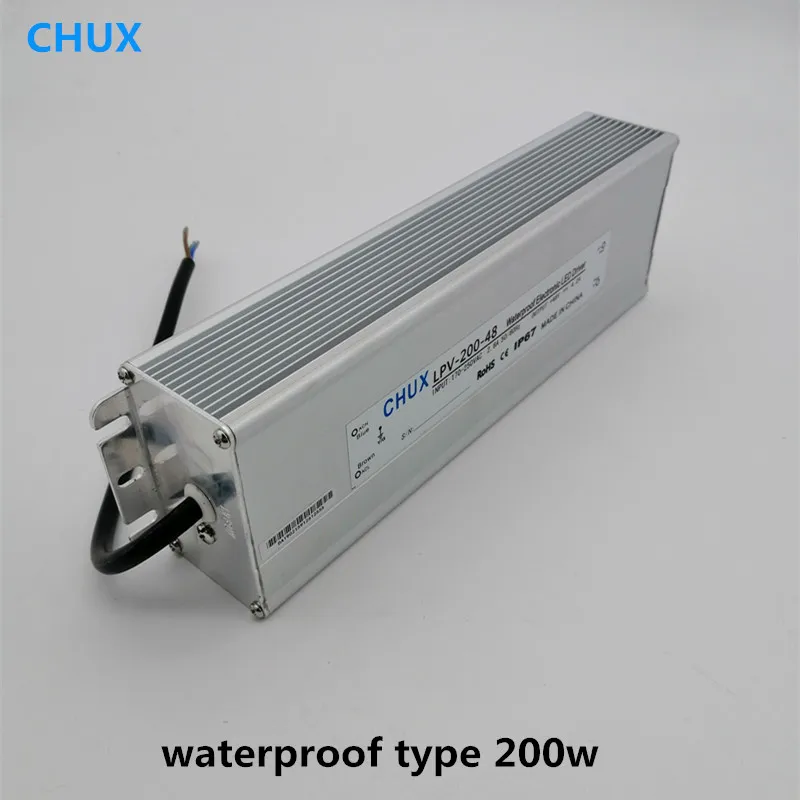

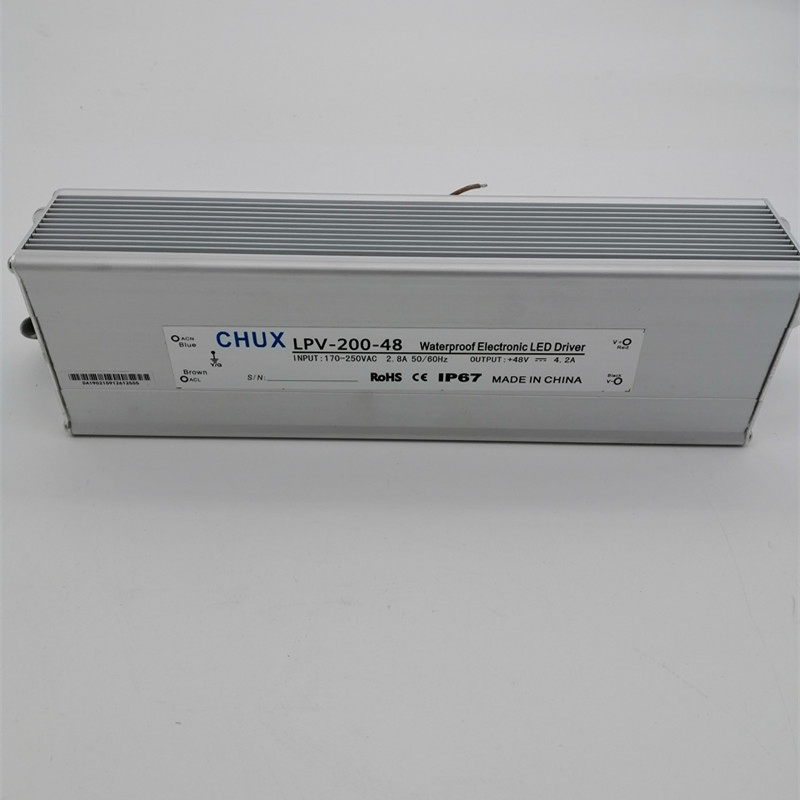

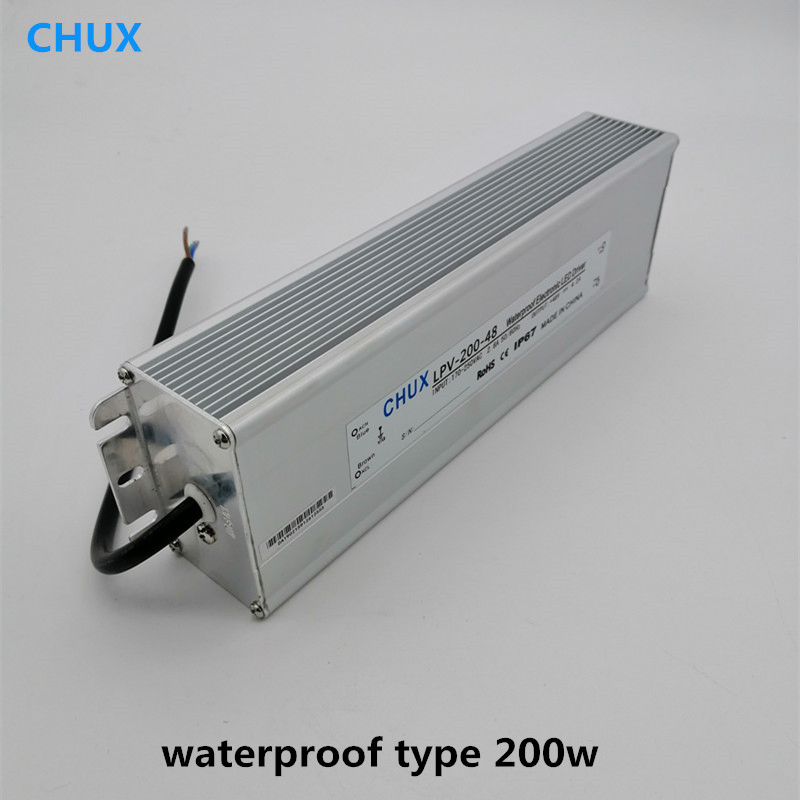

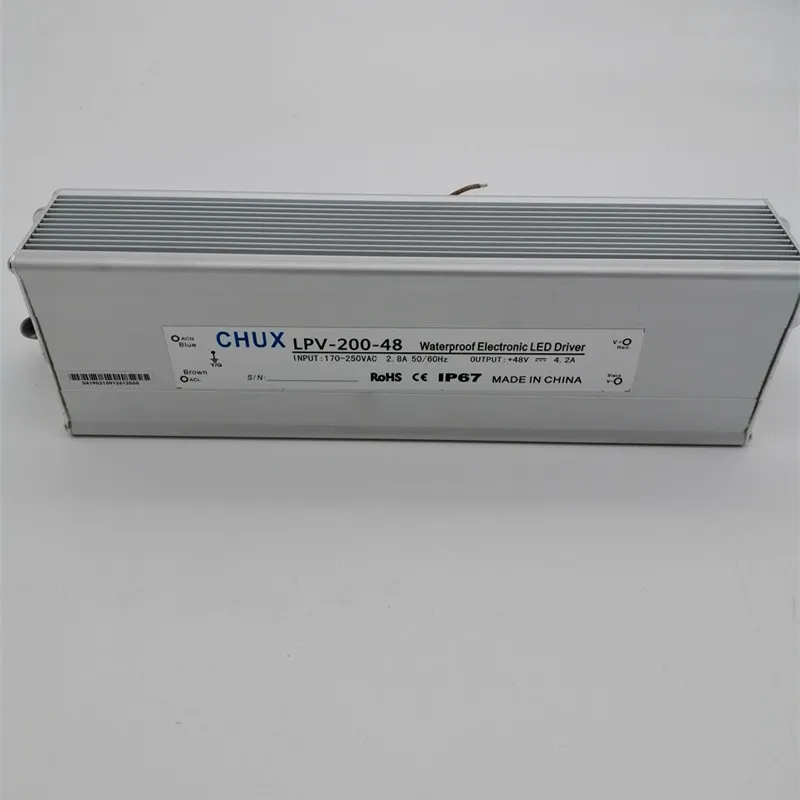

LPV-200W LED driver water-proof power supply
Model NO.	OUTPUT	Tolerance	range	efficiency
LPV-200-12	12V, 0-16.7A	± 1%	150mV	85%
LPV-200-15	15V, 0-13.3A	± 1%	150mV	86%
LPV-200-24	24V, 0-8.3A	± 1%	150mV	87%
LPV-200-48	48V, 0-4.1A	± 1%	150mV	88%
AC input voltage range		170-260vac 47-63hz
input current		2.0A/230V
AC inrush current		Cold-start current 60A/230V
Leakage current		< 3.5mA/240VAC
DC adjustable range		± 10% rated output voltage
Over load protection		105-150%cut down output, auto-recovery
Water-proof degree		IP67
set up, rise, hold up time:		200ms, 50ms 20ms
withstand voltage:		I/P-O/P: 1.5KVAC 1Minutes I/P-FG: 1.5KVAC 1MInutes O/P-FG: 0.5VAC 1minutes
working temperature		-20~+60° C, 20-90%RH
weight/packing:		1.4kg
Size		2406843MM
certificate		CE ISO9001 ROHS
Warranty year		1 year
Protections		Short circuit / Over load / Over voltage
