China 12V/24V Waterproof 150W/200W Constant Voltage LED Power Supply

Product Description

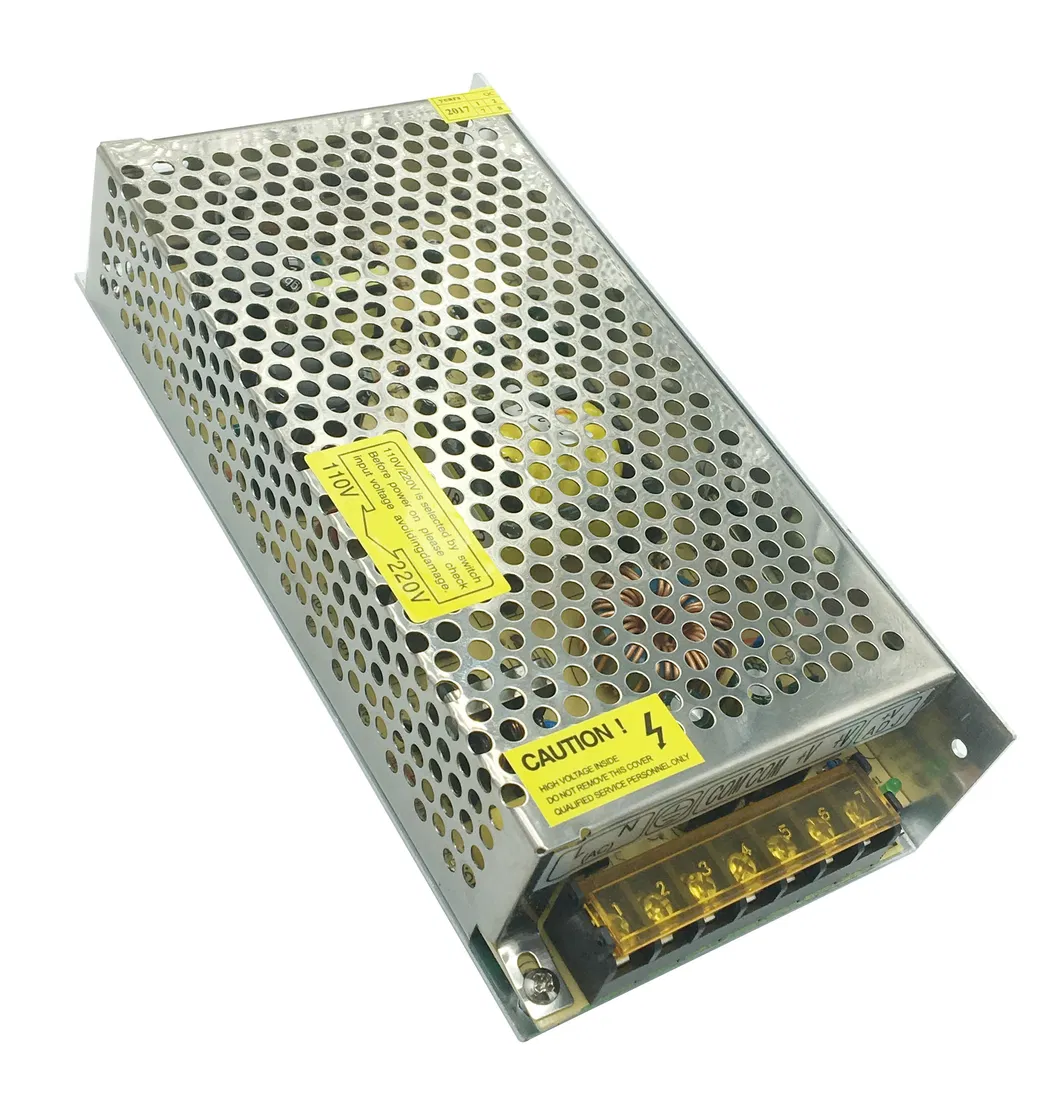

12v/24v waterproof 150w/200w Constant Voltage LED Power Supply

Features:
·AC input voltage range selected by switch
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage/over temp
·Built-in cooling DC fan
·Cooling fan ON-OFF auto control
·LED indicator for power on
·100% full load burn-in test
·2 Years warranty

Model		DSF-200-5	DSF-350-5	DSF-120-12	DSF-150-12	DSF-200-12	DSF-250-12	DSF-400-12
output	DC voltage	5V	5V	12V	12V	12V	12V	12V
	Voltage tolerance	±2%	±1%	±1%	±1%	±1%	±1%	±1%
	Rated current	40A	70A	10A	13A	17A	21A	33A
	Current range	0~40A	0~70A	0~10A	0~13A	0~17A	0~21A	0~33A
	Rated power	200W	350W	120W	150W	200W	250W	400W
	DCvoltage ADJ.range	-9%~+10%	±10%	±10%	±10%	±10%	±10%	±10%
input	Voltage range	90~132VAC/176~264VAC(selected by switch)
	frequency	47~63HZ
	AC current	6.5A/115V AC,4.0A/230V AC
	efficiency	80%	80%	80%	80%		80%	80%
	Inrush current	Cold start current25A/115VAC,30A/230VAC
Fitstandard	Safety standard	Compliance to UL1012
Fitstandard	EMC standard	Compliance to EN55022,CLASSA
others	Dimension	22315070MM(LWH)
others	Weight/packing	*1000g/20pcs/22kg/Measure: 48.538.535cm*
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25ºCof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation

Protections:
Short circuit protection
Over voltage protection
Over-current protection
Over temperature protection
Fan cooling

100% full burn-in testing and full power
Offer OEM service, accept print your own label and special requirements for package and other
Strong reliability , high efficiency and energy conservation & environmental protection
Hot sales and high Cost-effectived

12V/24V Waterproof 150W/200W Constant Voltage LED Power Supply

FAQ:

Q: What is your MOQ?
A: Generally our MOQ for each model is 100PCS for metal case power supply, we can discuss in details if you have special requirements, like big quantity for the whole order but small quantity for each model.

Q: How about the warranty of your product?
A : Generally we offer 2 years warranty for our products. Quality is the most important for long-term business partnership, and it is also our company aim to offer high quality and guaranteed products to help our clients expand their target markets.

Q: How can I finish my payment?
A: T/T, Western Union and LC are all acceptable, PayPal is also OK.

Q: How can I get detailed specifications about this product? Do you have catalogue and price list?
A: We have all the specifications, catalogues and price lists for each model. Welcome to contact us for detailed information via the contact ways mentioned below anytime!

Q: What is shipping method?
A: Samples will be sent via DHL, UPS, FedEX, TNT, EMS, etc. while bulk goods will be sent by sea or air. If you have familiar forwarders in China, we can send our goods there to save your cost.

Q: How about sample? For free?
A: YES! Generally we offer 1-3PCS sample(s) for your test FOR FREE, but you need to bear the freight cost. If your sample quantity is more than 3PCS, we will charge some sample fee, and we might return it when you place your first formal order as we discuss ahead.

Please feel to contact us for further questions and welcome to visit our factory.
We hope to establish long term business relationship with all friends in the near future.
