12V 24V 12.5A IP67 300W Waterproof LED Switching Power Supply
12V 24V 12.5A IP67 300W Waterproof LED Switching Power Supply1.Brief Introduction of 300W LED power supply-Slim body, special design for application with narrow space, such as cove light, LED light box, channel letter...-Fully sealed & waterproof, IP67-Constant voltage output-High efficiency up ......
Send Inquiry
Product Description
12V 24V 12.5A IP67 300W Waterproof LED Switching Power Supply
1.Brief Introduction of 300W LED power supply
-Slim body, special design for application with narrow space, such as cove light, LED light box, channel letter...
-Fully sealed & waterproof, IP67
-Constant voltage output
-High efficiency up to 90%
Store Temperature: -25~75° C
Working Temperature: -25~40° C
Work environment: Indoor or outdoor installations
Waterproof Rating: IP67
2.Technical Specification of 300W LED power supply
| Model no. | HPS-12E300 |
|---|---|
| Input voltage | 90-265 VAC 50/60 Hz |
| Max. power | 300W |
| Output type | Constant voltage |
| Built-in active PFC | Yes |
| Power factor | 0.9 |
| Efficiency | 92% |
| AC inrush current(max.) | Cold start, 40A@230VAC |
| Output voltage | 12VDC ± 5% |
| Output current | 16.7A max |
| Overload protection | 105% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -25~+40 ºC |
| Installation | Outdoor waterproof |
| IP rating | IP67 |
| Cooling | Free air convection |
| Certificates/standards | CE,BIS,PFC,EMC ETC. |

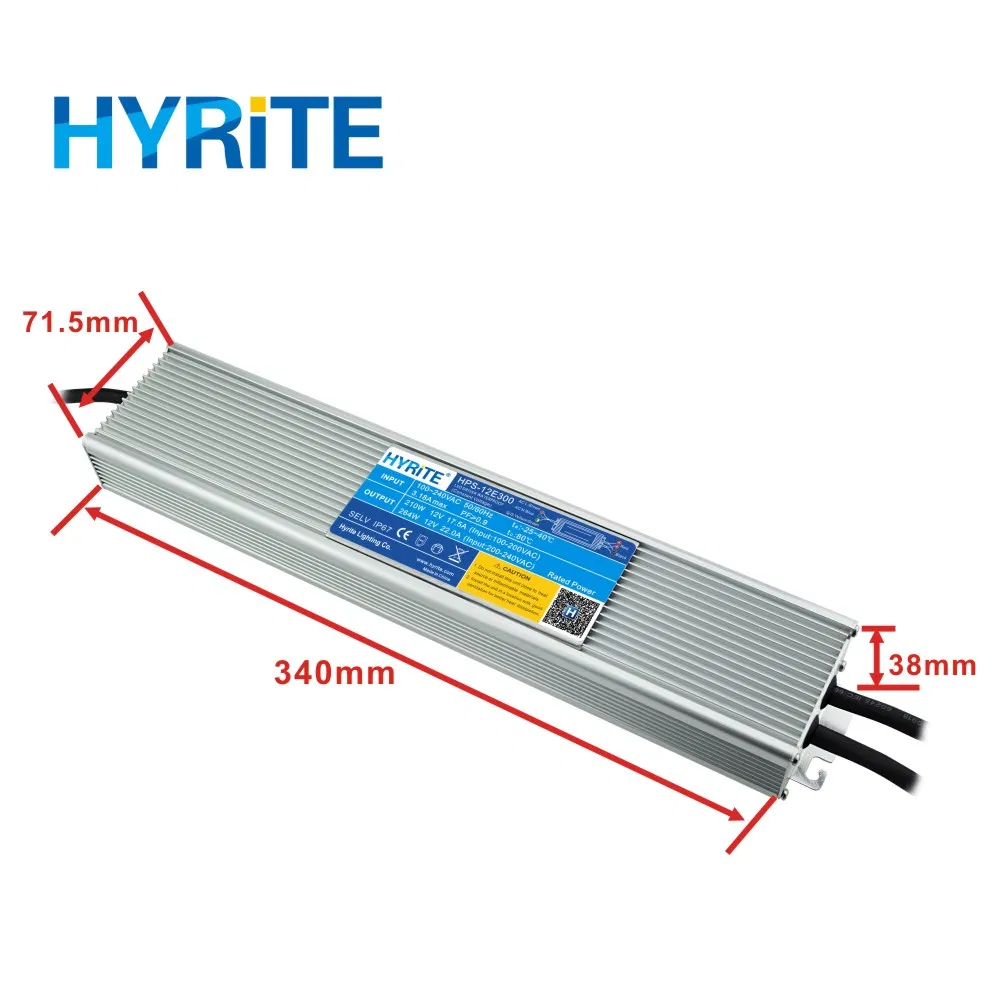

| Product Dimension | 369*71.5*39mm |
| Packing | 10pcs/ carton; 25KG; 410*315*225mm |
3. Applications of 300W LED power supply
*LED module & LED strip*Perforating lamp & pixel lamp
*Light box & channel letter
*Wall washer
*Other signage lighting
* flex ribbon, bar light, etc...

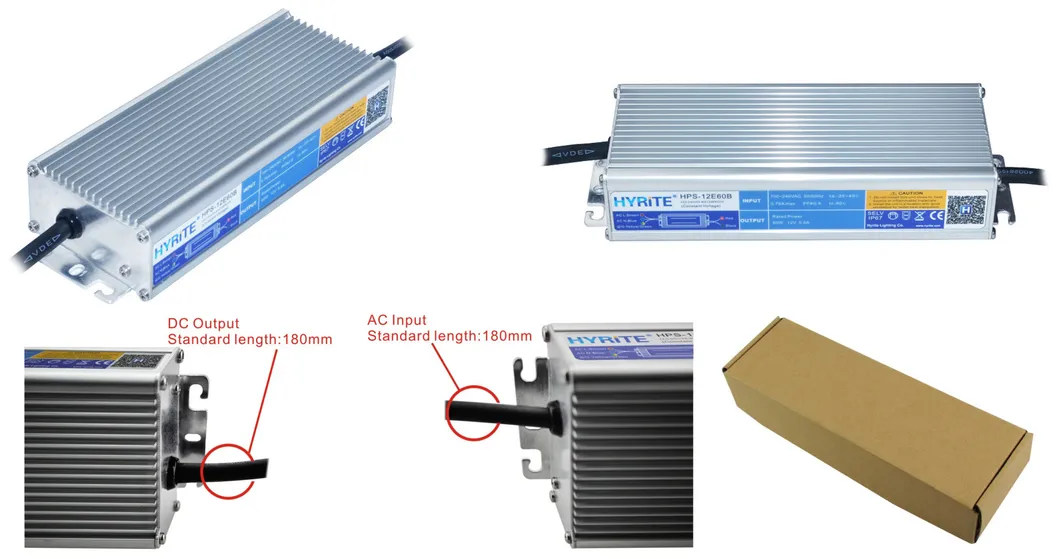

4.Product Details of 300W LED power supply
5.Projects & Workshop & Exhibitions
6. Factory profile:
Hyrite Lighting Co. was found in 1993,ISO9001:2015 certificated,with 10,000m2 clean workshop on 15,000m2 land in Guangdong, China,offices in USA and Europe.Hyrite has been dedicating itself to manufacturing switching power supply for signage and decorative lighting.
Our products passed UL,CSA,FCC,PFC,TUV,CE,C-Tick,EMC,CCC,SAA,SASO,BIS,etc.
Product Line: LED power supply,COB/SMD LED module,Neon power supply,electrode,with full range of certifications and wide range models to be used in different countries or areas.
Quality Control: DVT/DQT,IQC/IPQC/FQC,product 100% burn-in test (aging test),reliable resting labs,climatic environmental testing equipments.
Corporate Culture: Sincere,Optimistic,Creative,Mutually complementary.
Mission: To serve the needs of our clients in gaining a competitive advantage by harnessing technology.
