12V 200W Constant Voltage LED Power Supply with CE SAA Saso
1.Brief Introduction-External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light-Seamless aluminum case, fully sealed & waterproof-Constant voltage output-100% burn-in test2.Technical SpecificationModel no.LPS-12E200CInput voltage185-264 VAC 50......
Send Inquiry
Product Description
1.Brief Introduction
-External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light
-Seamless aluminum case, fully sealed & waterproof
-Constant voltage output
-100% burn-in test
2.Technical Specification
3.Product pictures
4.Applications
5. Company Overview
6.Certificates
7.Exhibitions
8.FAQ
Q1. Can I have a sample order for LED Driver?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days; mass production time needs 15-20 working days.
Q3. Do you have any MOQ limit for LED Driver order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LED Driver?
A: 1. please let us know your product's requirements
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on LED Driver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the faulty?
A: 1. Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
2. During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
-External driver for LED module, strip, flex ribbon, bar light, spot light, down light, wall washer, panel light
-Seamless aluminum case, fully sealed & waterproof
-Constant voltage output
-100% burn-in test
2.Technical Specification
| Model no. | LPS-12E200C |
|---|---|
| Input voltage | 185-264 VAC 50/60 Hz |
| Max. power | 200W |
| Output type | Constant voltage |
| Efficiency | 88 % |
| Output voltage | 12VDC ± 5% |
| Output current | 16.7 A max |
| Overload protection | 105%-120% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Operating temperature | -25~40 ºC |
| Installation | Outdoor waterproof |
| IP rating | IP67 |
| Cooling | Free air convection |
| Certificates/standards | CE,SAA,SASO |
| Connection input/output | Input:0.75mm²x3 (18cm) / Output:0.75mm²x2*4 (18cm) |
| Dimensions(L*W*H) | 254*85*35 mm |
| Weight(kg) | 3.08KG |
| Packing information | 5 Pcs/ Carton, G.W 17 KG |

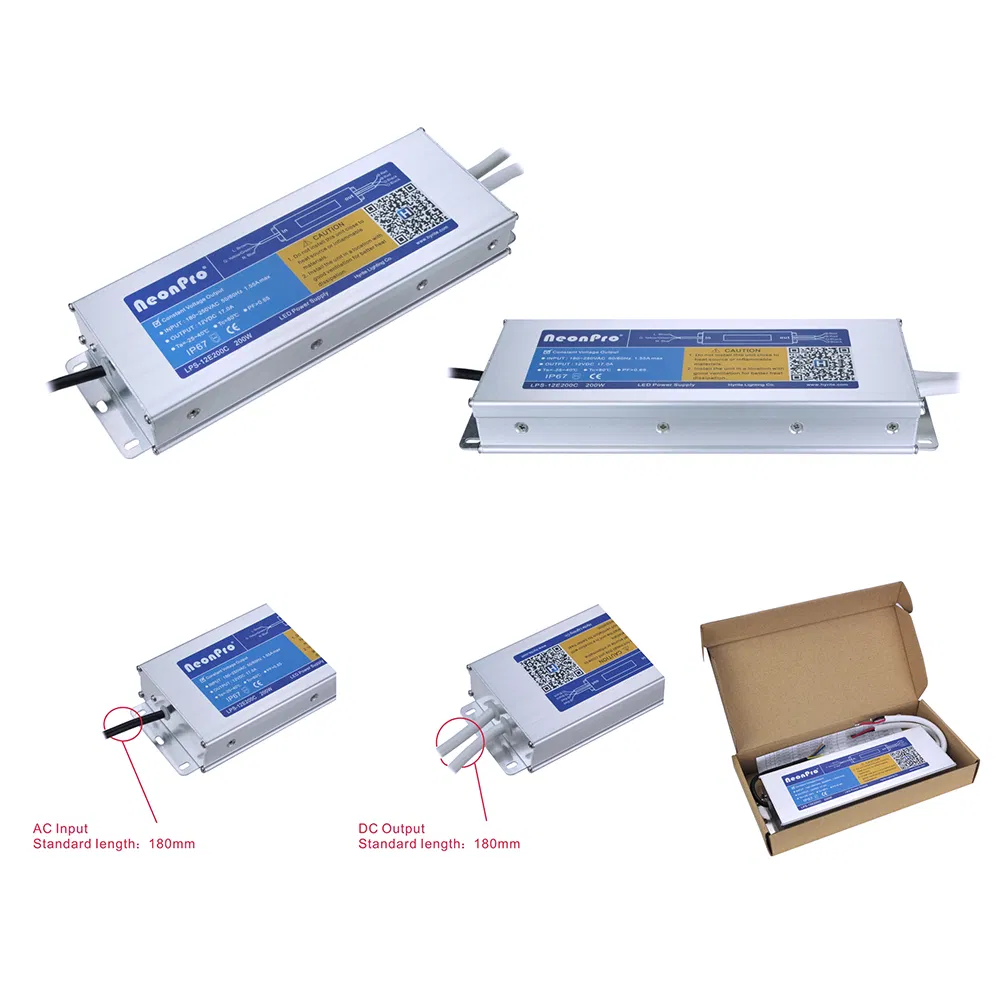

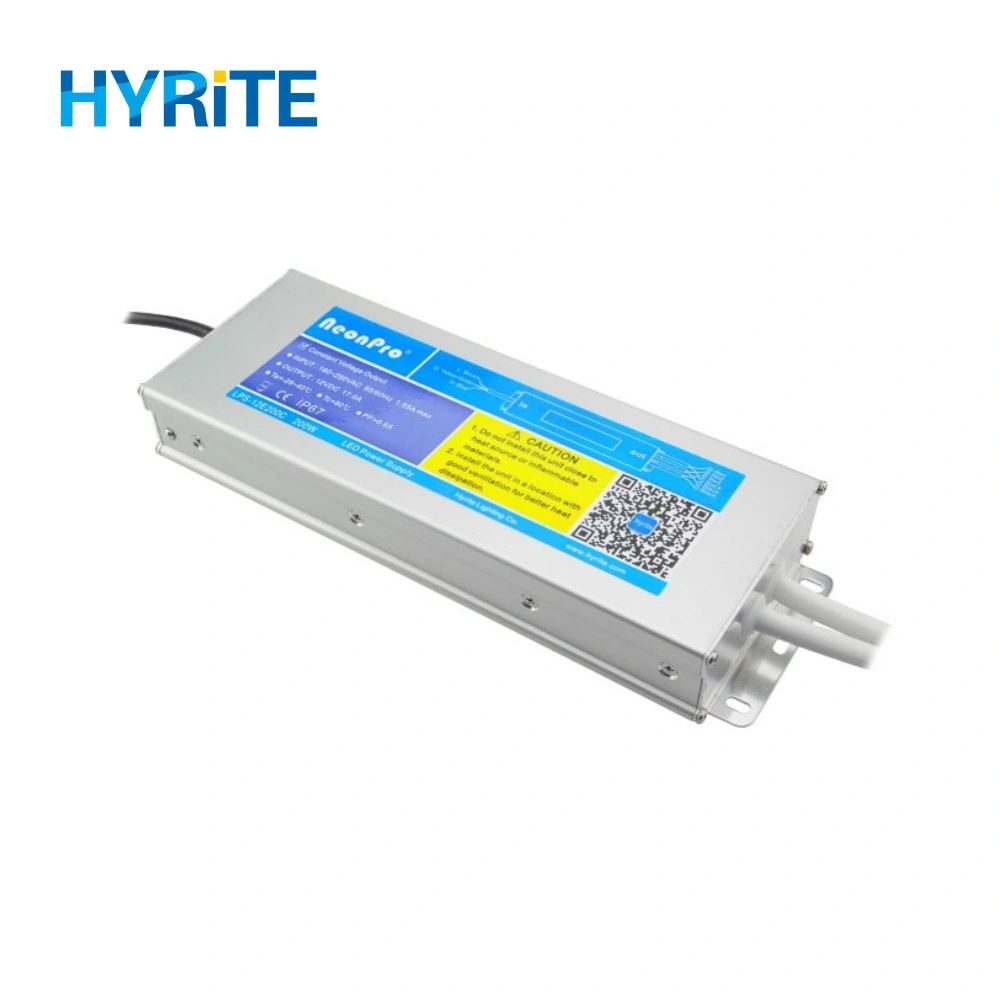

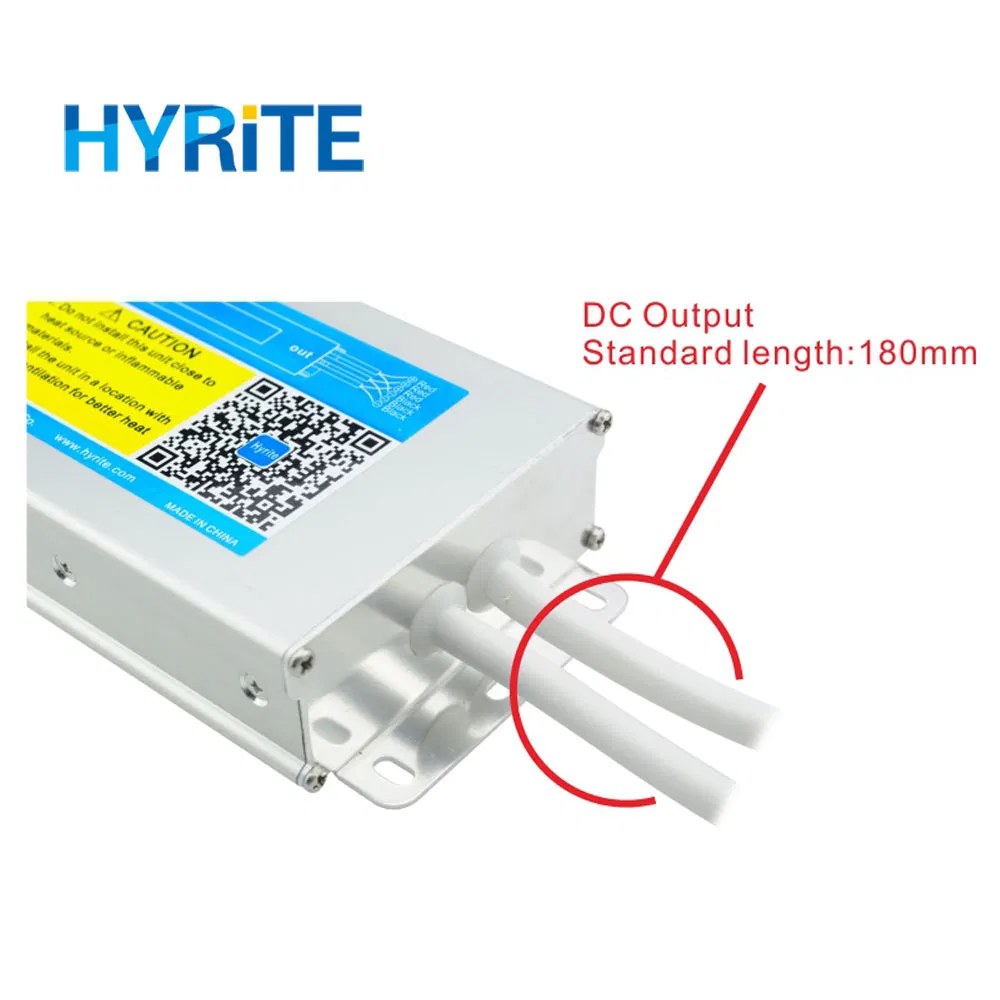

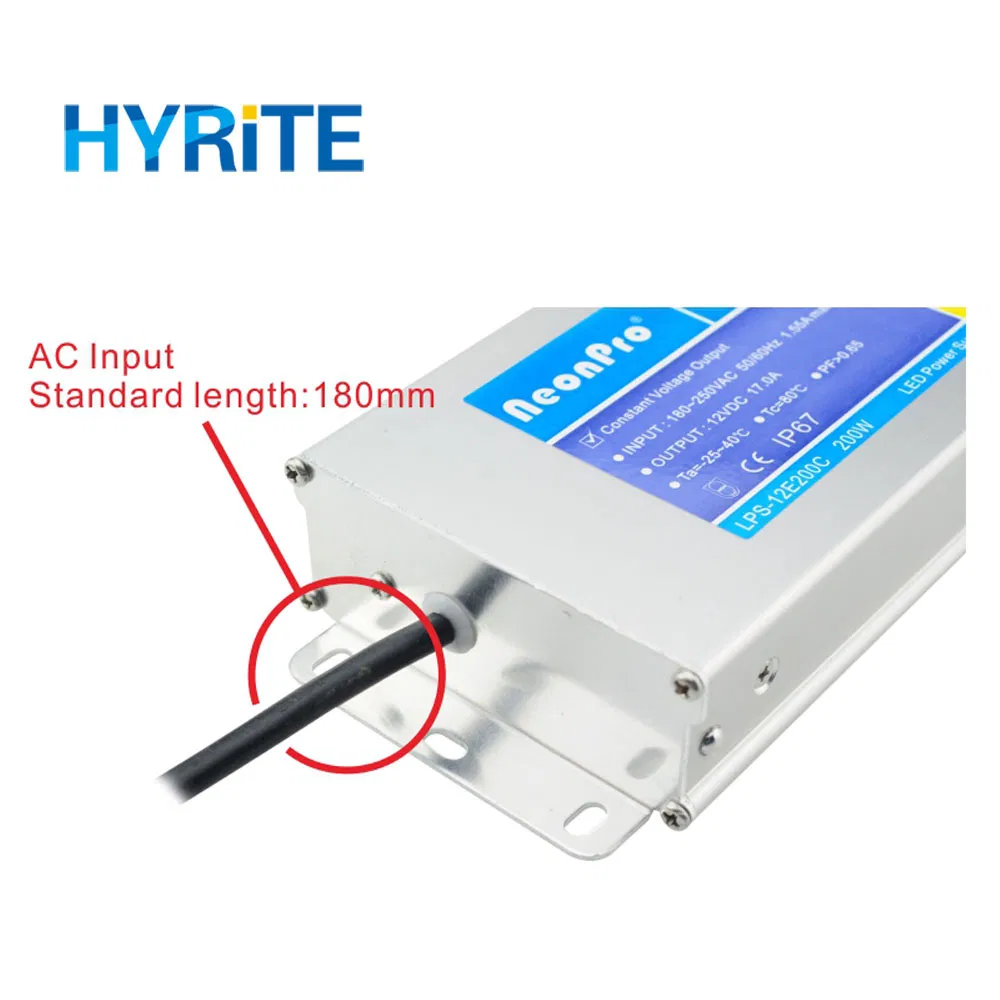

3.Product pictures

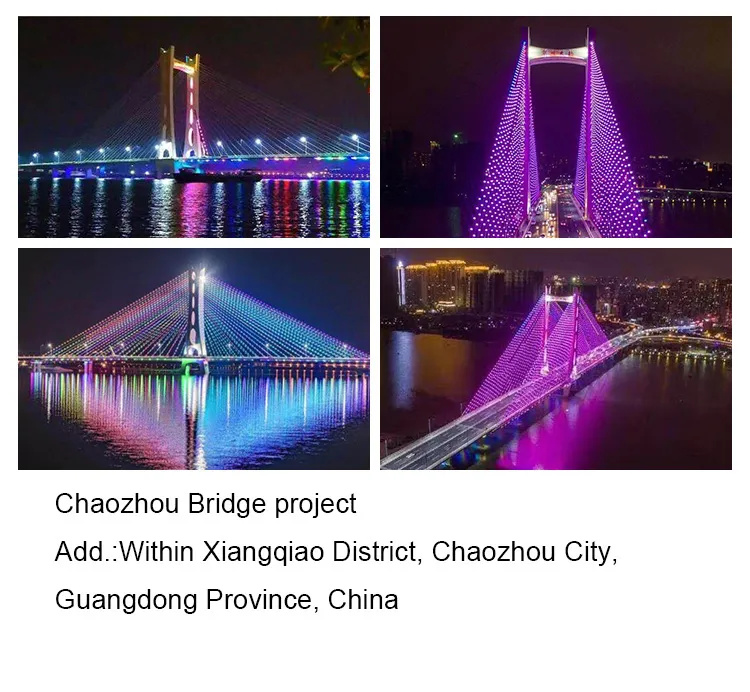

4.Applications

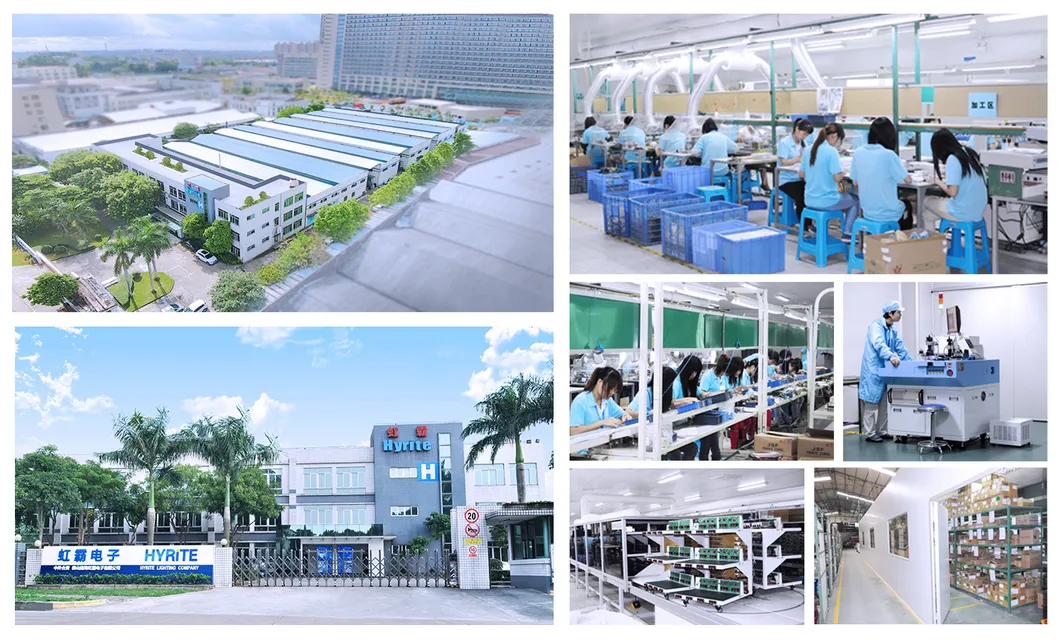

5. Company Overview

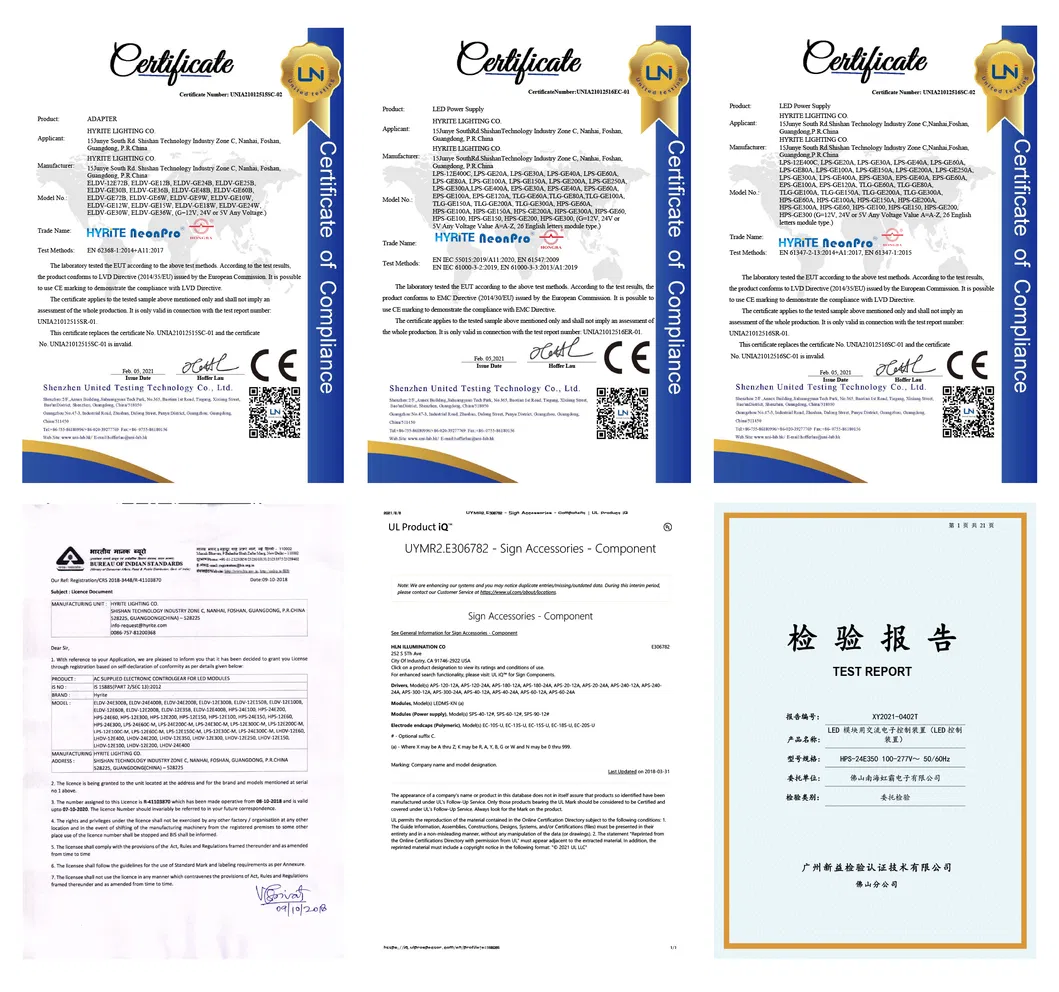

6.Certificates
7.Exhibitions
8.FAQ
Q1. Can I have a sample order for LED Driver?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days; mass production time needs 15-20 working days.
Q3. Do you have any MOQ limit for LED Driver order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for LED Driver?
A: 1. please let us know your product's requirements
2. We quote according to your requirements or our suggestions.
3. customer confirms the samples and places deposit for formal order.
4. We arrange the production.
Q6. Is it OK to print my logo on LED Driver product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: How to deal with the faulty?
A: 1. Our products are produced in strict quality control system and the defective rate will be less than 0.1%.
2. During the guarantee period, we will send new one with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
